Bluegame
62 #12

CONSTRUCTION
Moulded fiberglass construction
Sandwich core construction on side hull
Sandwich structural bulkheads vacuum bagged
Deck and coach roof made in sandwich infusion technology with vinylester resin

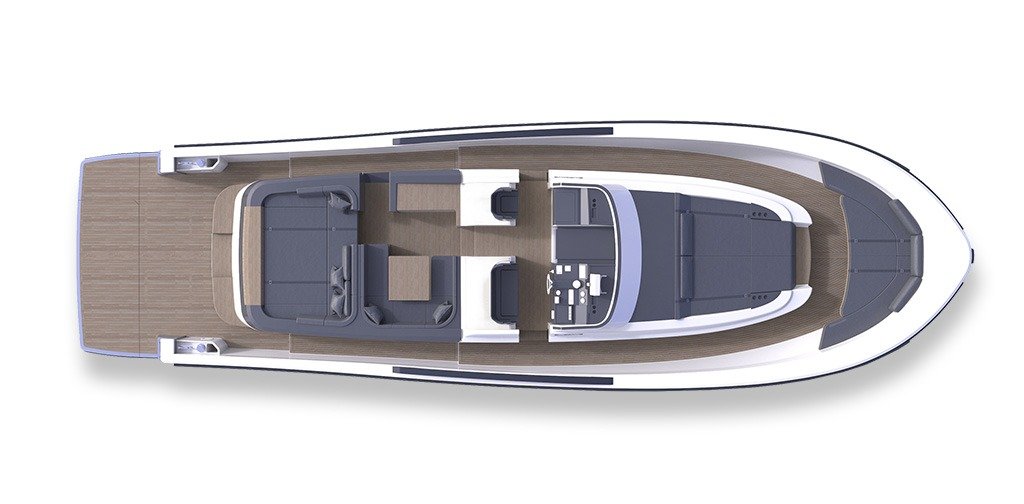

DECK
Twin fiberglass doors covering anchor system
Anchor 30KG S/S Bruce
Custom design bow roller S/S
Galvanized chain 10mm 75m
Anchor safety cable
Electric Anchor winch 1700w
Electric mooring winch 1500w
Two S/S fairlead
Four stainless steel cleats 350mm
Two stainless steel cleats 320mm
Fresh water outlet connection
Bow double sliding bases with teak table transforming in sun pad
Large bow sun pad with cup holders
Large stern sun pad openable with electric rams for access to engine room
Navigation and anchor lights led system
Courtesy lights on walk all round
Horn
Four Handrails in walkaround
Cockpit shower with hot/cold water mixer
Double fuel inlets
Fresh water inlet
Carbon-glass hard top with handrails and ladders with front laminated temperate glass
Helm station strataglass enclosure
Side glass windows on coachroof with integrated portholes
Black water tank drain outlet from shore
Front laminated tempered glass with double electric wiper with washer
Gaff rack on both sides
Access door to central storage and engine room

COCKPIT
Double carbon pilot seat
Single seat on port side
Two U-shape seatings with cushions thickness 10cm, made with waterproof foam
Two large storages behind of the pilot seat
Large storages behind of the single seat
Two telescopic teak table transforming in sunpad
Dinette access glass sliding door
Six speaker 8” (Four in cockpit, two on bow)
Subwoofer
Power and USB sockets
Courtesy LED lights on floor sides
Led lights with dimmer
Side bar cabinet with sink mixer tap water cold and warm water with teak top
Trash bin
Stainless steel fridge

CONSOLE
Compass
Two Raymarine 12” GPS, depth and engines instrument board, complete digital indicators for engines parameters( rpm, oil pressure, water temperature, engine sound warning alarm, fuel level)
Volvo Penta automatic pilot
Digital switching and digital automation for mains services DC and AC integrated in main panel
VHF station with antenna
Display EVC Volvo
IPS joystick
Volvo Penta electronic engine throttle
Two electric intruder system
Anchor winch control
Back lighted switch panel for deck services
Bluegame personalised steering wheel
Fire control for manual extinguisher

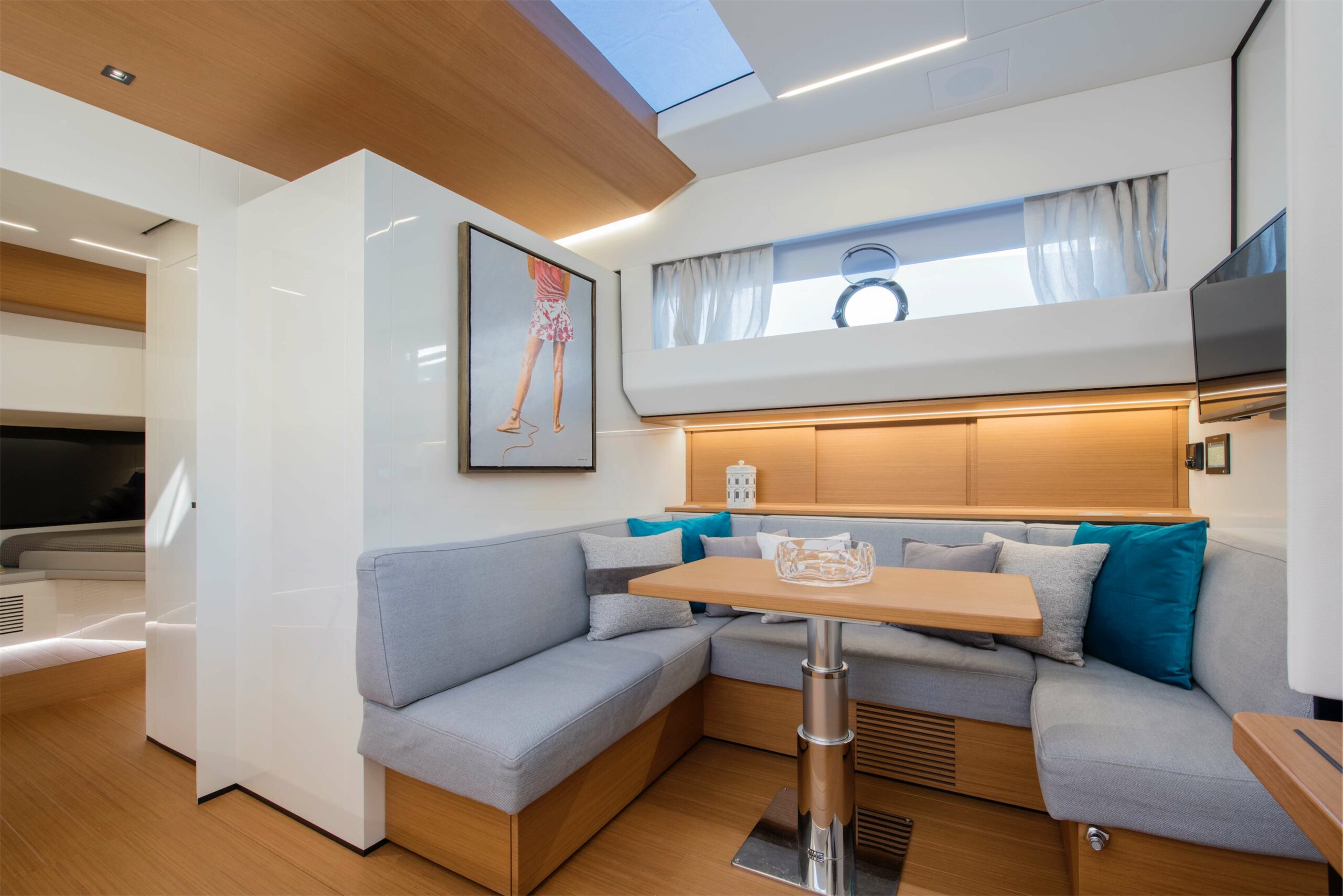

DINETTE
Dinette access glass sliding door
Stairs to lower deck with wooden steps
Handrail
C-shape sofa in fabrics
Electronic telescopic table
Side portholes
Blinds
Storage
Radio Mp3 Bluetooth
Two speakers
Power & USB sockets
Wooden floor
Electrical panel with breakers on all circuits
Led lights with dimmer

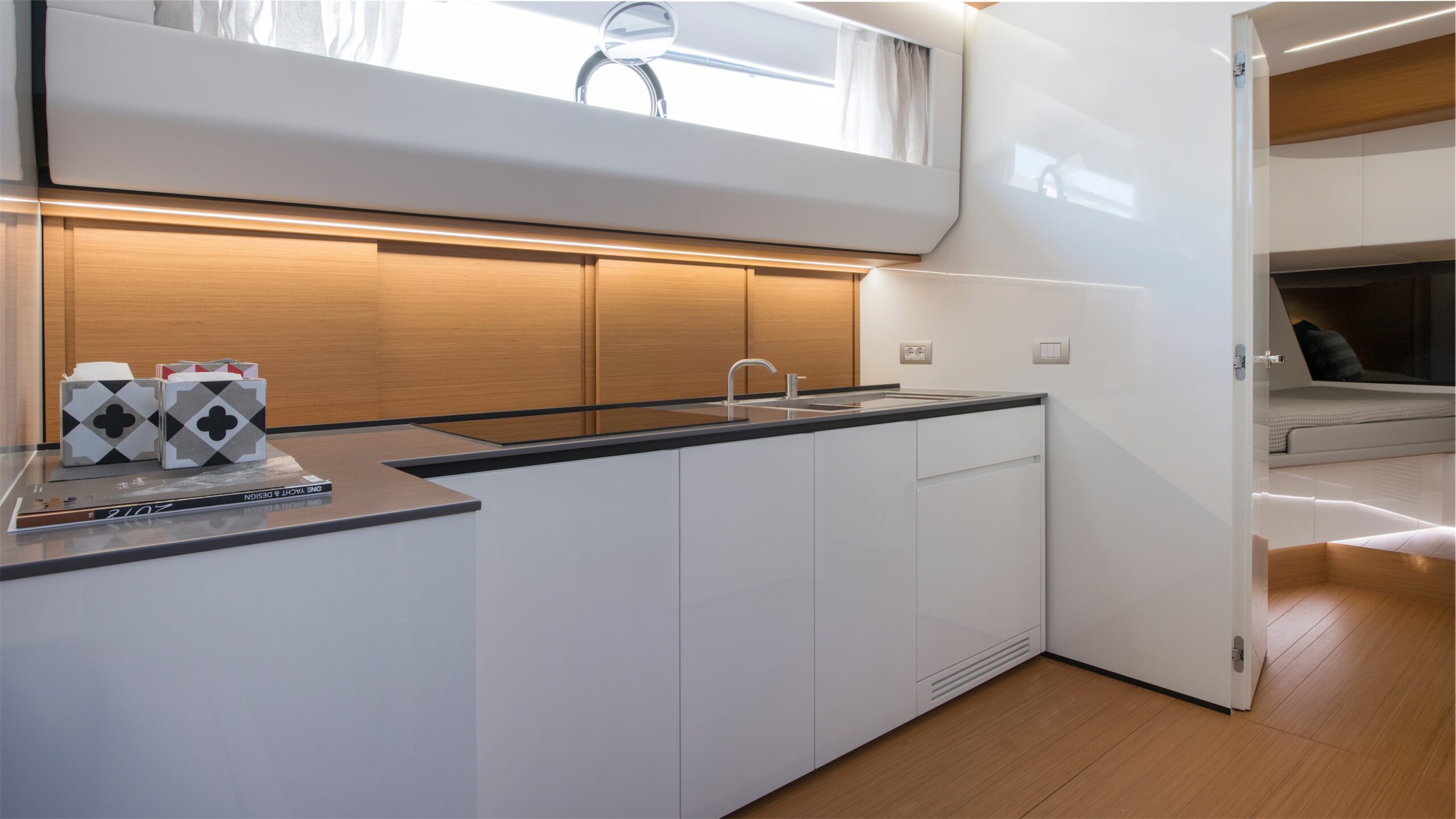

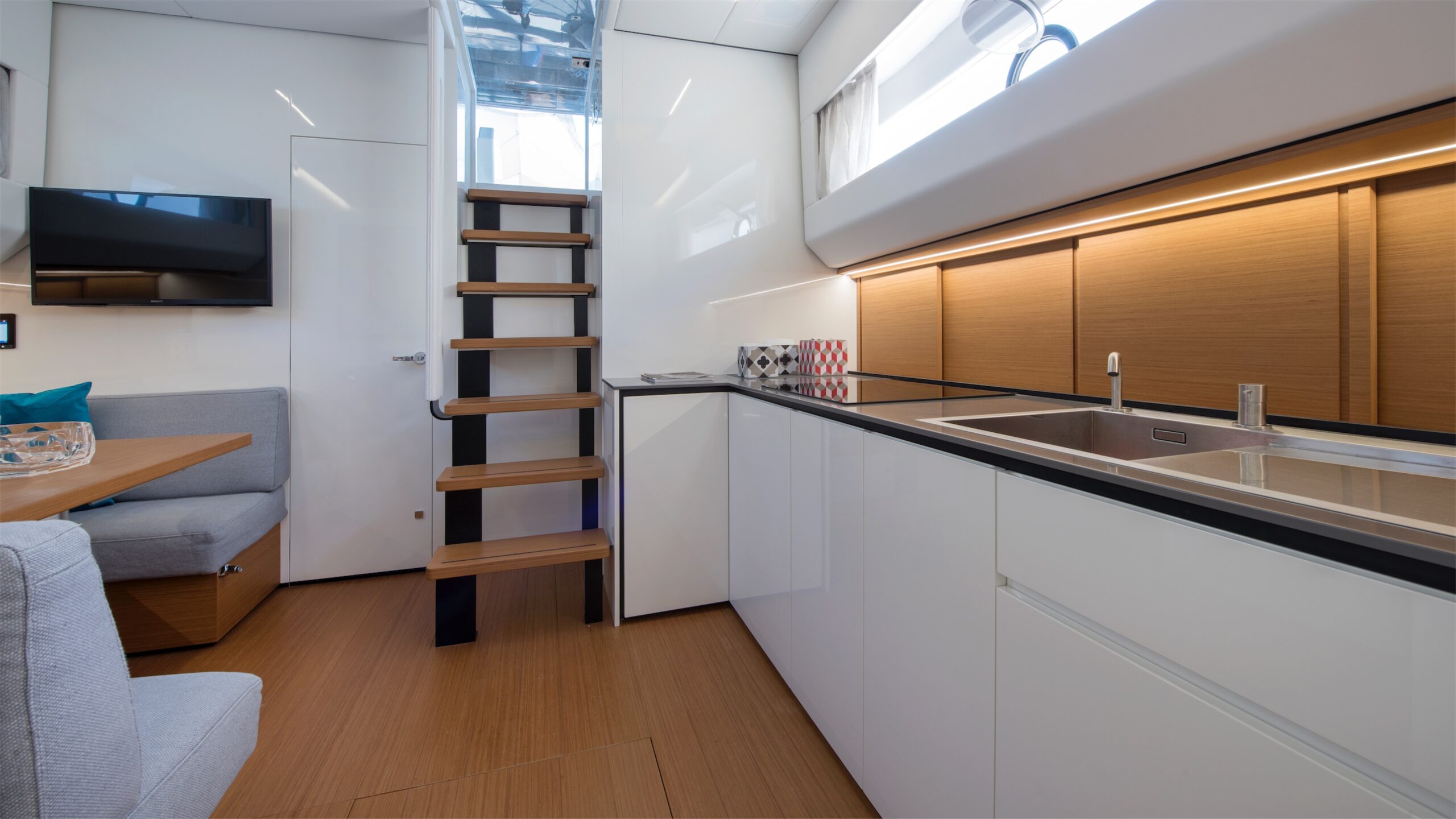

GALLEY
Blind
Painted wooden overhead cabinet
S/S sink
Synthetic worktop
Four zone electric induction cooktop
Mixer tap water cold and warm
Microwave
120lt refrigerator
Power sockets
Wooden floor
Led lights with dimmer
Trash compartment
Fire extinguisher 1kg

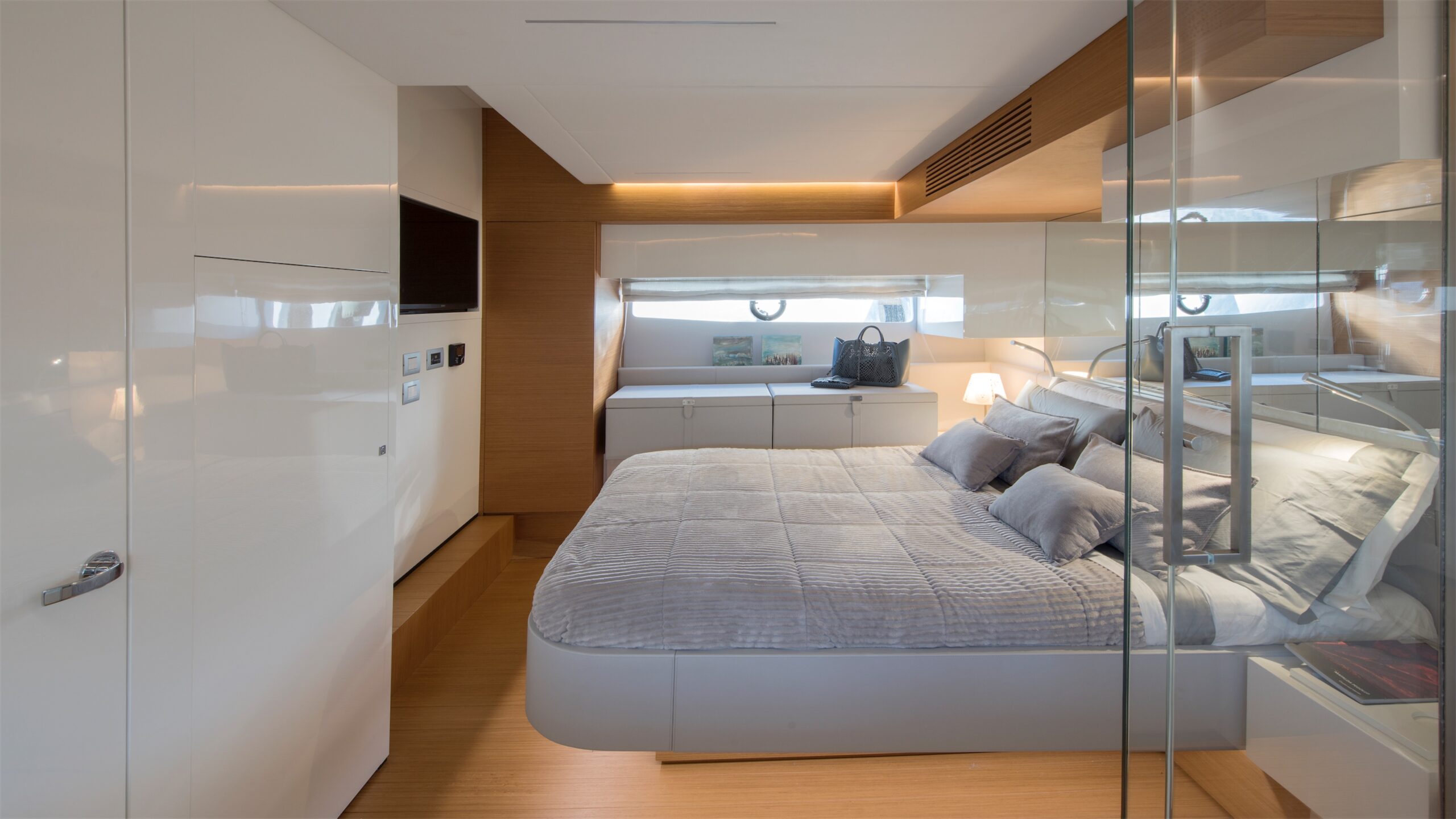

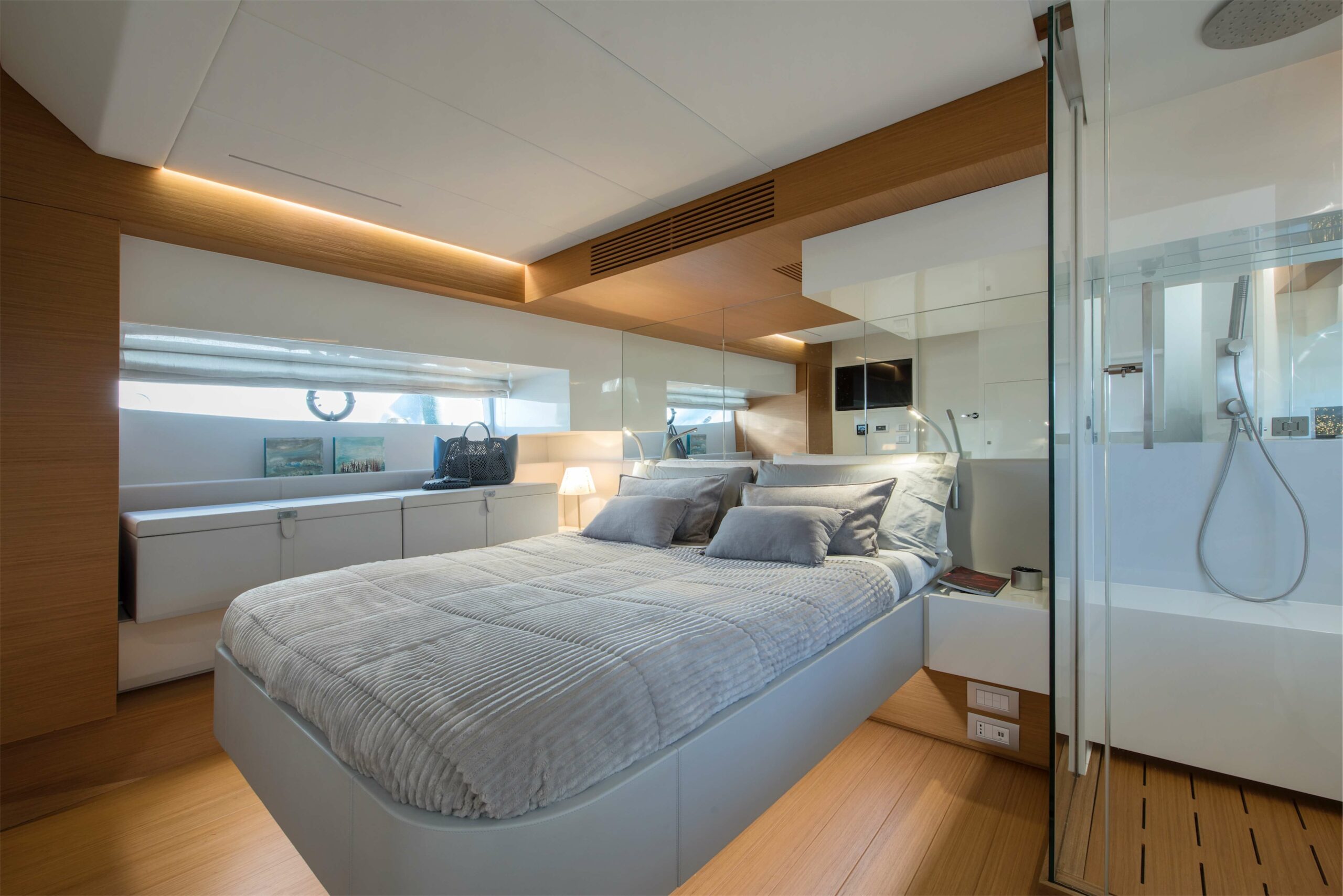

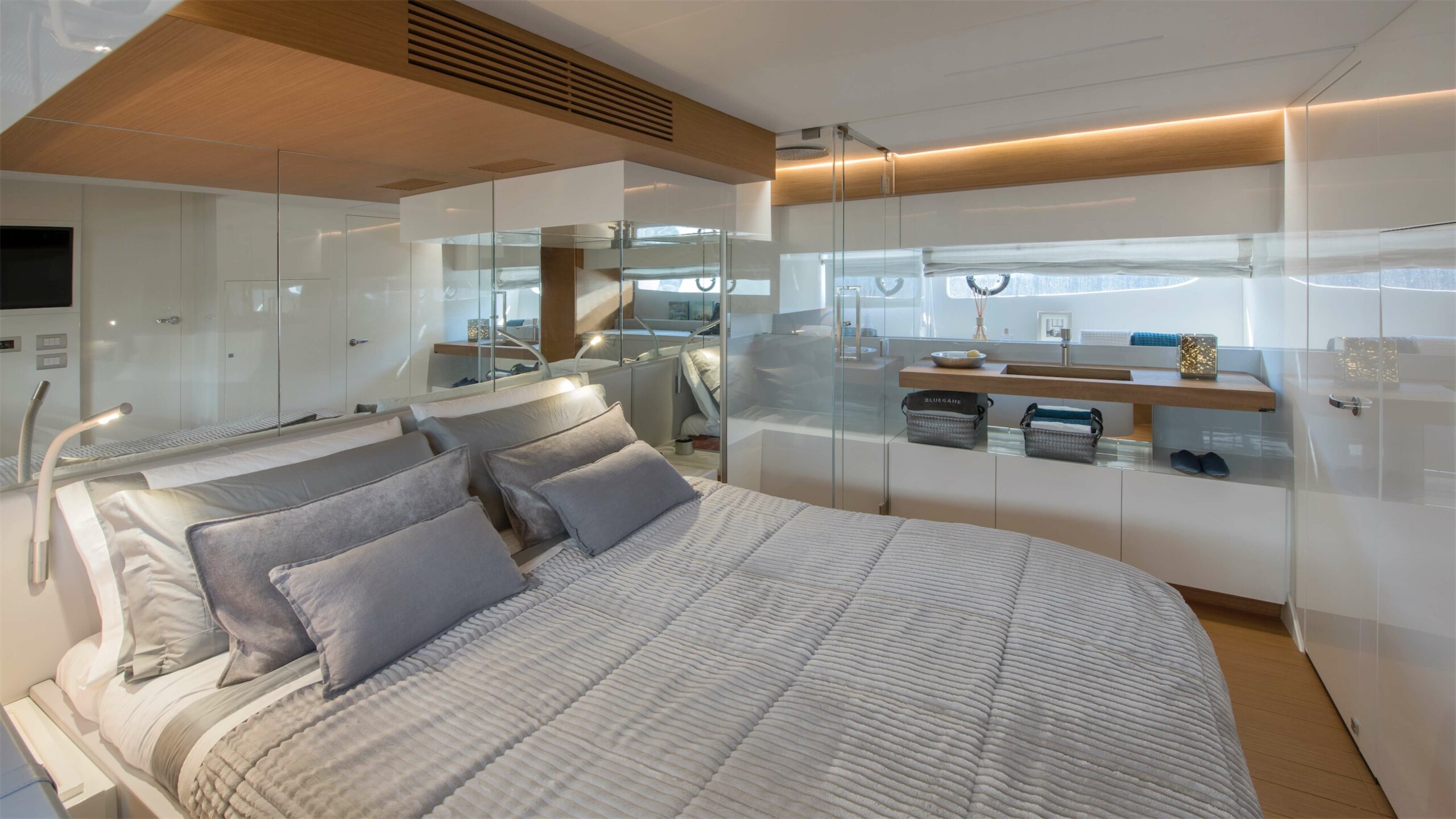

OWNER CABIN
Double bed with matresses in double density foam
Cabinet on side
Carpet floor
Reading lights
LED lights with dimmer
Power and USB sockets
Opening porthole integrated in the panoramic window
Blinds
Pillows
Bed sheet covers
MP3 Radio stereo Bluetooth with subwoofer
Two speakers
Air conditioning fan coil 9.000btu
Fire extinguisher

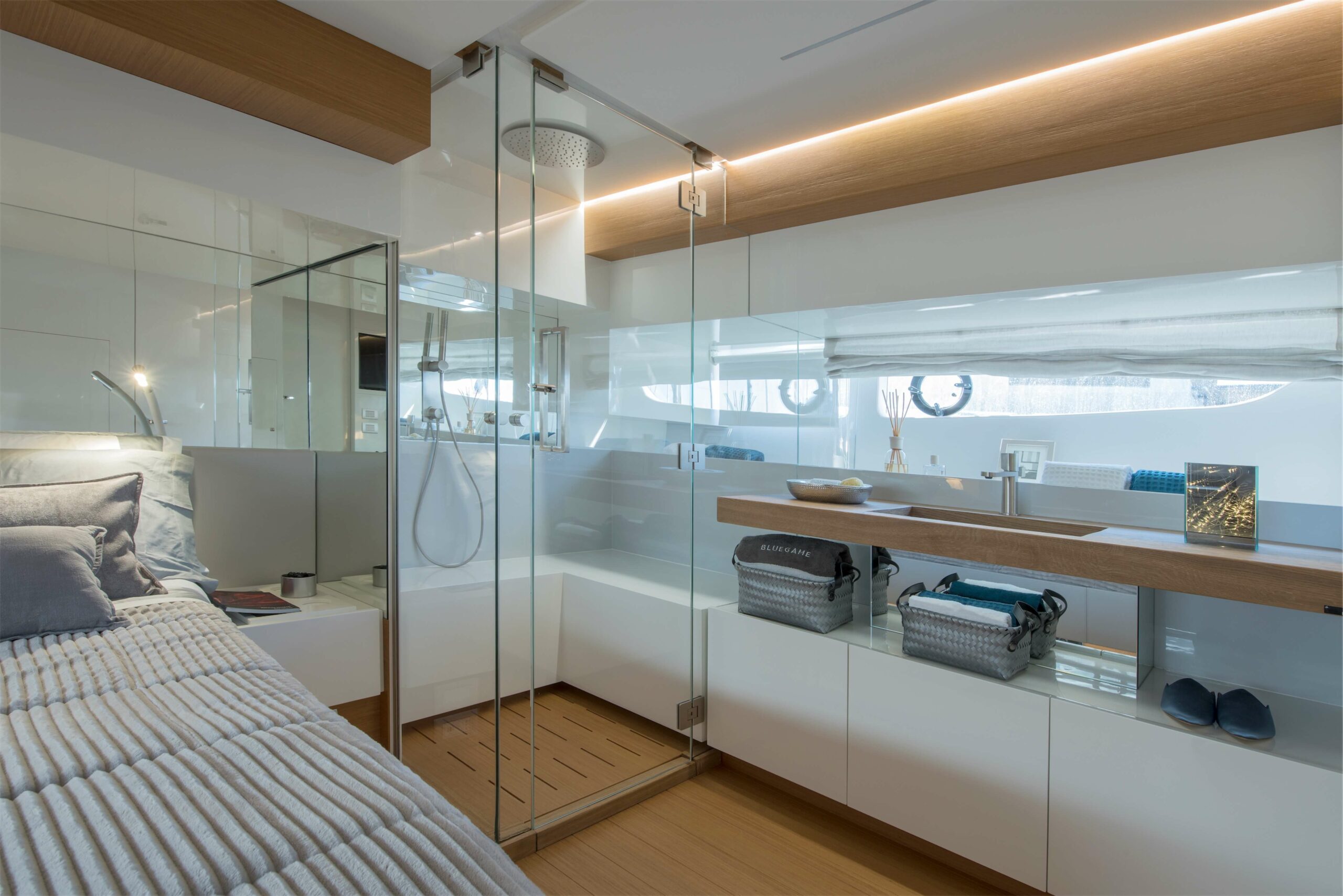

OWNER TOILET
Fresh water electric marine WC
Wooden floor
LED lights
Blind
220V sockets
Bathroom accesoires
Cabinet
Openable porthole
Air conditioning outlet
Separate shower with slide bar faucet mixer taps

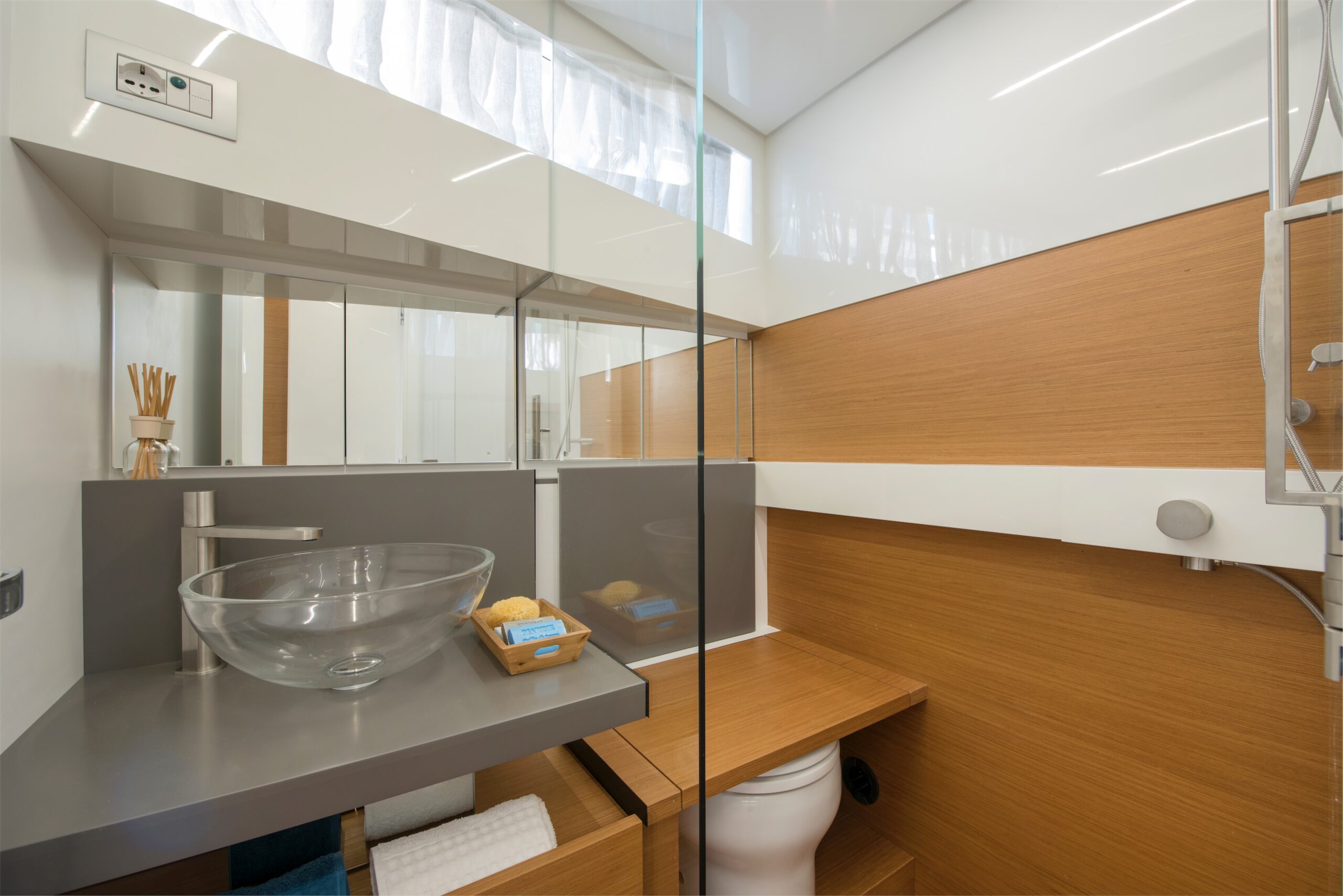

VIP TOILET
Fresh water electric marine WC
Wooden floor
LED lights
Blind
220V sockets
Bathroom accesoires
Cabinet
Openable porthole
Air conditioning outlet
Slide bar faucet mixer taps

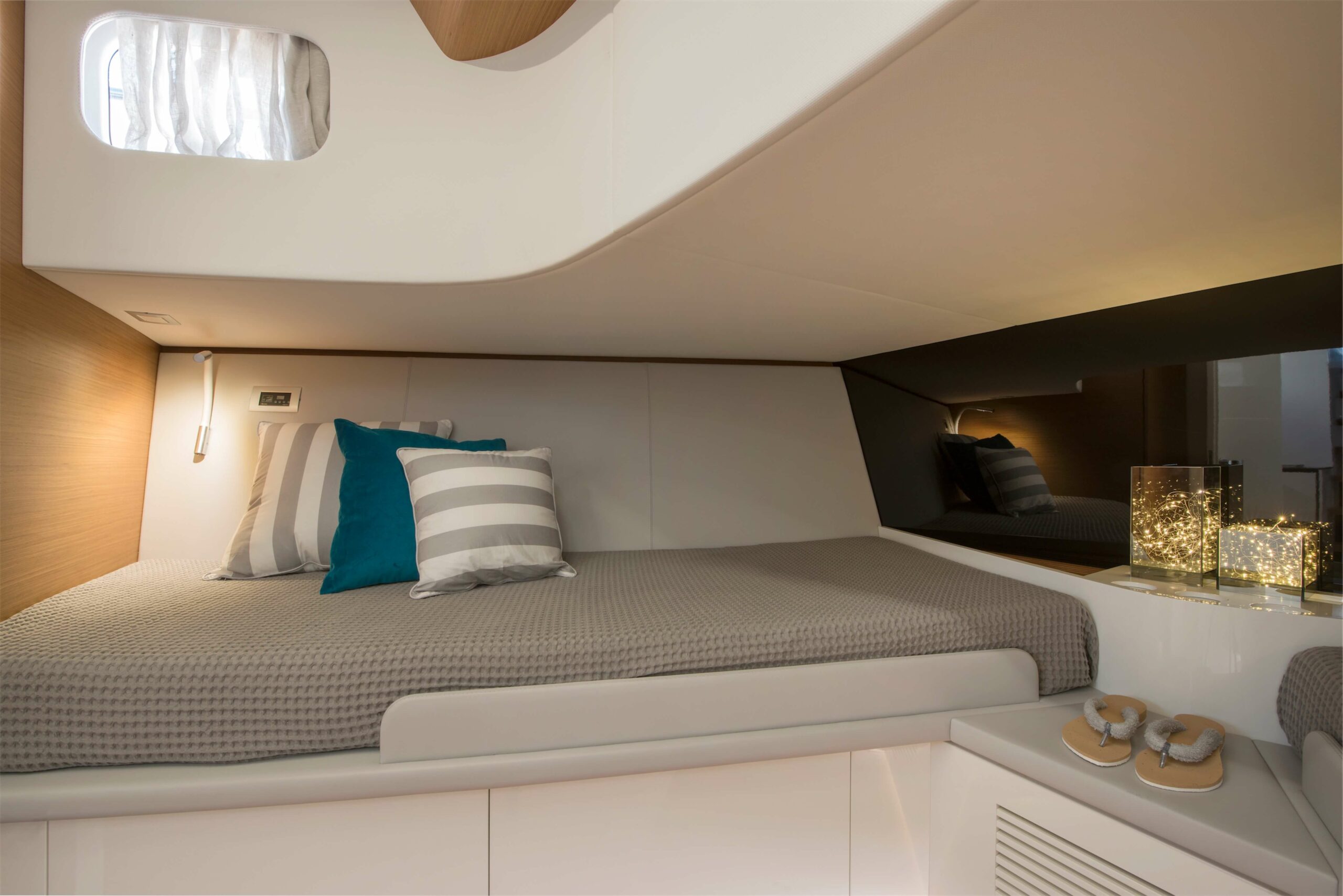

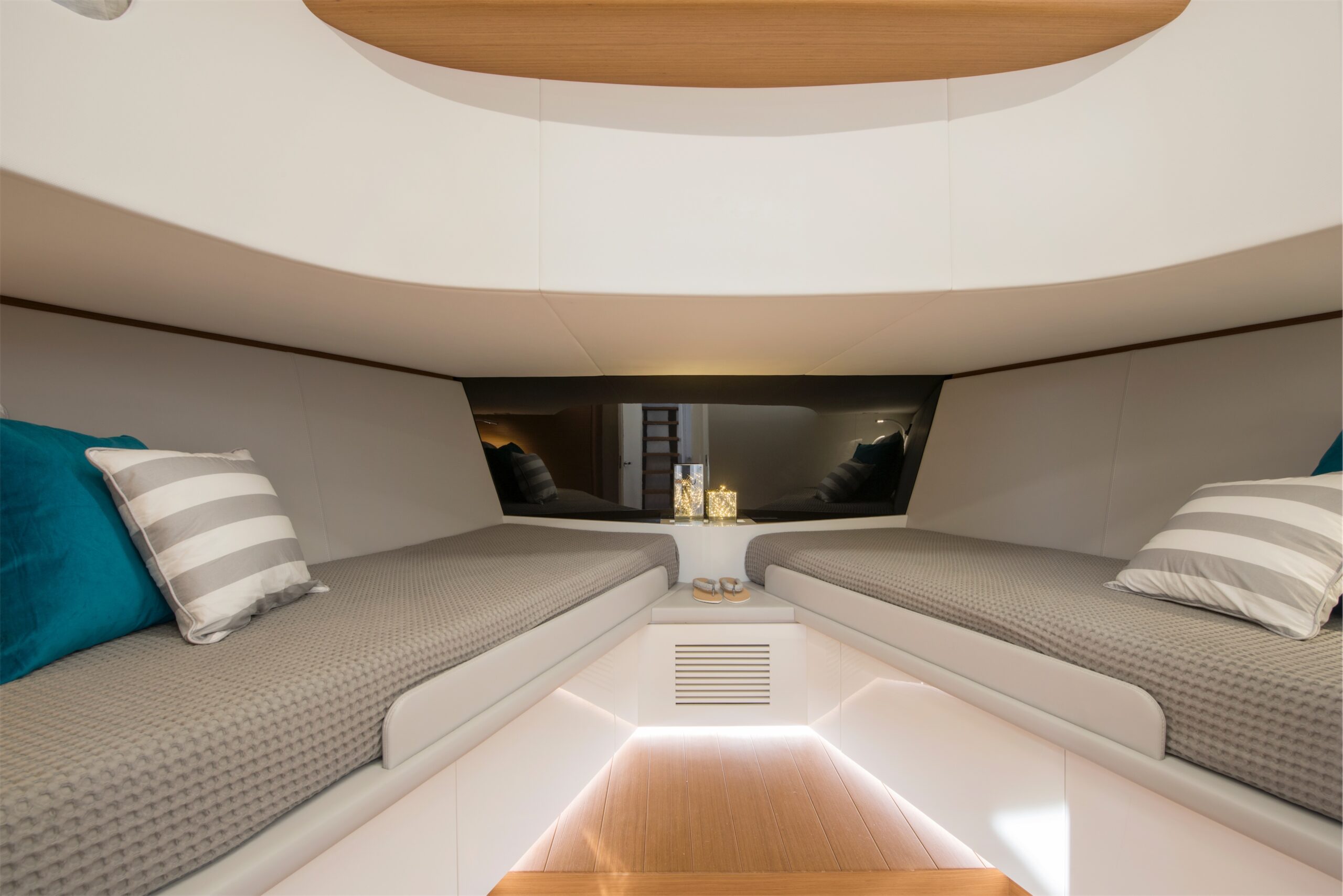

GUESTS CABIN
Two single bed matresses in double density foam, cabinets on sides
Carpet floor
Reading lights
LED lights with dimmer
Power and USB sockets
Opening porthole integrated in the panoramic window
Blinds
Pillows
Bed sheet covers
MP3 Radio Stereo Bluetooth with subwoofer
Two speakers
Air conditioning fan coil 4.500btu

ENGINE ROOM
2x Volvo IPS 1200 D13 / 2x 588Kw / 2x 900HP
3000L. Fuel structural tank in composite with fuel level sender connected with Volvo EVC
Daily tank integrated on the hull on engine rom
Valves for fuel interception with remote cable
Electromechanical switching for batteries with remote control
Double water/fuel filter
Fire extinguisher system with manual and automatic control
Six bilge pumps; two on engine room, two on stern area and two on center hull, with automatic and manual control
Water connection with hose for cleaning engine room
Engine room led light
AC cooling unit 25.000btu
Manual operating bilge pump
Insulation fire retardant film on all engine room area
Two electrical ventilators with cycle reversion and thermostat switch

STERN STORAGE
Storage area with access from deck
Two side portholes
LED light
Ladder to access
CE tight door acces to engine room

ELECTRICAL SYSTEMS
Generator 18kw
Four batteries 120Ah/ AGM for engines( 240Ah 24v)
Four batteries 255Ah/ GEL for services ( 510 Ah 24v)
One battery 120 Ah/ 12V for generator
Two batteries 120Ah/24V for bow thruster and winch
Battery charger 80 Ah for services and engines
Battery charger for generator
Battery switches with digital remote control
230V shore power 63A with connection cable 15mt.
Galvanic isolator 50Ah
Inverter 2000W
AC Electrical panel (230V) CE certified on engine room with electromechanical switching for all outlet with remote control on main panel
DC Electrical panel (230V) CE certified on engine room with electromechanical switching for all outlet with remote control on main panel

• Difference from STD engines and VOLVO IPS 1350

• Canvas strataglas closing  all  cockpit (full version)

  Ladder frame kit for hard top including sun pad

  Sunpad for Hard top

  Opening roof hard top Webasto

  Hydraulic lifting platform 500 Kg with teak

  Gangway retractable with teak 2,3 mt

  Gangway retractable 2 mt with pantograph steps

  Manual carbon gangway

  Glendenning Cablemaster CMR 50

  Bow Thruster 130 Kgf

  Gyroscope Sea Keeper 9

  Search Lights with remote control

  Underwater lights n.2

  DPS for Volvo Penta IPS

  Hull metallic painting

  Deck metallic painting

  Hard Top metallic painting

  Main saloon leather sofa

  Crew cabin decoration with toilet, bed, cabinet and A/C

  Raymarine Quantum Radar Q24C

  Raymarine Radar Open Array HD  4KW

  Sat TV Antenna 45 STV with radome

  Flir night visor M232

  Engine Room Thermal Monitoring System Flir AX8

  AIS system for Raymarine 600 Rx/Tx

  Cockpit air Conditioning

  Tropical air conditions for lower deck diff. From STD A/C

  Eletric grill in cockpit

  Icemaker

  Dishwasher (for 6 dishes set)

  Bow sunlounge bimini

  Stern sunlounge bimini

  Watermaker unit 130 Lt /h

  Safe

  Antifouling and propspeed on IPS

  Cradle

  Set of black fender covers
