Bluegame
BG42 #13

HULL DECK CONSTRUCTION
Molded fiberglass construction made with isoneophentilic gel coat 1,5 mm surface, skin coat of vinylester resin
Bottom hull in monolithic lamination made with biaxial, quadriaxial glass, and ISO DCPD polyester resin
Sandwich core construction on side hull
Sandwich structural bulkheads vacuum bagged
Deck and coach roof made in sandwich and infusion technology with vinylester resin

DECK
Twin fiberglass doors covering anchor system
Anchor 15 Kg
Custom bow roller design S/S
Galvanized chain 10 mm 75 m
Anchor safety cable
Electric anchor winch 1000w
Two S/S fairlead
Two stainless steel cleats 300 mm
Hatch for storage on bow area

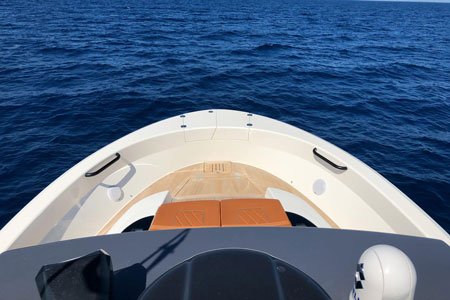

Large bow sun pad
Large stern sun pad openable with electric rams for access to engines room
Navigation and anchor lights led system
Courtesy lights on walk all round
Horn 6
N° 4 handrails in walkaround
Cockpit shower with hot/cold water mixer
Double fuel inlets
Fresh water inlet
Black water tank drain outlet from shore
Front laminated tempered glass with double electric wiper with washer
Two S/S fairlead
Two stainless steel retractable cleats 240 mm
Gaff rack on both side
S/S removable swimming ladder

COCKPIT

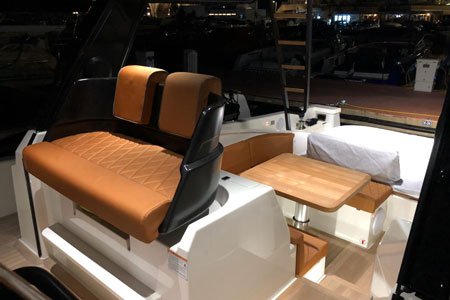

Double pilot seat
U-Shape seating with cushions made with waterproof foam
Electric telescopic teak table
Dinette access glass sliding door
Two speakers
Power & USB sockets
Courtesy led light on floor side
Side bar cabinet with sink mixer tap water cold and warm with teak top
Cooktop ceramic
Trash bin
Double opening external stainless steel fridge
Cabinets with storage
Teak on central cockpit floor

CONSOLE
Compass
N° 2 Raymarine 9’’ GPS, depth and Engines instrument board complete digital indicators for engines parameters (rpm, oil pressure, water temperature, engine sound warning alarm, fuel level)
VHF station with antenna
Display 7” EVC Volvo
IPS Joystick
Volvo Penta electronic engine throttle
Anchor winch control
Hydraulic flaps control
Back-lighted switch panel for deck services
Storage
Bluegame personalised steering wheel
Fire control for manual extinguisher

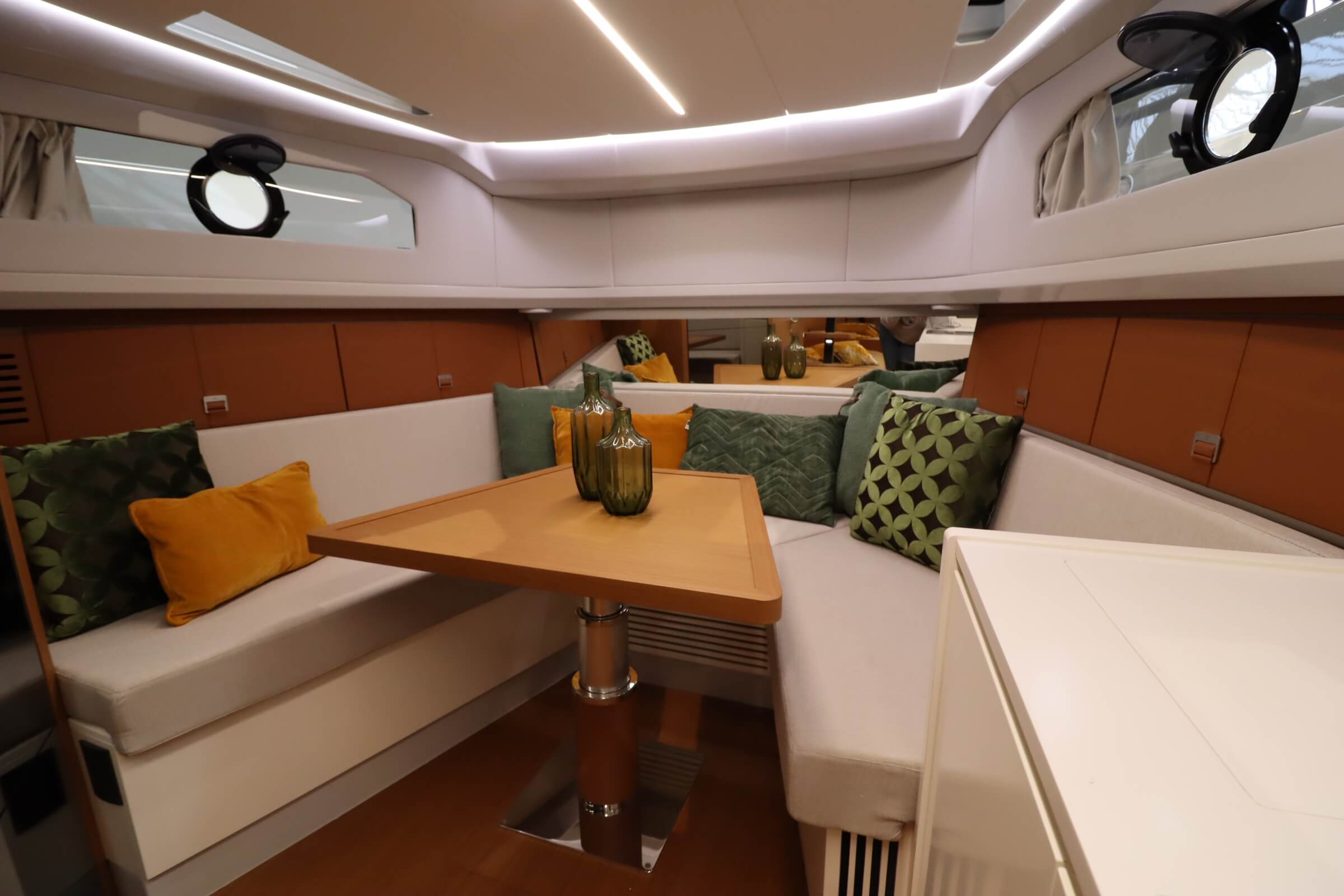

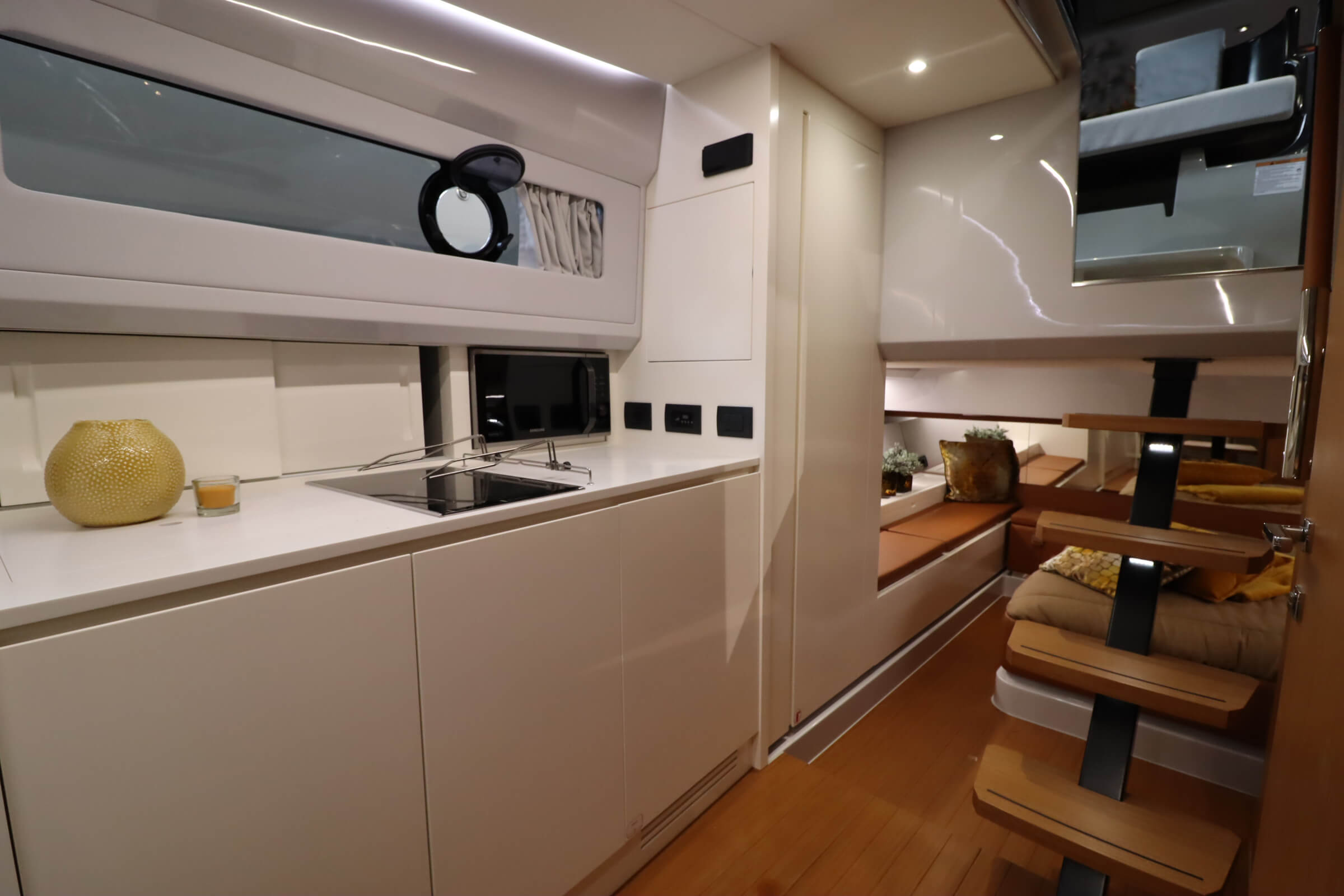

DINETTE
Dinette access glass sliding door
Stairs to lower deck with wooden steps
Handrail
Front side, U shape sofa
Electric telescopic table transforming in bed
Side portholes
Blinds
Furniture with storage
Radio mp3 bluetooth
Two speakers
Power & USB sockets
Wooden floor
Electrical panel with breakers on all circuits
Led lights with dimmer
Fire extinguishers 1 kg

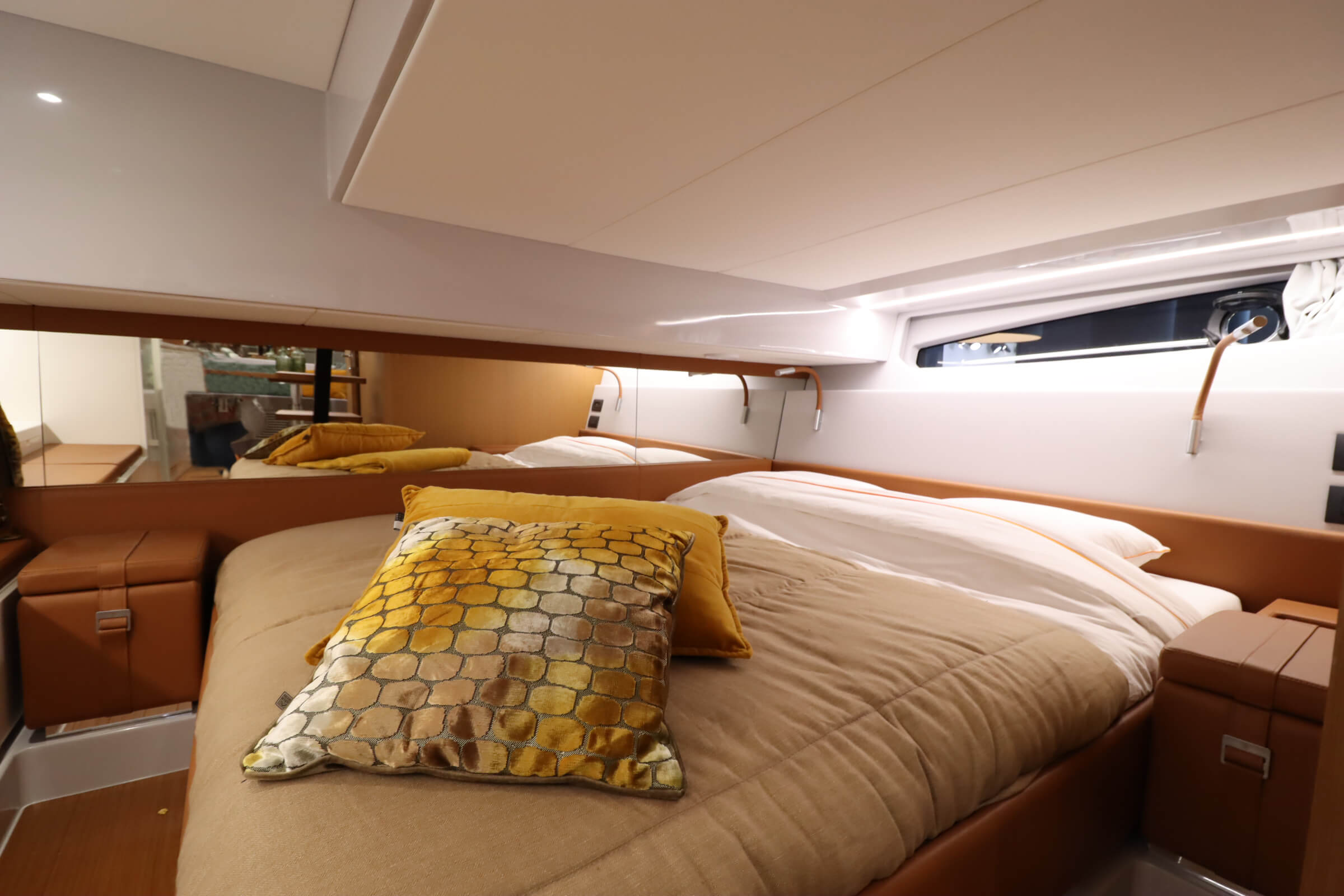

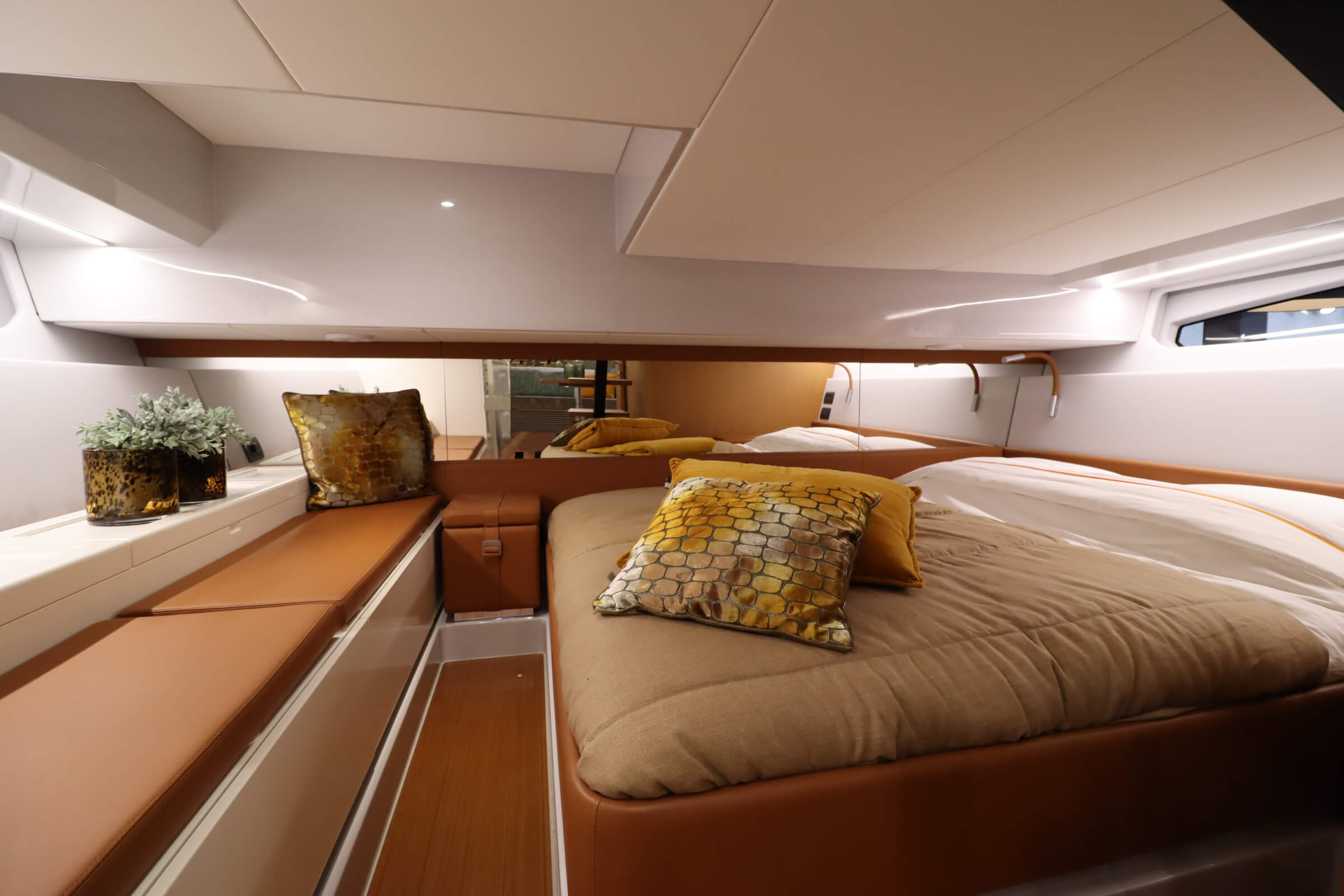

OWNER CABIN
Double bed with mattresses
Wardrobe with mirror door
Carpet floor
Reading lights
Led lights with dimmer
Power & USB sockets
Openable porthole integrated in the panoramic window
Blinds
Pillows
Bed sheet covers
Two speakers
Side Cabinet
Fire extinguishers 1 kg

TOILET
Fresh water electric marine WC
Wooden floor
Led Lights
Blind
Power sockets
Bathroom accessories
Cabinet
Openable porthole
Separate shower with slide bar faucet mixer taps

ENGINE ROOM
2x Volvo IPS 600 D6 / 2x 320kW/435HP
2 x 700 l. S/S fuel tanks with fuel sender connected with EVC Volvo system
Valves for fuel interception
Electric disconnectors with remote cabin control
Double water/fuel filter
Hydraulic flaps
Four bilge pump; two on engine room and two on center hull, with automatic and manual control
Fire extinguisher system with manual and automatic control
Water connection with hose for cleaning engine room
Insulation fire retardant film on all engine room area
Manual operating bilge pump.
Engine room led light
Two electrical ventilators and thermostat switch
Power sockets
Genset 7kw 220V

ELECTRICAL SYSTEMS
2 batteries 100 Ah / 12 V for engines AGM
Service batteries pack for service 520 Ah /12 V
1 batteries 100 Ah / 12 V for genset
Battery charger 50ah
Inverter 2000 Wat
Emergency electric and manual battery switches
220V shore power 16Ah with connection cable 15mt
30 Ah Galvanic Insulator

HYDRAULIC SYSTEM
Rotomolded plastic tank 320 lt. under the cabin beds with level transducer.
Water heater 30 l. (engines and electric 220V)
Black water outlet system with electric pump
Electric bilge pumps with manual/automatic actuation
Fresh water pump
95l black water tank

FUNCTIONALITY
Canvas strataglas-sunbrella closing all cockpit

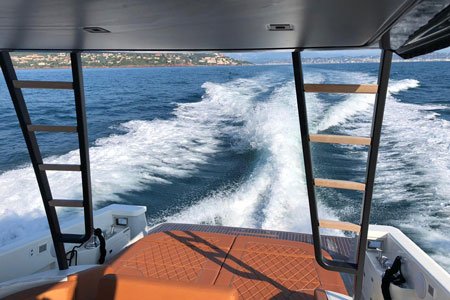

Ladder frame kit for Hard top (ladder-handrails)
Sunpad for Hard top

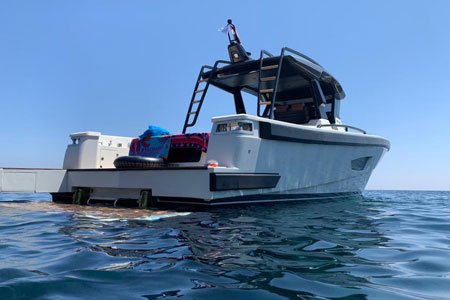

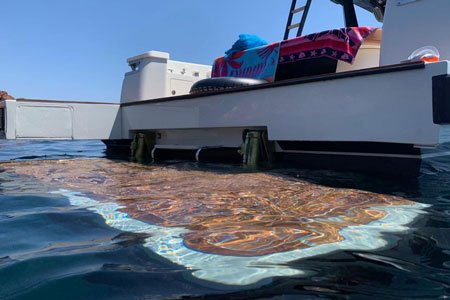

Hydraulic lifting platform 400kg
Gangway retractable with teak 2m
Bow thruster 80kgF
Bow winch with fresh water outlet
Stern winch (two units)
Interceptor system diff. from STD flaps
Search light with remote control
DPS for Volvo IPS

DECOR
Teak cockpit, walkaround and platform
Custom asymmetric sofa on lower deck

ELECTRONICS
2x screen multifunctional Garmin 12″ instead of 9″ STD
Garmin Radar Q24C
Autopilot Evolution R4
Flir night vision camera M232
AIS system Rx/Tx

COMFORT
Cooking kit on Galley (cooktop 2 burner + microwave + trashbin)
Air Conditioning 16.000 BTU/h cabin
Extra fridge (lower deck)
Electric grill on cockpit (Diff. from cooking top)
Safe

SERVICE
Set of black fender covers

CUSTOM
Outside upholstery Silverguard orange and with Bluegame logo
Custom cockpit table in outside dinette
Interior cognac with white leather upholstery
Saloon TV and digital antenna
Apple TV and digital recorder
Dimmers for lightening in saloon
FUSION radio with speakers
Volvo control panel
Antifouling and propspeed on IPS
Anode for saltwater
Teak wooden cover for external sink
Extra costs for upgrade gangway to interceptor
