Bluegame
BG54

BASIC CONFIGURATION
FEATURES AND STANDARD EQUIPMENT
HULL DECK CONSTRUCTION
Molded fiberglass construction made with iso-neophentilic gel coat 1,5 mm surface, skin coat of vinylester resin
Hull bottom in monolithic lamination made with biaxial, quadriaxial glass, and ISO DCPD polyester resin
Sandwich core construction on side hull
Deck in sandwich with vinylester resin skin coat
Hull and deck in light grey gelcoat (RAL ref. 9018)
Antifouling on hull

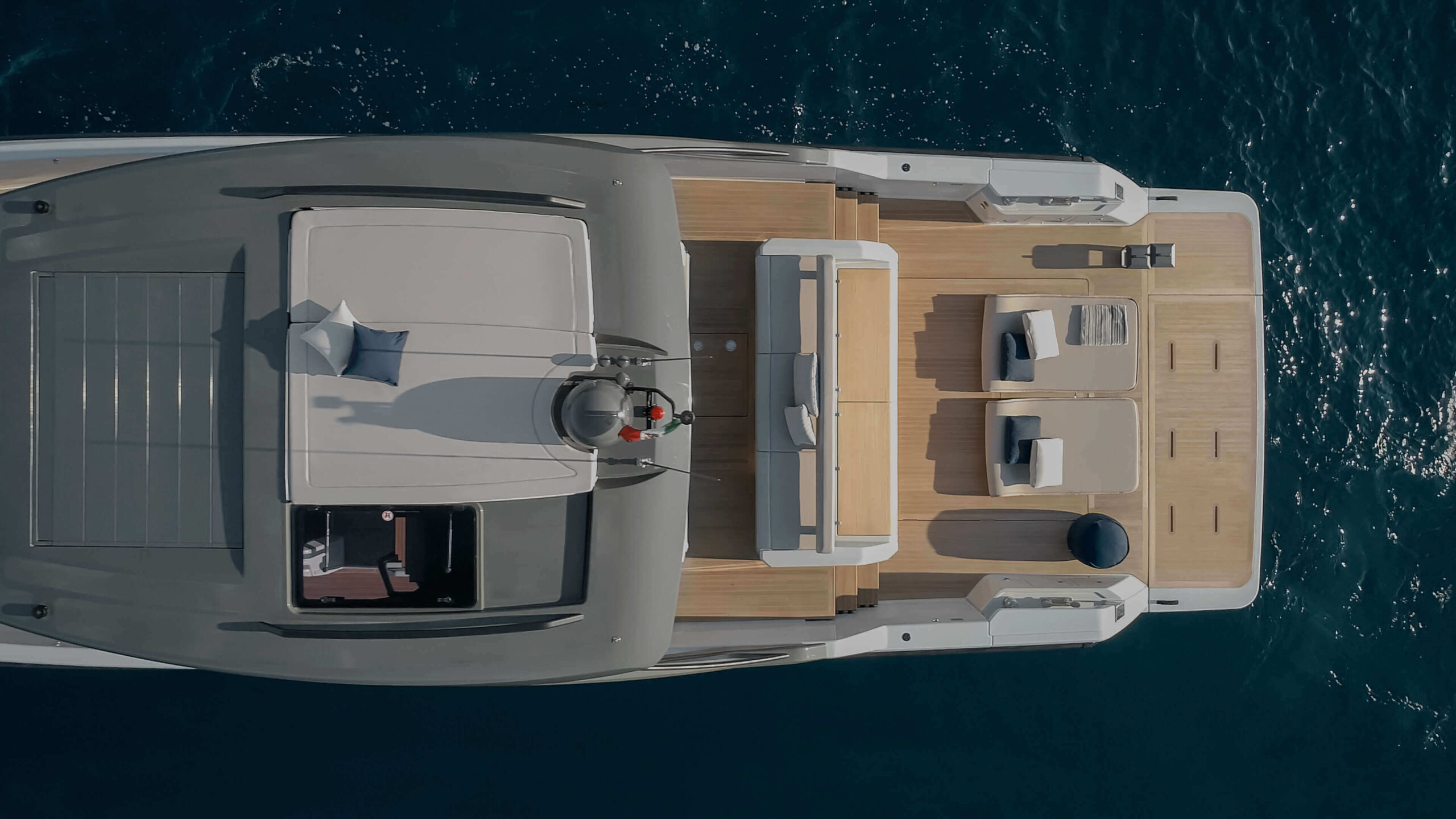

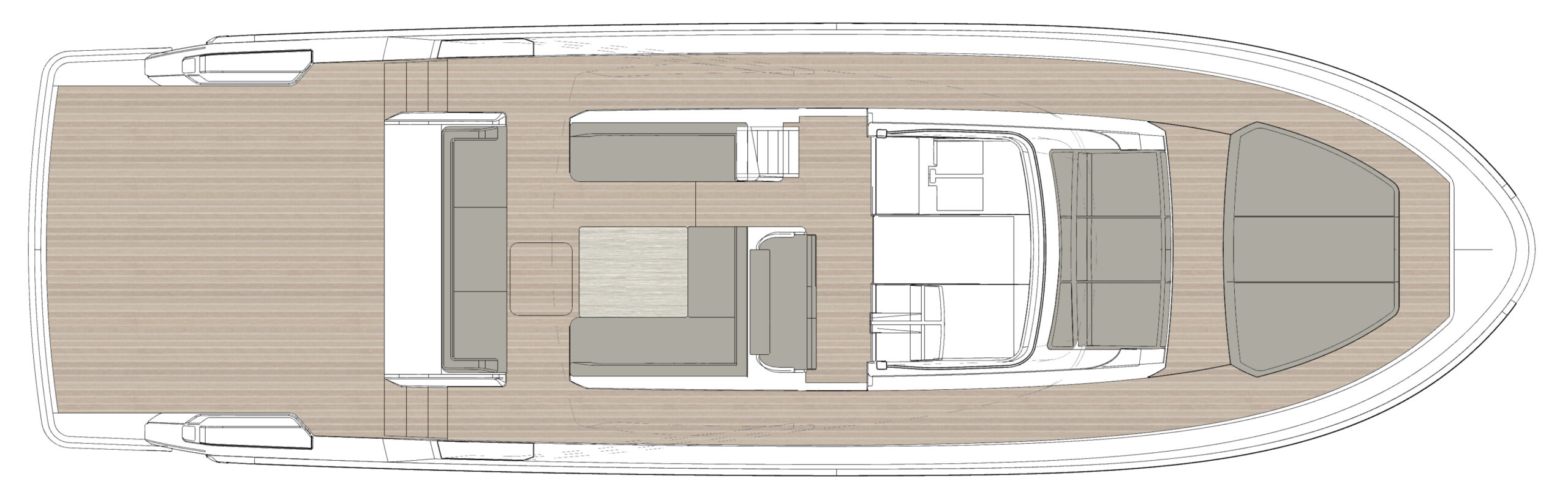

DECK

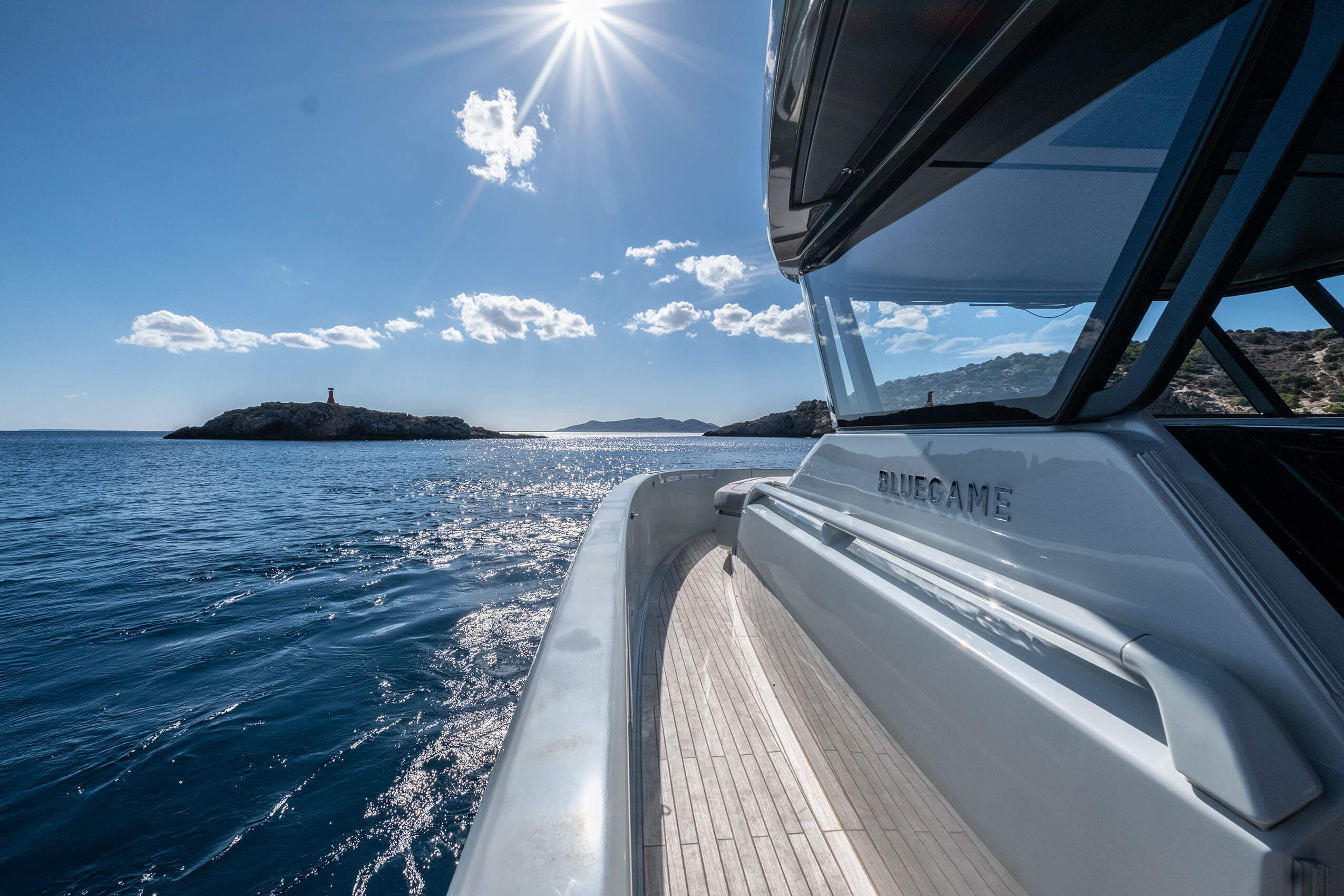

Teak deck
Twin fiberglass doors covering bow mooring system
Anchor 30kg
Bow roller custom design S/S
Galvanized chain 10mm 75 m
Anchor safety cable
N°1 Anchor winch 1.700 W
N°1 Electric bow mooring winch 800 W
N°2 STD stern mooring winches 800W
N° 2 S/S fairleads
N° 4 S/S cleats
N° 2 retractable cleats at mid-ship
Fresh water outlet connection

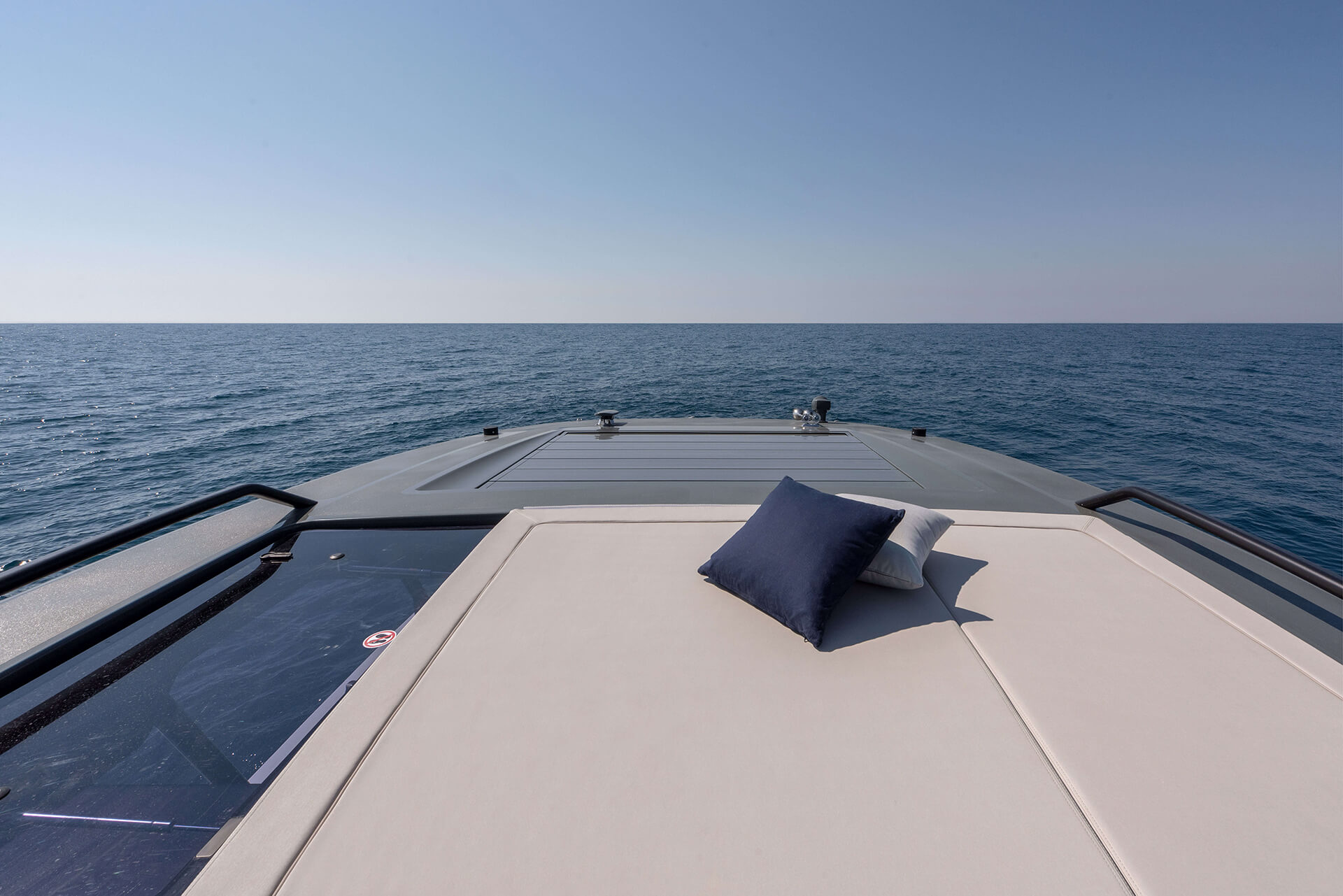

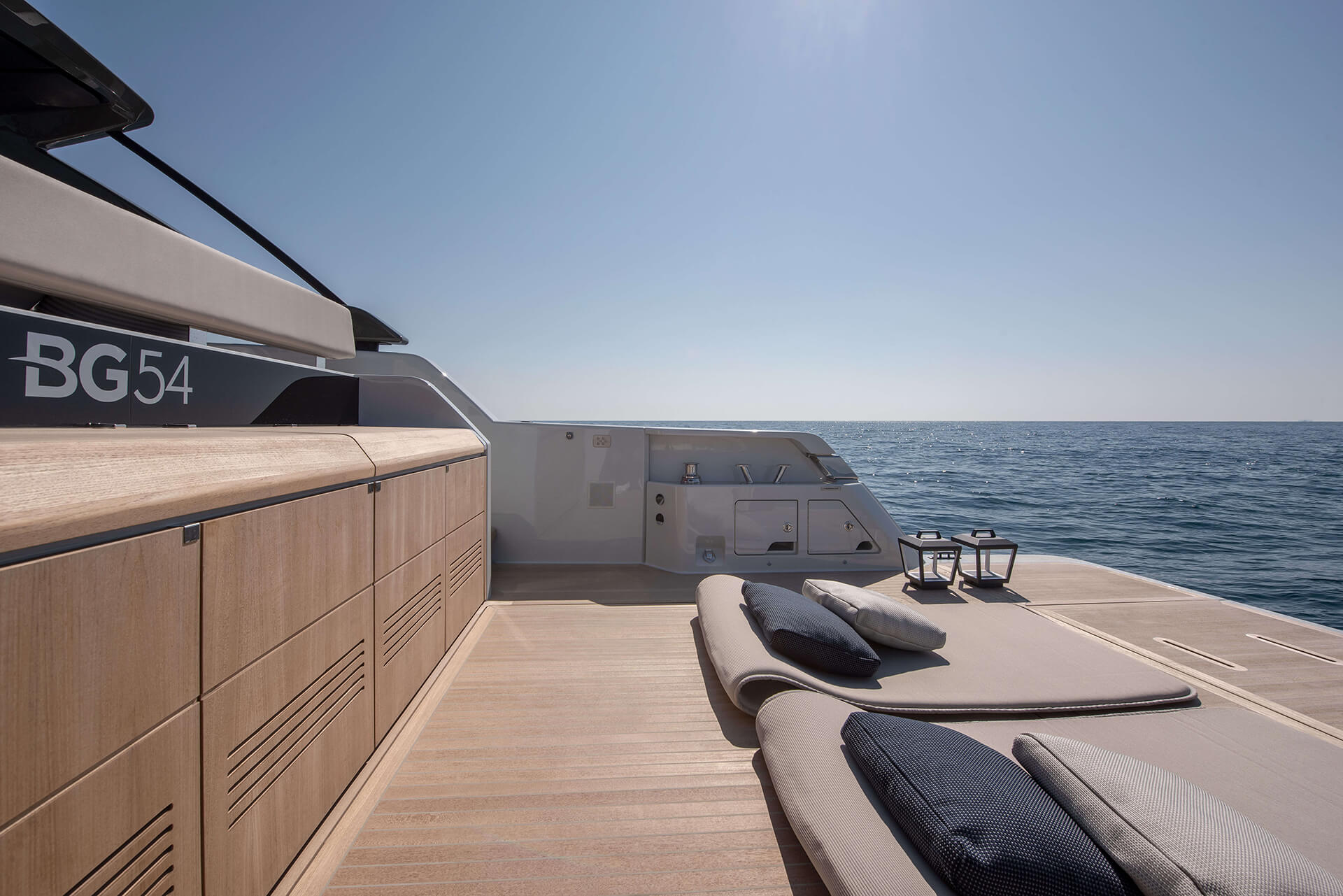

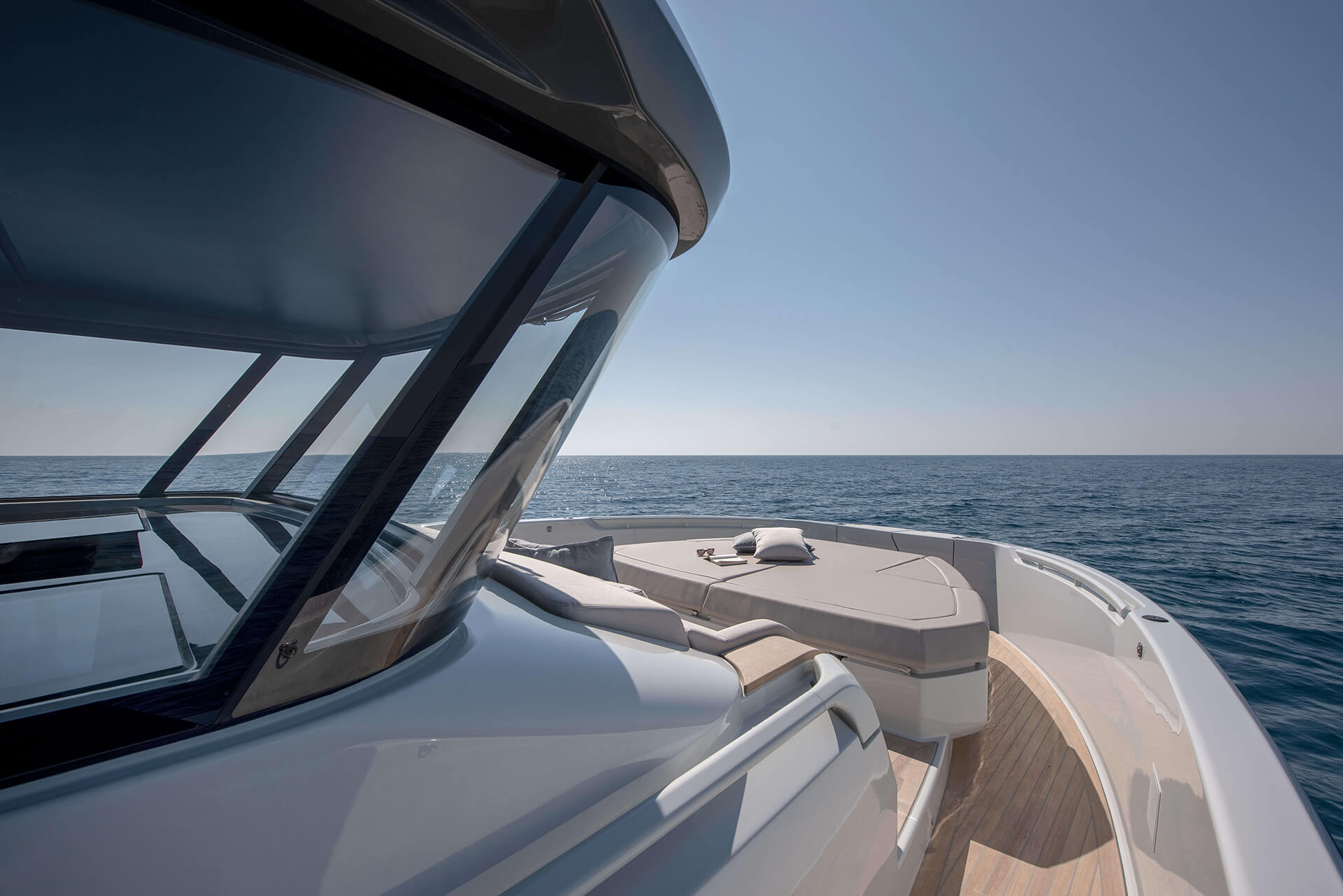

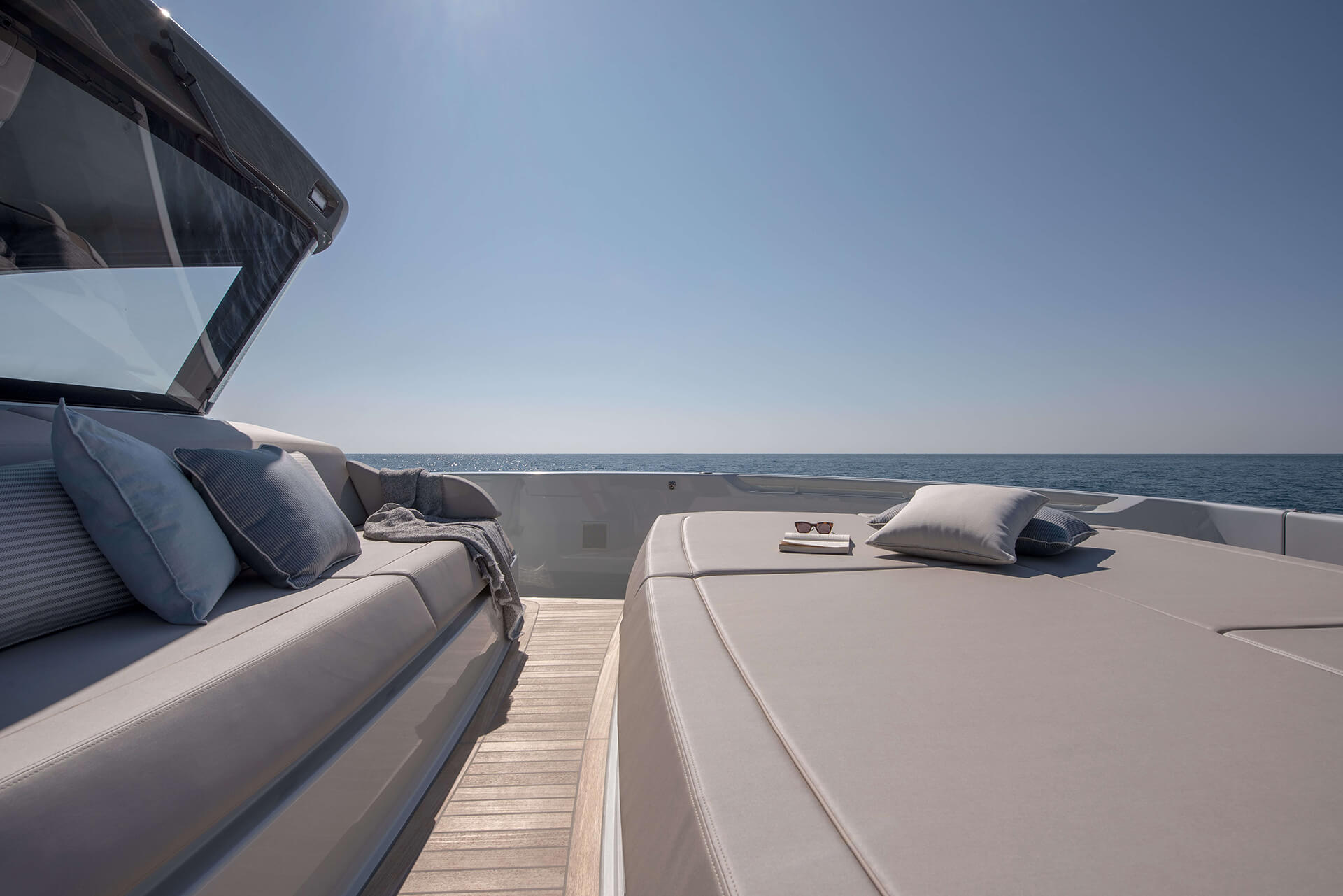

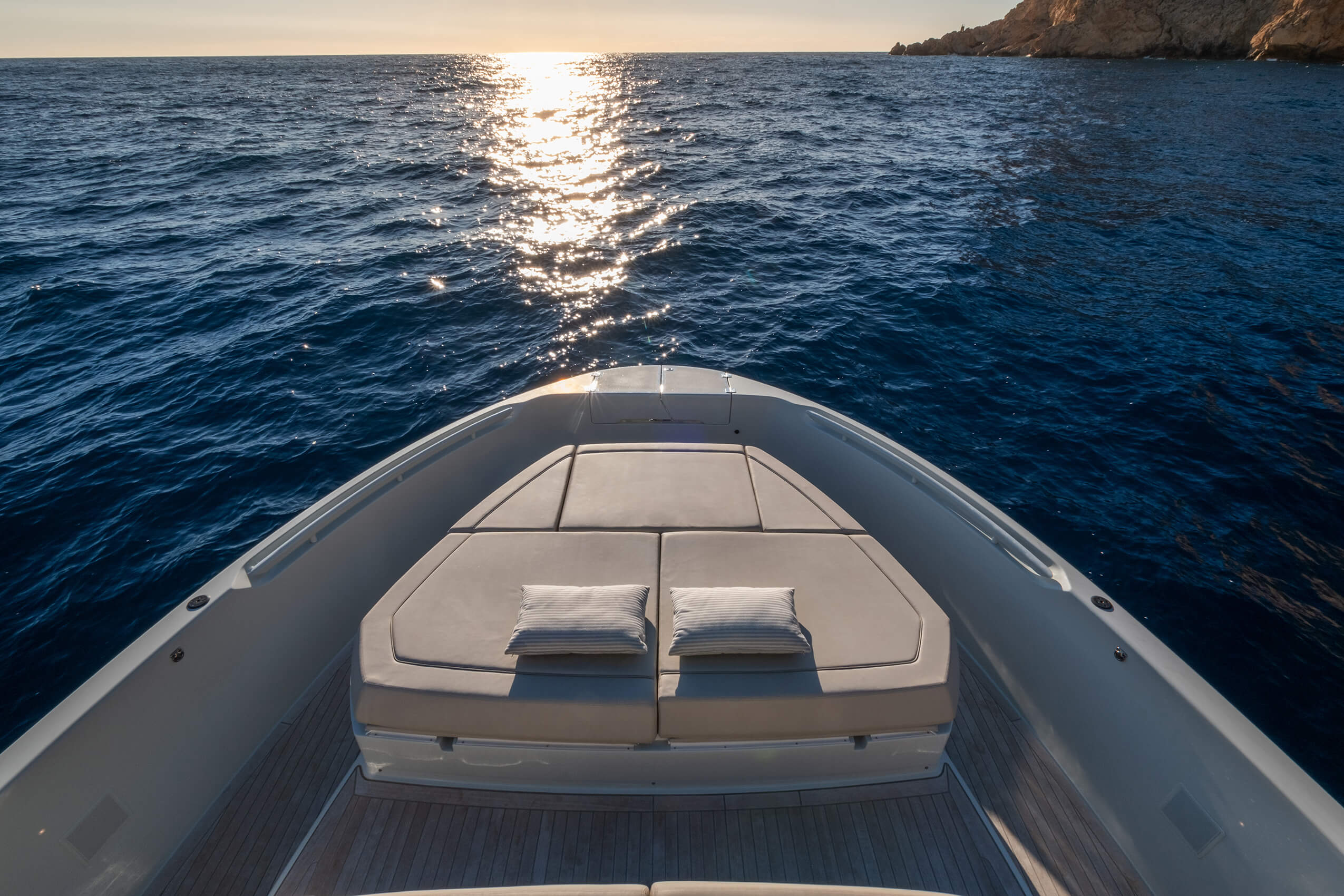

Bow sunpad area
Bow sofa below the windshield
Storage under sunpad
Navigation and anchor lights led system
Front and aft docking lights
Courtesy light on walkaround
Dimmable cieling lights
Horn
N° 2 speakers at the bow area
N° 2 speakers at the aft area
N°2 ceiling speakers

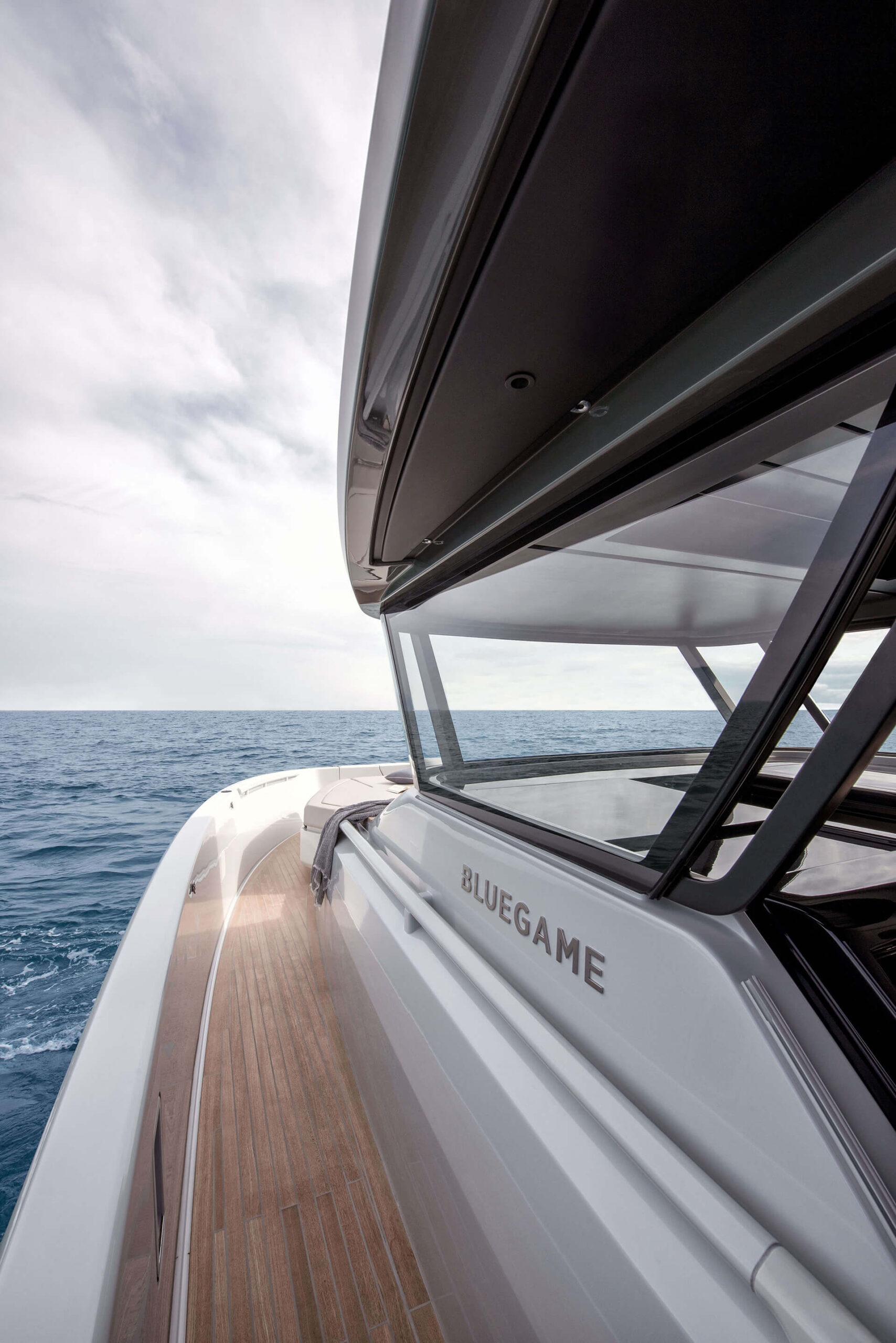

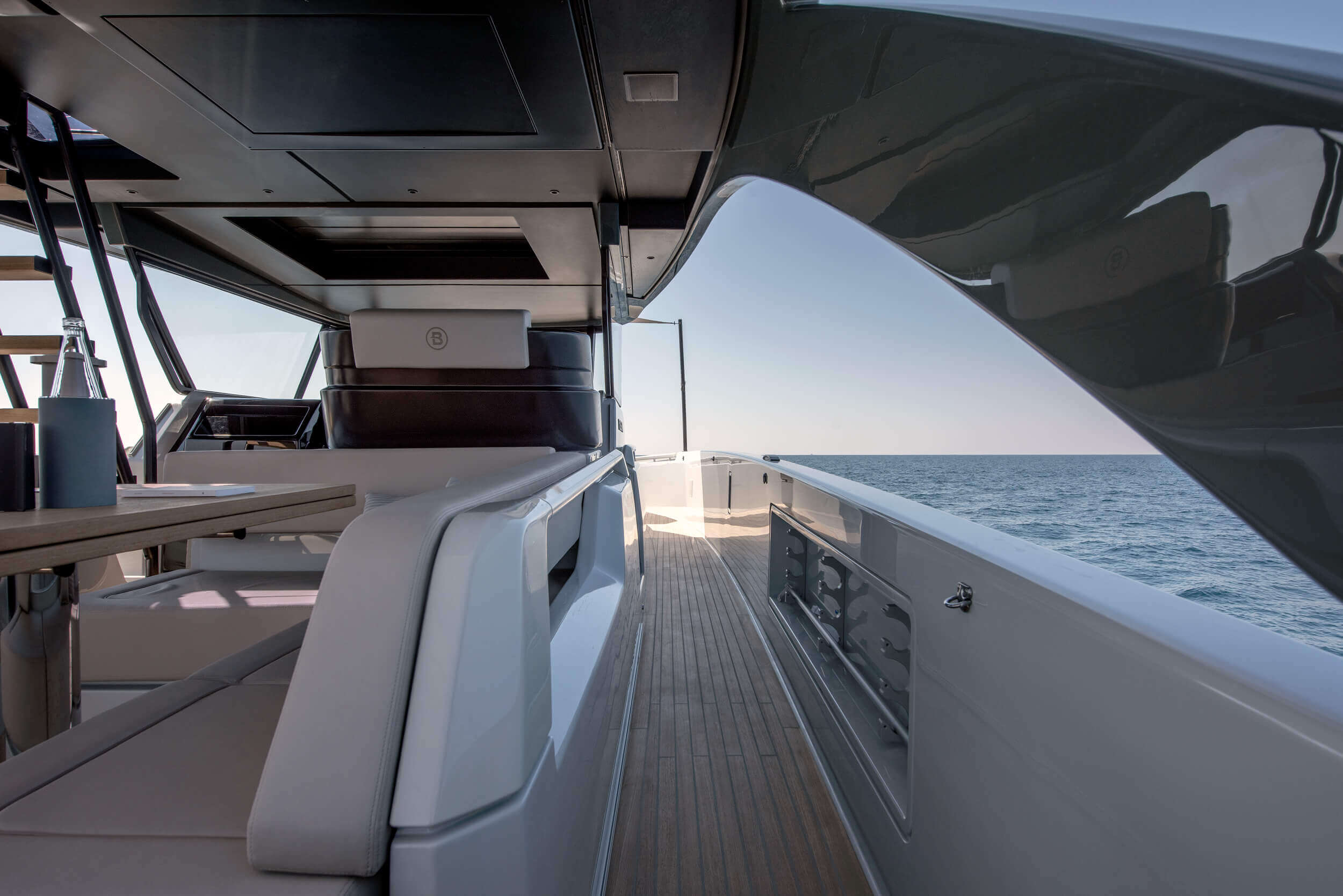

Handrails in walkaround
Double diesel inlets
Fresh water inlet
Black water tank drain pump
Grey water tank drain pump
Hard Top (Painted in RAL ref. 7043) with handrails and ladder to sunpad
Alluminum frame windshield with temperated glasses
Digital TV antenna with wiring and outlet in two cabins
Double electric windshield wiper with washer
Graff rack in both side
Shower with hot/cold water mixer
Emergency swimming ladder
Wet bar cabinet with sink, mixer tap water cold and warm, trash bin, 220V external socket and S/S work top with storage

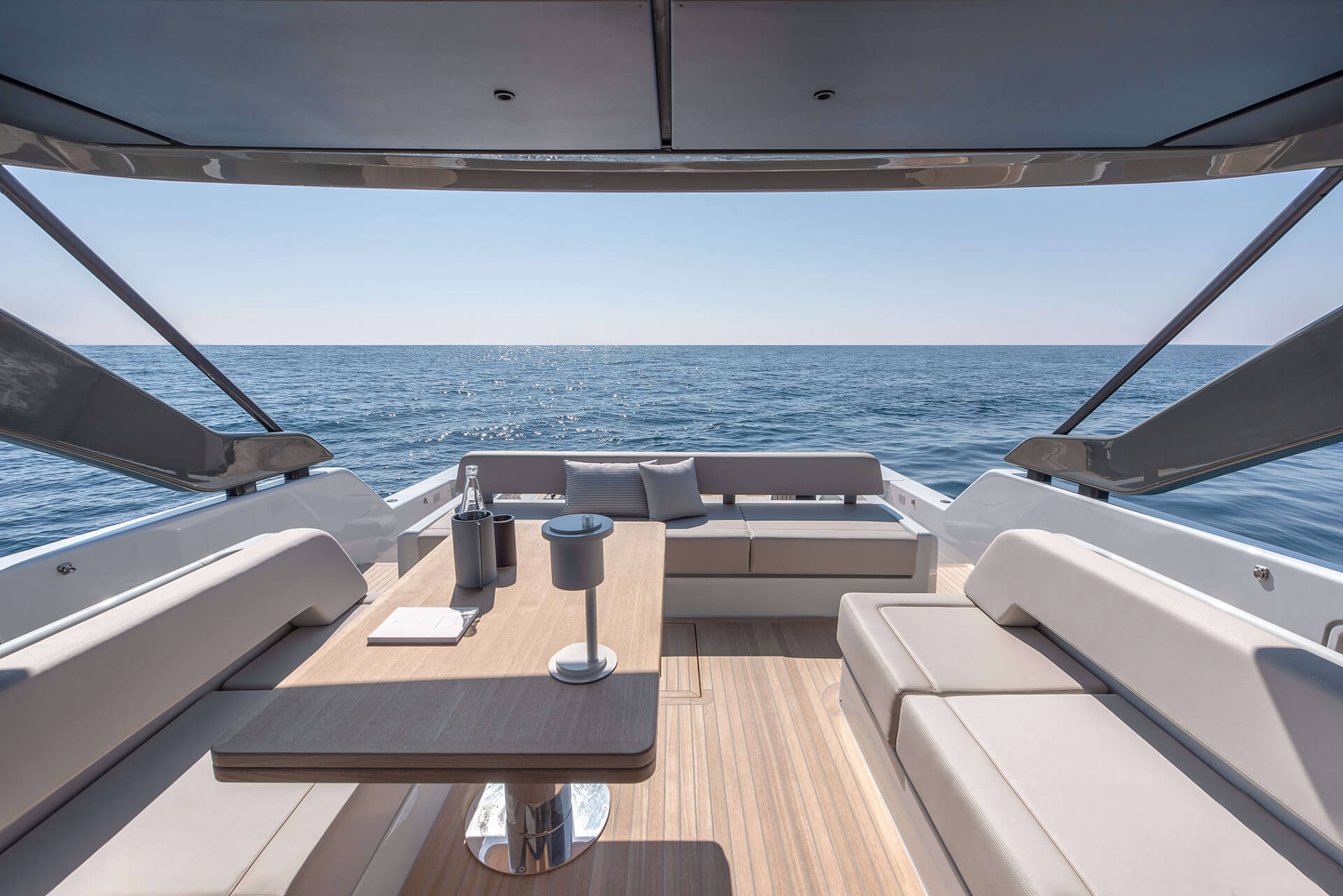

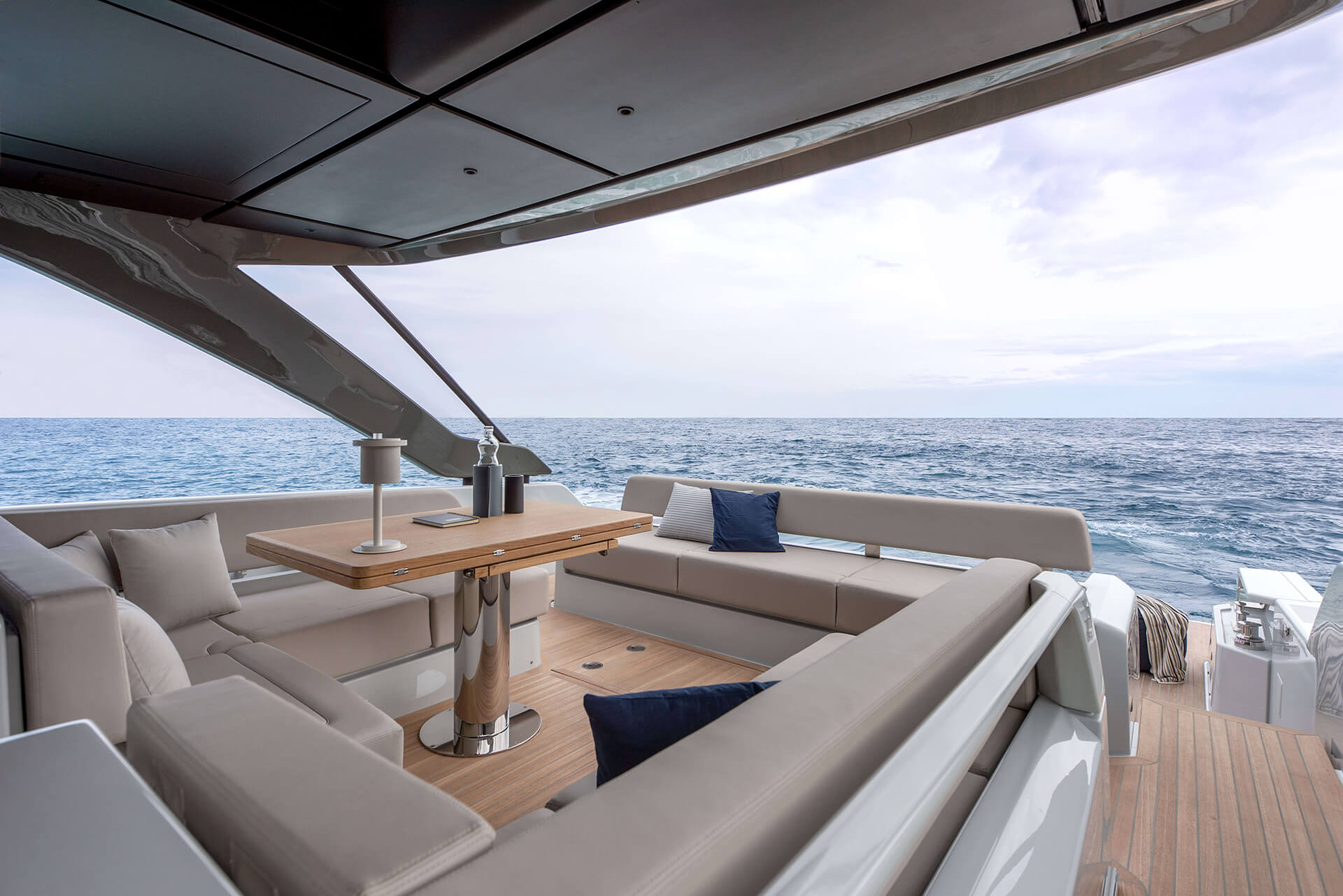

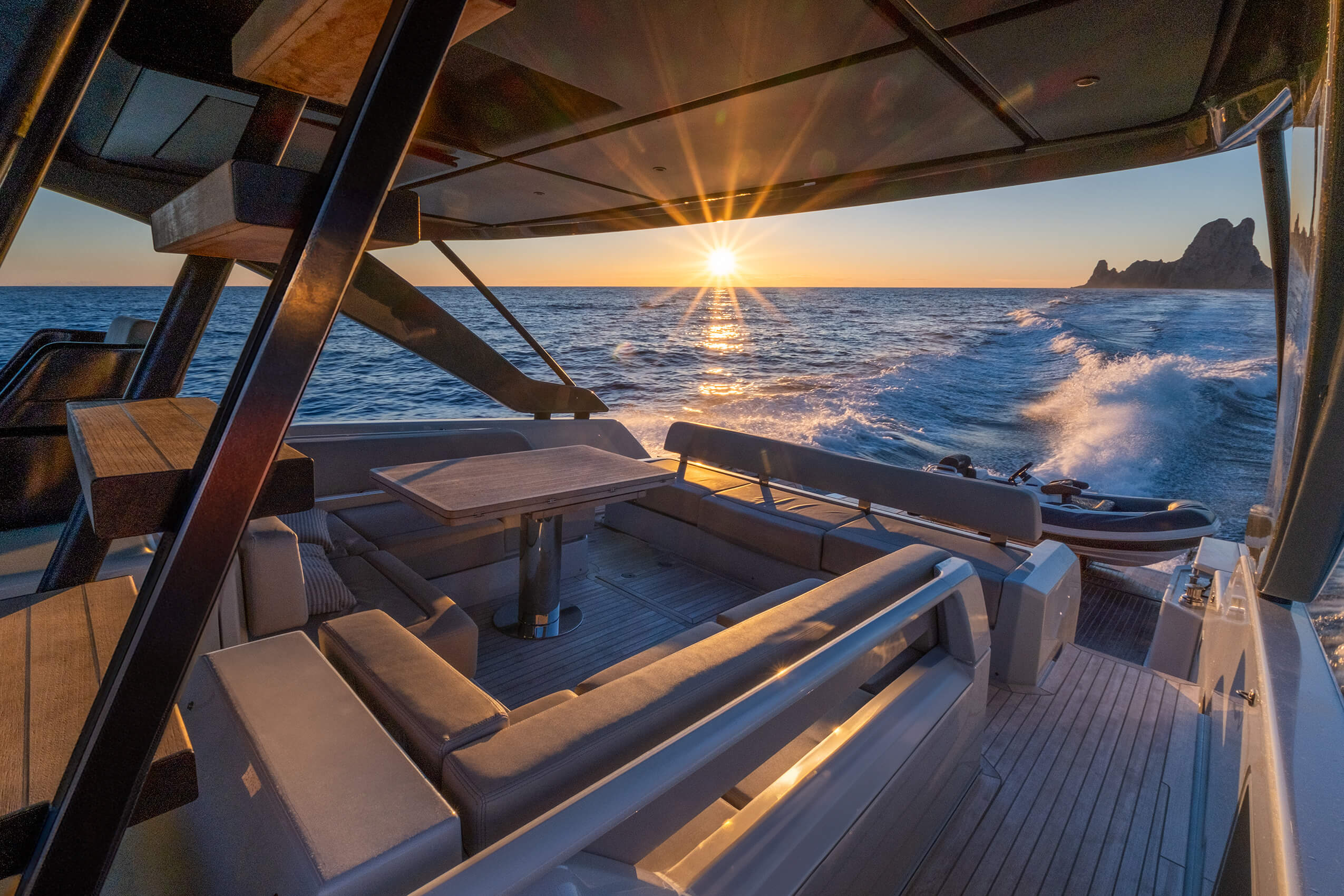

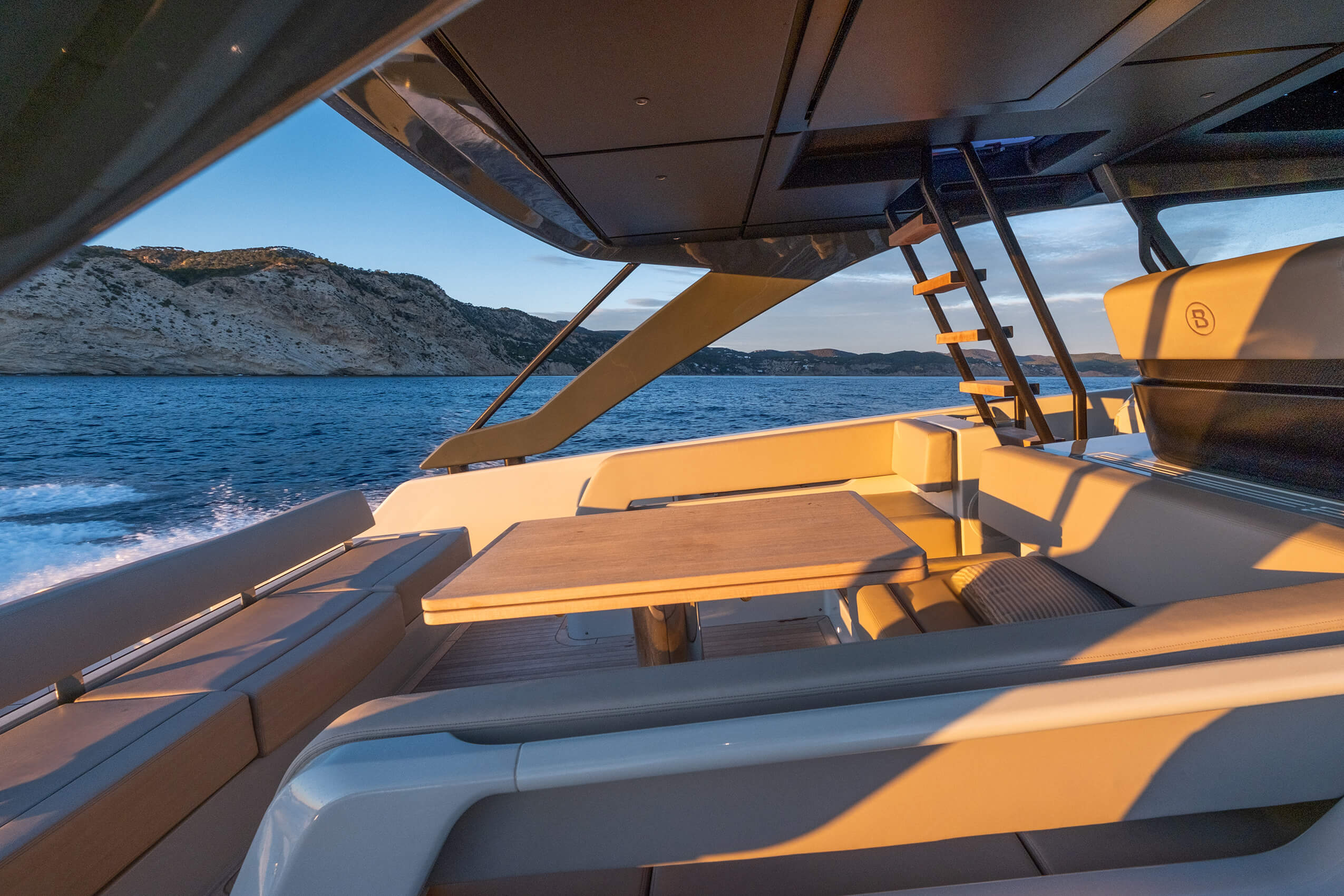

L shape + side seating with cushions made with waterproof foam
Teak table

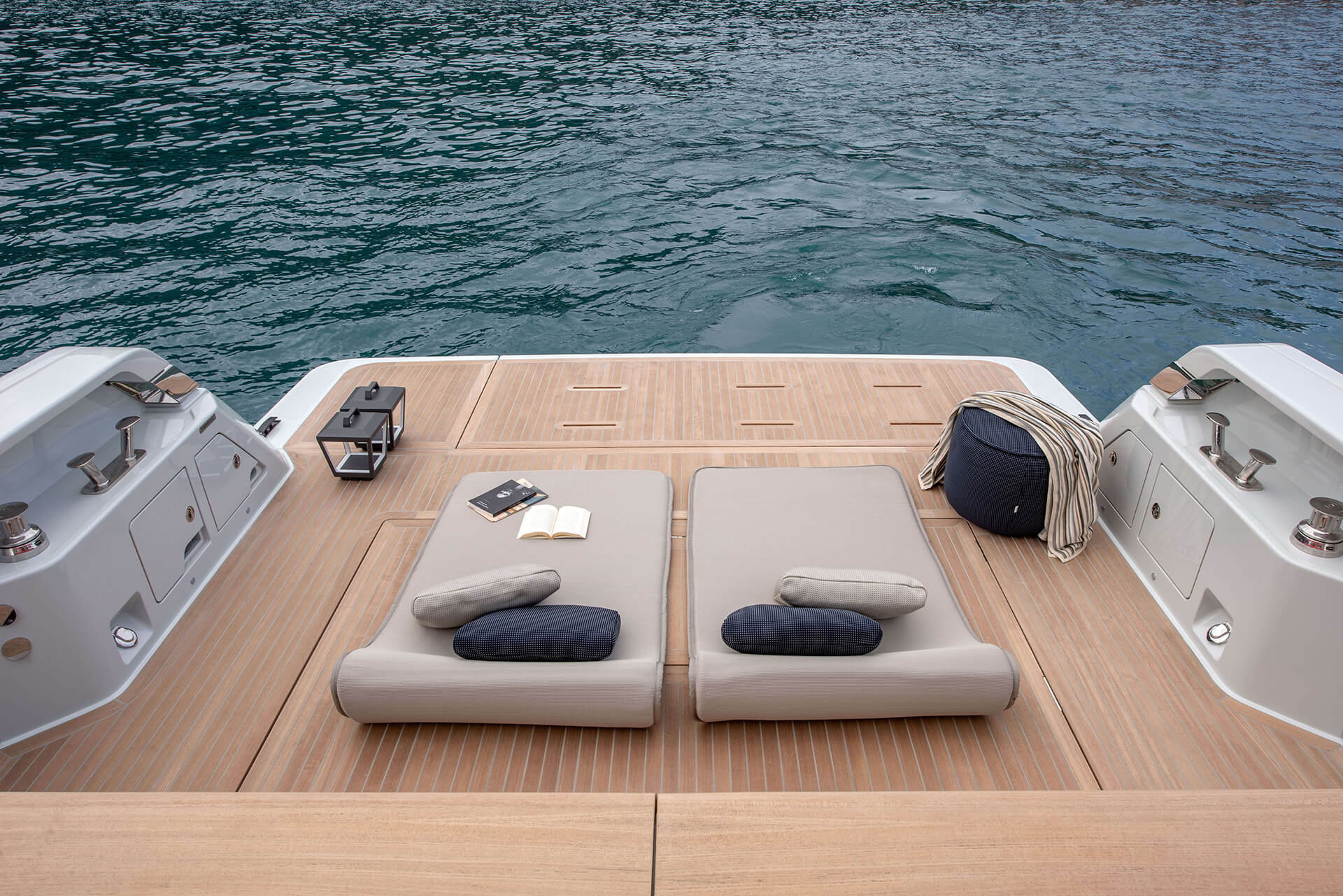

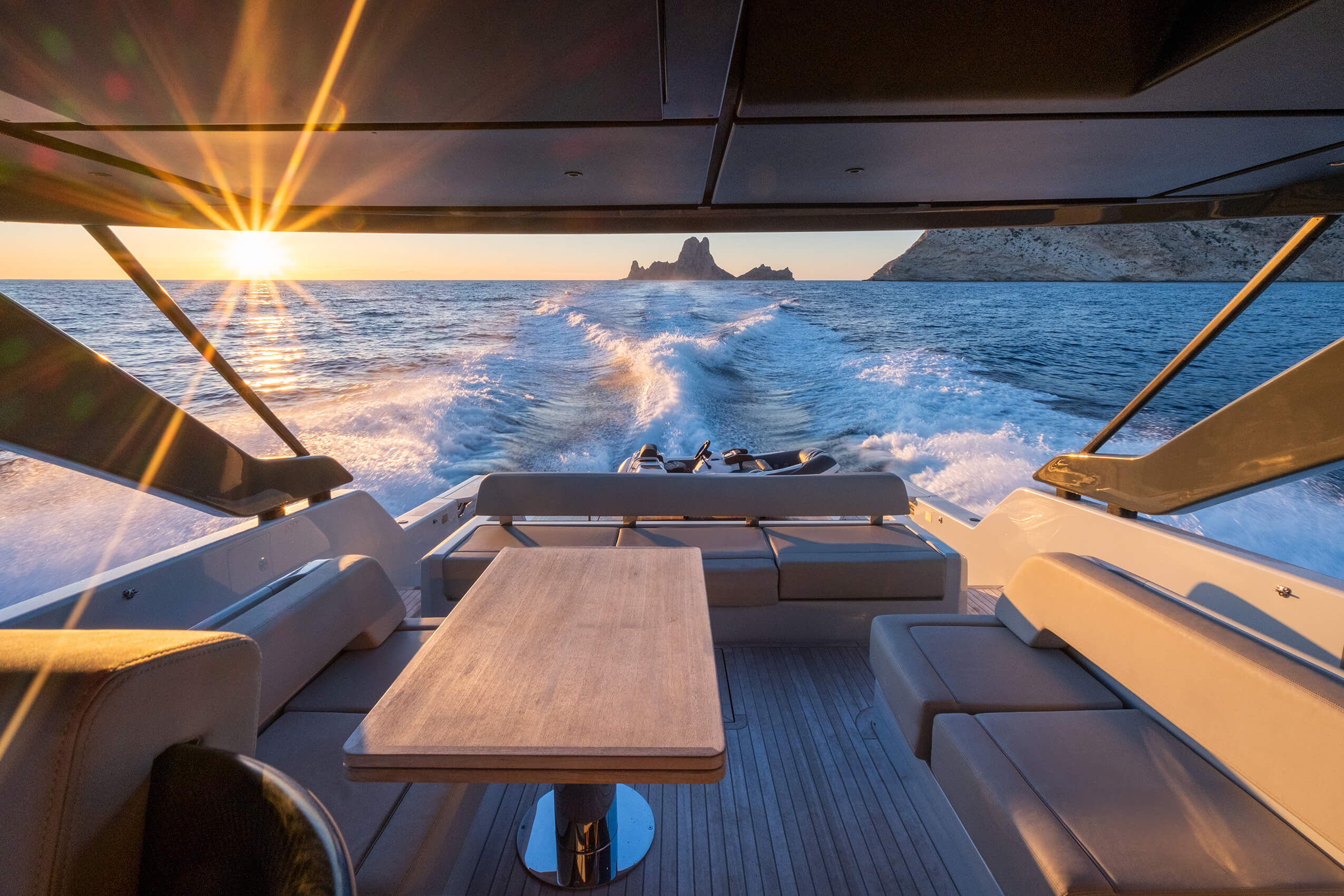

Aft sofa with cushions made with waterproof foam
Access to storage area
Hot/Cold shower
S/S removable swimming ladder
Boat name (sticker)
8 Fenders
9 cushions

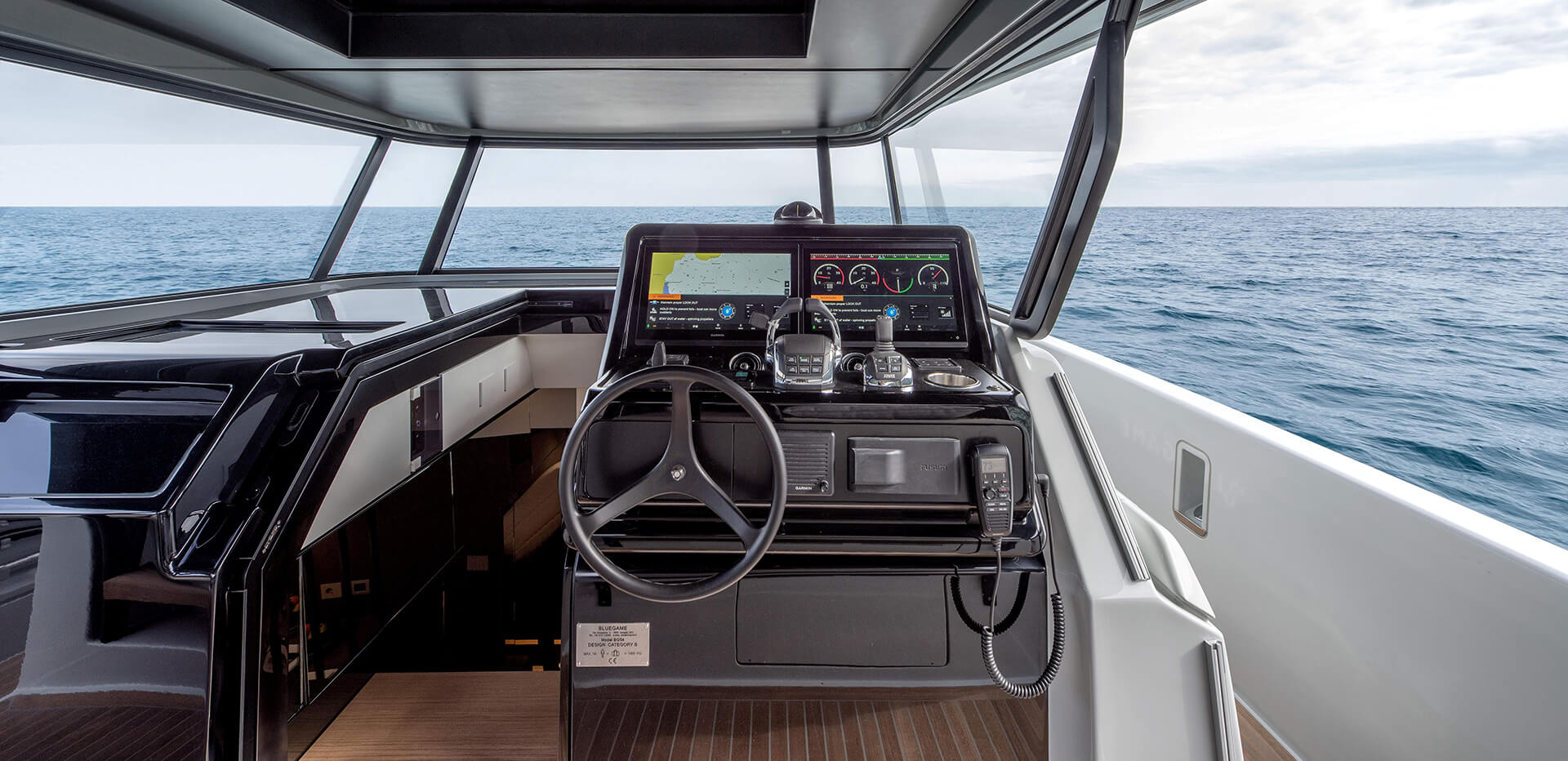

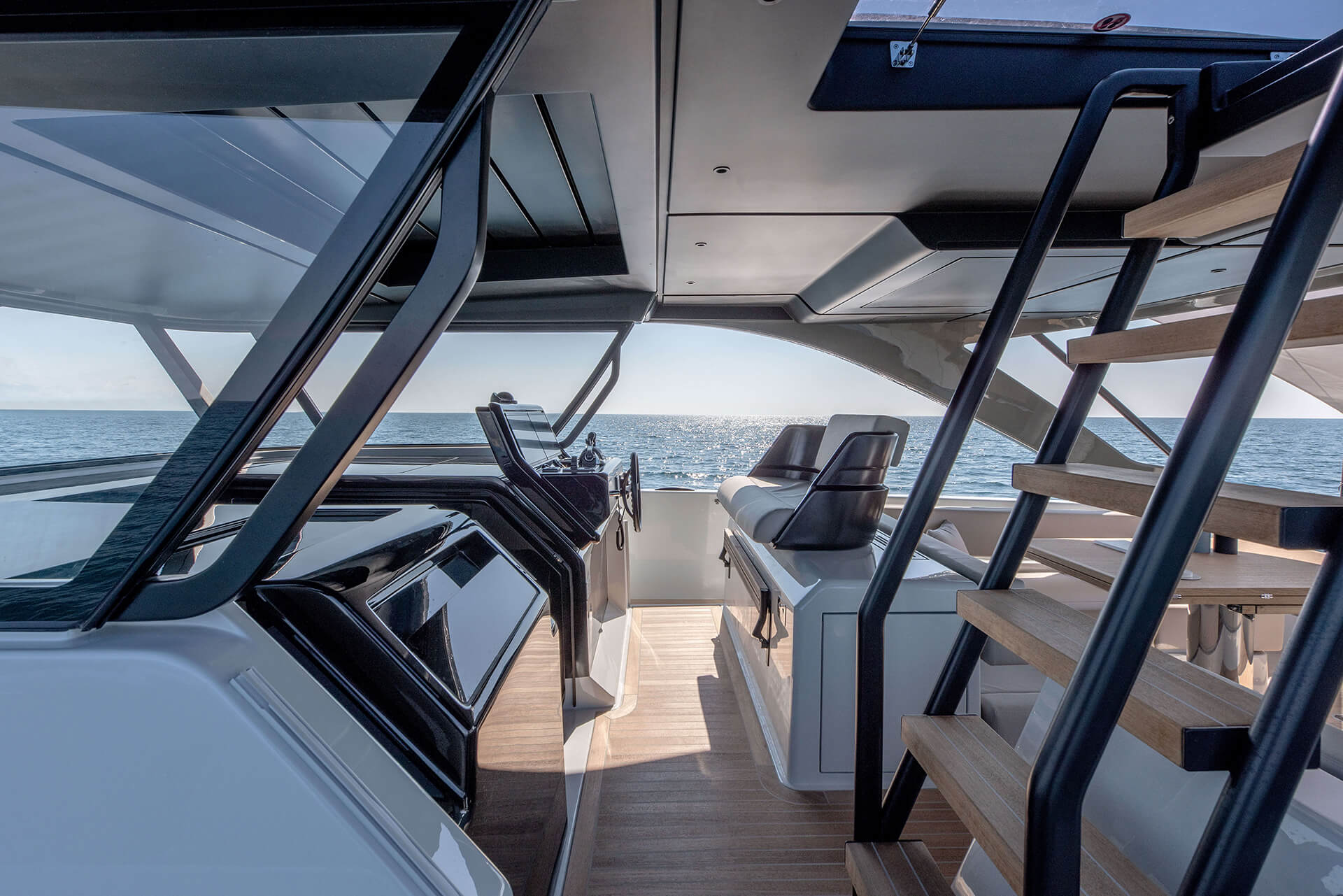

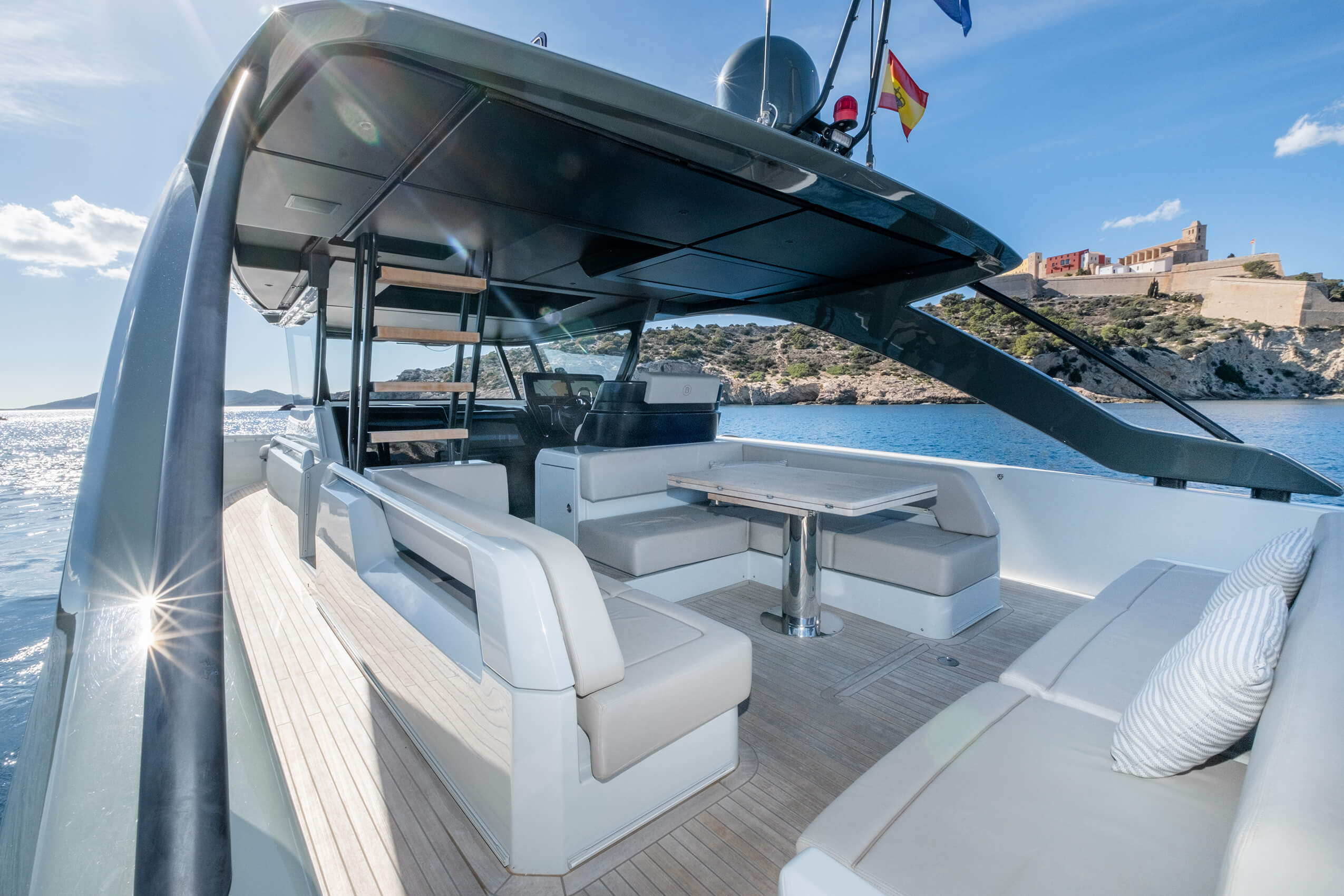

COCKPIT
Double pilot seat
Helm station strataglass side doors enclosure
Fixed skylight to galley area
Storage under the pilot seat
Subwoofer
Courtesy led lights

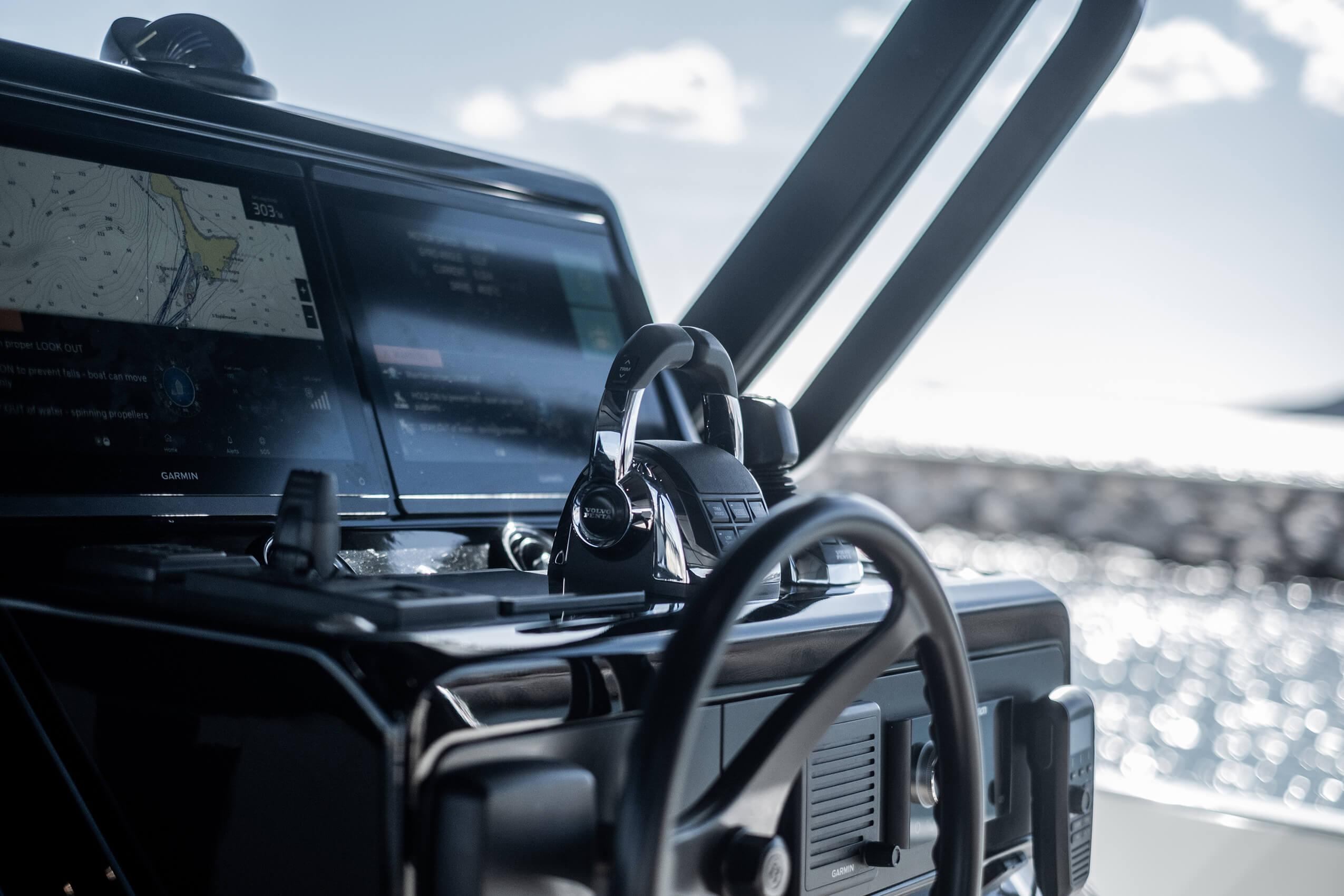

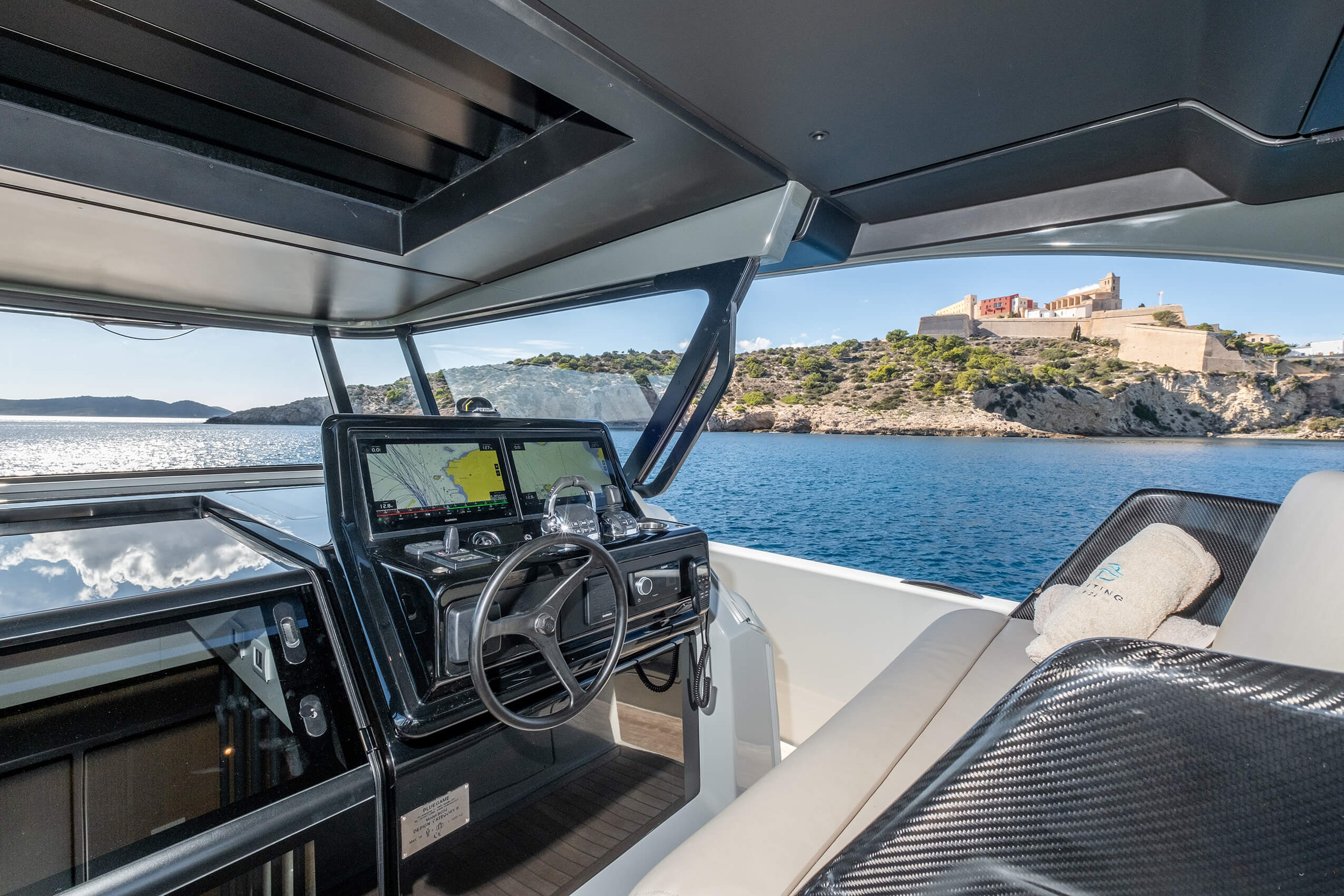

Console with:
Hi-Fi
Compass
N° 2 12” chart plotter glass cockpit indicating engines parameters (rpm, oil pressure, water temperature, engine sound warning alarm, fuel and water level) and controls (intruder systems, windshield wiper, GPS, radar, fish-finder)
Volvo Penta automatic pilot
VHF station with passive AIS receiver
IPS joystick
Volvo Penta electronic engine throttle
Digital switching and digital automation for main services DC and AC integrated in main panel
Back-lighted switch panel for deck services
Bluegame personalized steering wheel
Fire fighting system control
Red navigation light control
USB socket

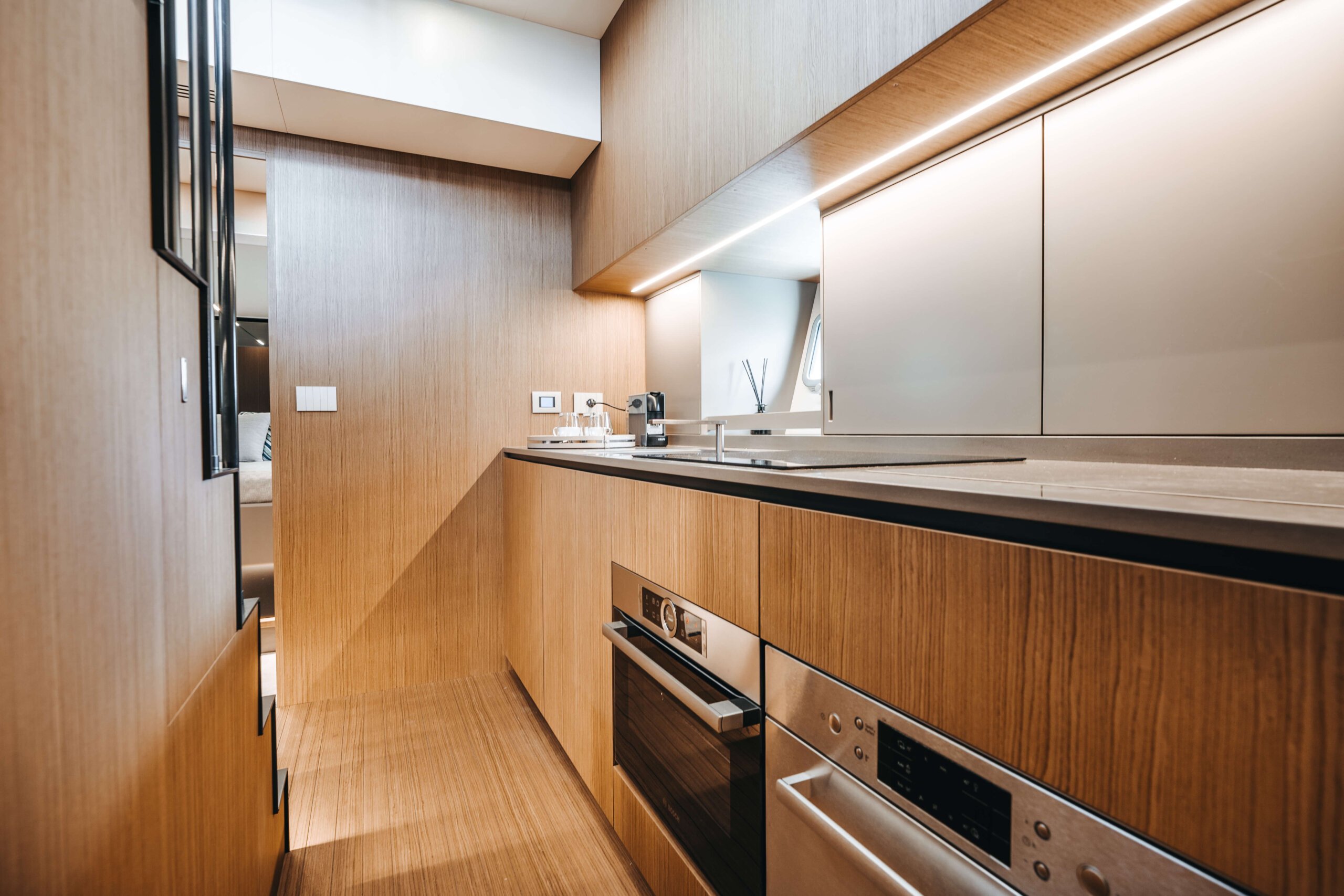

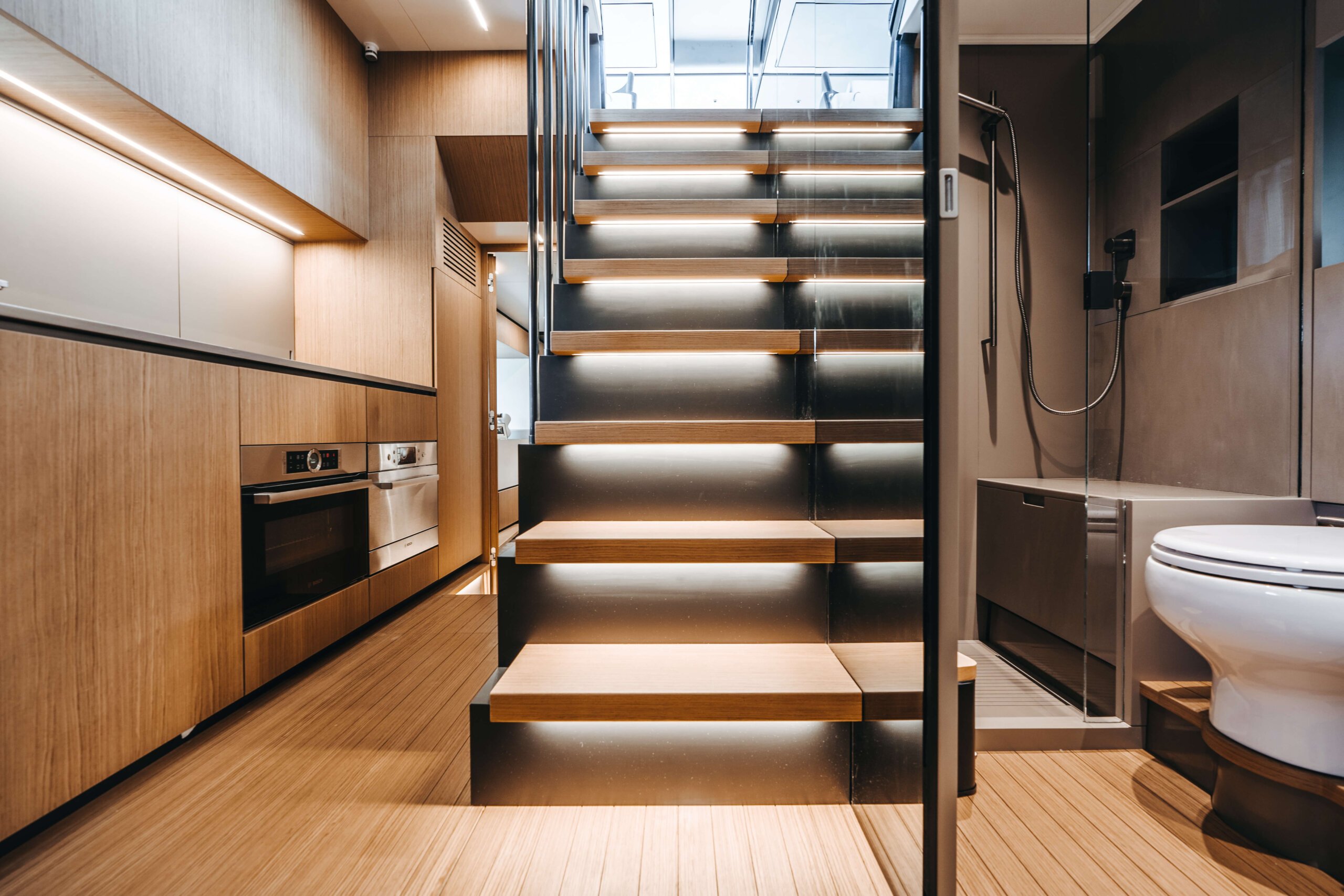

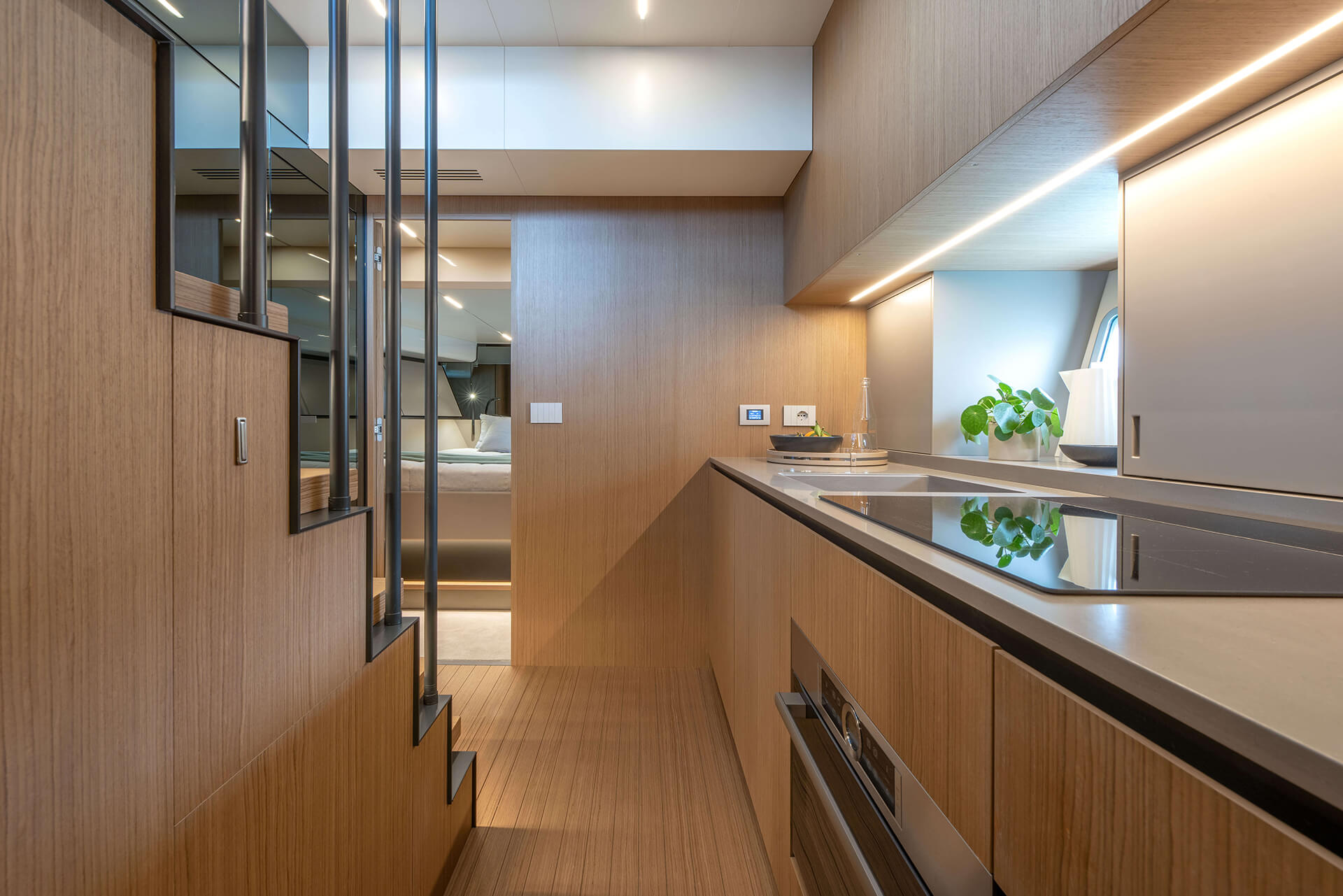

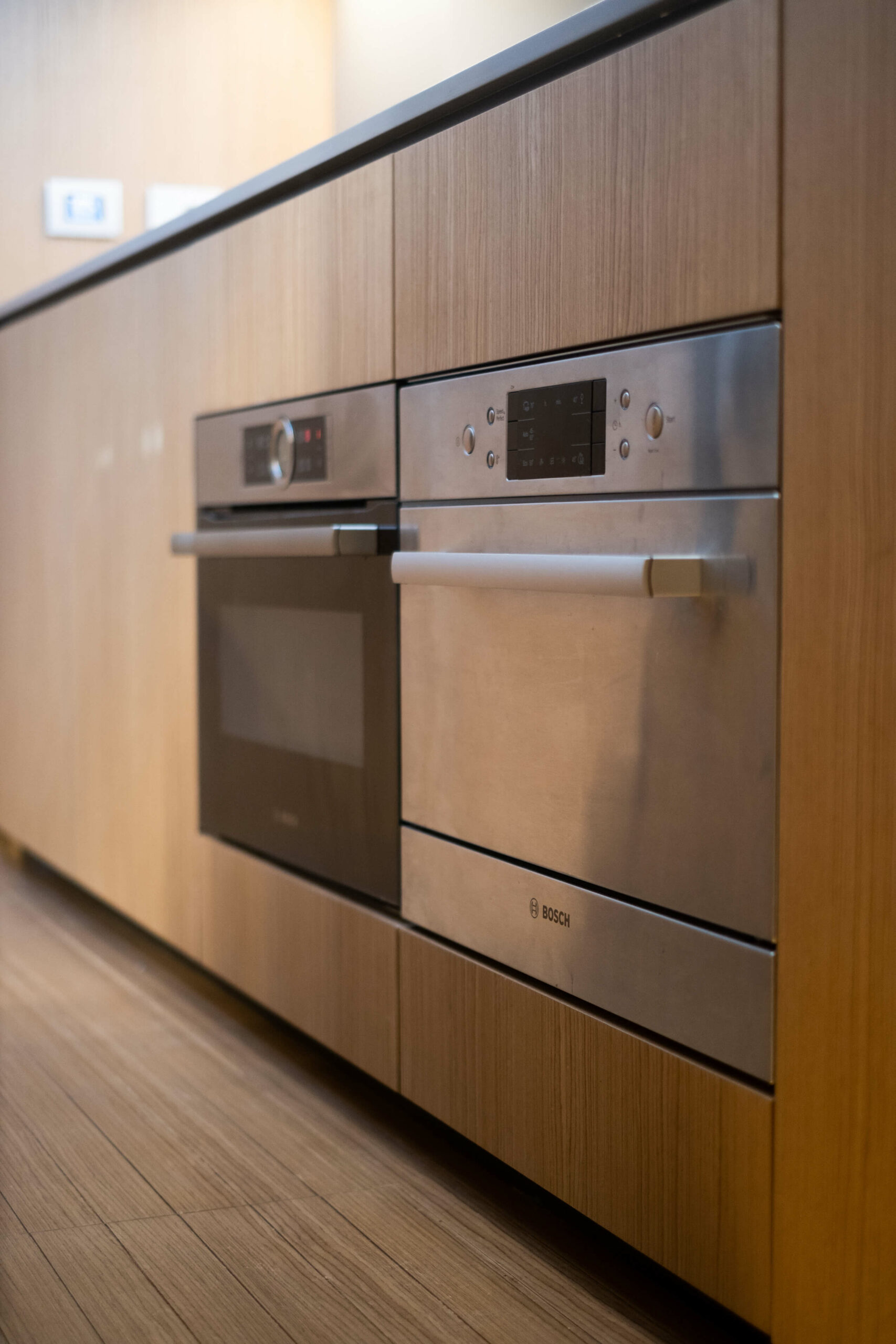

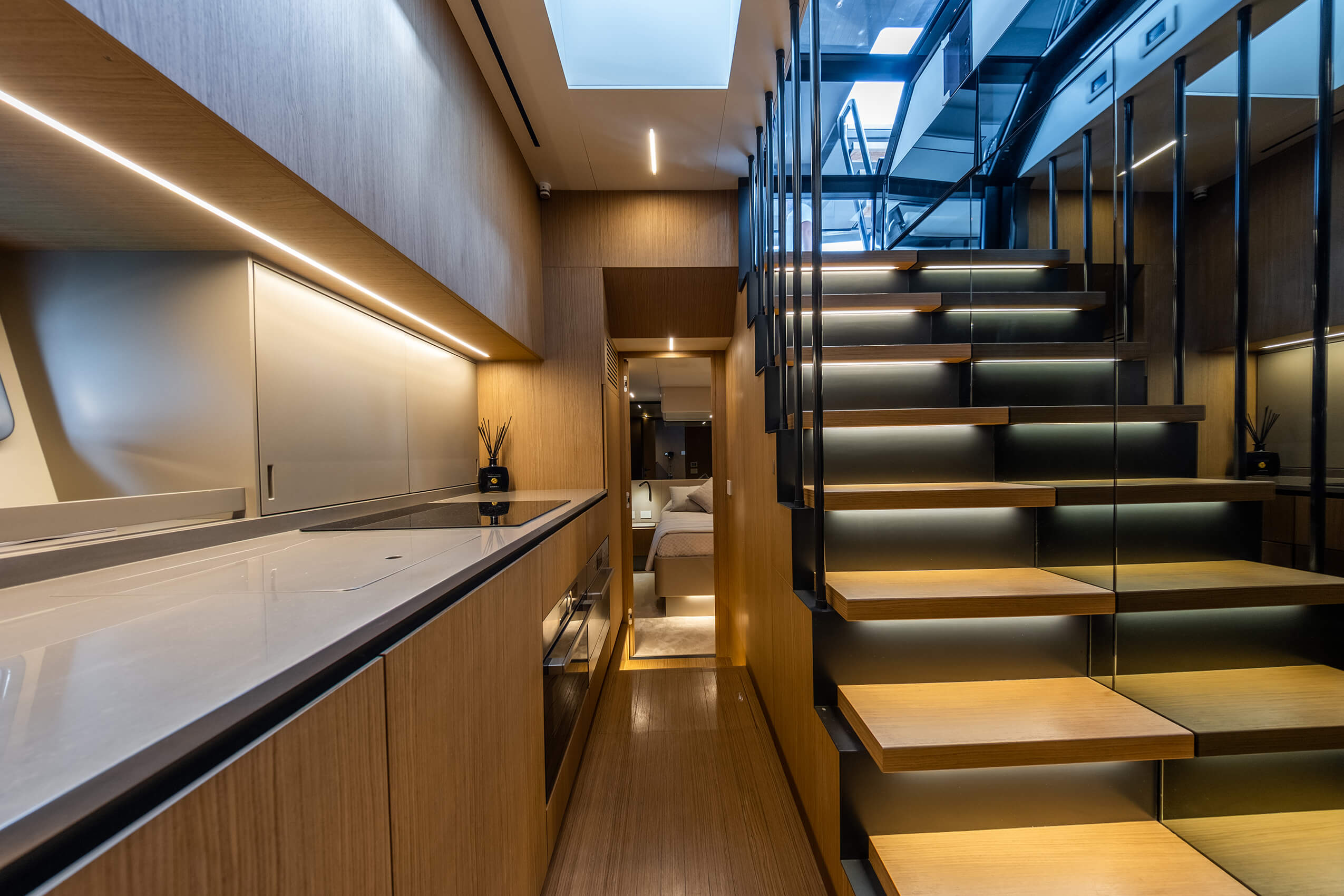

GALLEY

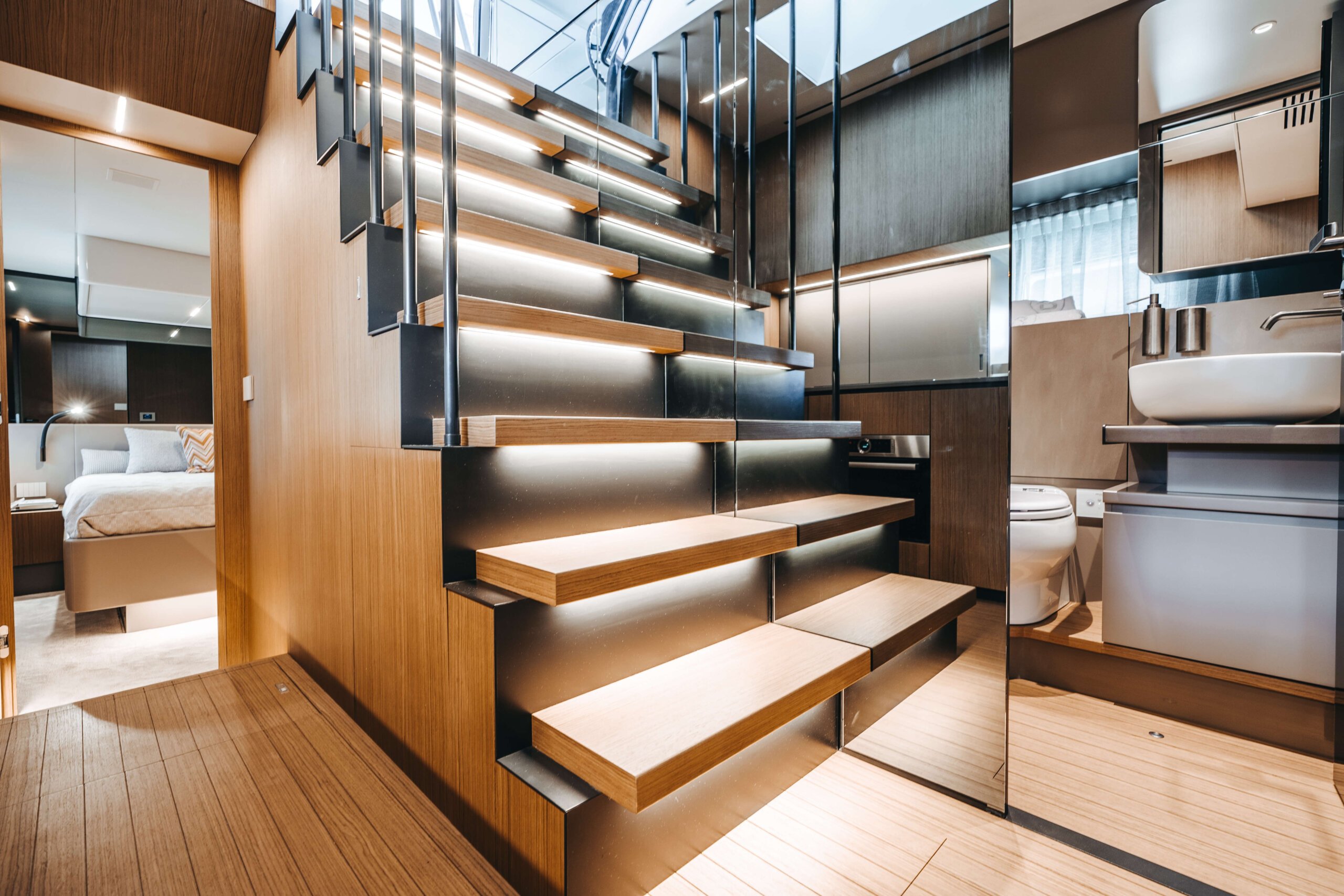

Steps from cockpit with handrails
Side porthole
Lacquered side cabinet
Lower cabinet with storage
Sink with cover
Trash compartment
Synthetic worktop
Induction cooktop
Oven
Refrigerator + freezer compartment
220V & USB socket
Wooden floor
Ceiling lights
Courtsey lights
Air conditioning fancoil
Fire extinguisher 1 kg

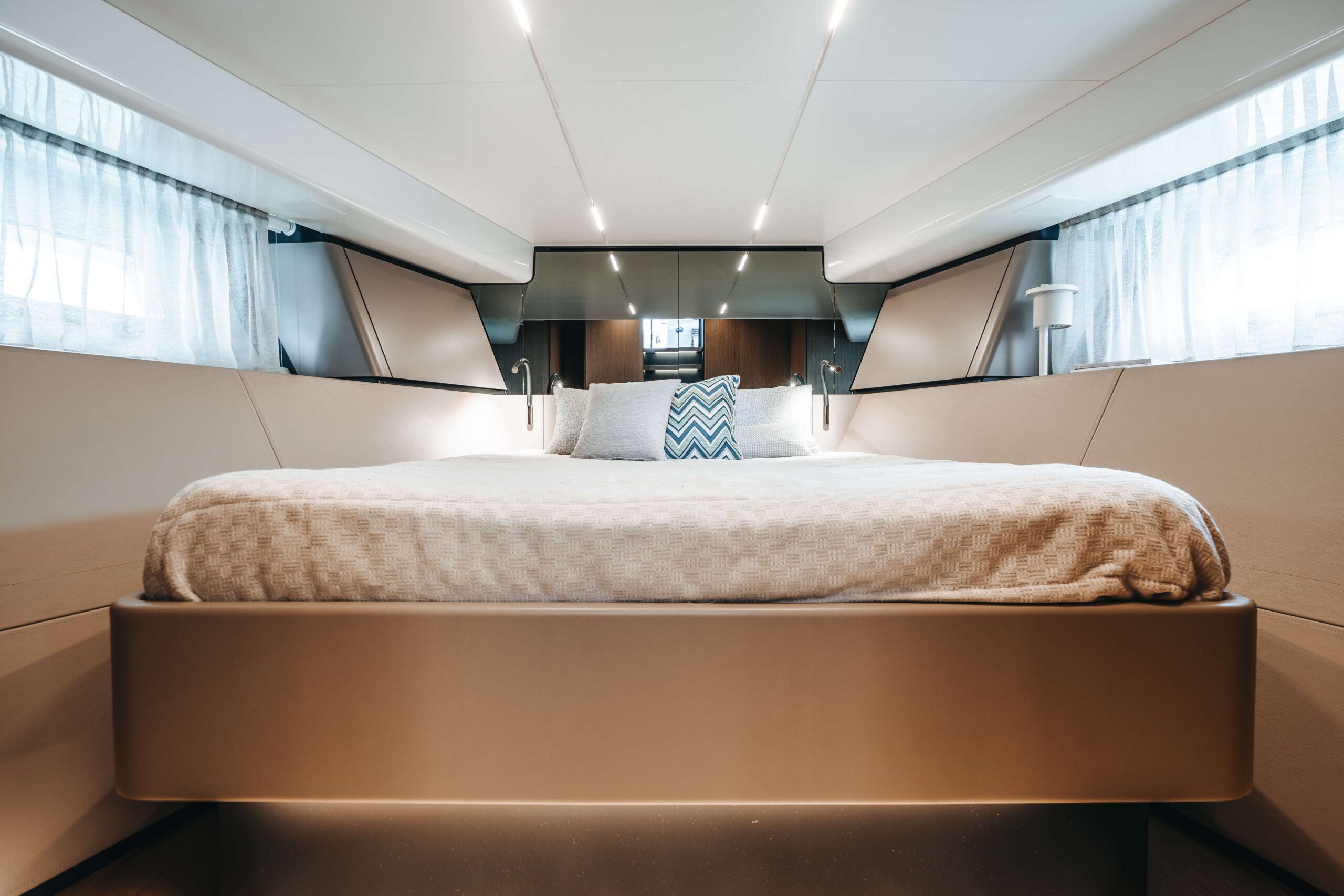

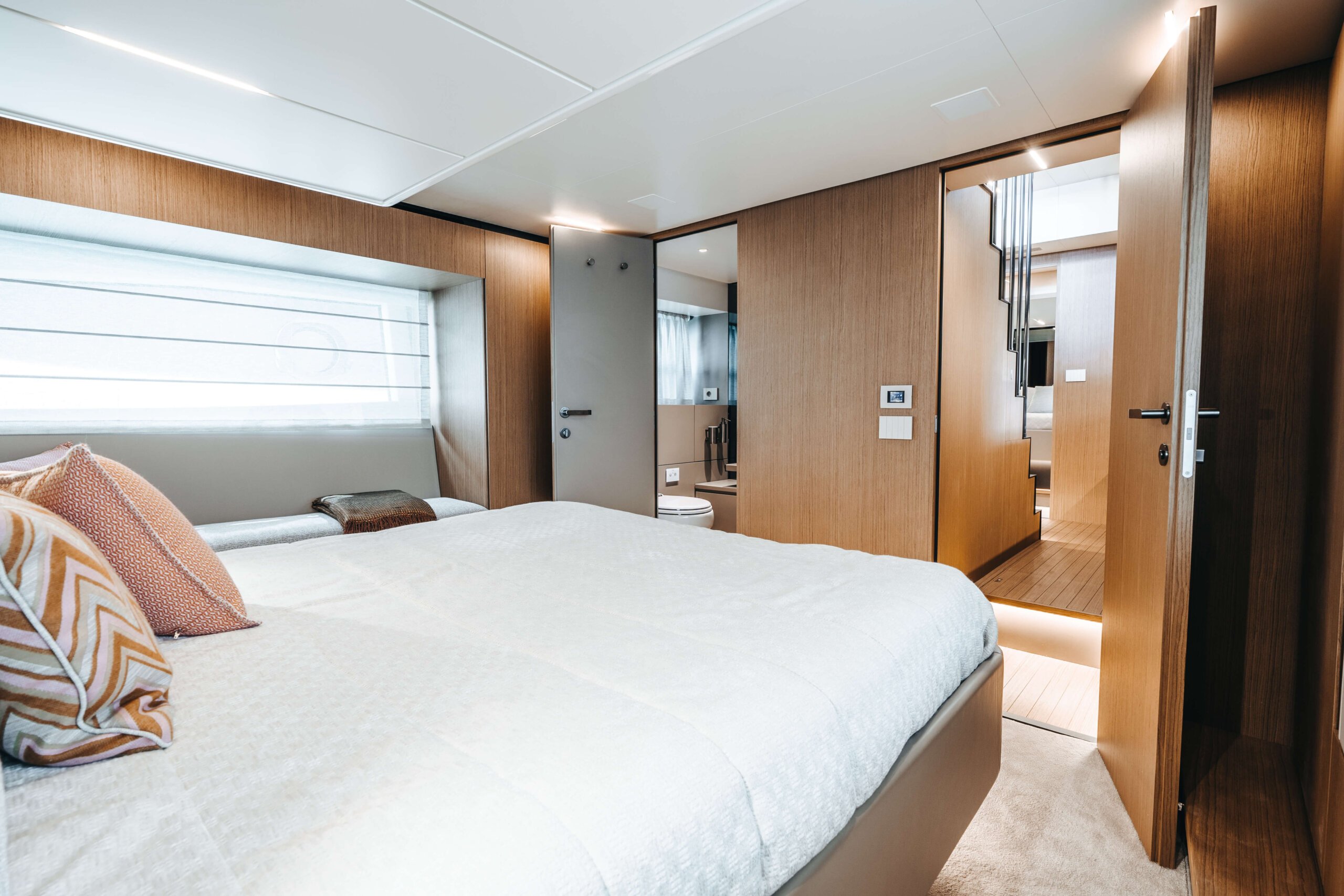

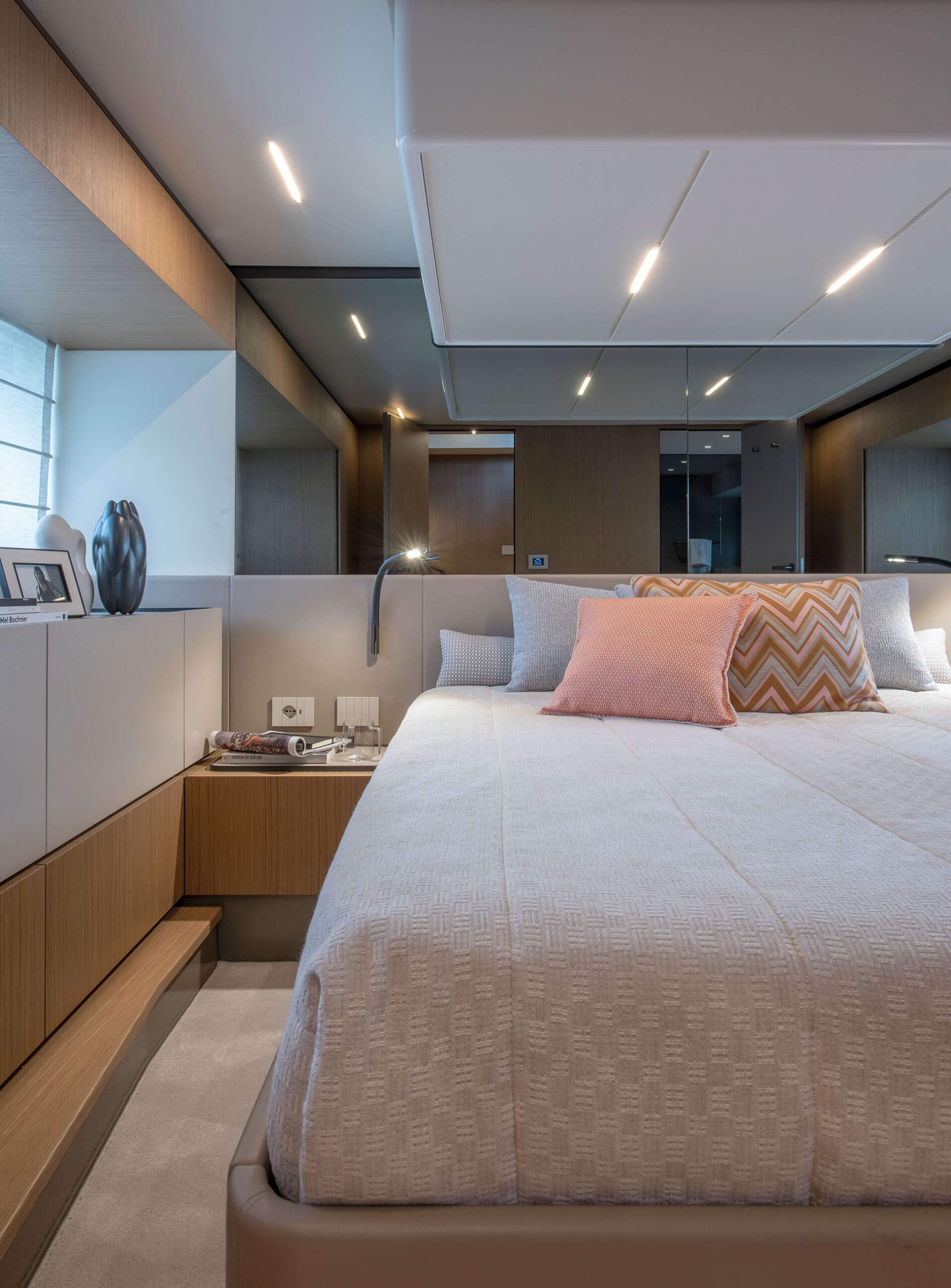

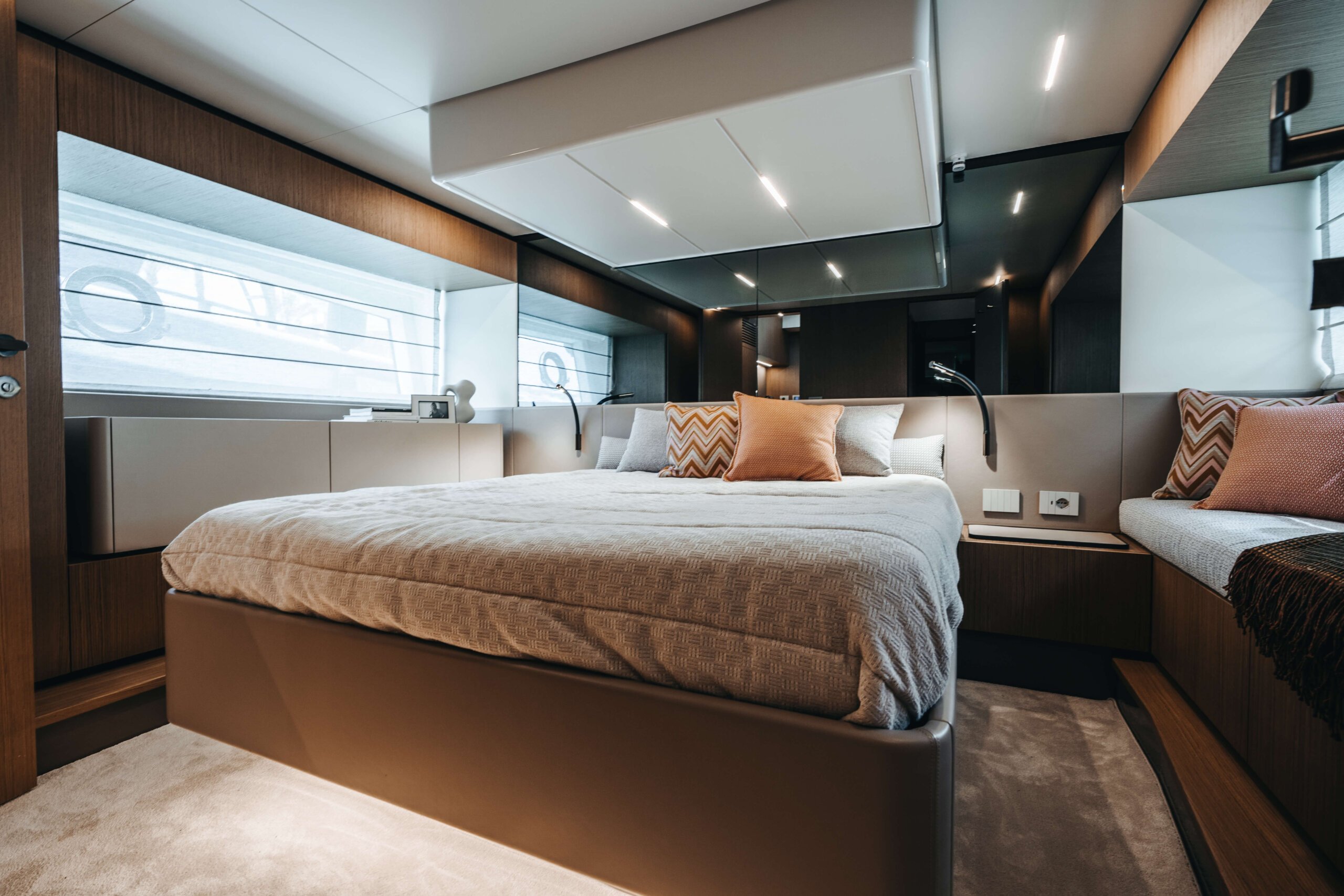

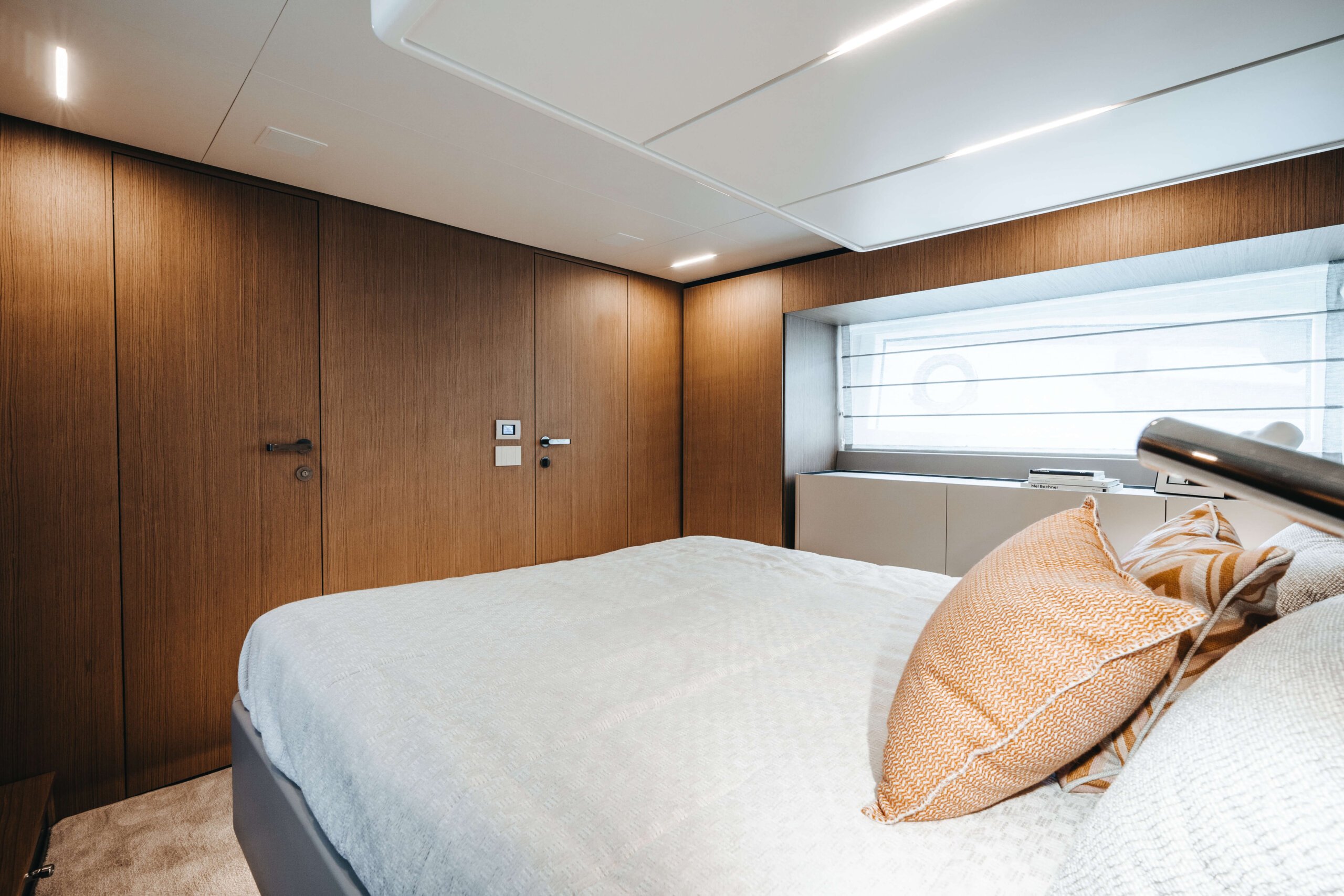

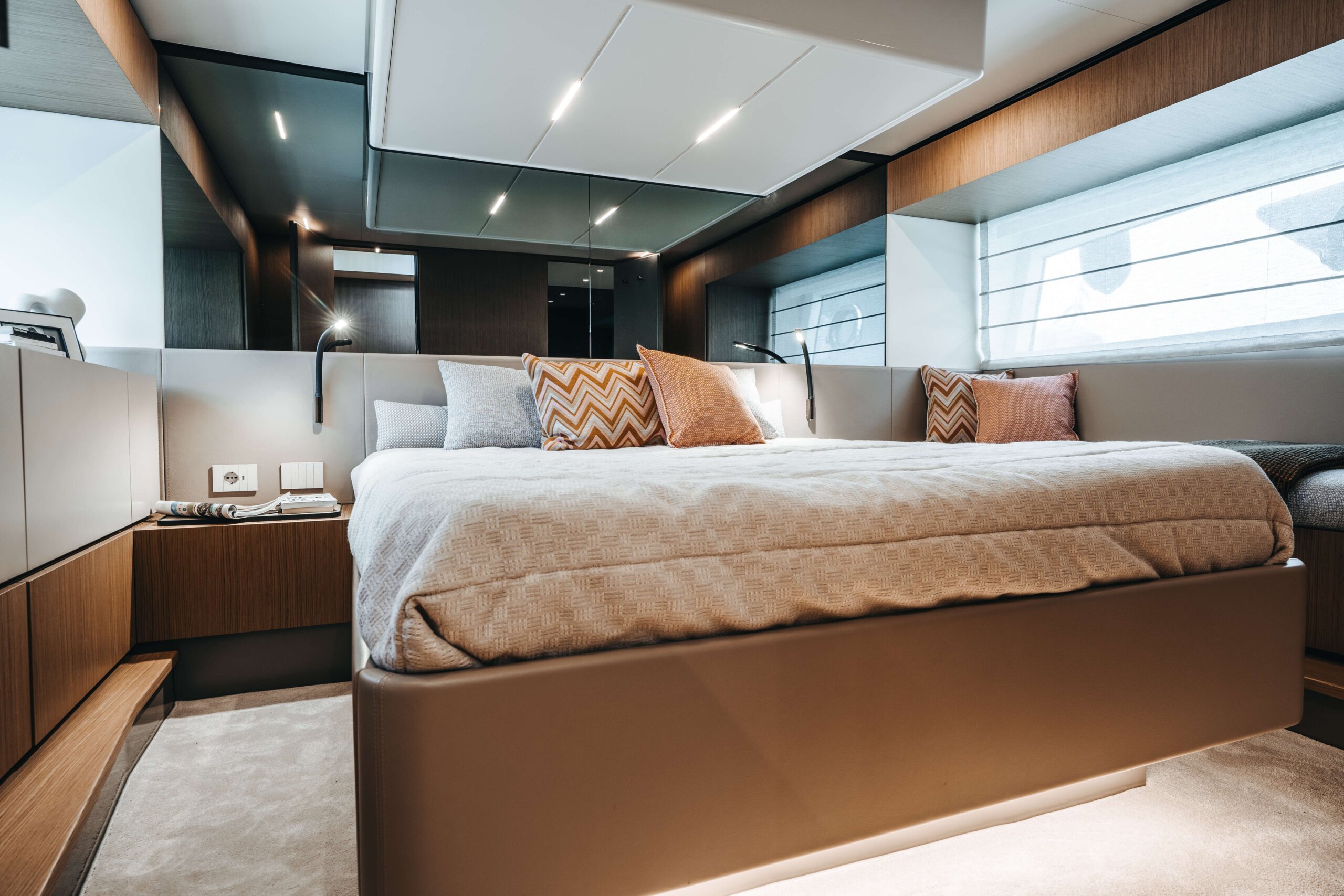

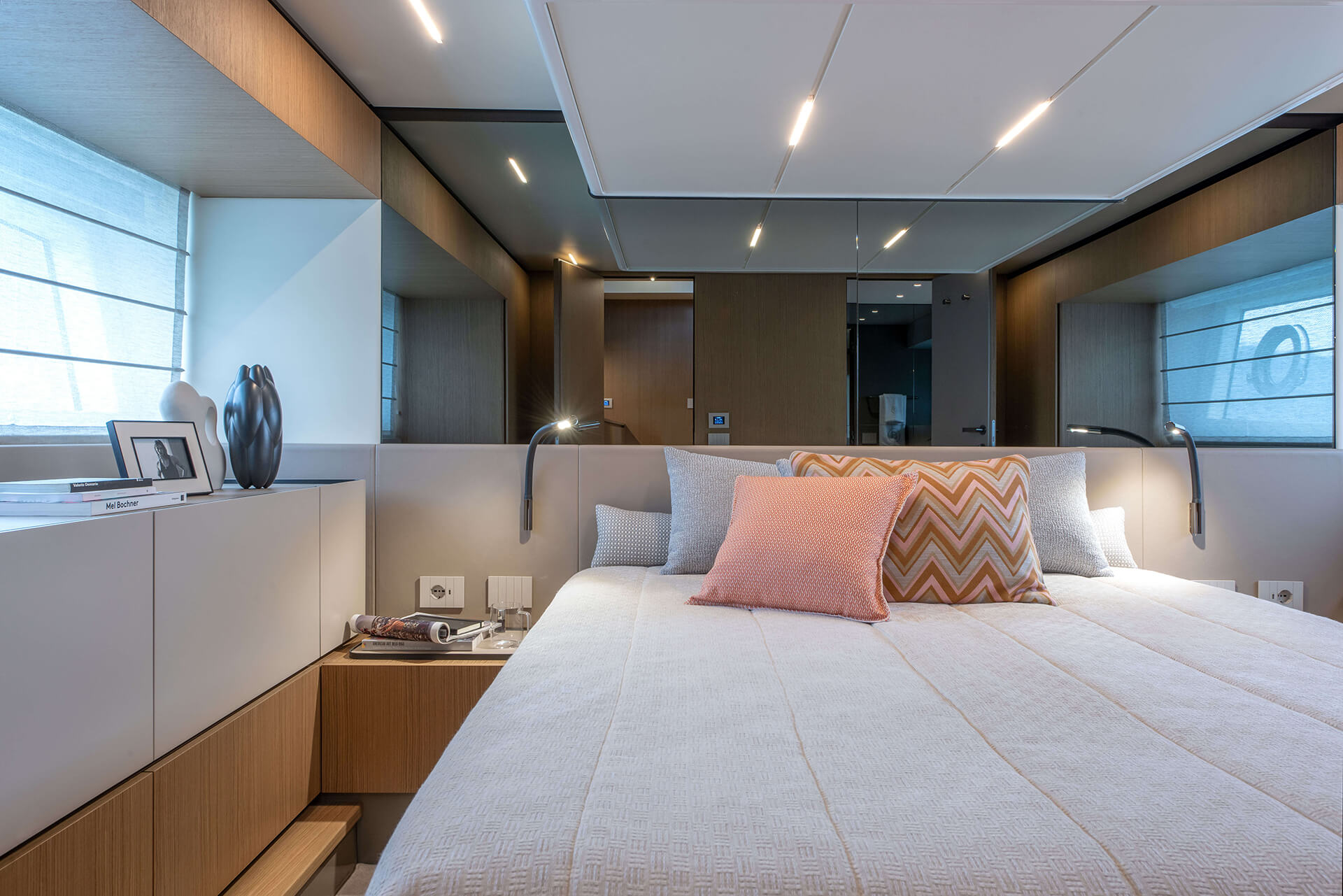

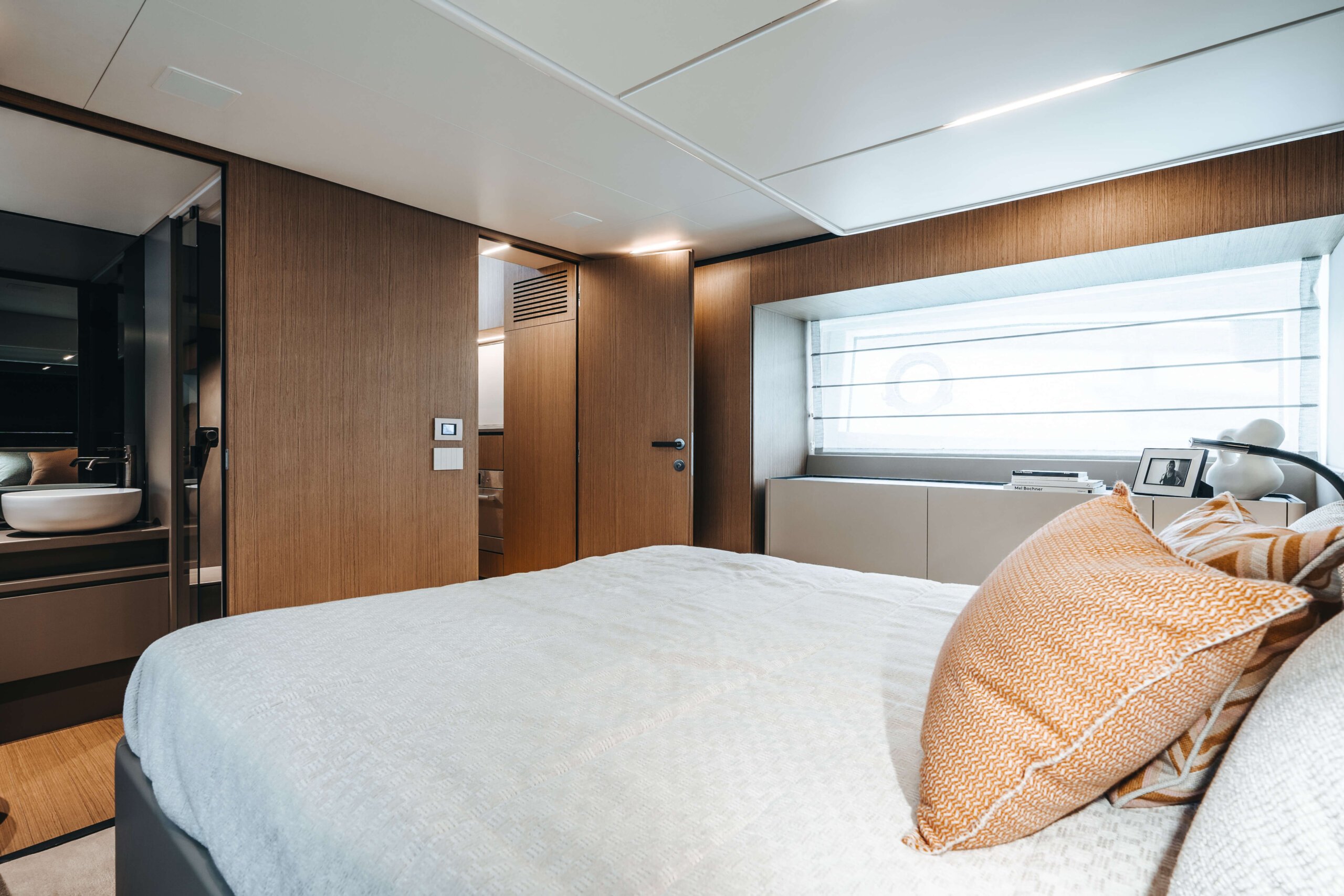

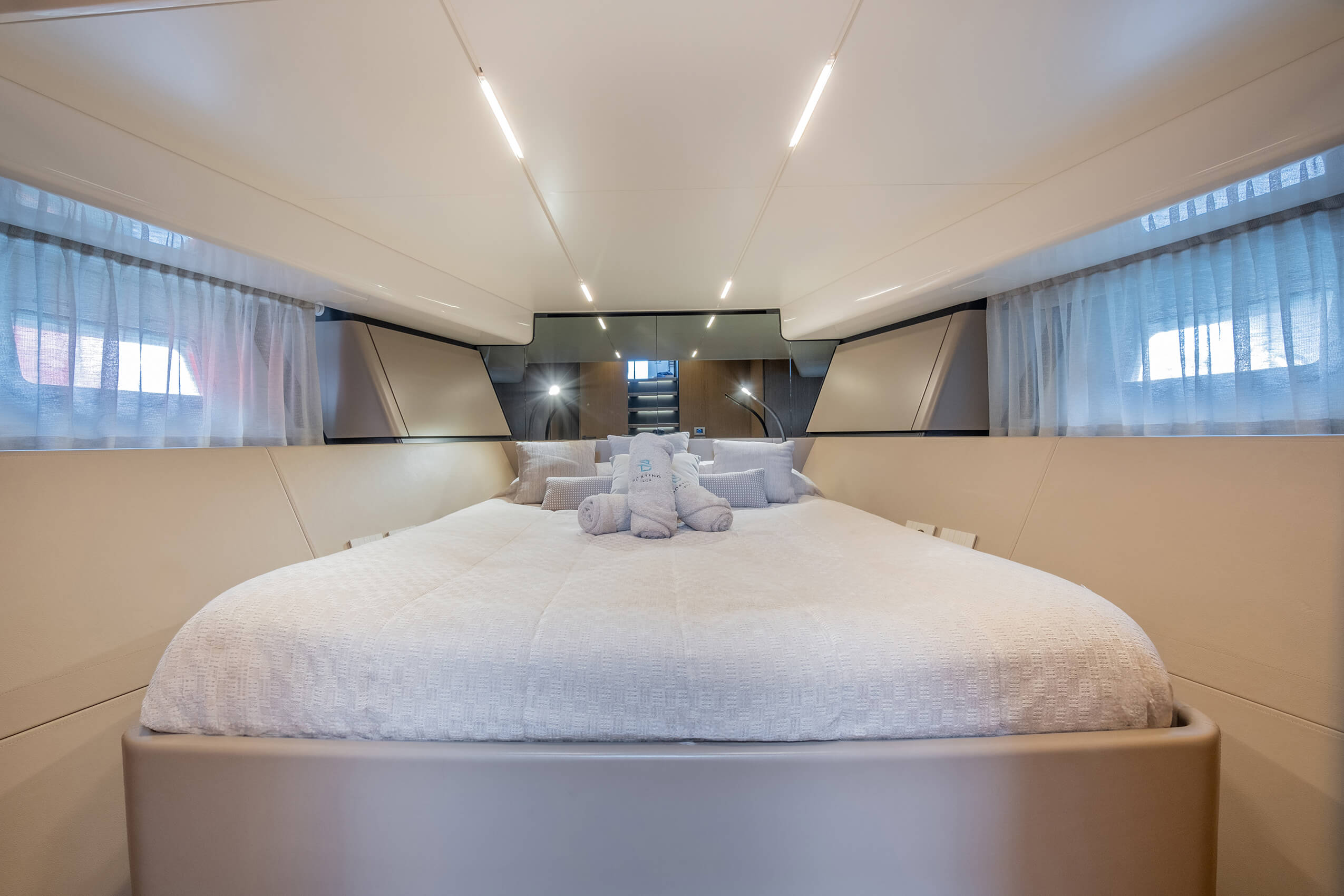

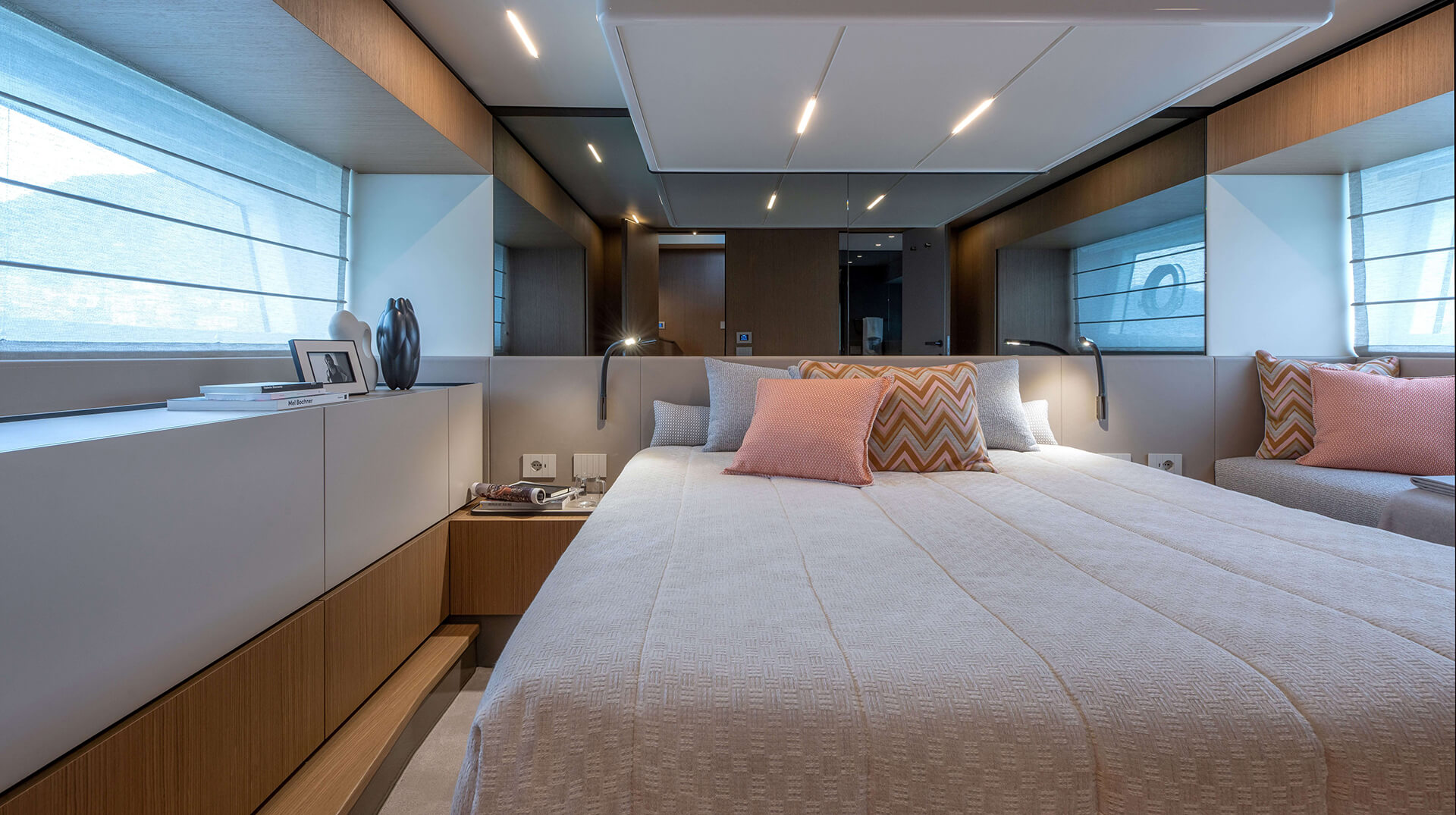

AFT FULL BEAM CABIN
Double bed with mattress and storage
N°2 Wardrobes
N°6 Drawers
Nightstands with drawers
Side sofa
Floor carpet
Reading lights
Ceiling lights
Courtsey lights
220V & USB sockets
Side tempered glasses with integrated portholes
Roller blind
Decorative curtains
Pillows
Bed sheet cover
Bed sheets
Safe
Hi-Fi
N° 2 speakers
Air conditioning fancoil
Smoke detector
Fire extinguisher 1kg
8 cushions

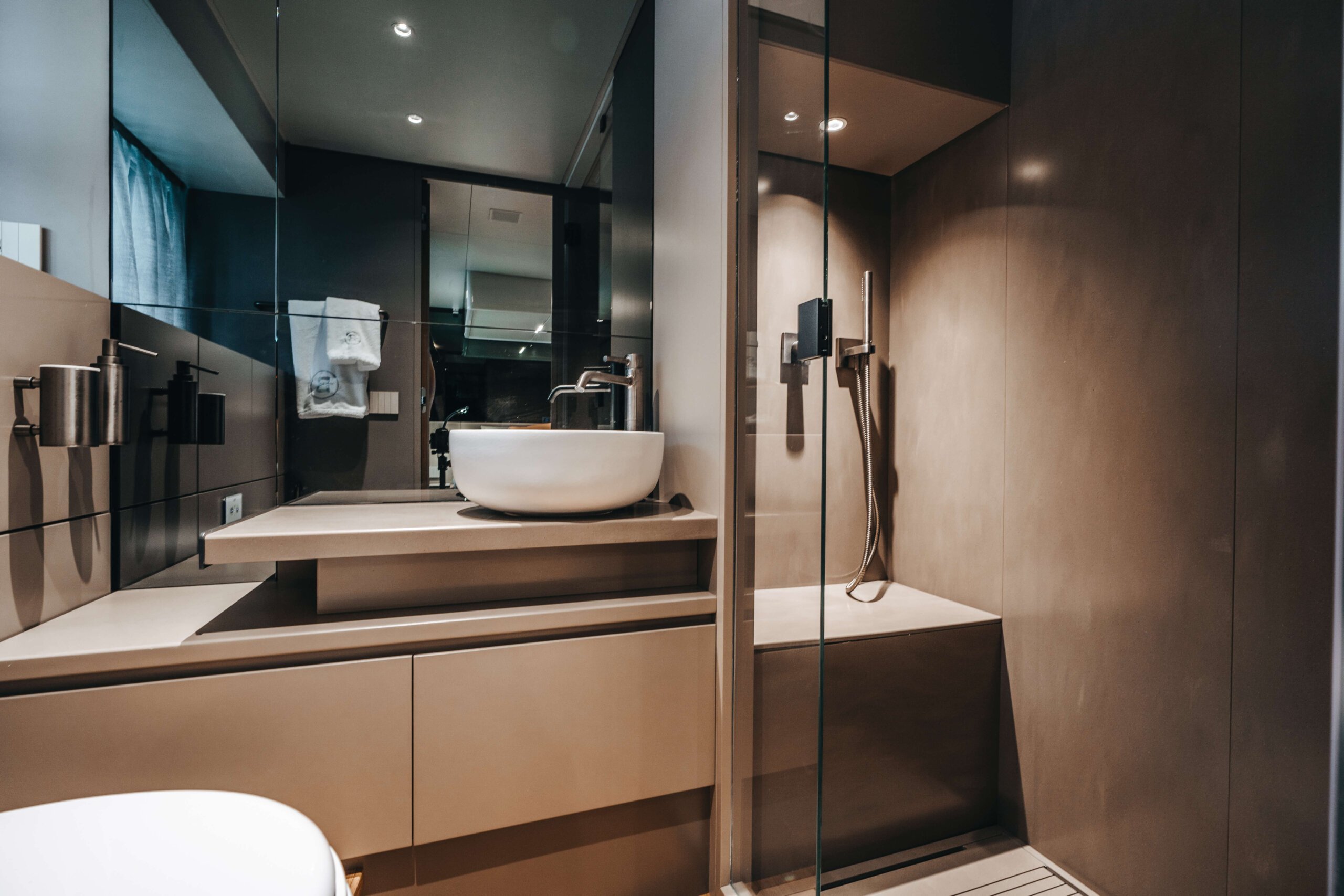

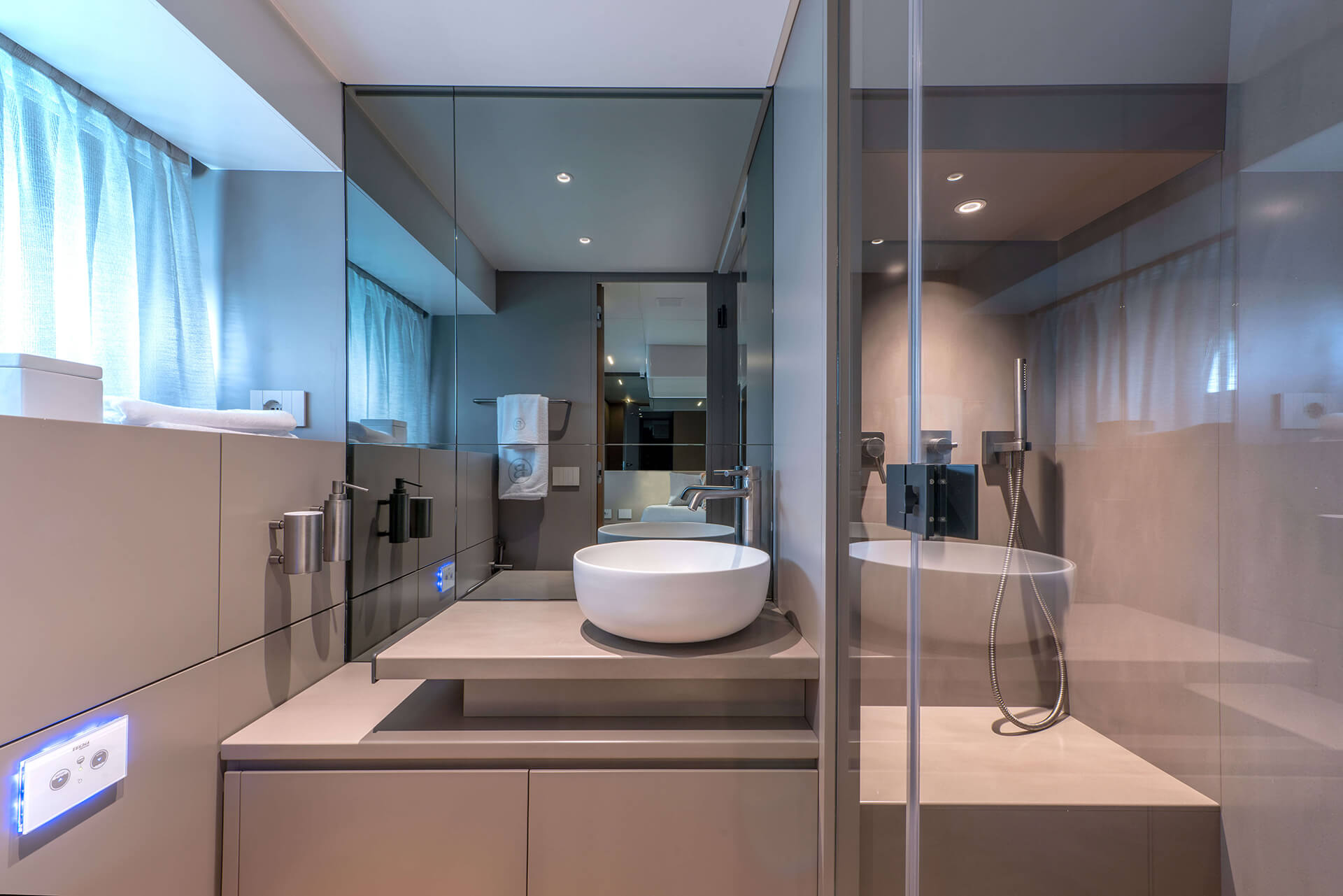

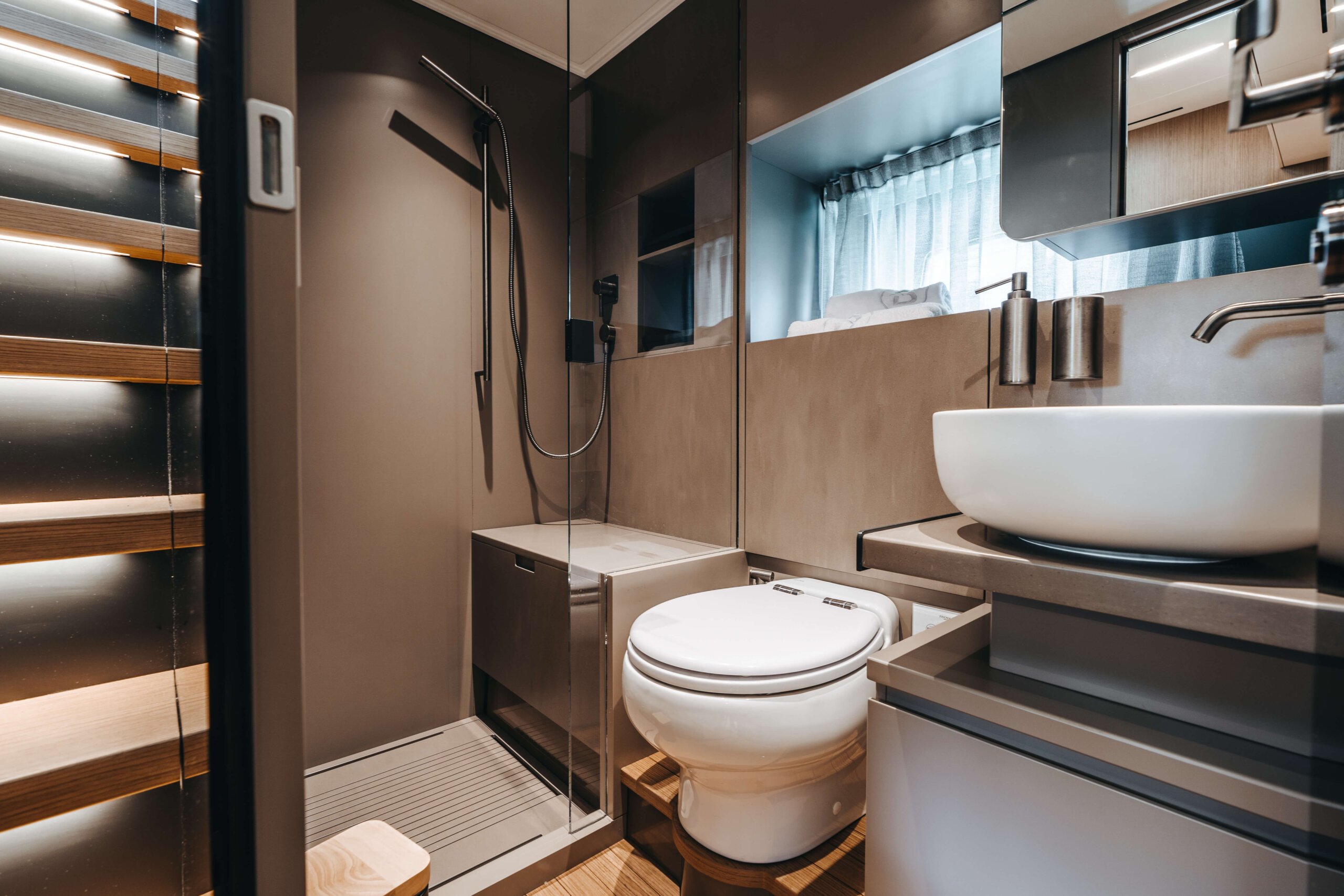

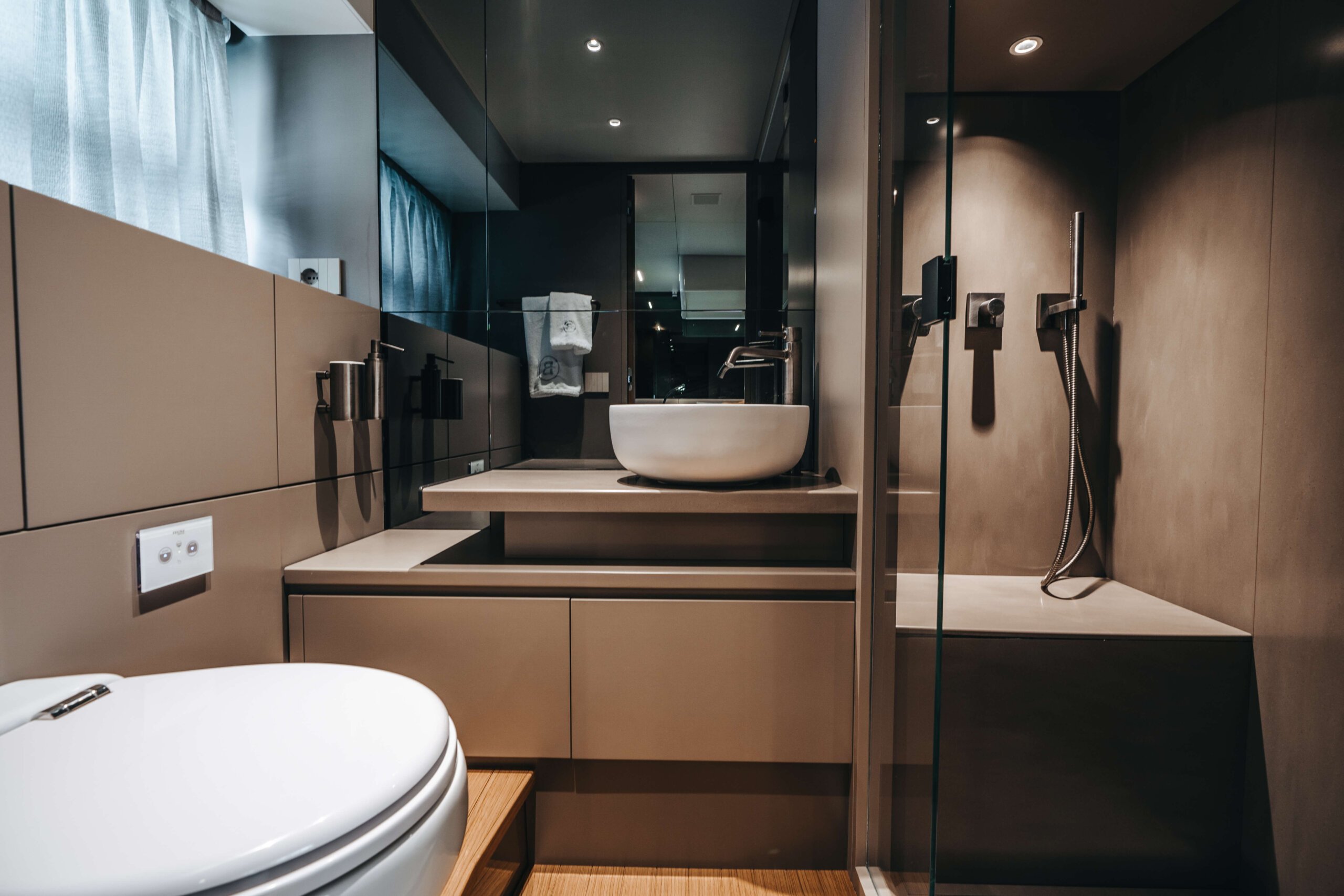

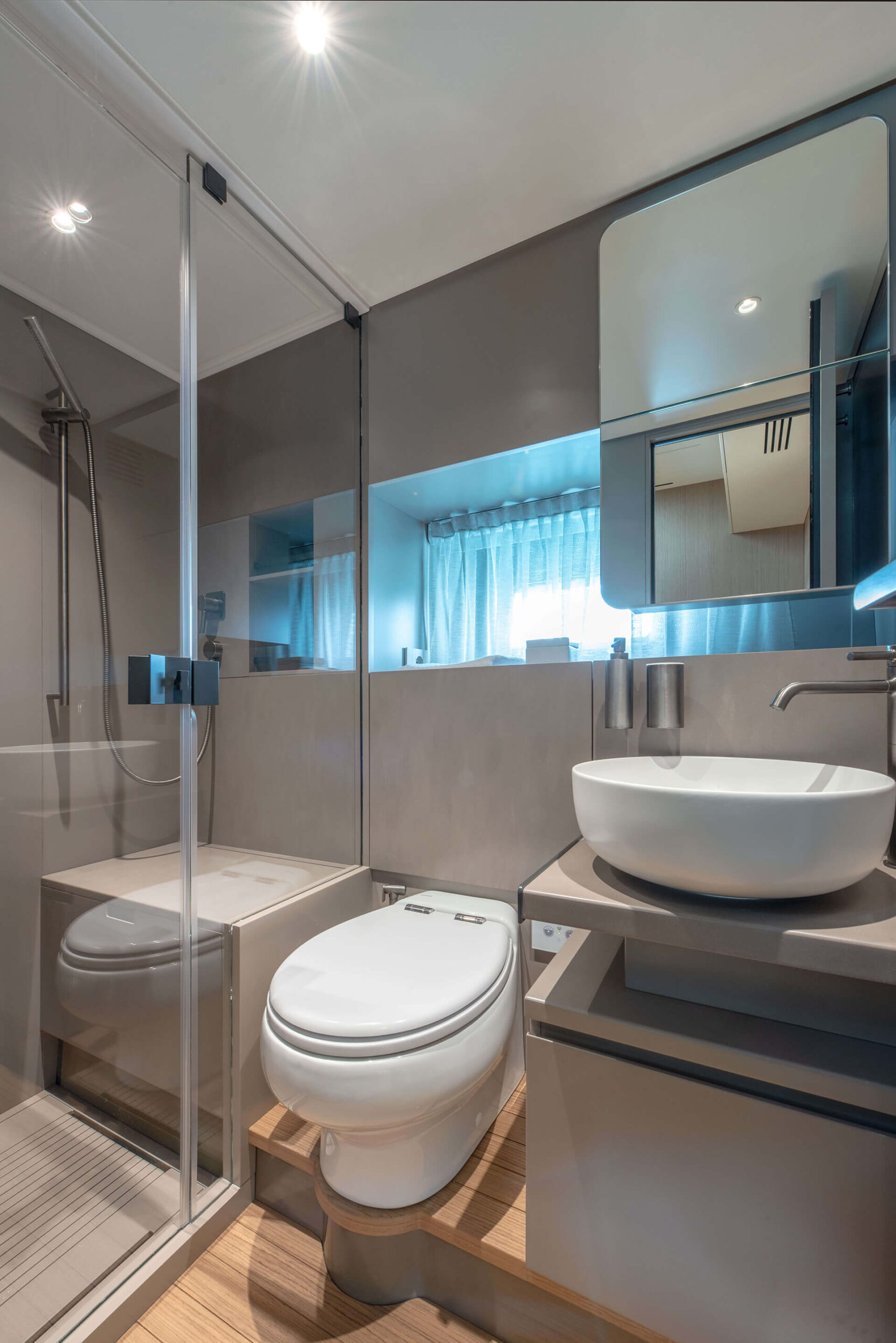

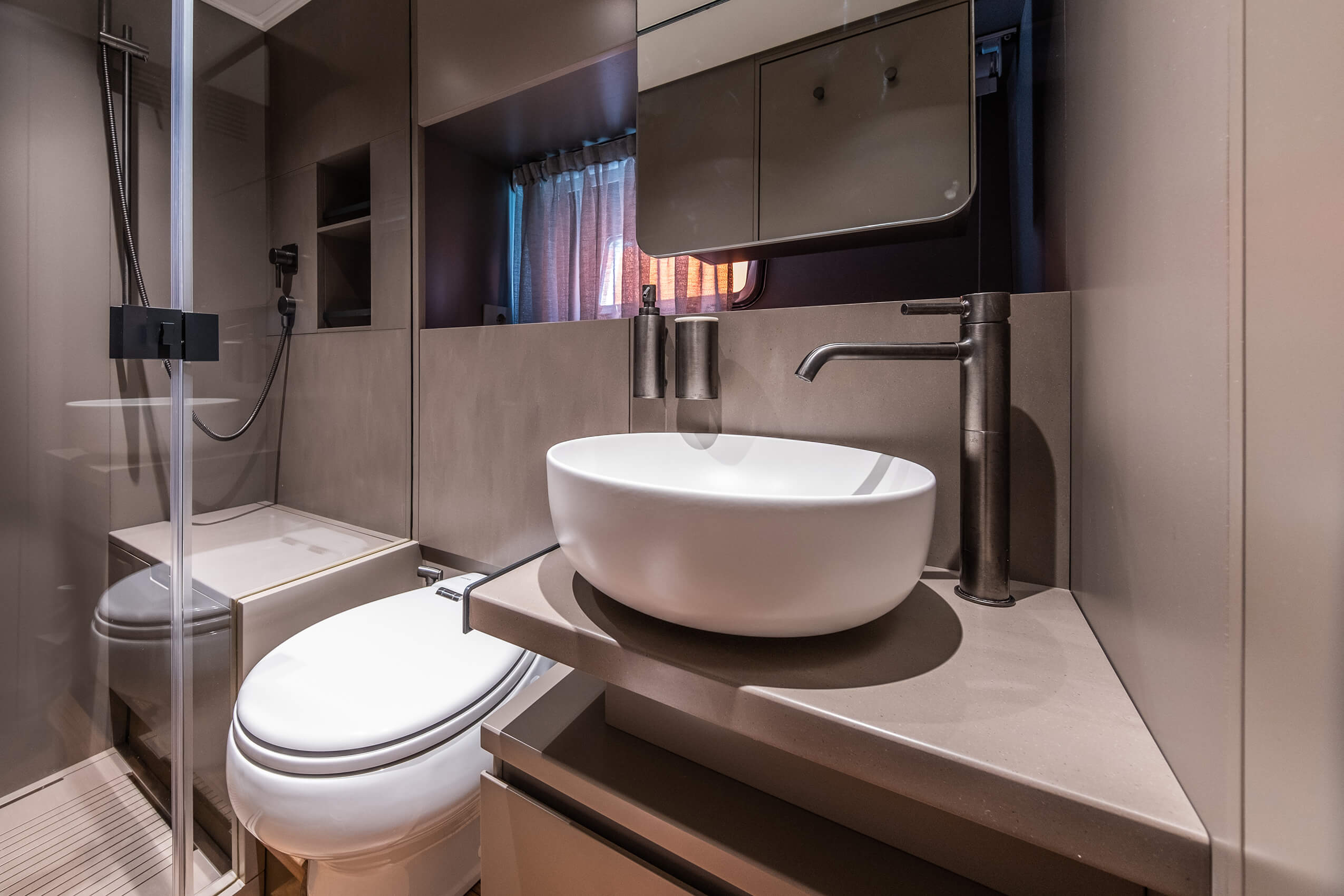

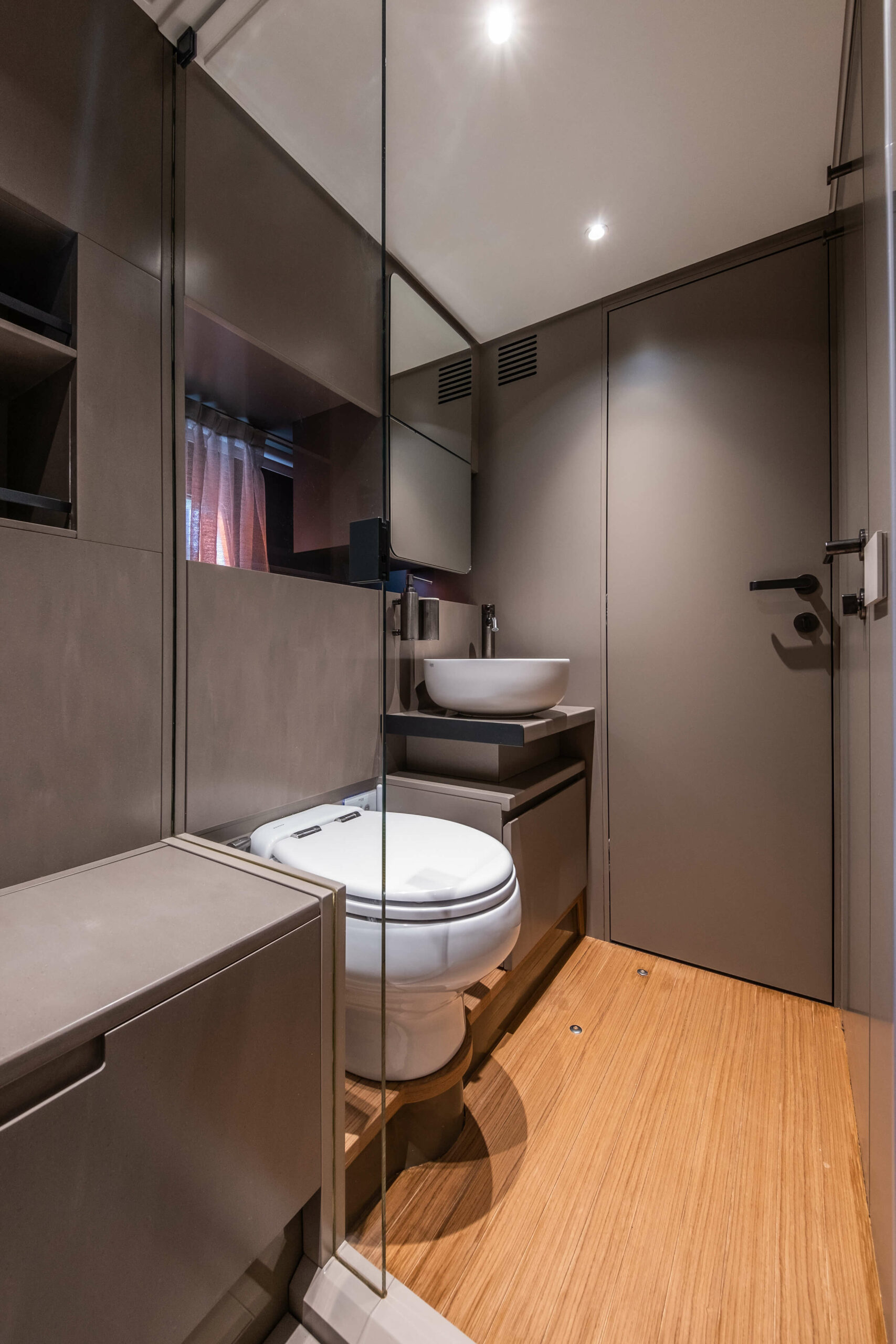

AFT TOILET
Fresh water electric marine WC
Hydro-brush for WC
Wooden floor
Ceiling lights
Roller Blind
Decorative curtains
220 V socket
Bathroom accessories
Bathroom towels
Cabinet with mirror
Porthole
Synthetic surface with sink
Shower with handset and ceiling shower head, and tempered glass door
2 towels sets

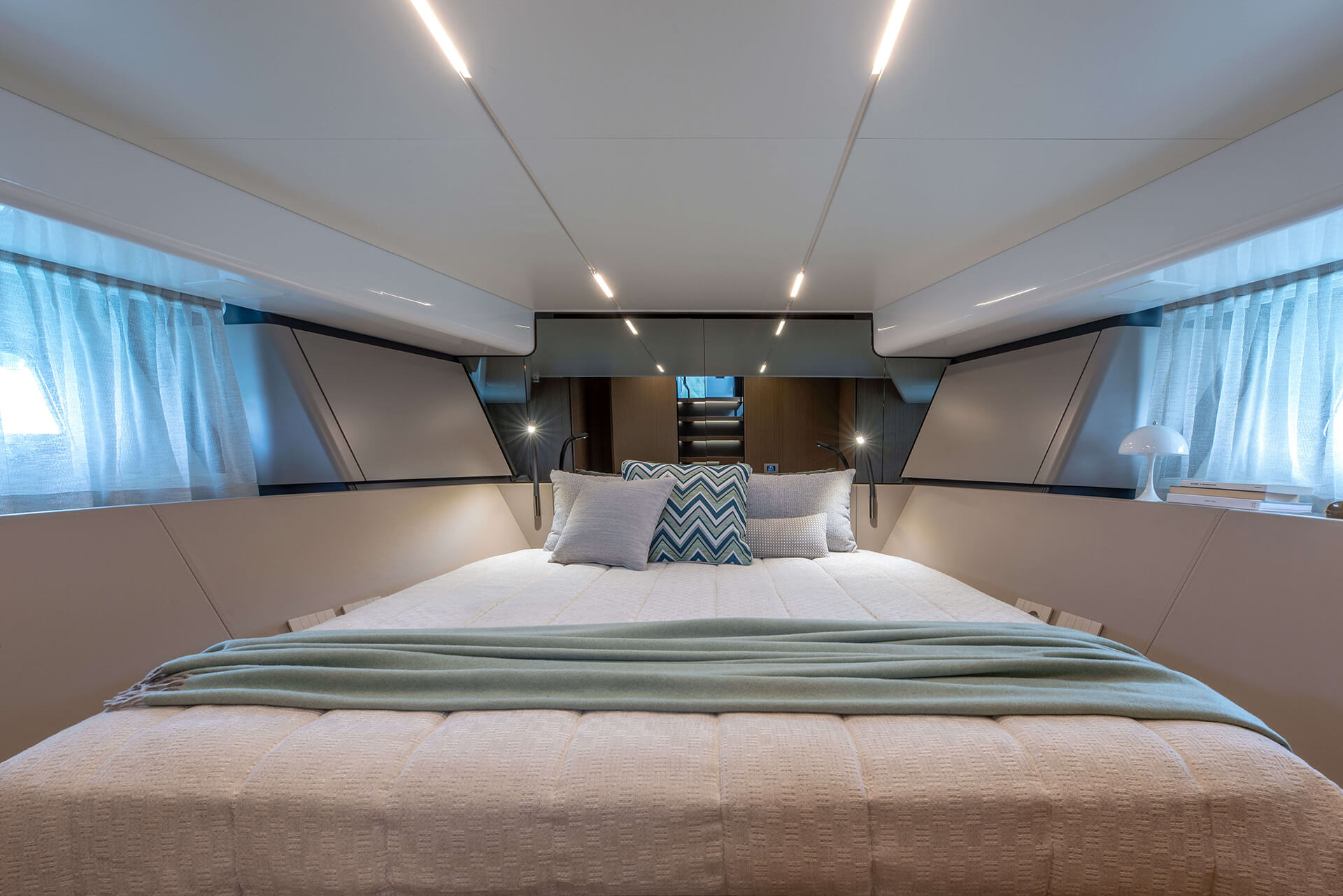

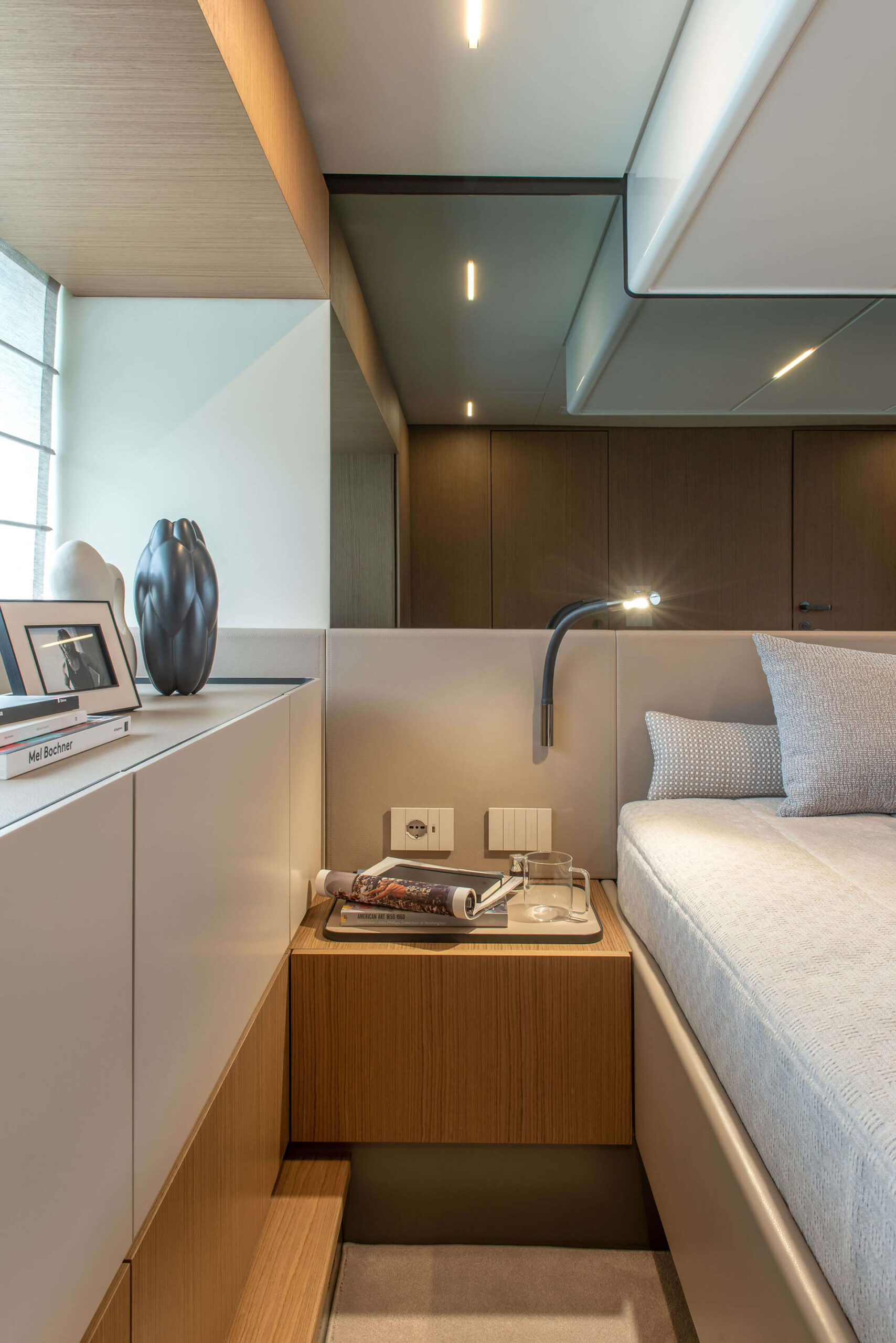

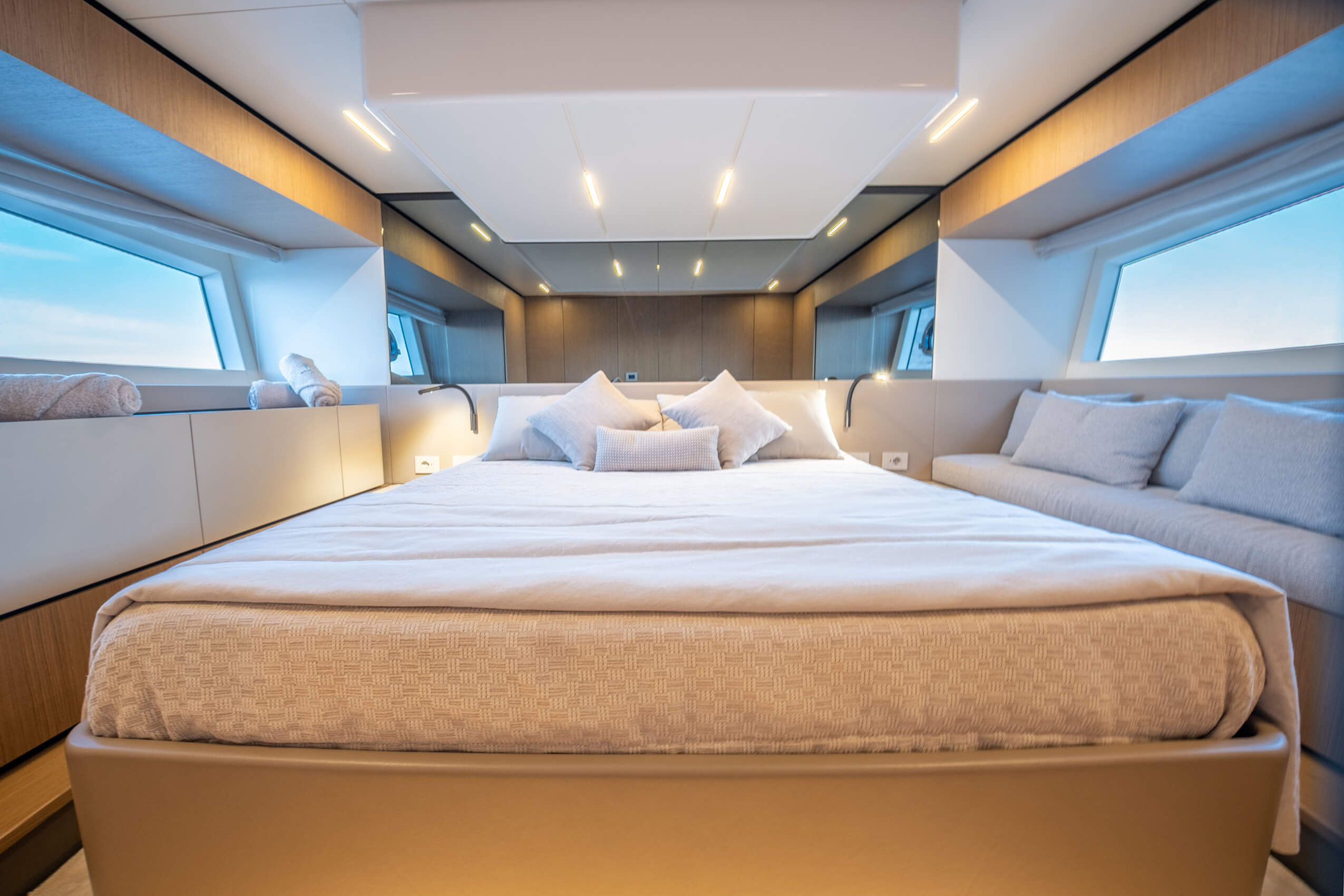

FORWARD CABIN
Double bed with mattress and storage
N°2 Wardrobes
Nightstands
Carpet floor
Reading lights
Ceiling lights
Courtsey lights
220V & USB sockets
N°2 Side portholes
Roller blind
Decorative curtains
Pillows
Bed sheet cover
Bed sheets
Hi-Fi
N° 2 speakers
Air conditioning fancoil
Smoke detector
Fire extinguisher 1kg
5 cushions
FORWARD TOILET
Fresh water electric marine WC
Hydro-brush for WC
Wooden floor
Ceiling lights
Roller Blind
Decorative curtains
220 V socket
Bathroom accessories
Bathroom towels
Cabinet with mirror
Strorages
Porthole
Synthetic surface with sink
Shower with handset and tempered glass door
2 towels sets
STORAGE AREA
Storage area with access from deck
Side tempered glasses with integrated porthole
Led light
Ladder access
CREW CABIN (OPT)
Access from deck
Storage cabinet
Reading light
Ceiling lights
Side tempered glasses with integrated porthole
Synthetic floor
Pillow
Bed sheets
Bed sheets cover
220V & USB sockets
Air conditioning fancoil
Smoke detector
Fire extinguisher 1kg
Bathroom with:
Fresh water electric Marine WC
Ceiling lights
Bathroom accessories
Shower with curtain
Sink

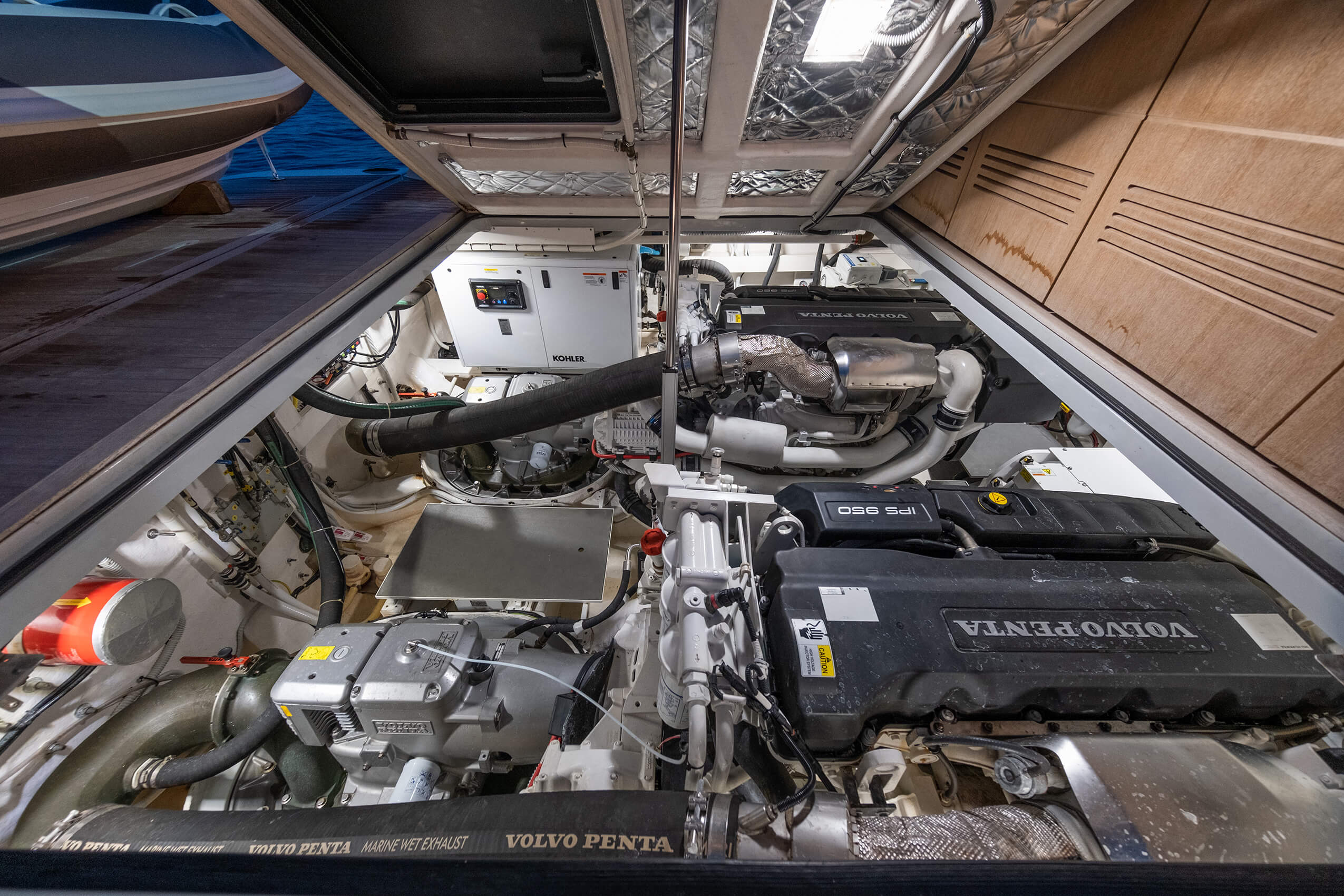

ENGINE ROOM
2 x Volvo IPS 800 D11 / 2 x 459 kW / 625 HP
1.800 l fuel structural tank in composite with fuel level sender connected with EVC Volvo system
Four bilge pumps: two in engine room and two in stern area with automatic and manual control
Fire extinguisher system with manual and automatic control
Electric valves for fuel interception
Double water/fuel filter separator
Engine room led lights
A/C chiller unit 25.000 BTU
N° 2 electrical fan-extractors and thermostat switch
Air inlet with water traps
Watertight power sockets
Sea water filters
S/S engine room access ladder
Intruder trim system
ELECTRICAL SYSTEMS
Generator 9 kW 230 V
Engines AGM batteries pack 260 Ah / 24 V
Service GEL batteries pack 330Ah/24V
Generator AGM battery 110Ah/ 12V
Winch AGM batteries pack 165Ah/ 24V
Electromechanical battery switches with remote digital control
Battery charger 80 Ah for services and engines
Battery charger for generator
230 V shore power 63 A with connection cable 25 m
Galvanic Isolator 63 Ah
Inverter 2.000 W
AC electrical panel (230 V AC) CE certified in engine room
with electromechanical switching for all outlet with remote control on main panel
DC electrical panel (24 V DC) CE certified in engine room with electromechanical switching for all outlet with remote control on main panel
HYDRAULIC SYSTEM
Fresh water PE tank 500 lt with level indicator on main panel
Waterheater 50 lt (230 V)
Black water tank 130 lt with level indication in main panel
Gray water tank 130 lt with level indication in main panel
Shore black water outlet discharge system
Shore grey water outlet discharge system
Fresh water pump
Four bilge pumps: two in engine room and two in stern area with automatic and manual control
High pressure fresh water inlet

FUNCTIONALITY
– Canvas Strataglass cockpit enclosure (full version)
– Sun Top equipped with sunpad

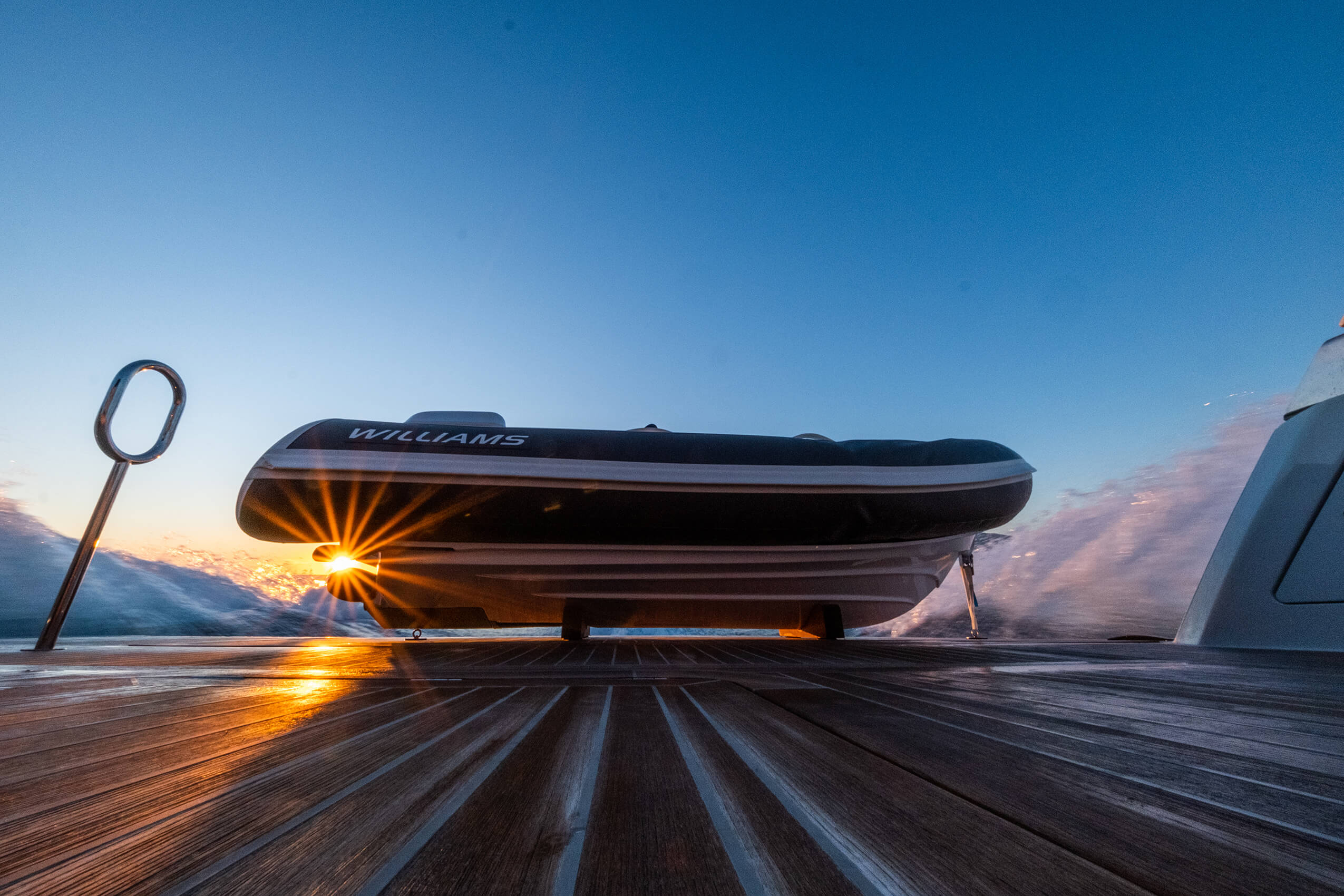

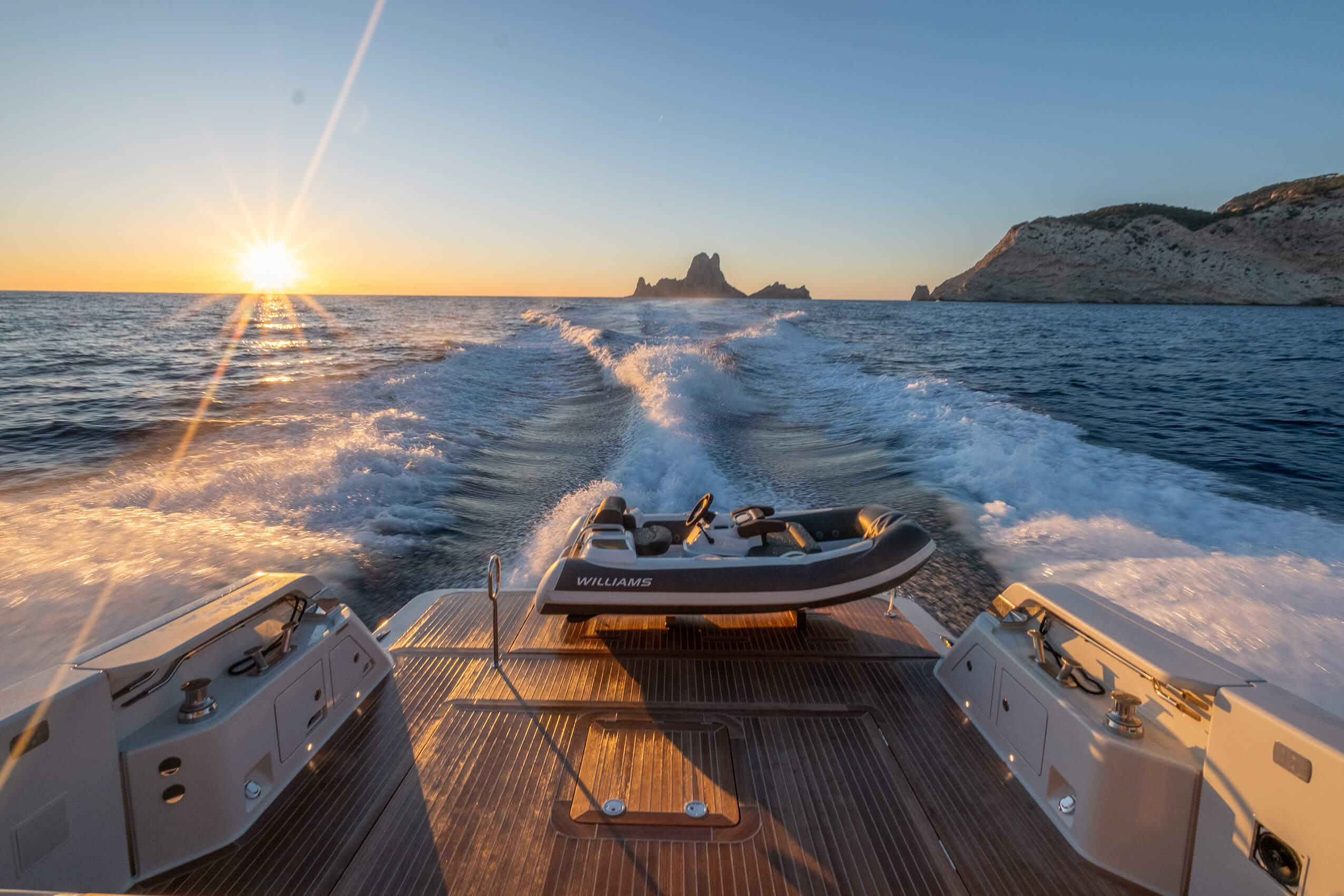

– Hydraulic tenderlift platform (400 Kg net lifting capacity)
– Retractable gangway with pantograph steps
– Proportional bow Thruster 120 Kgf
– Gyroscope Seakeeper 6
– Searchlight with remote control
– Underwater lights (n.2)
– DPS system for Volvo IPS

DECORATION
– One way hull windows
– Crew cabin equipped with toilet, bed, cabinet and A/C One way hull windows

ELECTRONIC
– 2 Volvo Glass Cockpit 16″ different from 12″ STD
– Empty dome painted in hard top colour
– Infrared CCTV camera in engine room
– AIS system for Garmin AIS800

COMFORT
– Hard Top with electric blades opening roof
– Ceiling TV movement in external dinette (including TV 42″)
– Tropical A/C 50.000 Btu with outlets in cockpit (including generator upgrade 12 KW)
– Standard Wetbar equipped with teppanyaki, Ice maker and Refrigerator
– Dishwasher (for six place settings )
– Extendable table in external dinette
– Bow area awning with carbon poles
– Aft cockpit area awning system with carbon poles

SERVICE
– Antifouling on IPS
