Bluegame
BG72 #01

HULL DECK CONSTRUCTION
Molded fiberglass construction made with iso-neophentilic gel coat 1,5 mm surface, skin coat of vinylester resin
Hull bottom in monolithic lamination made with biaxial, quadriaxial glass, and ISO DCPD polyester resin
Sandwich core construction on side hull and deck plans
Sandwich structural bulkheads
Deck and coach roof in sandwich with vinylester resin
Hull in RAL 9018, deck and wheelhouse in RAL 9018
Hard top in RAL 7043
Antifouling on hull and high performances antifouling on IPS
Insulation on decks and hull-sides

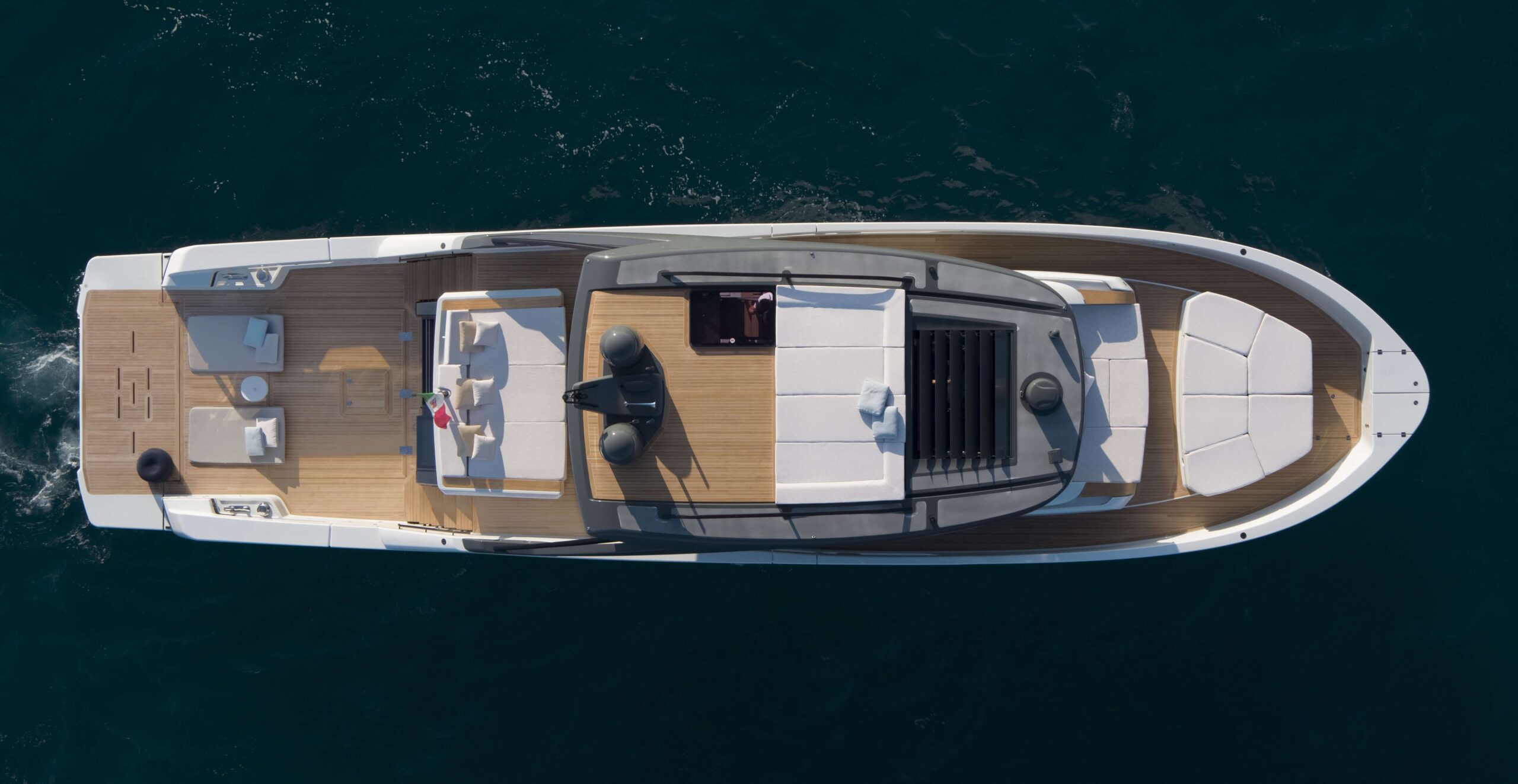

UPPER DECK
Deck made in sandwich and infusion technology with vinylester resin
Twin fiberglass doors covering bow mooring system
Anchor 50 Kg S/S
Bow roller custom design S/S
Galvanized chain 12 mm 100 m
Anchor safety cable
Electric anchor winch 2.300 W
Electric mooring winch 1.700 W
N° 2 S/S fairleads
N° 2 S/S cleats
N° 2 retractable cleats at mid-ship
Fresh water outlet connection
Teak deck
Access to crew cabin at bow

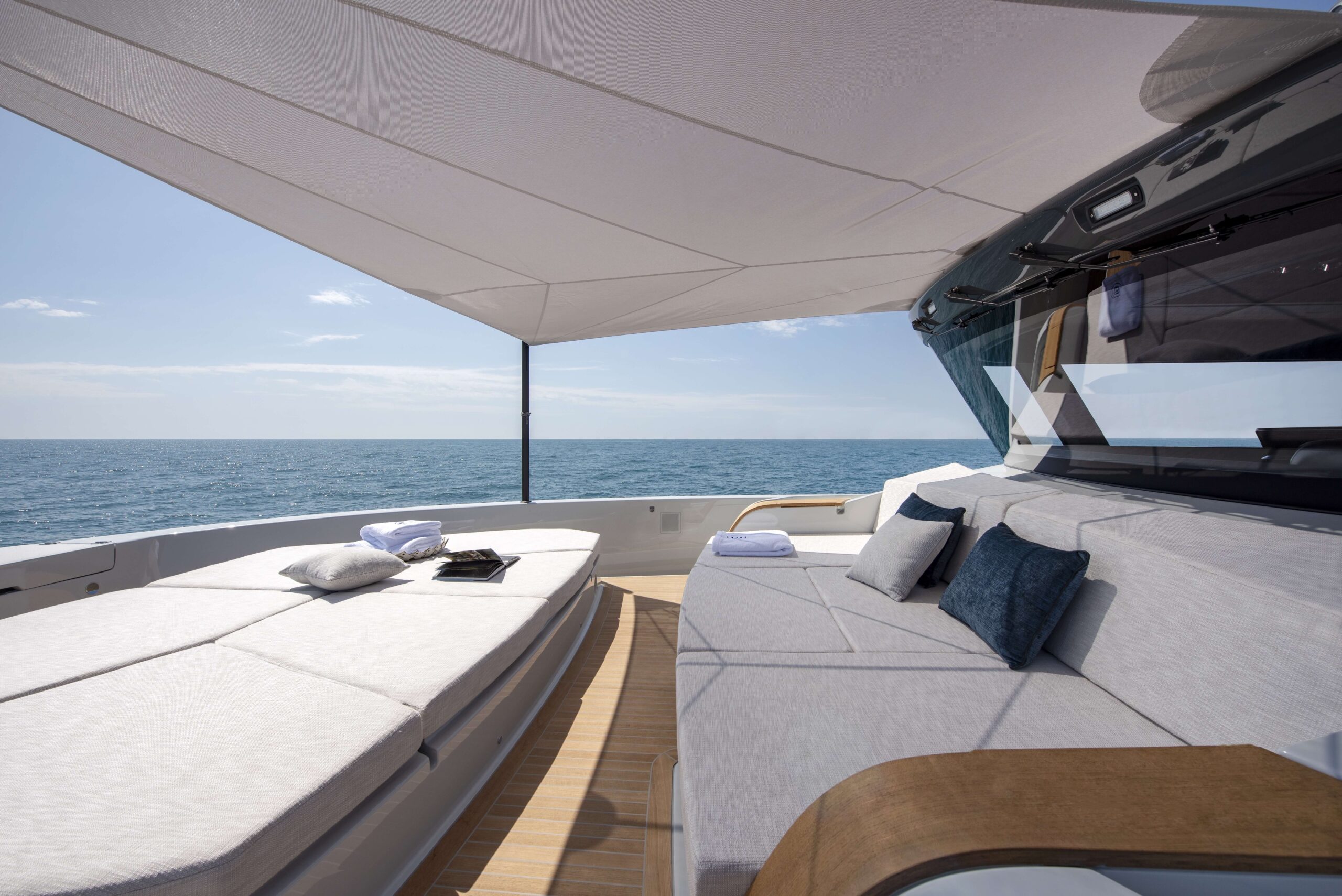

Sun pad area at bow with storage
Double side entrance from the dock

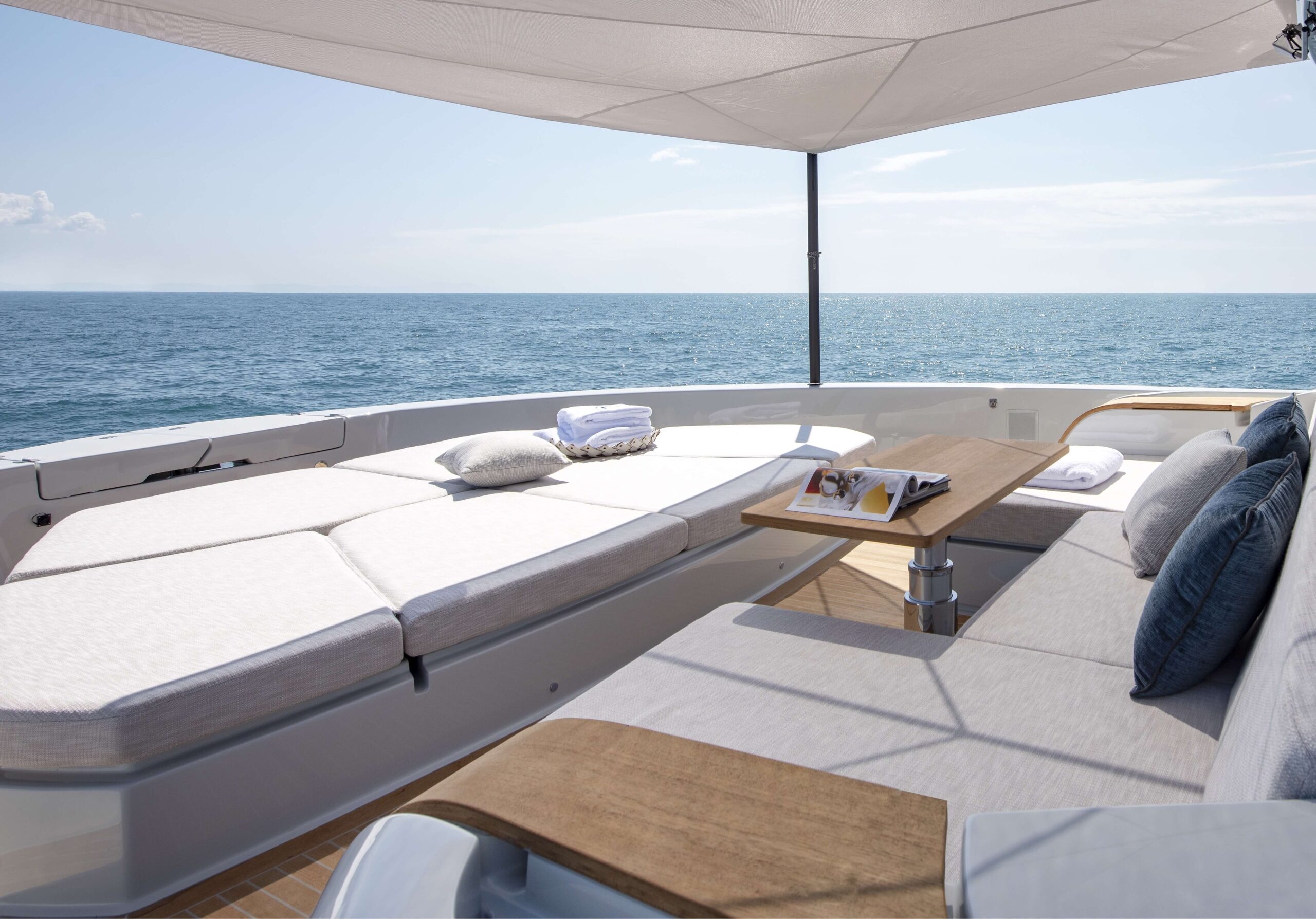

Teak table with electric up/down system in bow area
Hot/cold shower at bow
U-shape bow sofa with storage
Navigation and anchor lights led system
Double diesel inlet
Black water tank drain pump
Grey water tank drain pump
Horn
Radar radome
GPS antennas
VHF antennas
N° 2 speakers at bow connected to the deckhouse area
N° 4 speakers in cockpit connected to the deckhouse area with subwoofer
Upper deck sliding glass door
Storage
Sun roof handrails

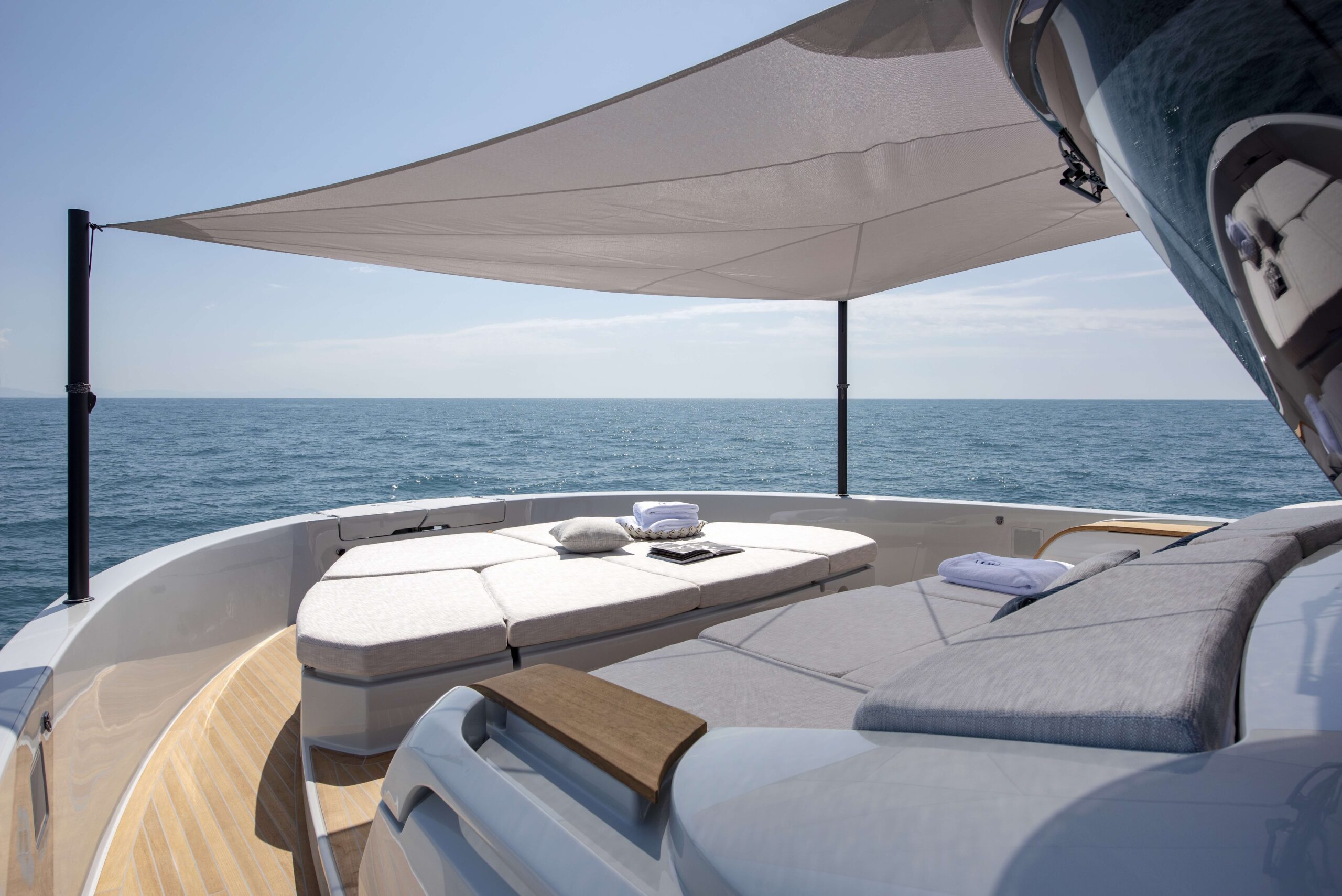

Sun deck with sun pad
Digital TV Antenna
N° 1 Boat name sticker BG font

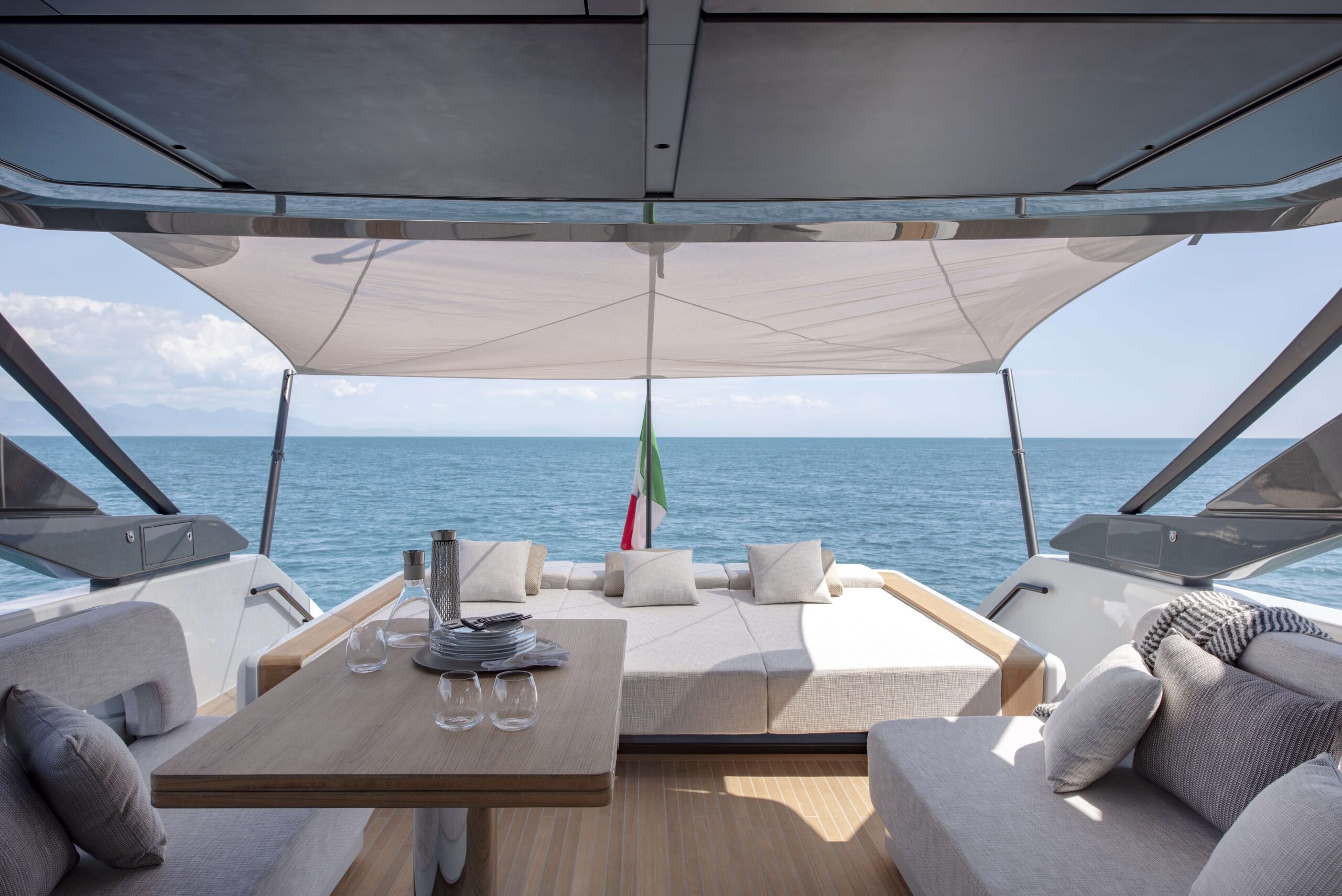

UPPER COCKPIT
L-shape sofa on starboard side with teak table
Chaise longue on port side
Sun pad on stern
Sun roof ladder with manual hatch
Dimmable ceiling lights
Courtesy led light
Bar cabinet with sink mixer tap water cold and warm
Trash bin
N° 1 S/S fridge (90 l)
Teak deck

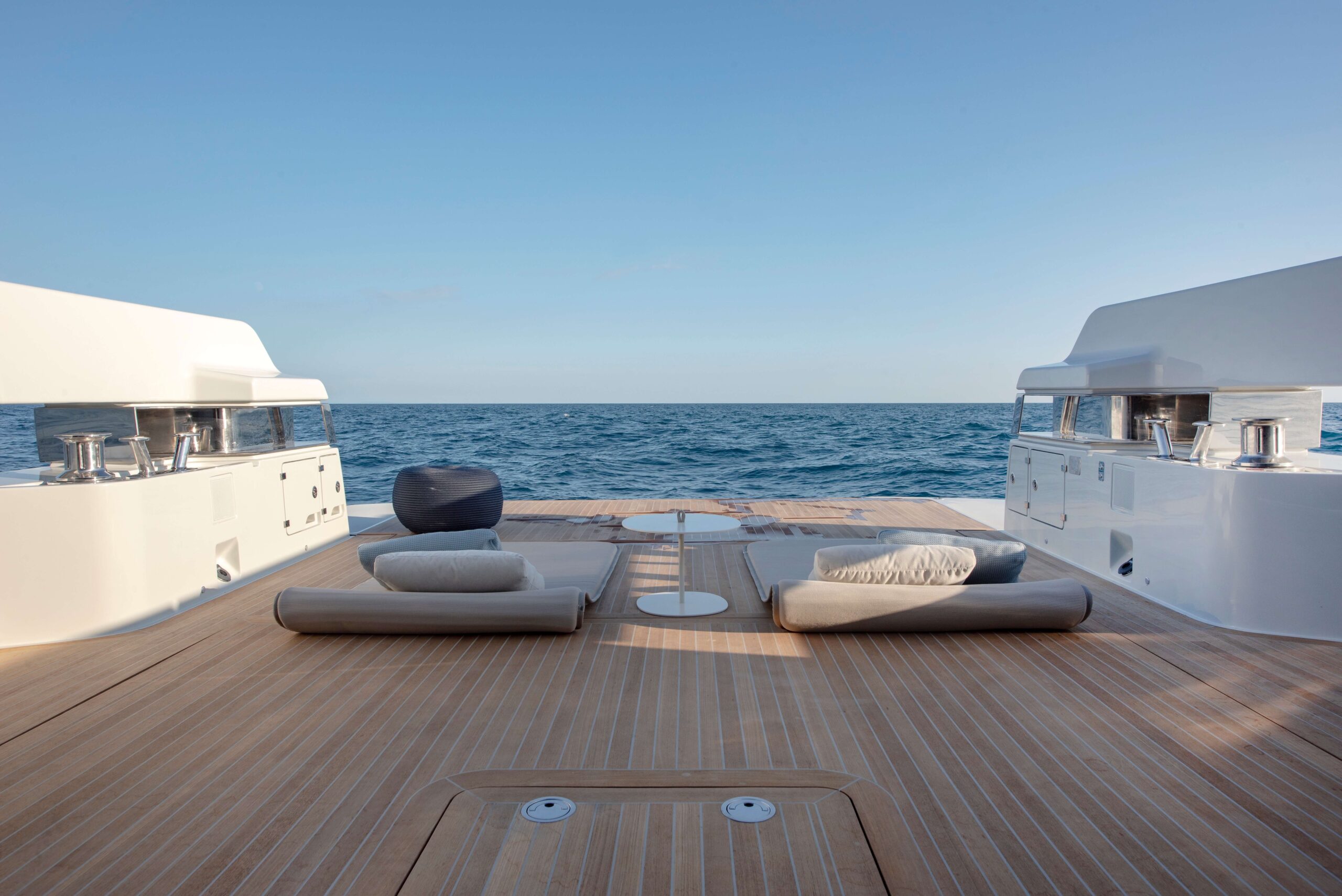

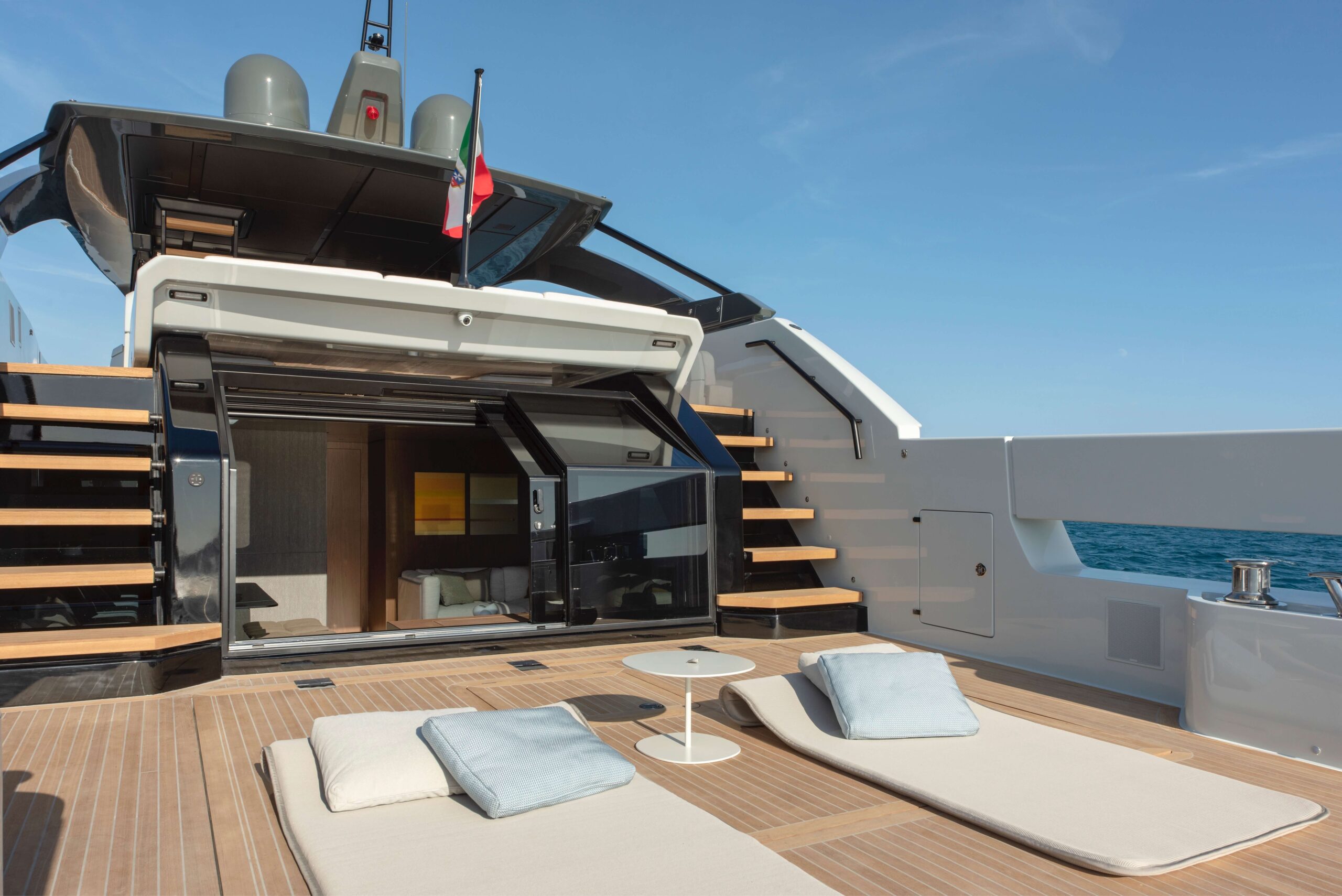

BEACH AREA
N° 2 speakers with subwoofer connected to the saloon area
Sliding door to main saloon
Double teak stairs to upper deck
Tenderlift 500 kg net lifting capacity with integrated up/down gangway
Electrical engine room big hatch for maintenance

WHEELHOUSE
Sliding glass door
Wooden floor
Courtesy light
Ceiling lights
Starboard side bench
Pilot and copilot bench
Storages below the pilot bench
Air conditioning fan coils
230 V & USB sockets
Stairs to guest’s area with handrail
Side and windshield tempered glasses
Windshield whipers
Fire extinguisher 1 kg
Smoke detector

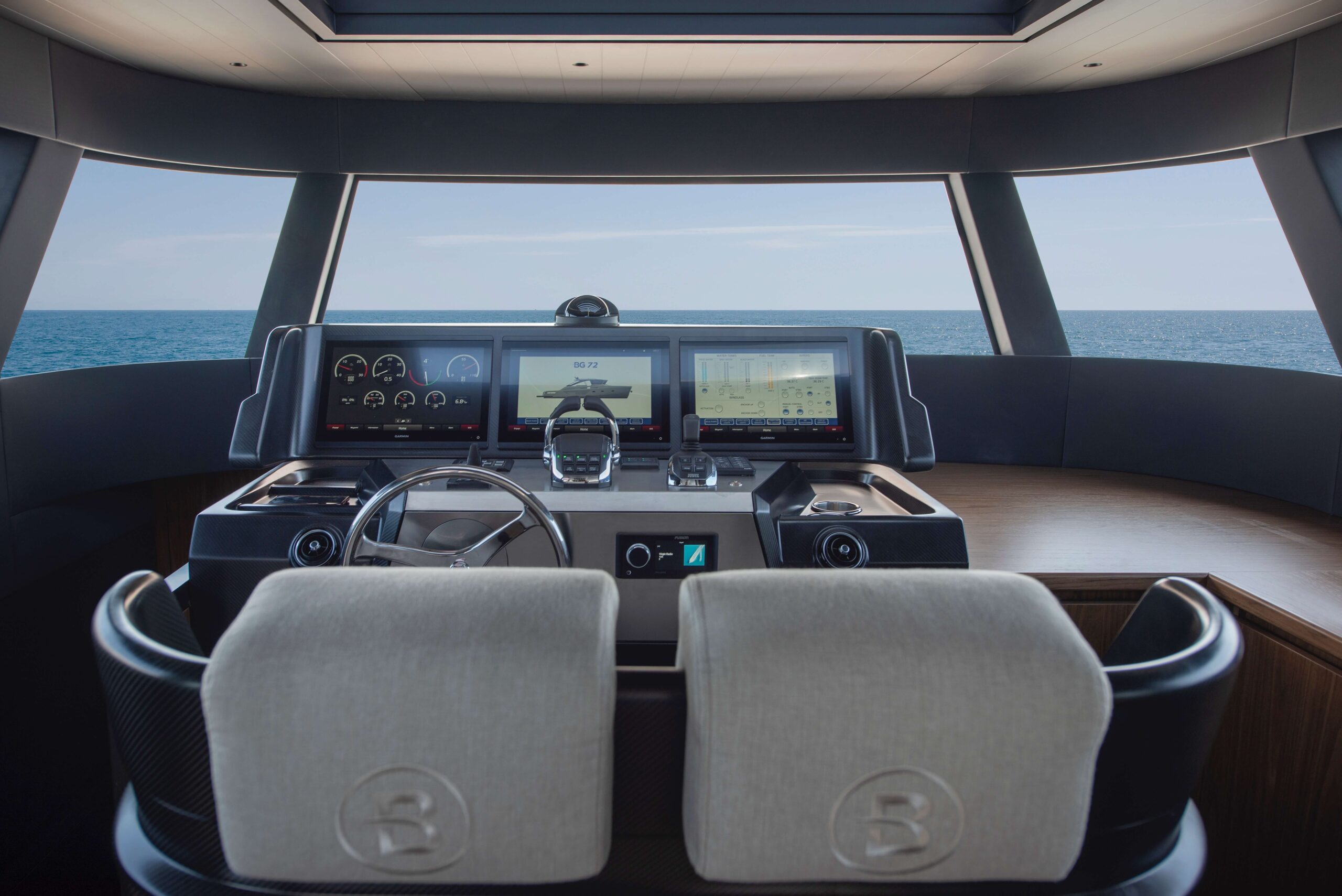

Console with:
Hi-Fi
Compass
N° 3 monitor 12’’ GPS, depth and Engines instrument board
VHF station with antenna
IPS Joystick
Volvo Penta electronic engine throttle
Volvo Penta automatic pilot
Bow thruster control
230 V & USB socket
Trim tabs control
Back-lighted switch panel for deck services
Storage
Steering wheel
Fire fighting system control
Red navigation light control
Red courtesy light control
Digital switching and digital automation for main services DC and AC integrated in main panel

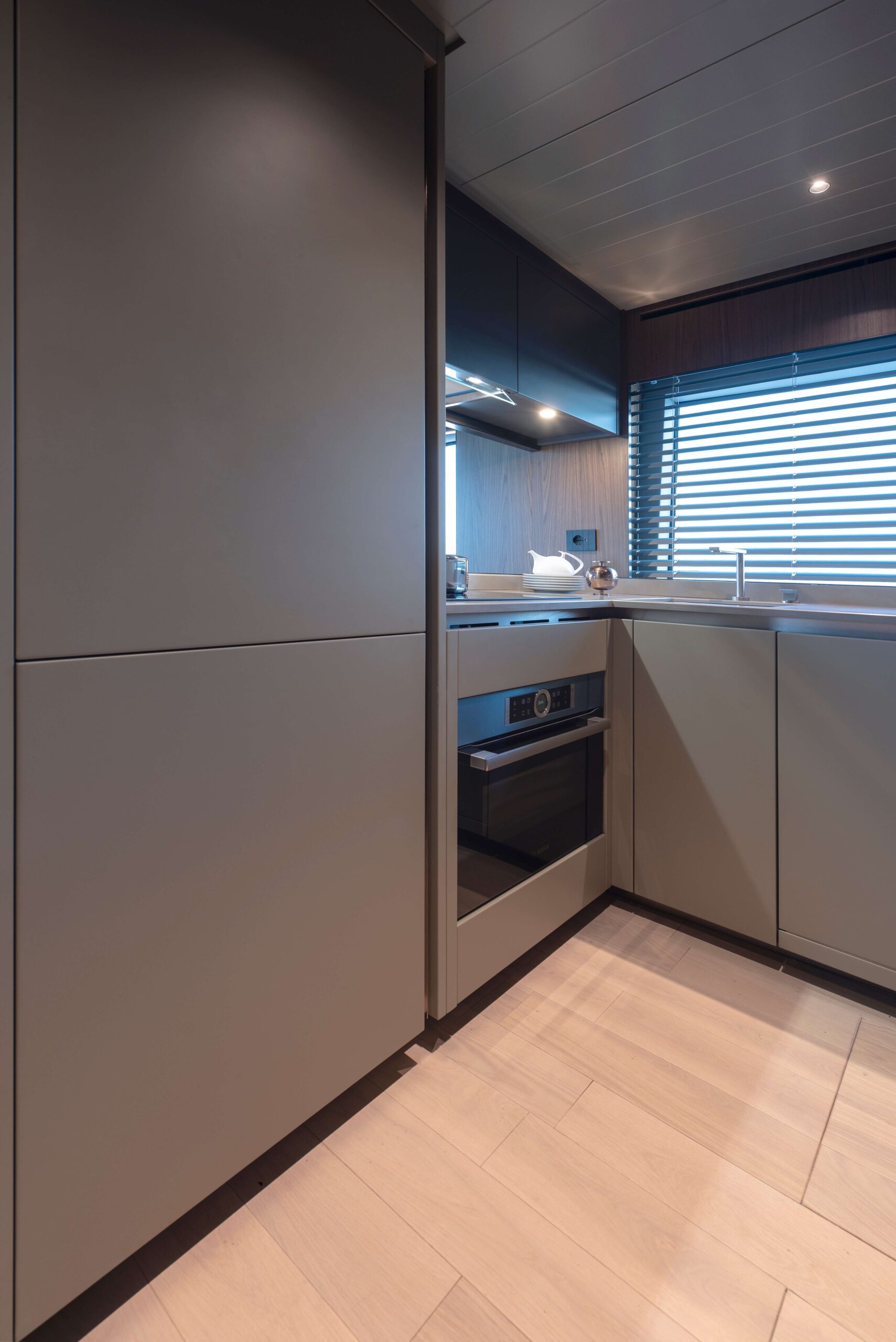

GALLEY
Wooden electric Venetian blinds
Lacquered overhead cabinet
Lower lacquered cabinet
Sink
Synthetic worktop
Four zone electric induction cooktop with pan holders
Mixer tap water cold and warm
Oven
Kitchen hood
Refrigerator (172 l)
Freezer (79 l)
Dishwasher (set of 9)
230 V AC sockets
Wooden floor
Ceiling lights
Air conditioning fan coil
Fire extinguisher 1 kg

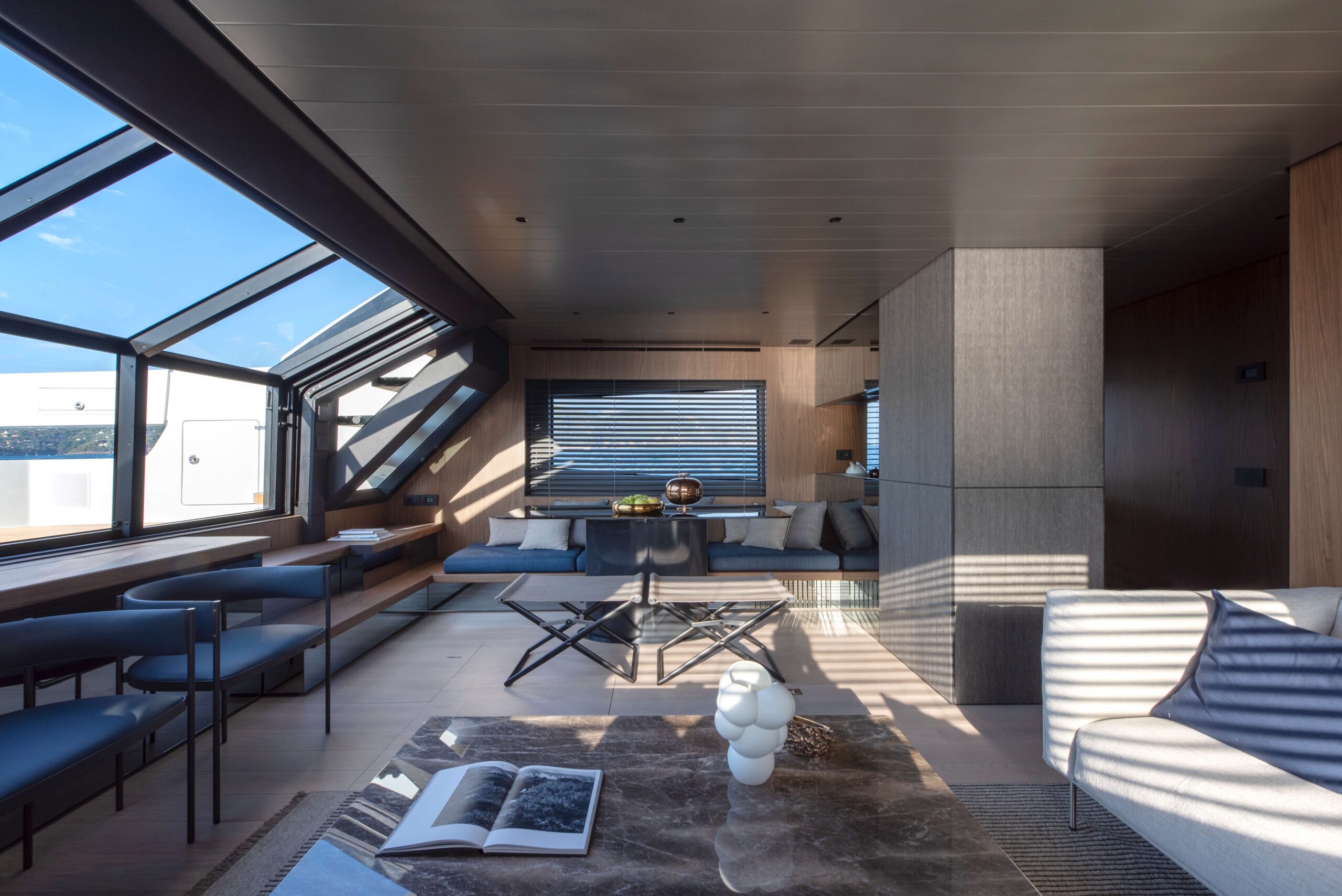

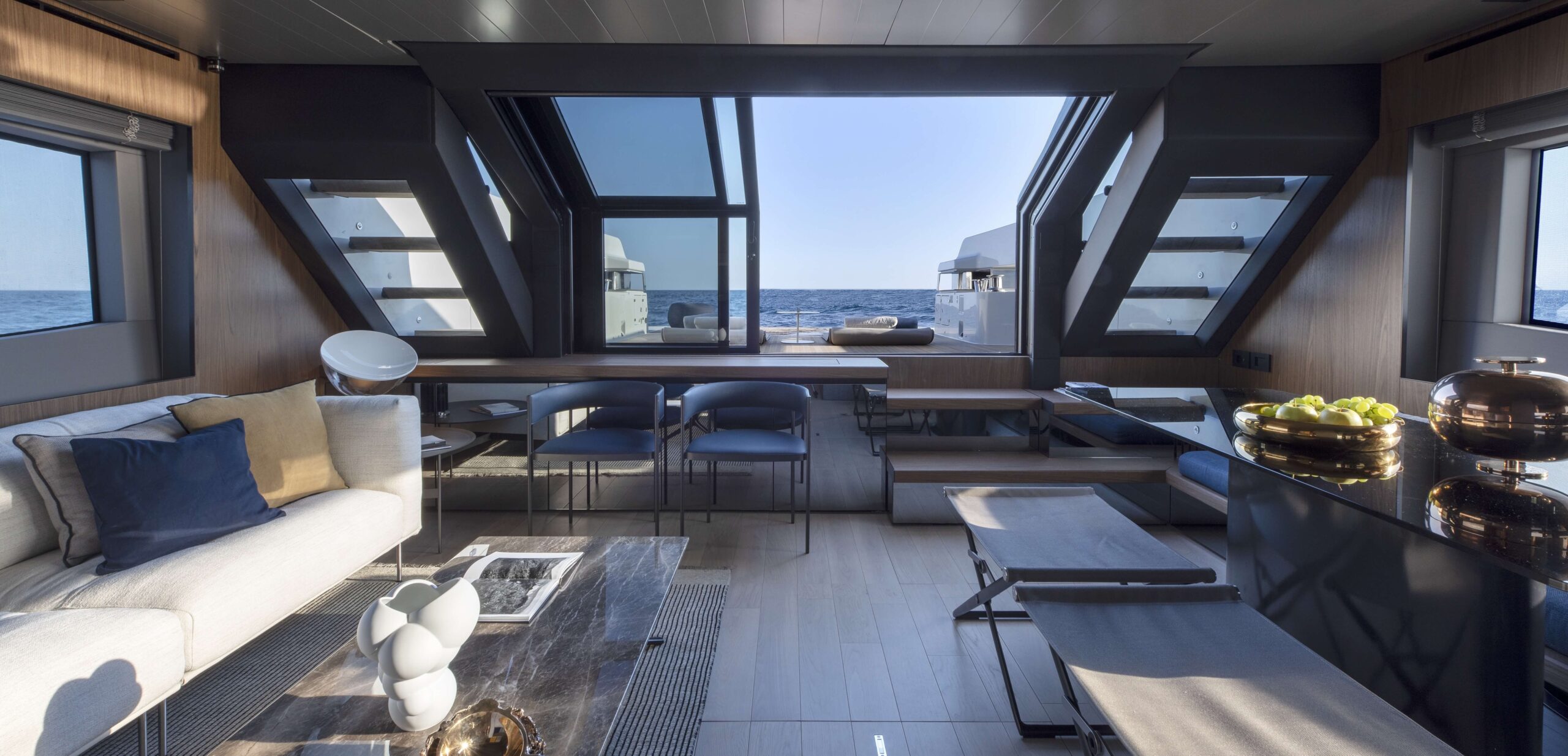

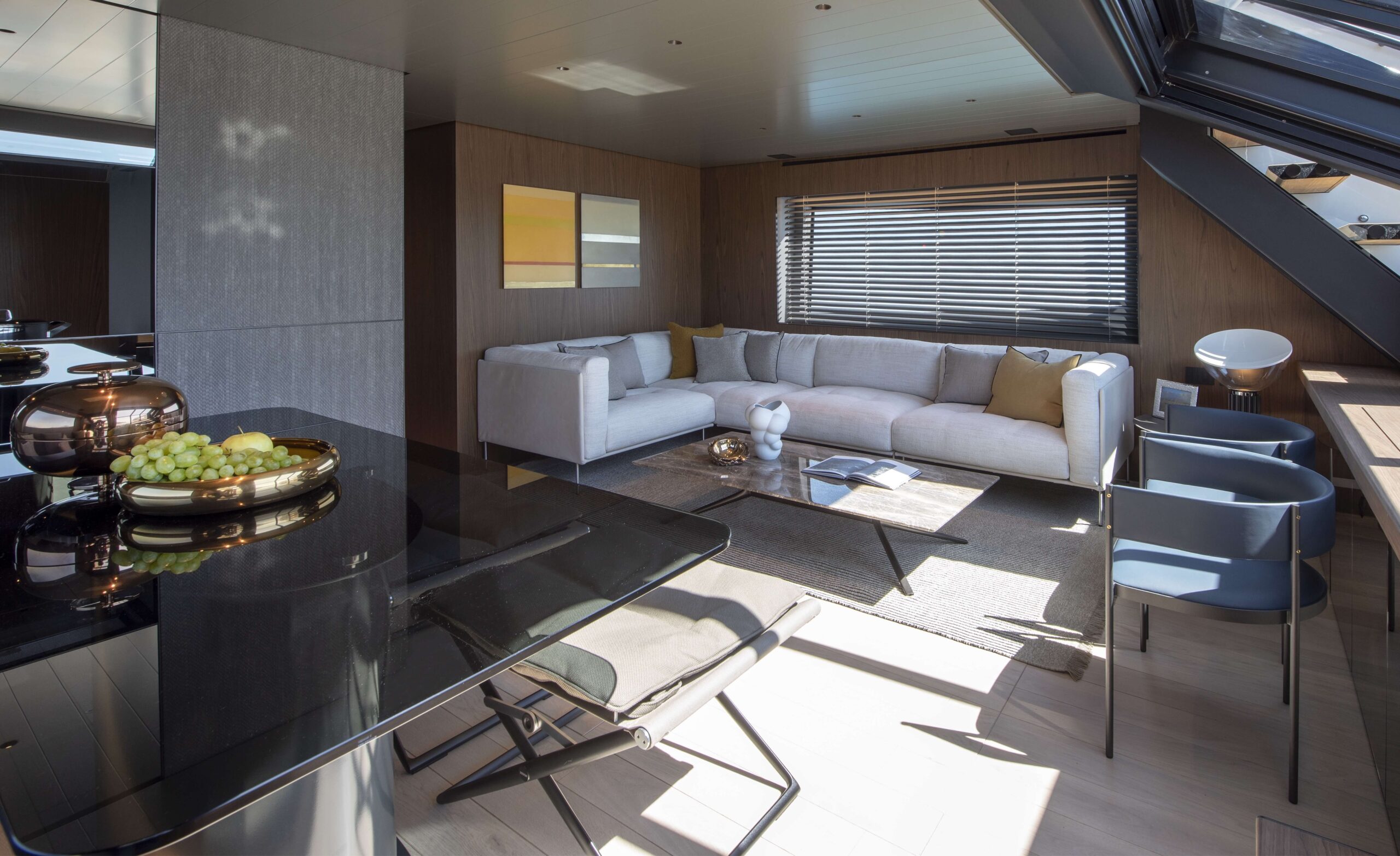

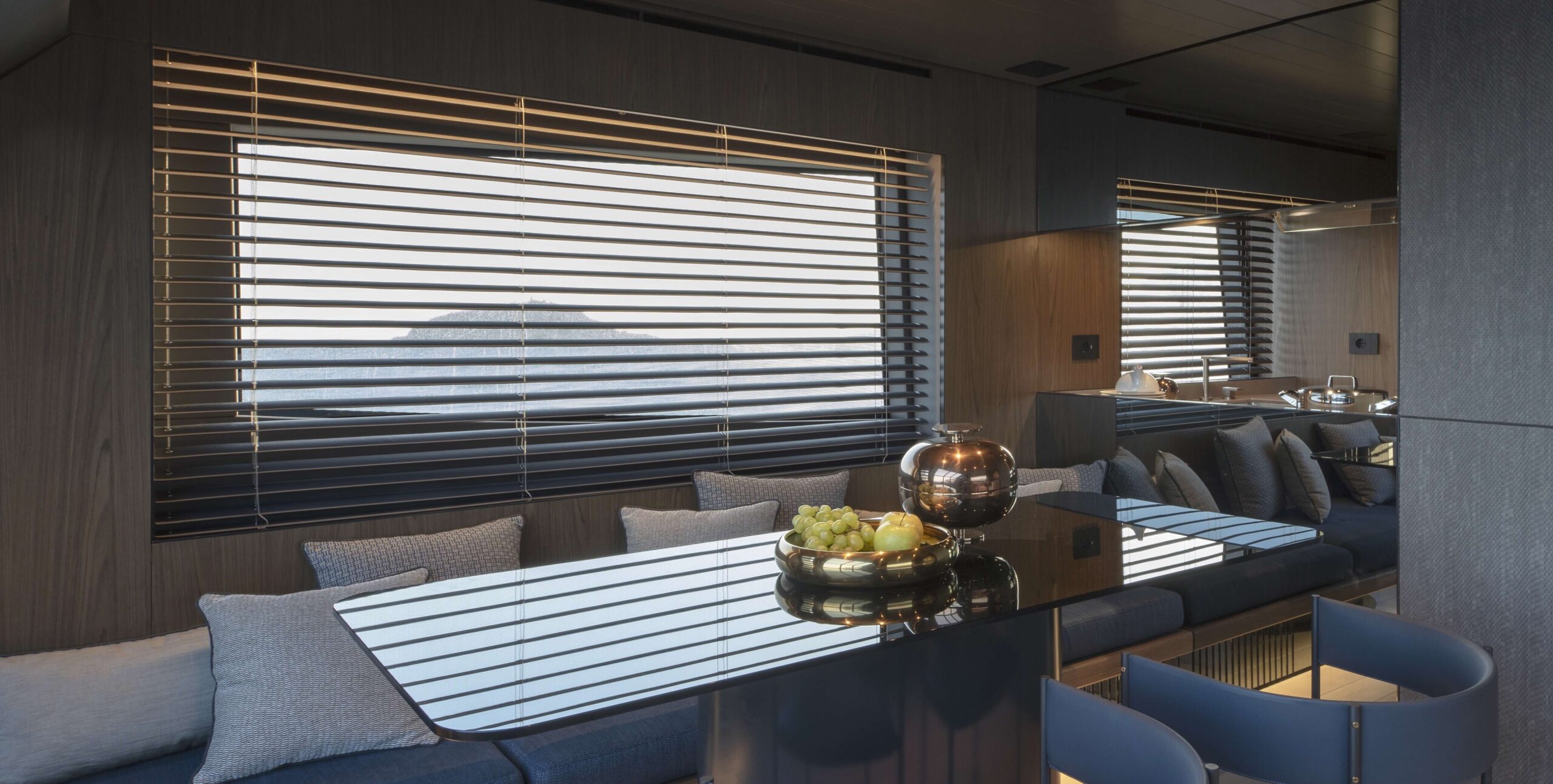

SALOON
Sliding door to beach area with electric curtain
Steps from beach area to saloon
230V and USB sockets
Dining table
L-shape sofa
Bench
Armchairs (n.2)
Stools (n.2)
Coffee table
Wooden floor
Carpet
Wooden electric Venetian blinds
Side tempered glass
50” TV
HI-FI
N° 4 speakers
Air conditioning fan coils
Floor hatch to technical room
Smoke detector
Fire extinguishers 1 Kg

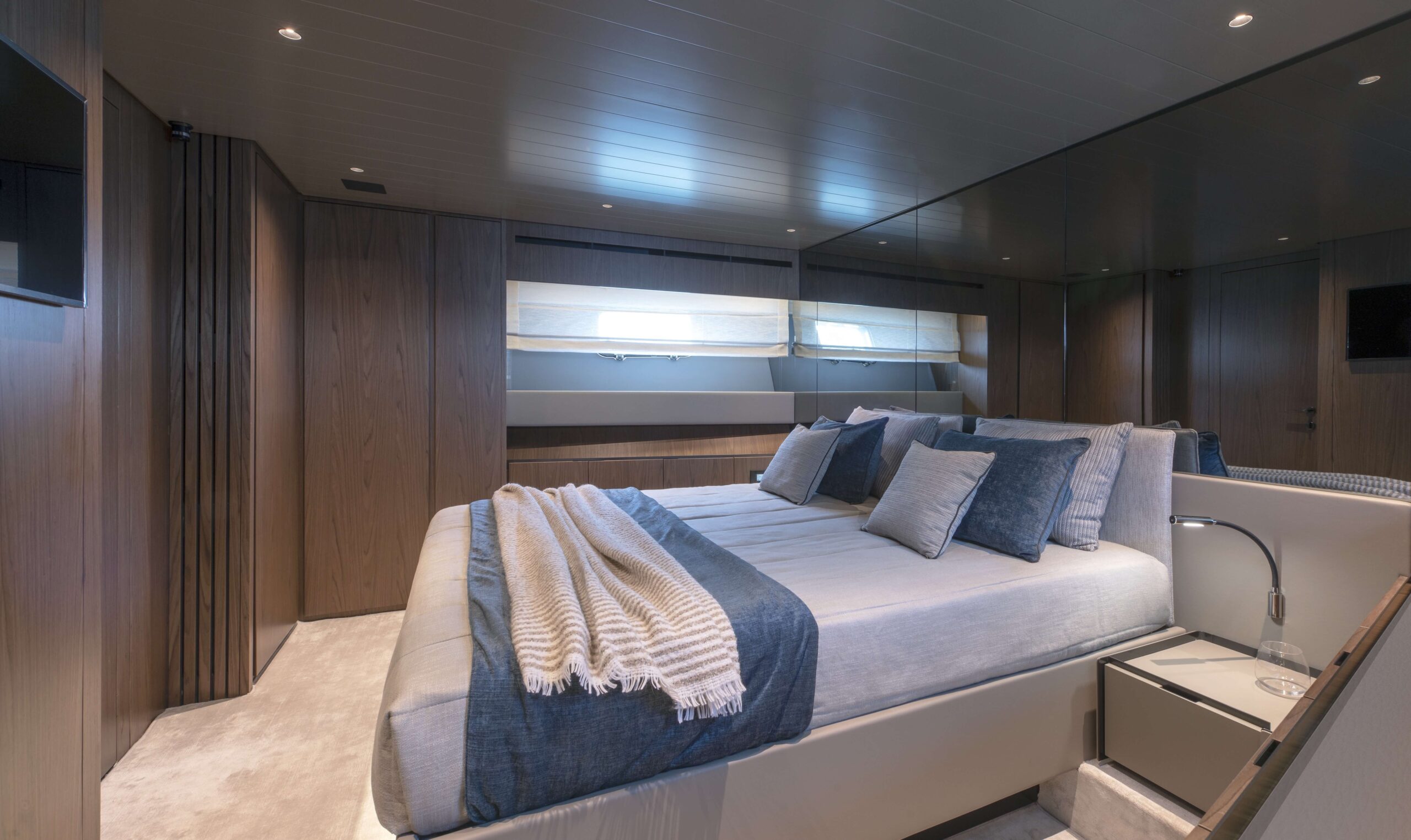

OWNER CABIN
Double bed with memory foam mattress
Cabinets
Nightstands
Storage
Wardrobe
Vanity desk
Stool
Carpet floor
Reading lights
Ceiling lights
Courtesy lights
230 V & USB sockets
N° 2 portholes
Blinds
Pillows
Bed sheet covers
Bed sheets
Curtains
TV 32” integrated in bulkhead
Hi-Fi
N° 2 speakers
Air conditioning fan coils
Smoke detector
Fire extinguisher 1 kg

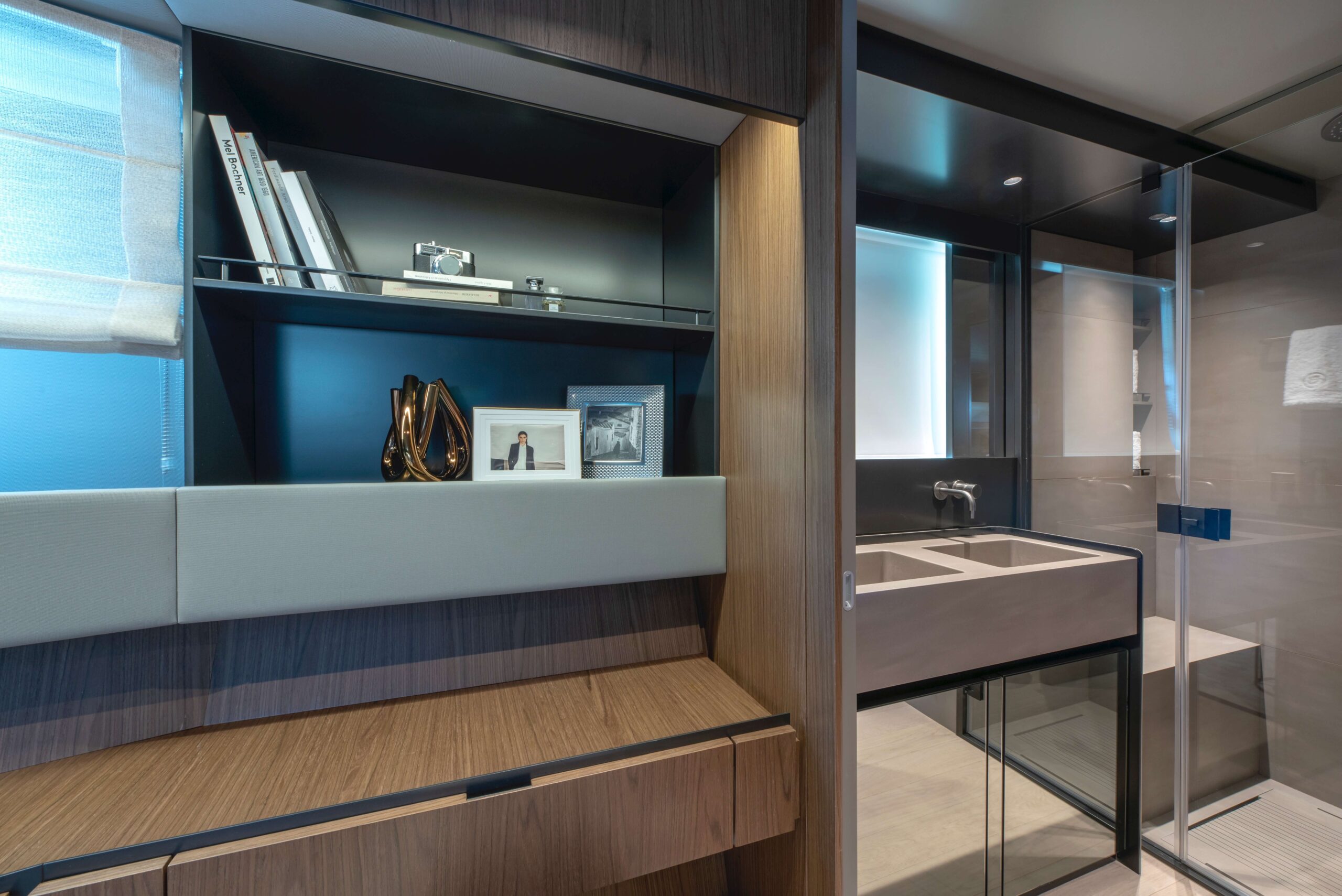

OWNER BATHROOM
Fresh water electric marine WC
Hydro brush for WC
Bidet
Wooden floor
Led lights
Blind
230 V & USB sockets
Synthetic surface with integrated double sink
Bathroom accessories
Cabinet
Shower with handset, ceiling shower head and tempered glass door
Bathroom towels

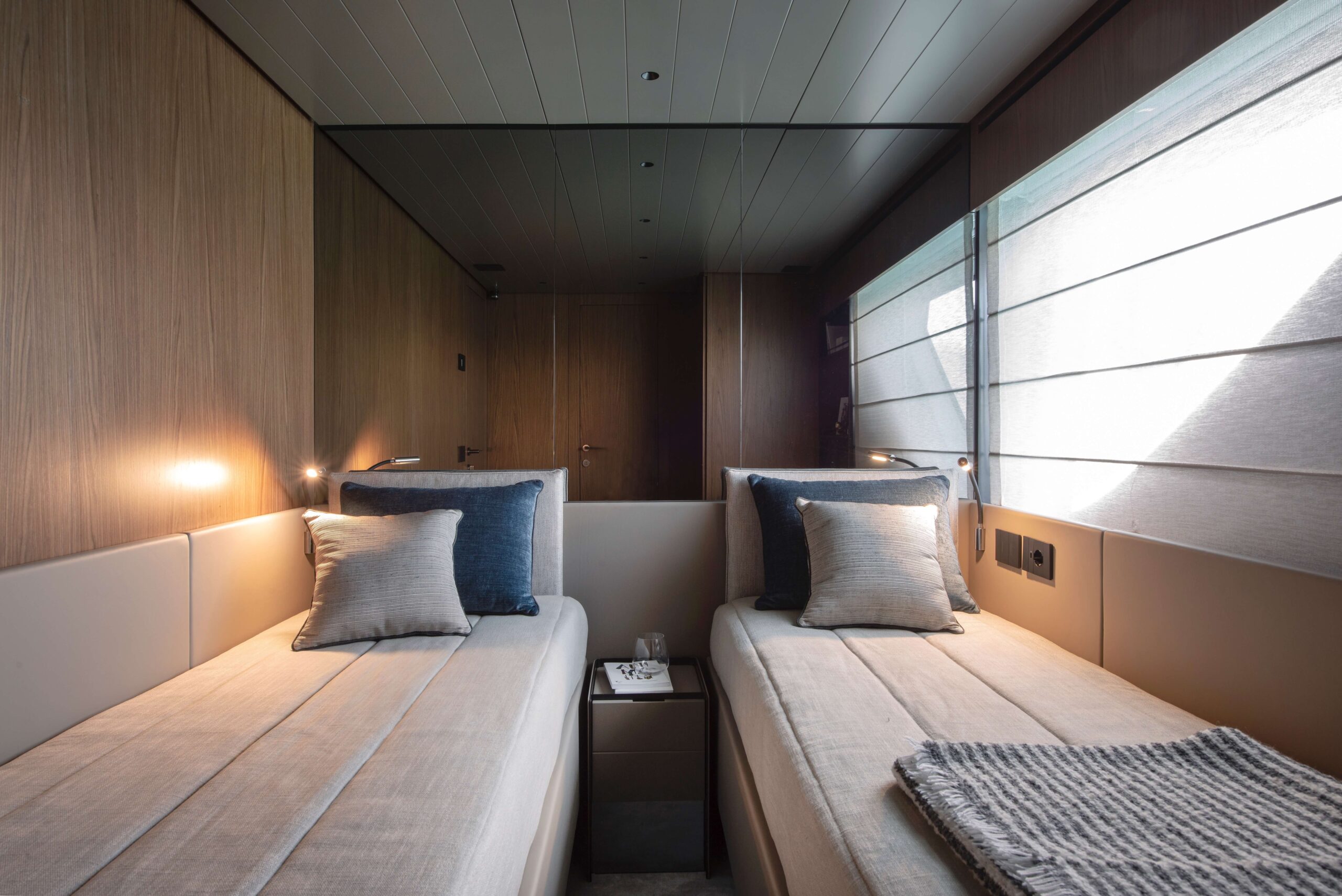

GUEST CABIN (N° 2 in std layout)
Twin bed with memory foam mattress
Storage
Wardrobe
Nightstands
Carpet floor
Reading lights
Ceiling lights
Courtesy lights
230 V & USB sockets
Porthole
Blind
Pillows
Bed sheet covers
Bed sheets
Curtains
4
Hi-Fi
N° 2 speakers
Air conditioning fan coils
Smoke detector
Fire extinguisher 1 kg

GUEST BATHROOM (N° 2 in std layout)
Fresh water electric marine WC
Hydro brush for WC
Wooden floor
Led lights
Blind
230 V socket
Bathroom accessories
Cabinet
Porthole
Synthetic surface with integrated sink
Shower with handset and tempered glass door
Bathroom towels
LOBBY
Storage area with wash/dryer machine
Teak stairs from deckhouse to lower deck
Courtesy lights
Floor hatch to storage area

CREW CABIN
Two bunk beds
Storage cabinet
Reading lights
Ceiling lights
Porthole
Synthetic floors
Blind
Pillows
Bed sheets
Bed sheets covers
230 V and USB sockets
Air conditioning fan coils
Separate bathroom with:
Fresh water electric Marine WC
Teak floor
Ceiling lights
230 V socket
Bathroom accessories
Storage cabinet
Porthole
Shower
Smoke detector
ENGINE ROOM
2 x Volvo IPS 1200 D13 / 2 x 662 kW / 900 HP
4.000 l fuel structural tank with fuel sender connected with EVC Volvo system
Electric valves for fuel interception
Double water/fuel filter
Fire extinguisher system with manual and automatic control
Engine room led light
AC chiller unit 60.000 BTU
N° 2 electrical ventilators with cycle reversion and thermostat switch
Air inlet with water separator filters
230 V watertight power sockets
N° 2 Sea water filters
Electrical engine room big hatch for maintenance
Manual engine room access
S/S engine room access ladder
Intruder trim system
ELECTRICAL SYSTEMS
Generator 20,5 kw 220 V
N° 1 generator AGM battery 120 Ah / 12 V
N° 2 engines AGM batteries 130 Ah / 12 V
N° 8 service GEL batteries 165 Ah / 12 V
N° 2 bow thrusters and winch AGM batteries 165 Ah /12 V
Electromechanical battery switches with remote digital control
Services battery charger 100 Ah
Engines battery charger 30 Ah
Generator battery charger 17Ah
Inverter 3.000 w
230 V shore power 63 Ah with connection cable 15 m
63 Ah Galvanic Insulator
Electric bow thrusters 170 Kgf
Toroidal transformer 15 KVA
AC electrical panel (230 V AC) CE certified in engine room with electromechanical switching for all outlet with remote control on main panel
DC electrical panel (24V DC) CE certified in engine room with electromechanical switching for all outlet with remote control on main panel

PLUMBING
Fresh water PE tank 1.000 l with sender connected with EVC Volvo system
Black water tank 330 l with sender connected with EVC Volvo system
Grey water tank 330 l with sender connected with EVC Volvo system
Shore black water outlet discharge system
Double fresh water autoclave pumps 24 / 230 V
Shore high pressure fresh water inlet
Shore grey water and bilge discharge system
Black water hoses in special anti-smell rubber
Six bilge pumps; two in engine room, two in stern area and two in center hull, with automatic and manual control
Salt water system for anchor chain wash

Functionality
Volvo Penta IPS1350 (diff. From STD IPS1200)
Glendenning Cablemaster CM 7
Gyroscope Sea Keeper 16
LED Search Light with remote control
Underwater Lights (n.2)
Canvas strataglass closing all cockpit (full version)
Kit toilet extractor fan
500 kg lifting capacity hydraulic crane

Decoration
One way Hull windows (only available in white pearl colour)
Supplying and installation bow table with electrical up/down system (sunbed cushion included when table is extended)
Kitchen BOFFI (STD layout)
Exterior Cushion by RODA
Upgrade lower deck Venetian blinds in leather
Guest cabin with sliding beds (each)
Starboard storage cabinet in wheelhouse (diff. from STD bench)

Electronics
WI-Fi system + 2 repeaters
Volvo glass cockpit 16″ different from 12″ STD (N.3)
Empty dome GTV6 painted in deck house roof color (N.2)
Opening status alarm for portholes, engines room and crew access hatch
Flir night vision camera M232
CCTV System 3 fixed cameras (2 Engines room 1 in cockpit)
Docking station in upper cockpit

Comfort
A/C tropical (96.000 Btu)
A/C in upper cockpit
Hard Top with electric blades opening roof
Lithium batteries
Kit Icemaker in wet bar
Up-Down TV movement in LD salon (STD Layout)
Ceiling TV movement in outdoor dinette upper deck
Bow sun lounge bimini
Stern sun lounge bimini
Watermaker unit 180 Lt /h
Wine cooler (under pilot seat)
Separate washing and dryer machine Bosch (diff. from STD combi)
WC and integrated bidet in owner bathroom (instead of WC + bidet)
BBQ in beach area

Custom
Saloon
SOFA LIVING ROD SYSTEM – fabric MIKADO 16 + leather CARESSE800
UPGRADE FABRIC FOR FREESTANDING CUSHIONS IN LD SALOON_N.8 CUSHIONS IN JIM THOMPSON TAKRA, BENGALINE ASHWOOD & TATAMI + ZIMMER RHODE INFINITY SOFT
SIDE TABLE FORMICHE B&B
ERENNIALS RUG CHENILLE FLAT WOWEN 300 X180
FLOS LAMPADA TACCIA
COFFEE TABLE MONDRIAN POLIFORM TOP GLOSSY MARBLE
UPGRADE FABRIC FOR BENCH IN JIM THOMPSON LUCCA COL. INDIGO
Owners cabin
N.1 STOOL NINA LIVING+ FABRIC LIVING LAMPEDUSA
Cabins
UPGRADE MOQUETTE COREN – PANTHEON
UPGRADE BEDSPREADS FABRIC PIERRE FREY PORTOFINO
UPGRADE FABRIC FOR FREESTANDING CUSHIONS ZIMMER RHODE + JIM
FABRIC FOR DECORATIVE CURTAINS IN Z&R STAN COL. 882
Other
Supply and installation of Assisted Docking including DPS function and upgrade from standard to proportional bow thruster
Upgrade Hi-Fi system + subwoofer
Outdoor
UPGRADE UPHOLSTERY FABRIC IN RODA MOD. PARK COL. WHITE
UPGRADE FABRIC FOR FREESTANDING CUSHIONS IN RODA MOD. LANE COL. STONE + COL. STEEL (N.15)

Allowance
Allowance for custom extras and decor*
Allowance for commercial flag*
