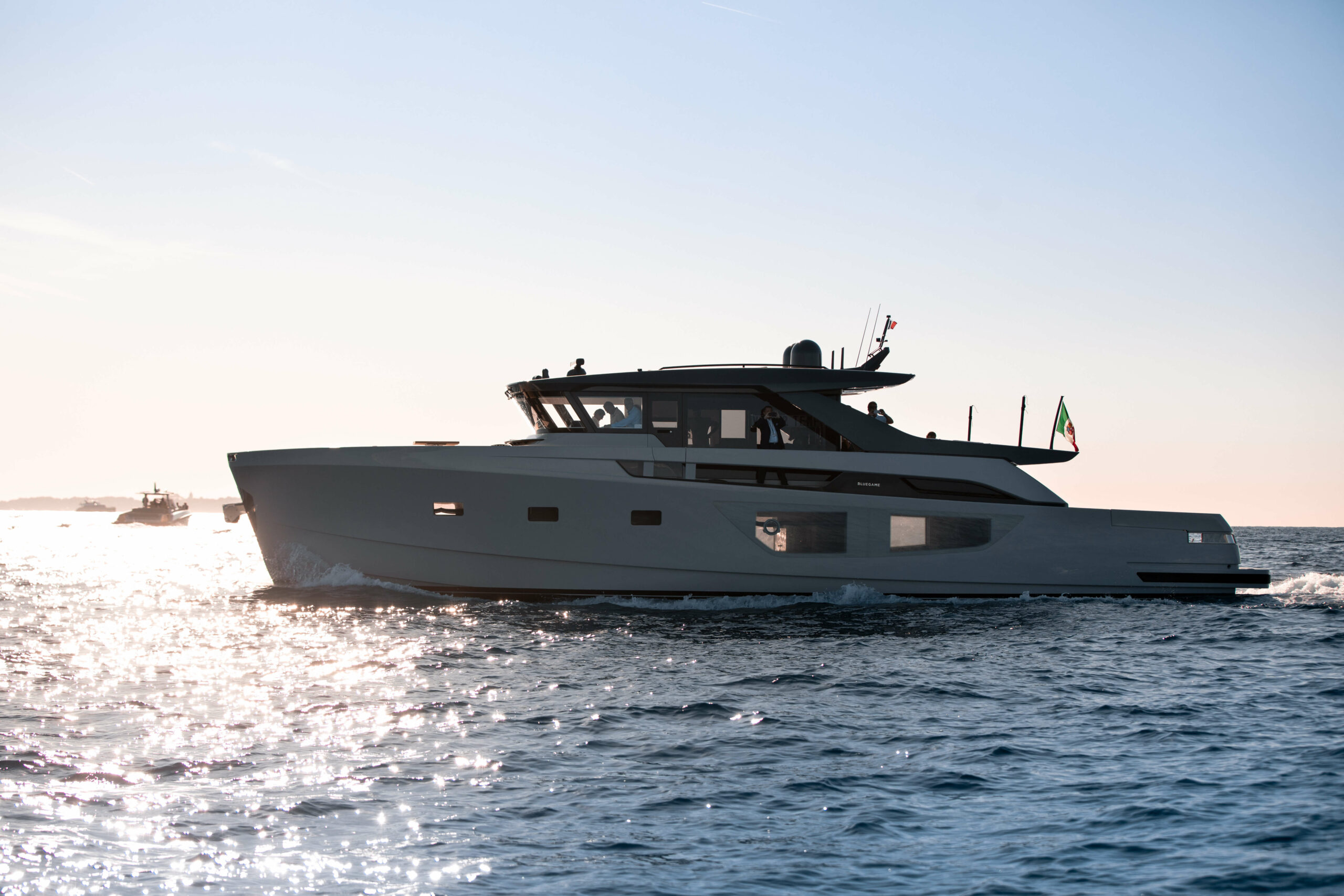

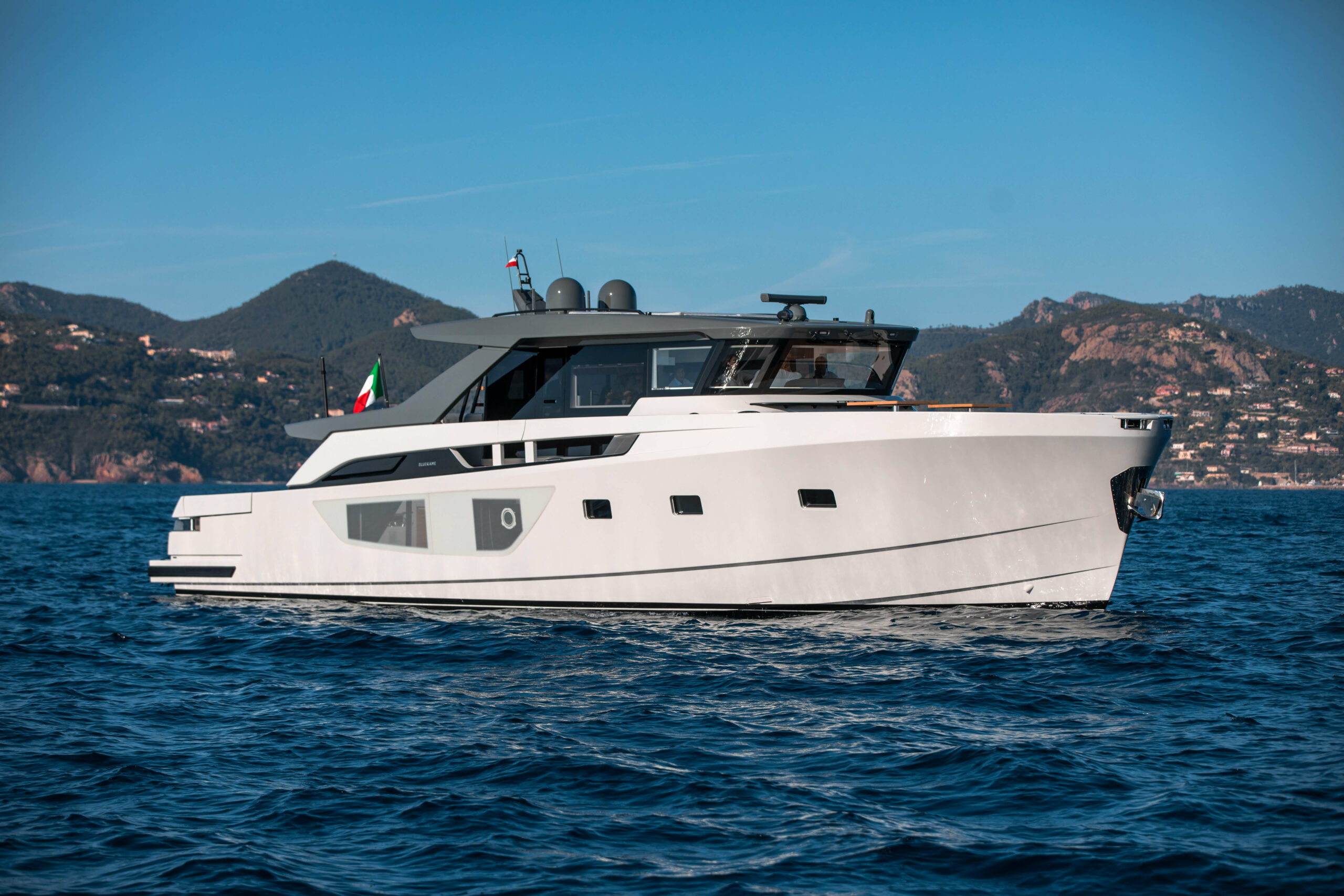

Bluegame BGX70 #05

New Bluegame BGX70 for sale. Available from September 2020.

Innovation, a driver in the DNA of the company, has expressed itself both in the external design, at the same time elegant, unmistakable and unconventional, in which three levels are ingeniously “hidden” and in the original lay-out, never seen before in a 70’ yacht.

  • Price €3.447.580, - VAT not paid
  • Year 2020
  • Length 21.86 m
  • Beam 5.6 m
  • Draft 1.6 m
  • Cabins 3 + crew

Technical specifications

General Info

  • Brand Bluegame
  • Type BGX70
  • Shipyard Bluegame Srl
  • Hull Number #05
  • Construction year 2020
  • Hull Colour Grey
  • Hull Material GRP
  • Superstructure material GRP
  • Deck Material Teak
  • L.O.A. 21.86 m
  • Beam 5.6 m
  • Draft 1.6 m
  • Light Displacement 40 000 kg
  • Engines Volvo Penta IPS 1350 with DPS
  • Engine power 2x 1.000 hp
  • Fuel type Diesel
  • Yacht control IPS
  • Cruising speed (knots) 27 kn
  • Maximum speed (knots) 30 kn
  • Fuel tank (L) 4 200 l
  • Fresh water tank (L) 1 000 l
  • Grey water tank (L) 330 l
  • Black water tank (L) 330 l
  • CE-Category CE-B

Accommodations

  • Cabin(s) 3 + crew
  • Berths 6 + 2
  • Stove Electric grill/ teppanyaki in cockpit
  • Refrigerator yes + additional (bow)
  • Winecooler Under pilot seat
  • Washer/dryer BOSCH
  • Televisions Ceiling TV movement
  • Internet WiFi system + 2 repeaters

Equipment

  • Bowthruster 210 kg/f
  • Stabilizers Gyroscope Seakeeper 16
  • Camera in engine room 2
  • Underwaterlights n.2
  • Bimini Top Bow/ stern sunlounge

Standard Equipment

HULL DECK CONSTRUCTION
Molded fiberglass construction made with iso-neopentilic gelcoat, skin coat of vinylester resin
Bottom hull in monolithic lamination made with biaxial, glass and ISO DCPD polyester resin
Sandwich core construction on side hull and deck plans
Infused sandwich structural bulkheads

UPPER DECK
Antifouling and propspeed on Hull
Deck made in sandwich and infusion technology with vinylester resin
Twin fiberglass doors covering anchor system
Anchor 50 Kg S/S
Bow roller custom design S/S
Galvanized chain 12 mm 100 m
Anchor safety cable
Electric anchor winch 2000 w
Electric mooring winch 1600 w
Two S/S fairlead
Two S/S cleats 360 mm
Two retractable cleats amidship
Fresh water outlet connection
Teak deck
Access to crew cabin at the bow

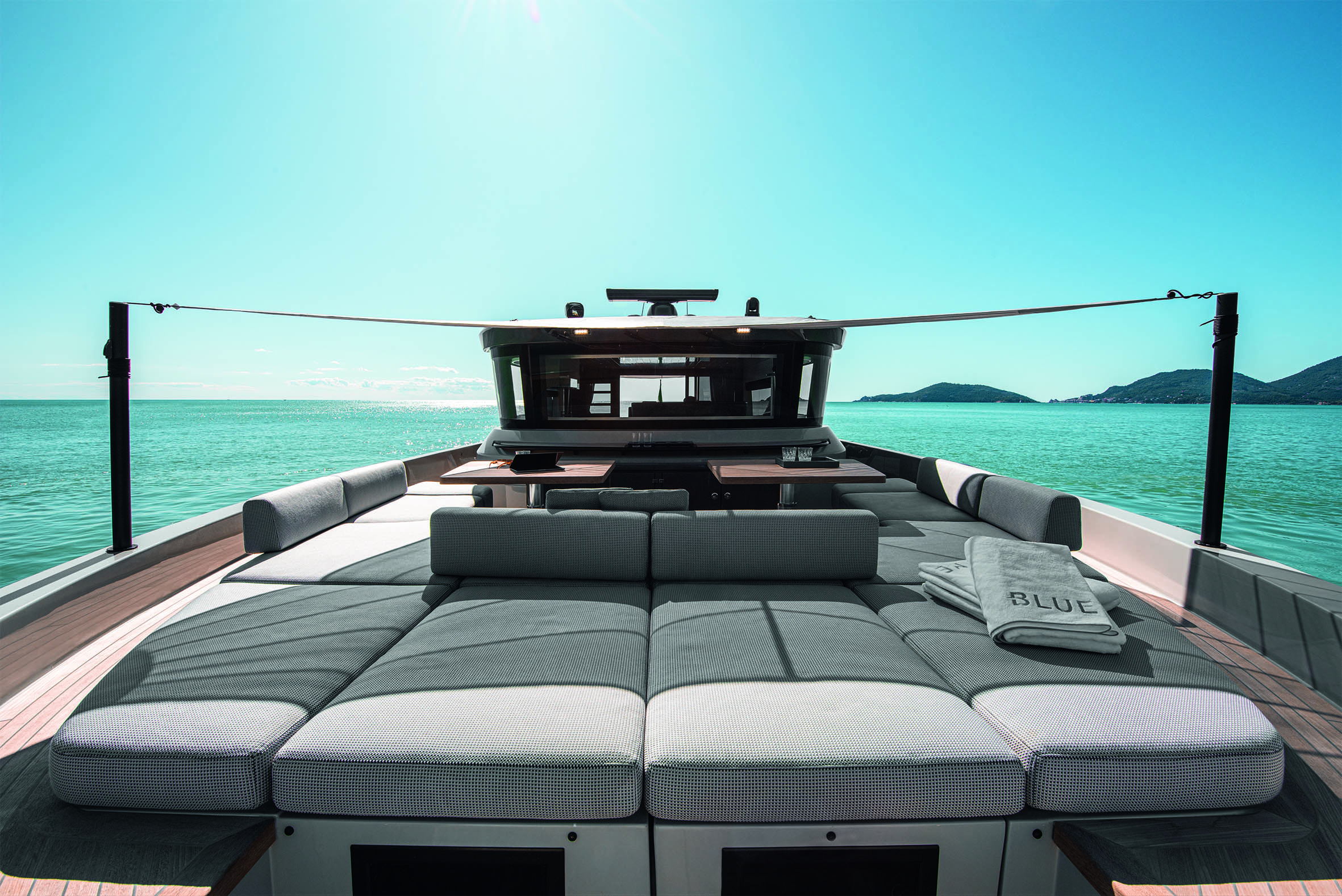

Sun pad area with back rest
Double side entrance from the dock

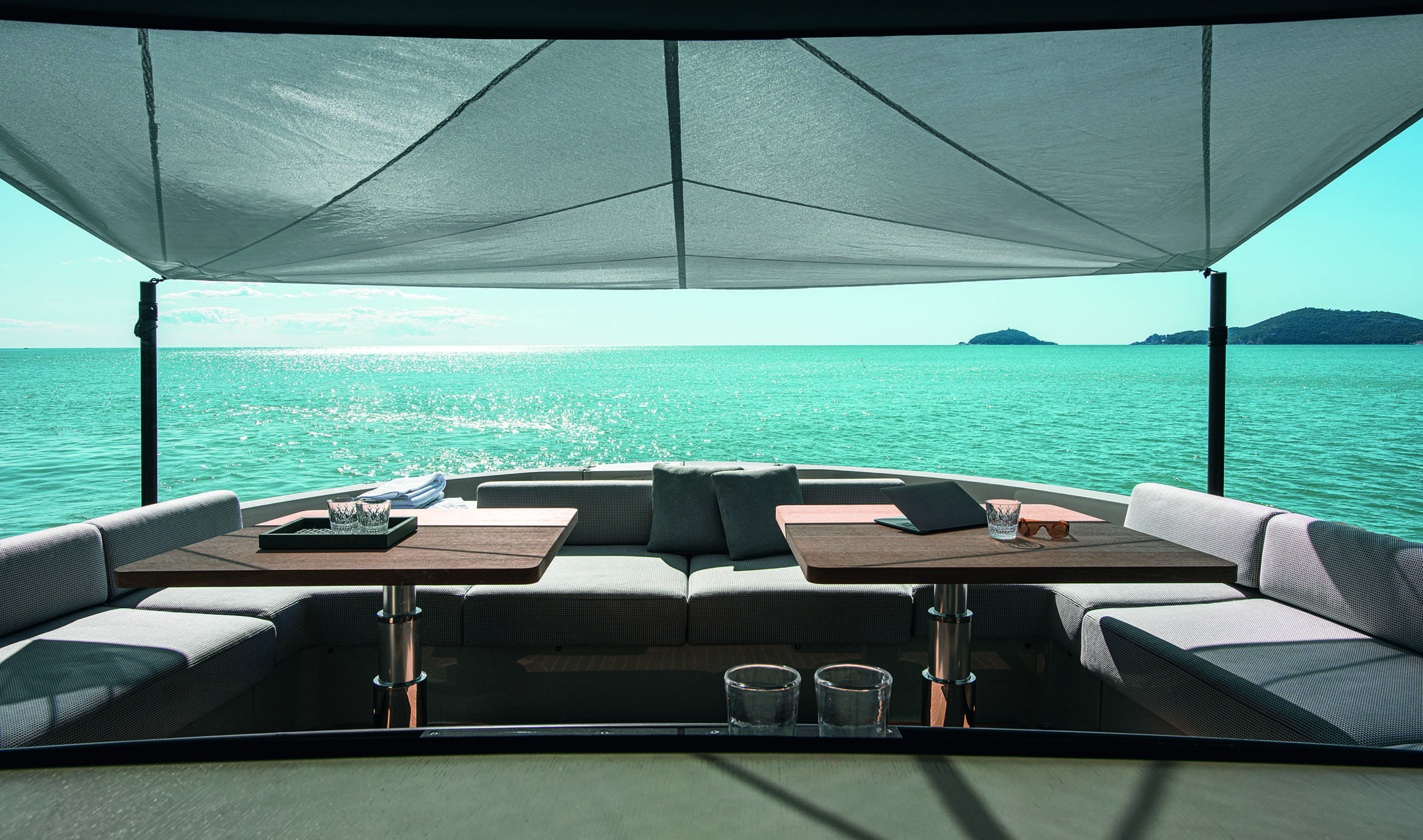

Two teak tables with electric up/down system in bow area
Bow sofa on both side
Storage
Navigation and anchor lights led systems
Courtesy light on walkaround
Dimmable ceiling lights
Double diesel inlet
Fresh water inlet
Black water tank drain pump
Grey water tank drain pump
Horn
Radar radome
GPS antennas
VHF antennas
Four speakers (two in cockpit two in bow) connected to the deck house area
Upper deck sliding glass door
Port side manual pantograph door
L shape sofa on stern with teak table
Glass skylight on portside
Storage
Sun roof ladder with manual hatch
Sun roof handrails
Sun Pad with Teak allround
TV SAT Antenna

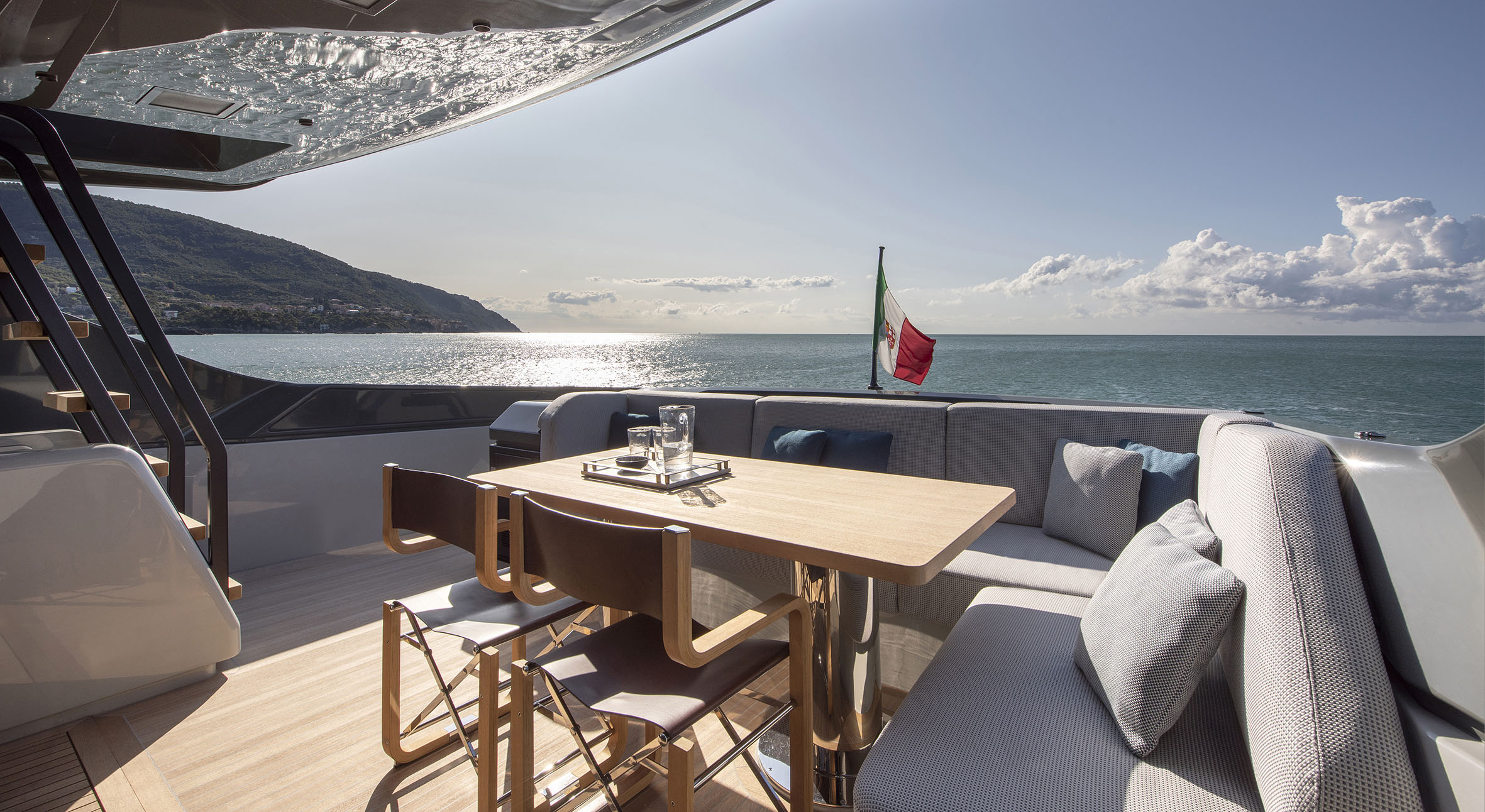

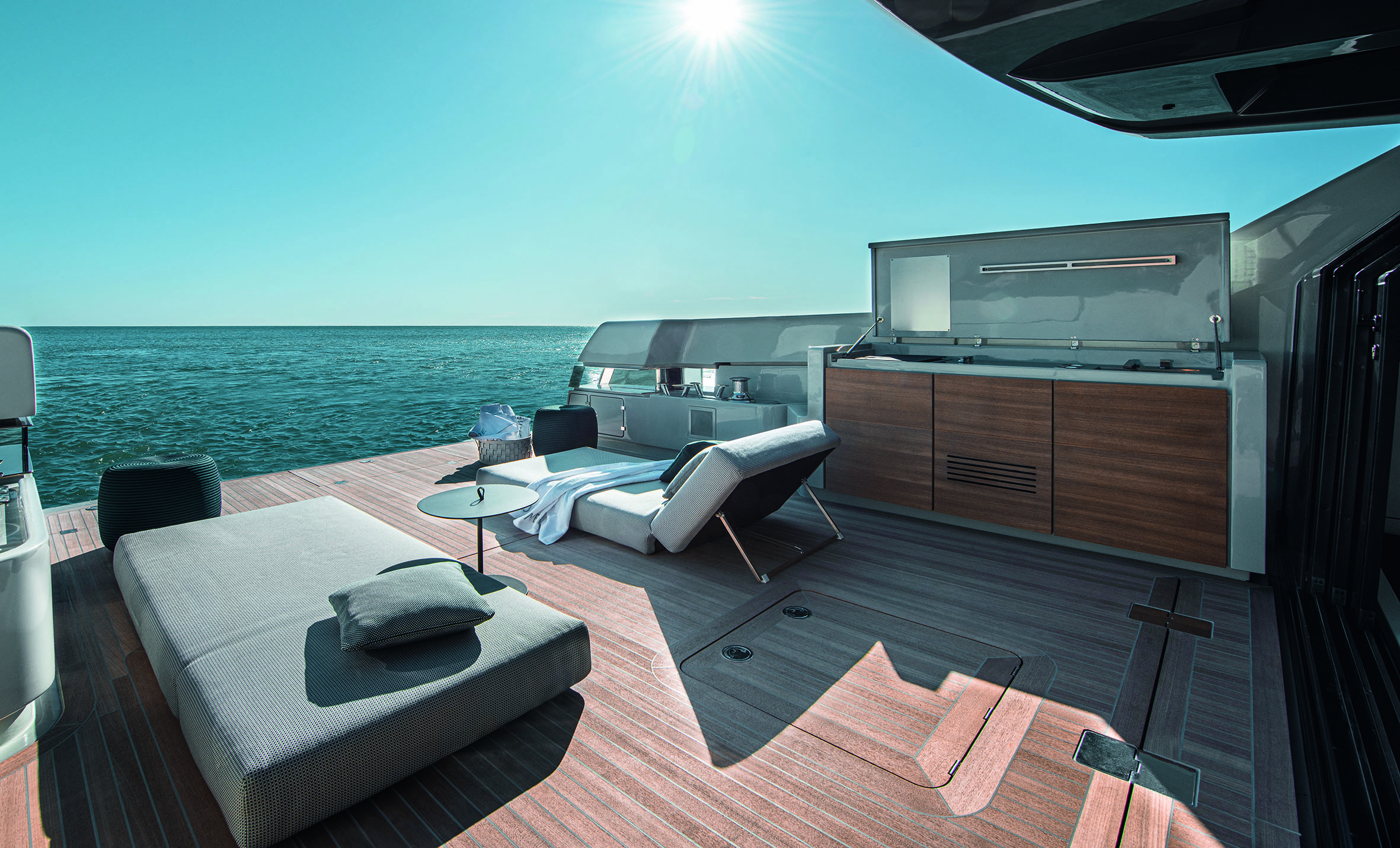

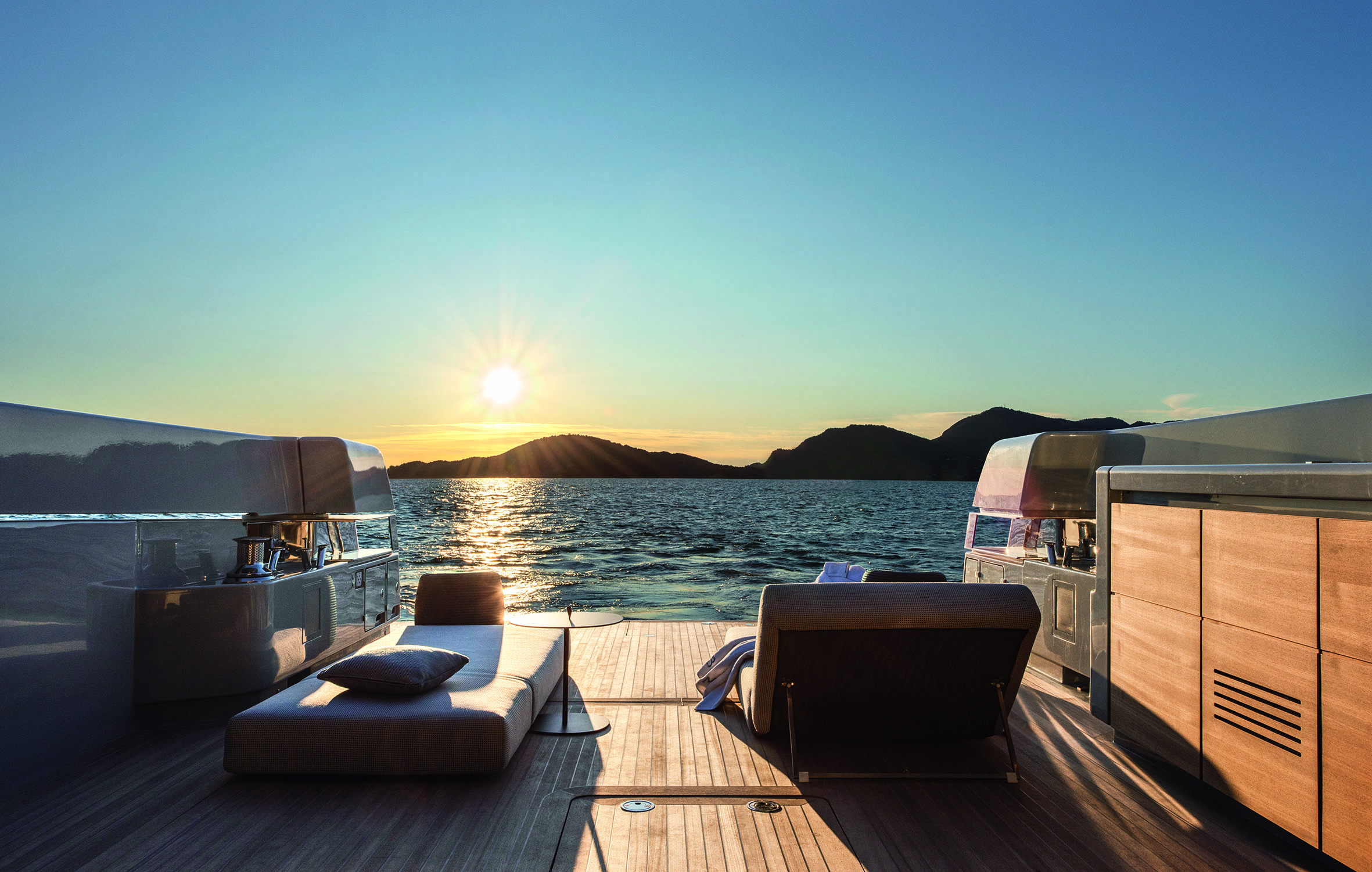

BEACH AREA
Two speakers and subwoofer connected to the salon area
Teak stairs to upper deck
Wetbar with fridge, sink and storage
Sliding door to main salon
Side 180° crane with 500 kg lifting capacity
Retractable up/down gangway
One electrical engine room big hatch for maintenance
One manual engine room access
Two stern mooring winches 1600 W
Four stainless steel cleats 300 mm
Hot/cold shower
Teak deck
Side storage compartments
Floor storage comparments
Courtesy lights
Dimmable ceiling lights
Two glass skylights

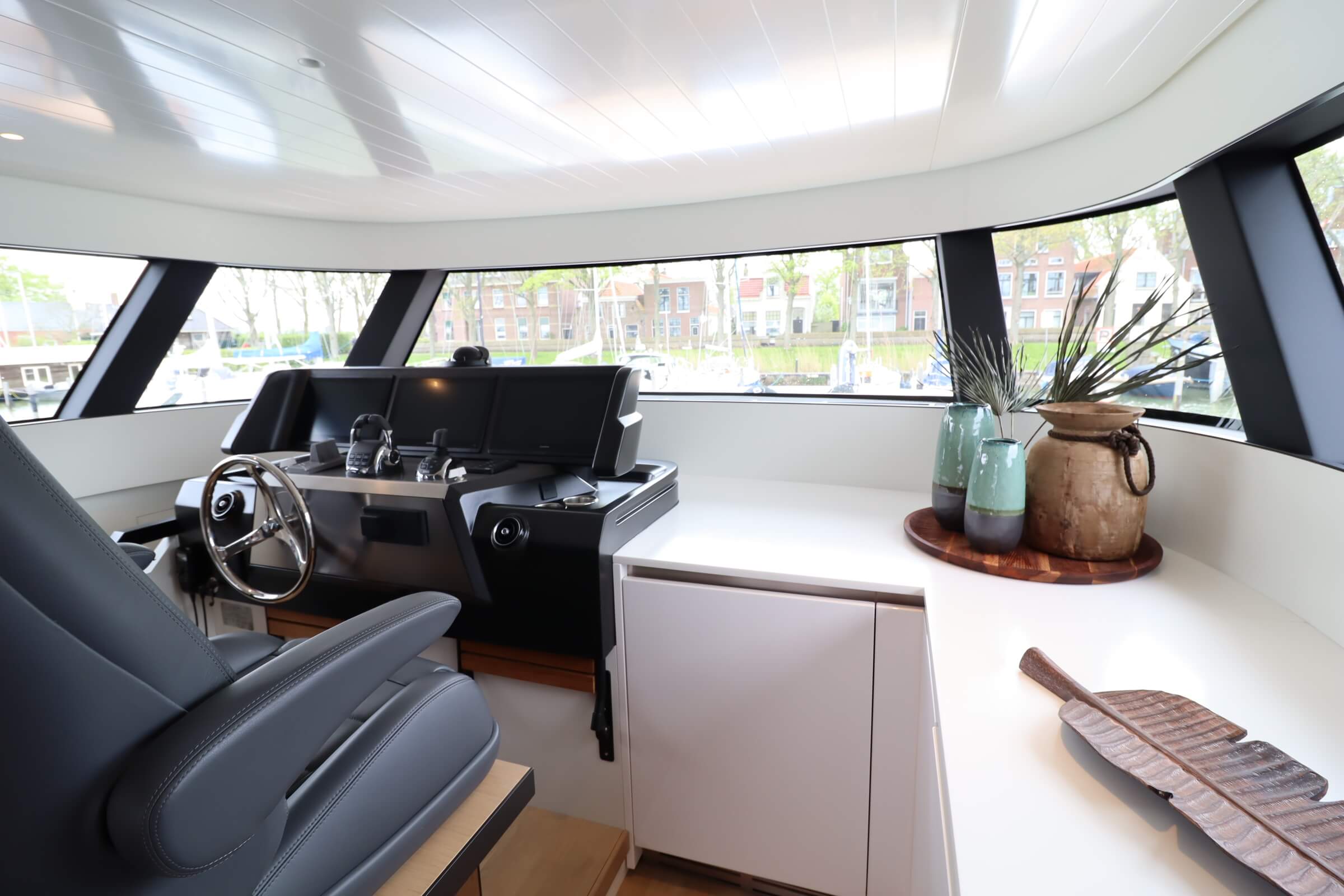

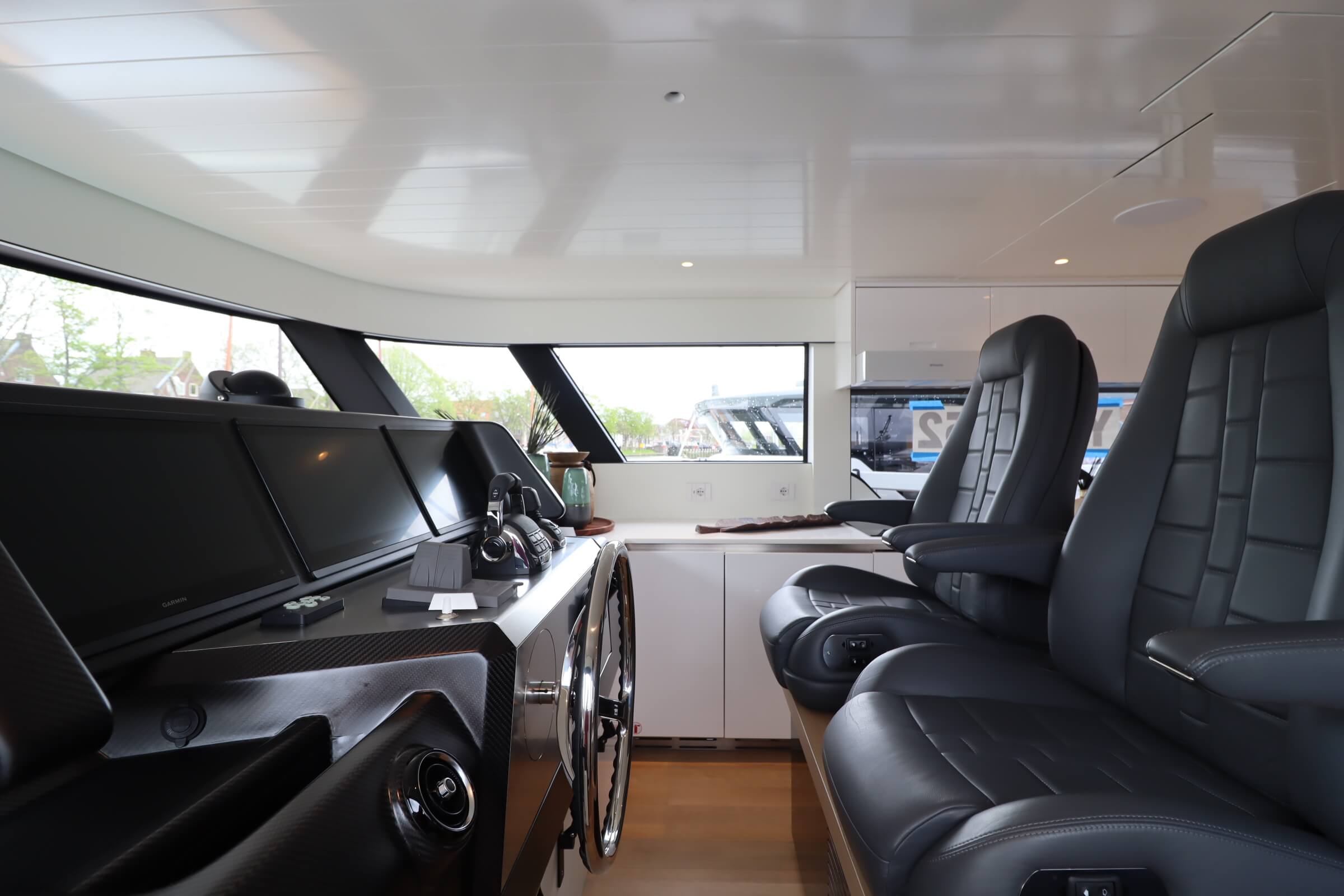

DECKHOUSE
Sliding glass door with curtain
Wooden floor
Blinds
Dimmable led lights

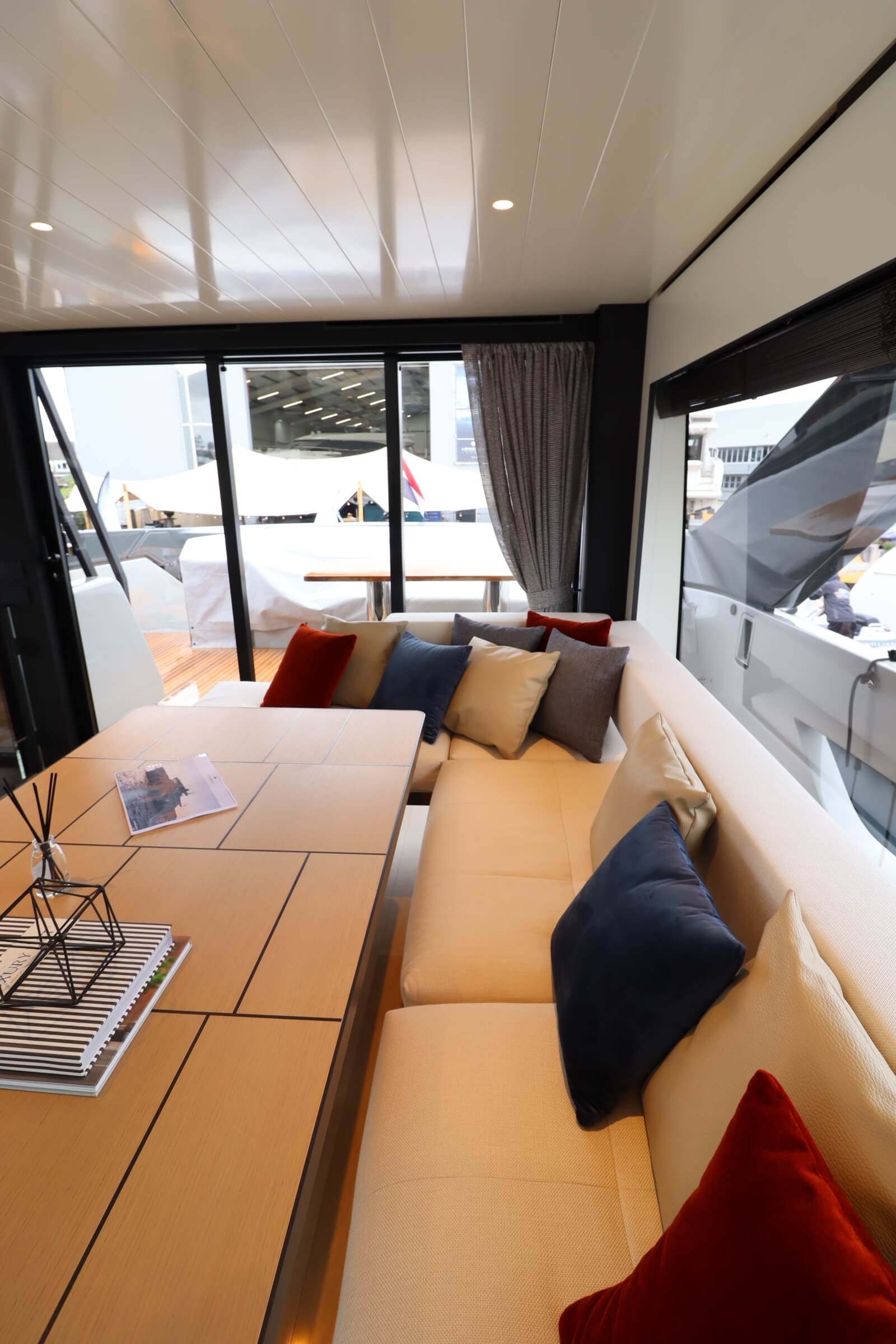

L shape sofa with table and 3 chairs/stools
Pilot and copilot bench
Storages below the pilot seat

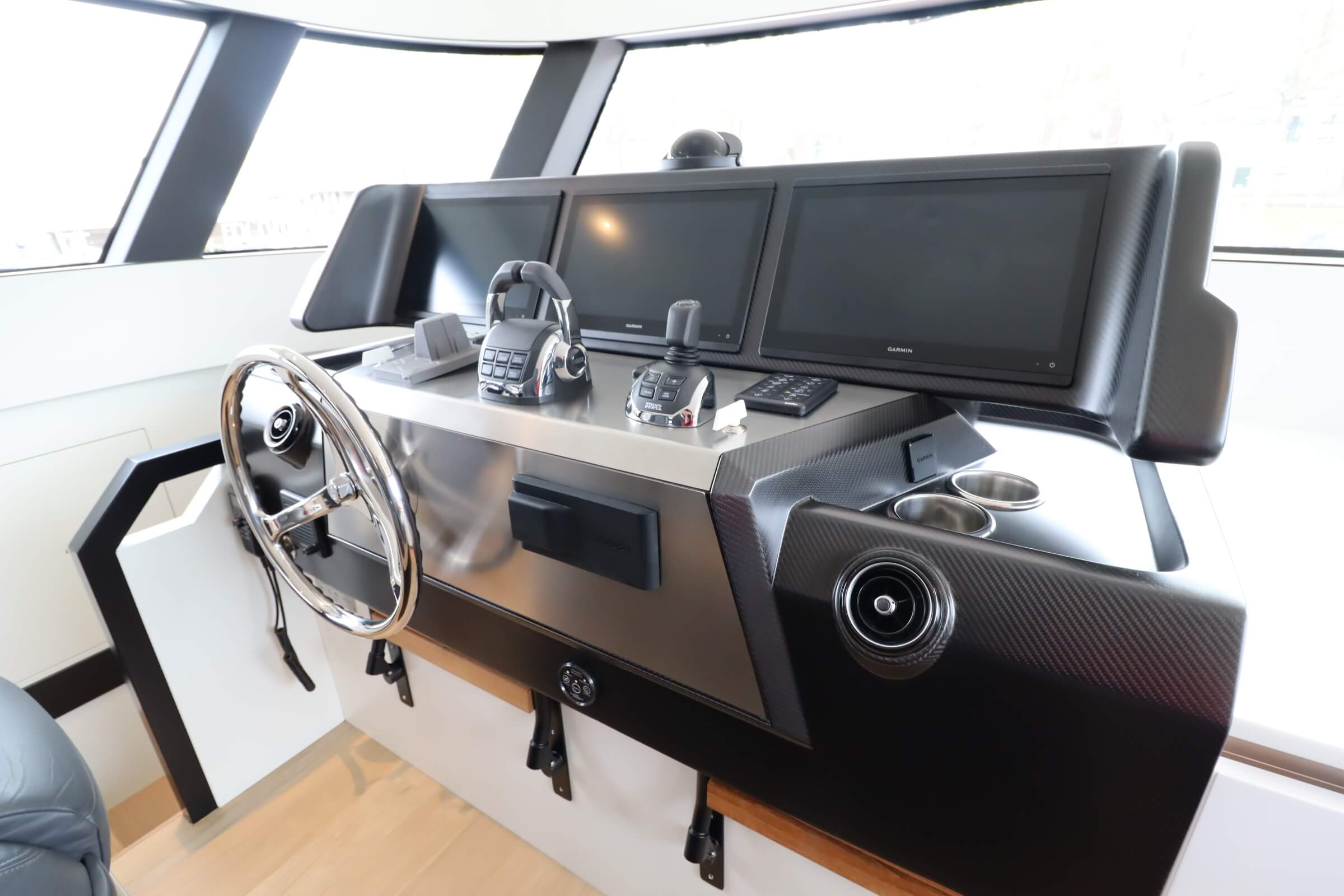

Console with:
HI-FI
Compass
Three 12” chart plotter glass cockpit
Indicating engines parameters (rpm, oil pressure, water temperature, engine sound warning alarm, fuel and water level) and controls (intruder systems, windshield wiper, GPS, radar, fish-finder)
Volvo Penta automatic pilot
VHF station with passive AIS receiver
IPS Joystick
Bow thruster control
Volvo Penta electronic engine throttle
Digital switching and digital automation for main services DC and AC integrated in main panel
Back-lighted switch panel for deck services
Bluegame personalised steering wheel
Fire control for manual extinguisher
Red navigation light control
Port side manual pantograph door
Power and USB sockets
Stairs from main saloon with handrail
Stairs to guest’s area with handrail
Side tempered glass
Air conditioning fan coils
Fire extinguisher 1 kg

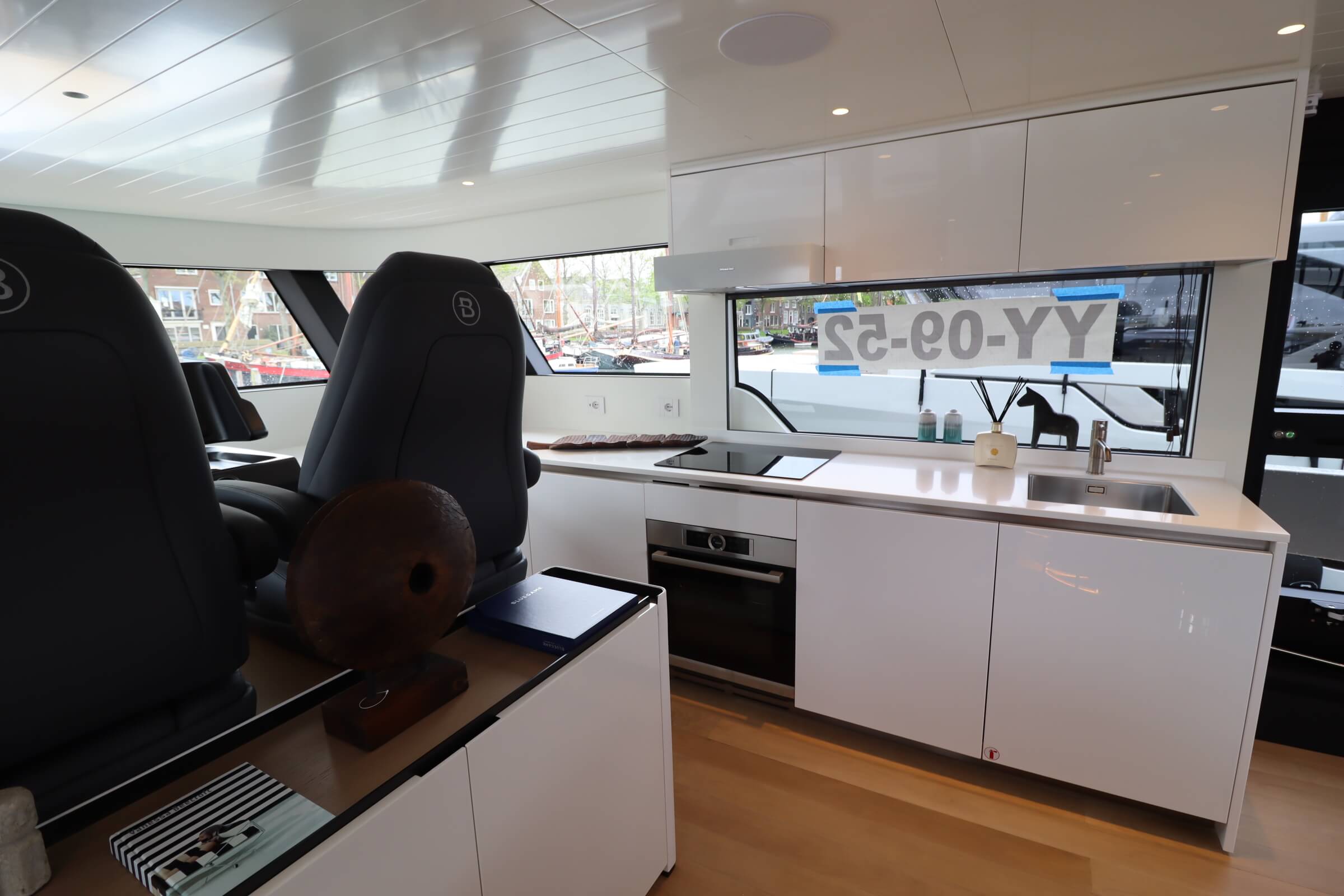

GALLEY
Painted overhead cabinet
Lower painted cabinet with storage
Sink
Synthetic worktop
Four zone induction cooktop with pan holders
Oven
Refrigerator
Freezer
Dishwasher
Kitchen hood
Power sockets
Trash compactor

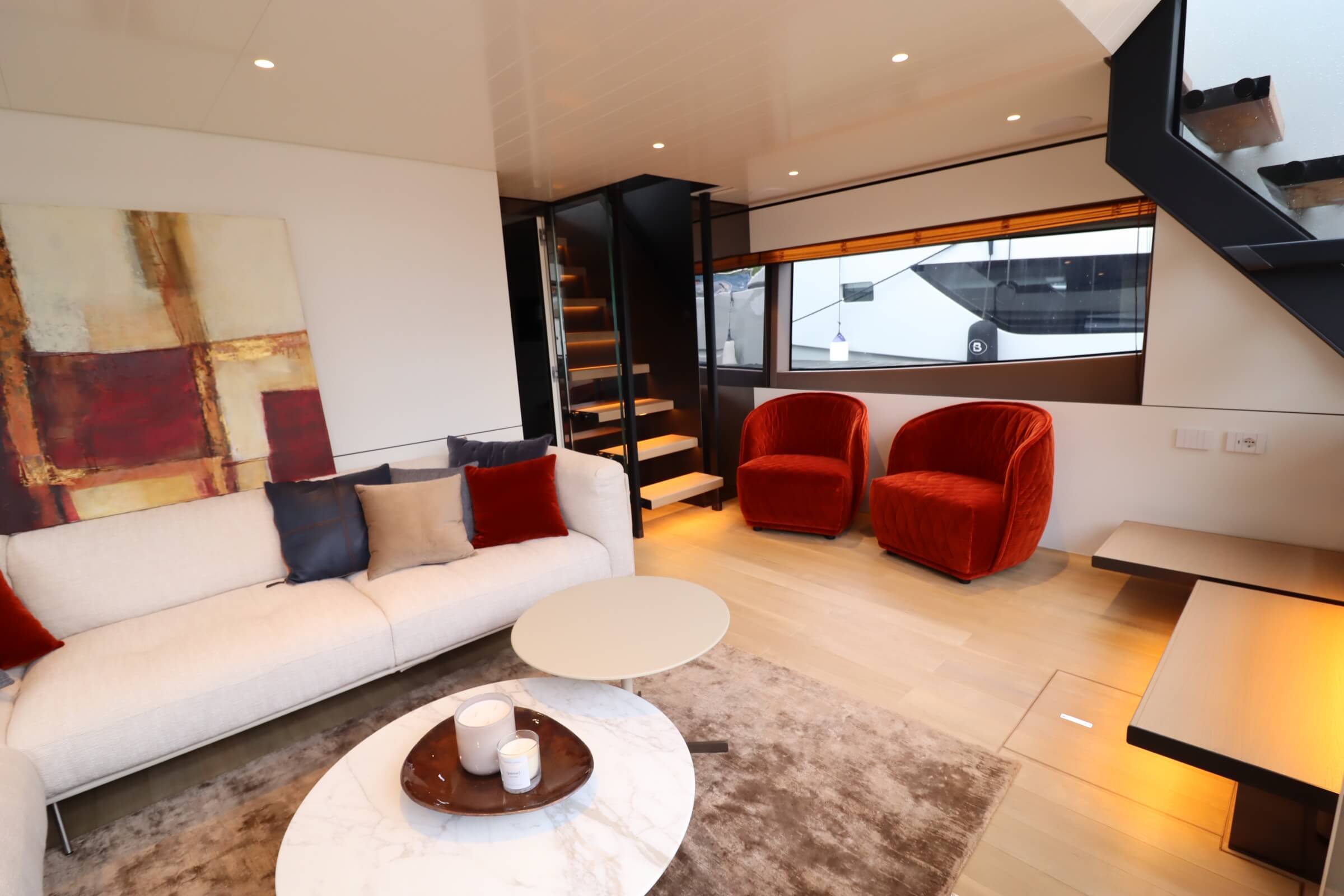

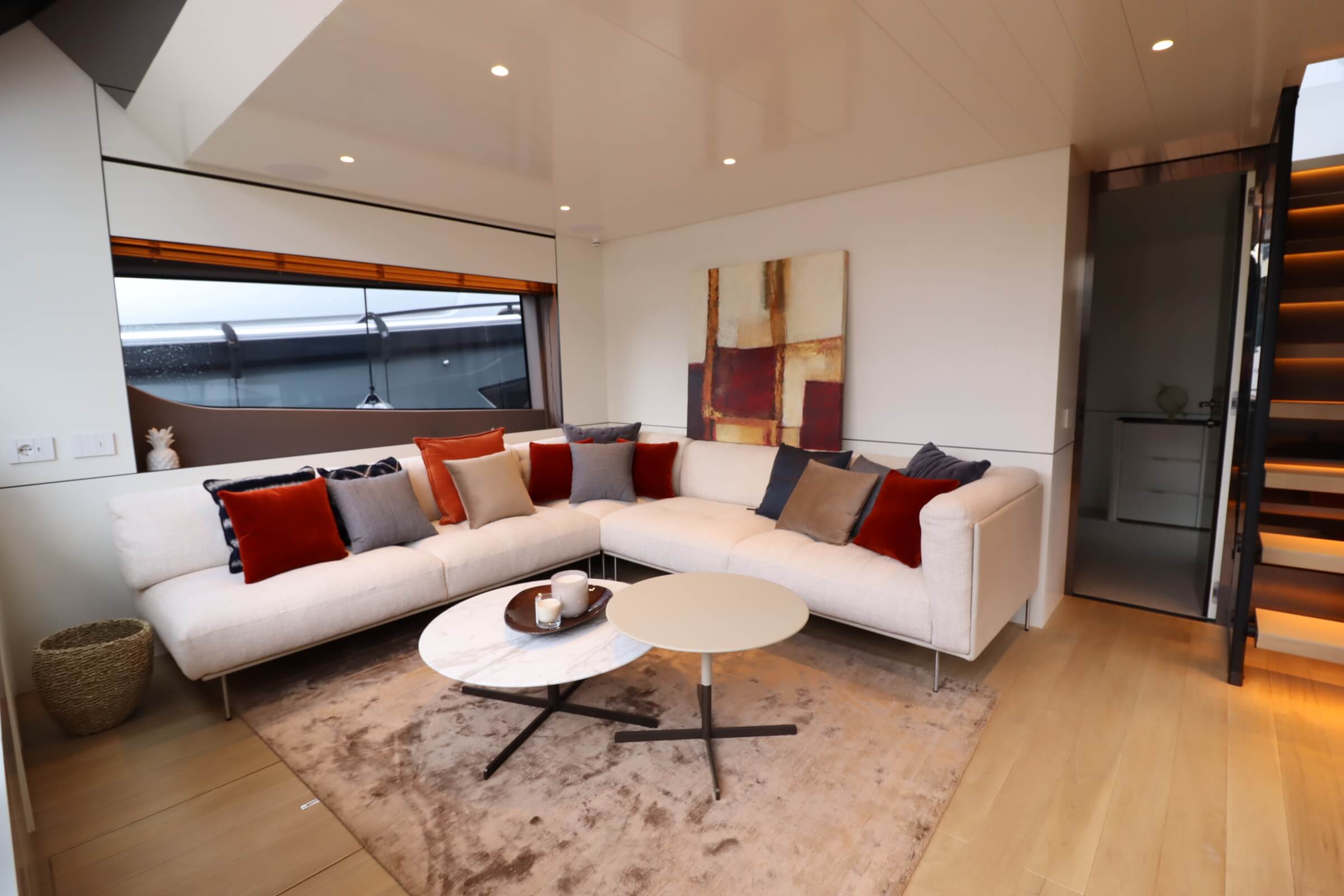

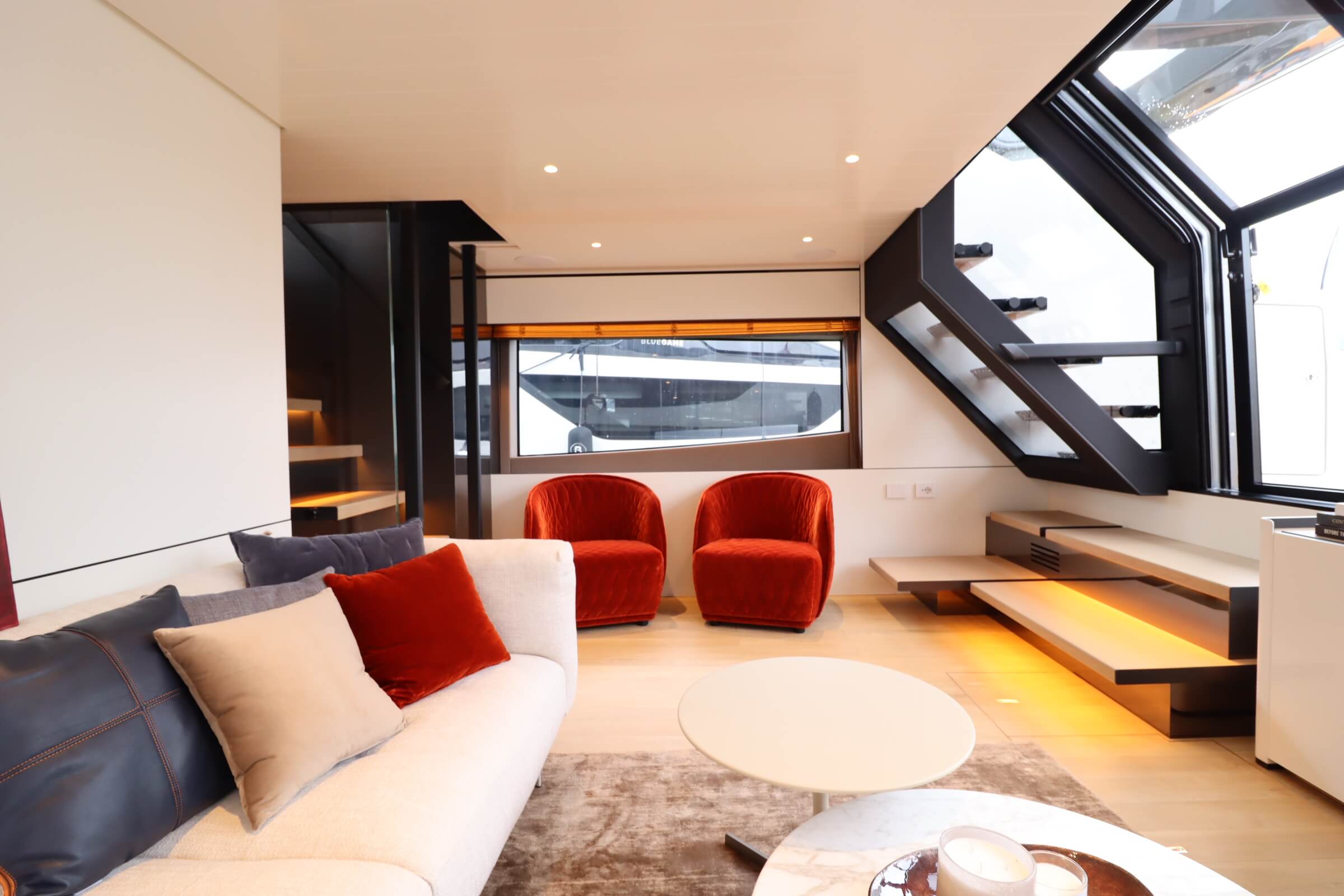

SALON
Sliding door to beach area with curtain
Steps from beach area to salon
Power and USB sockets
Dimmable lights
L shape fabric sofa
Two armachair
Two coffee table
Storage cabinet
Wooden floor
Carpet
Blinds
Side tempered glass
50” TV
Stairs to deckhouse
Owner cabin entrance
HI-FI
Four speakers
Air conditioning fan coils
Floor hatch to storage area
Sockets 220 V
Fire extinguishers 1 Kg

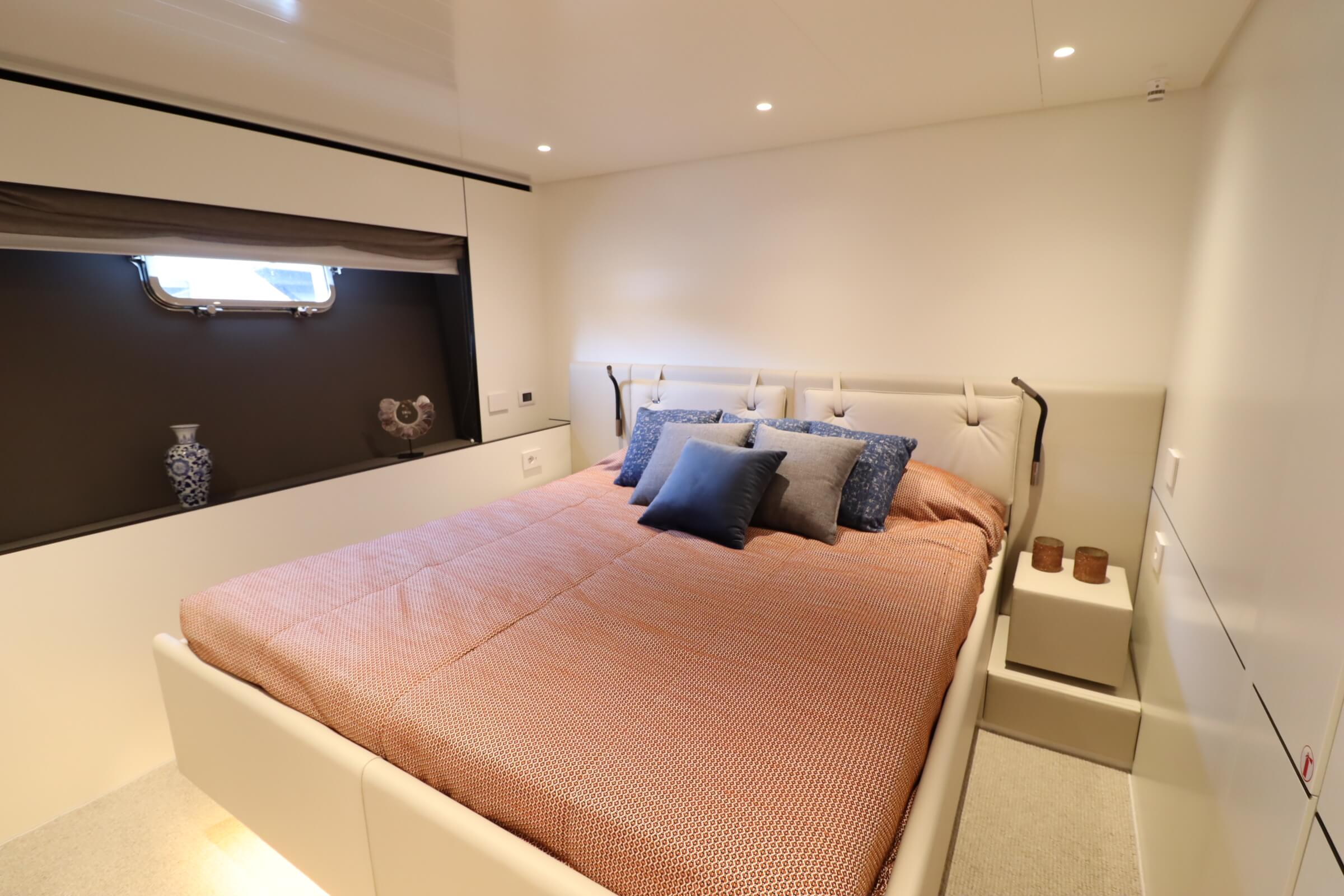

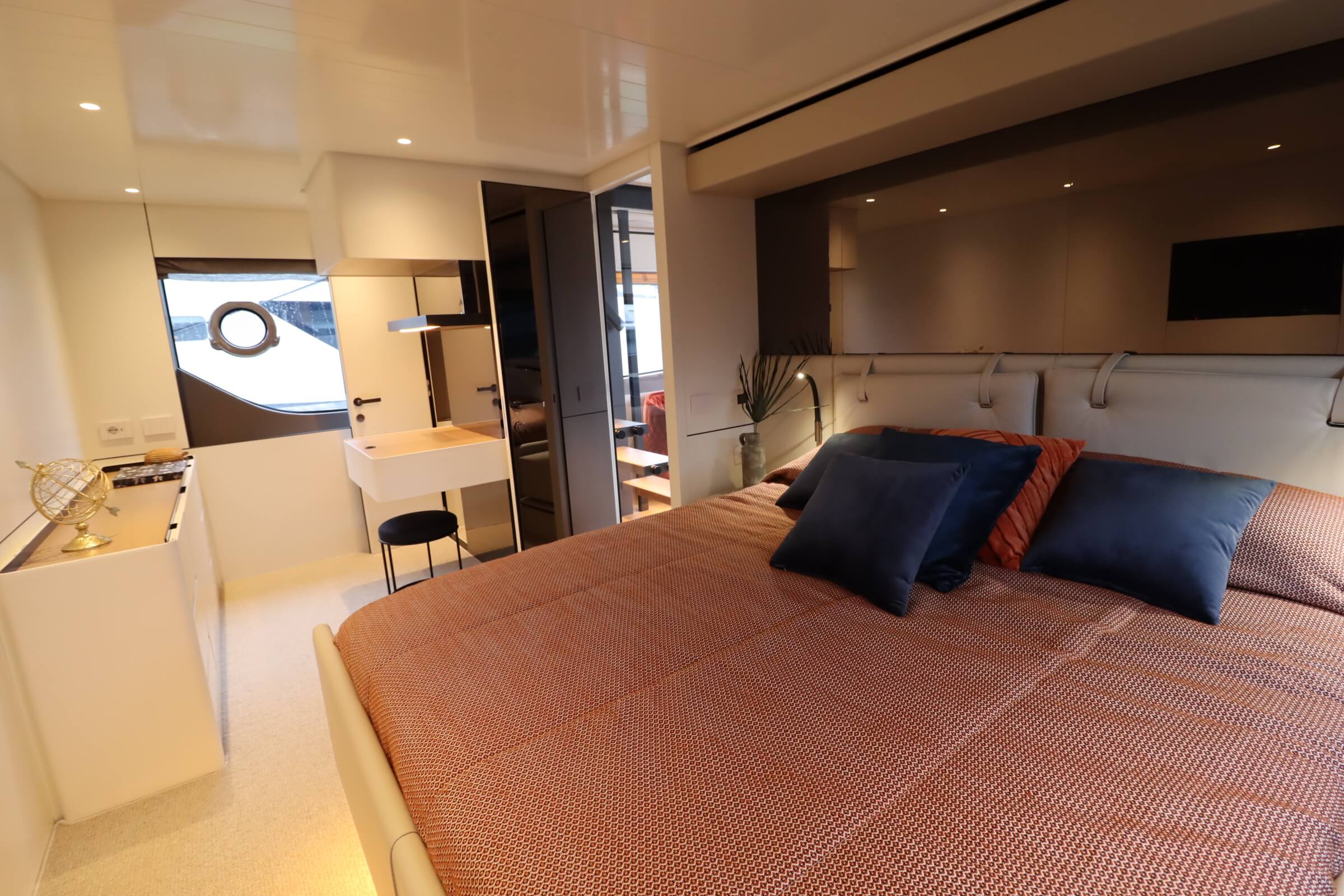

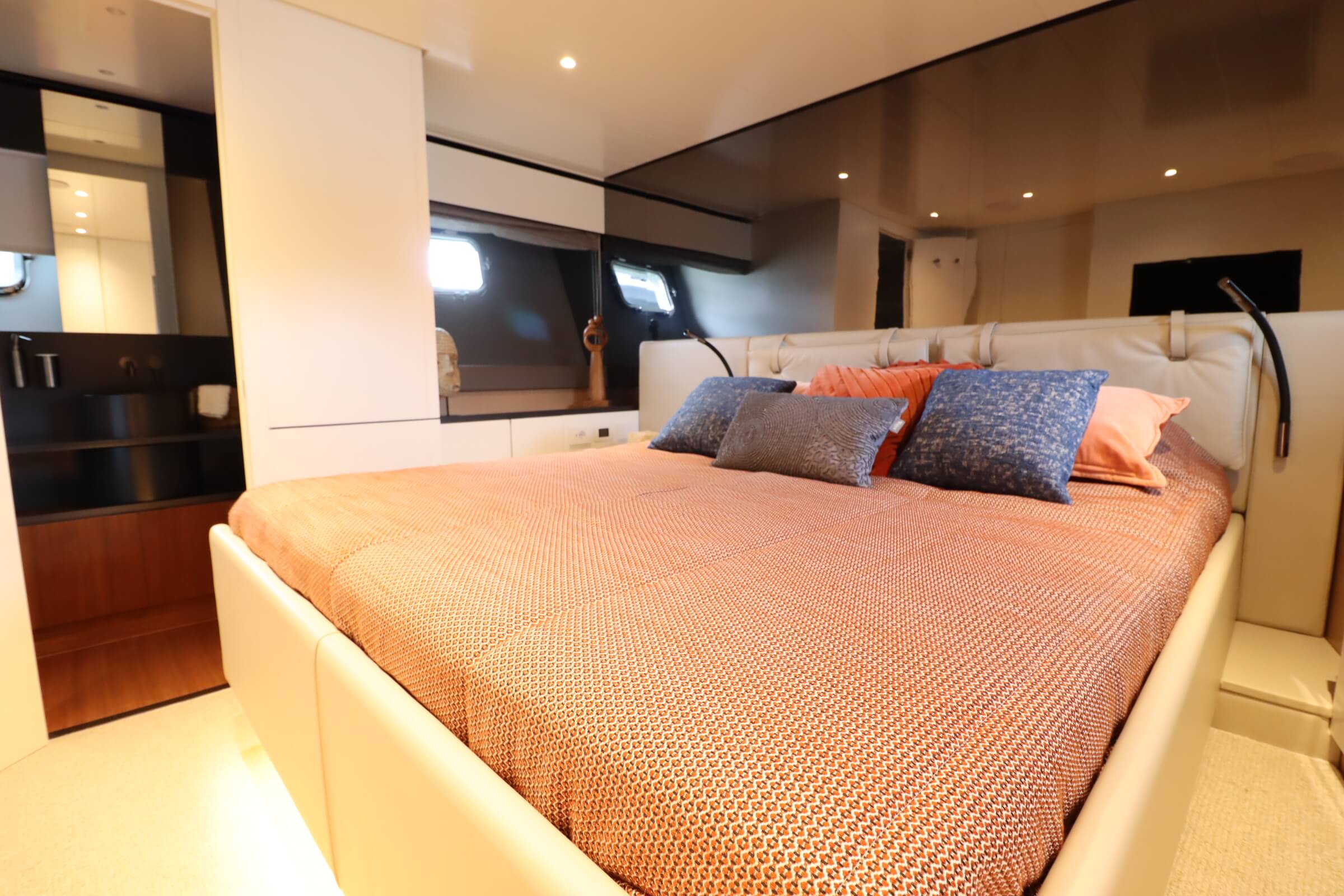

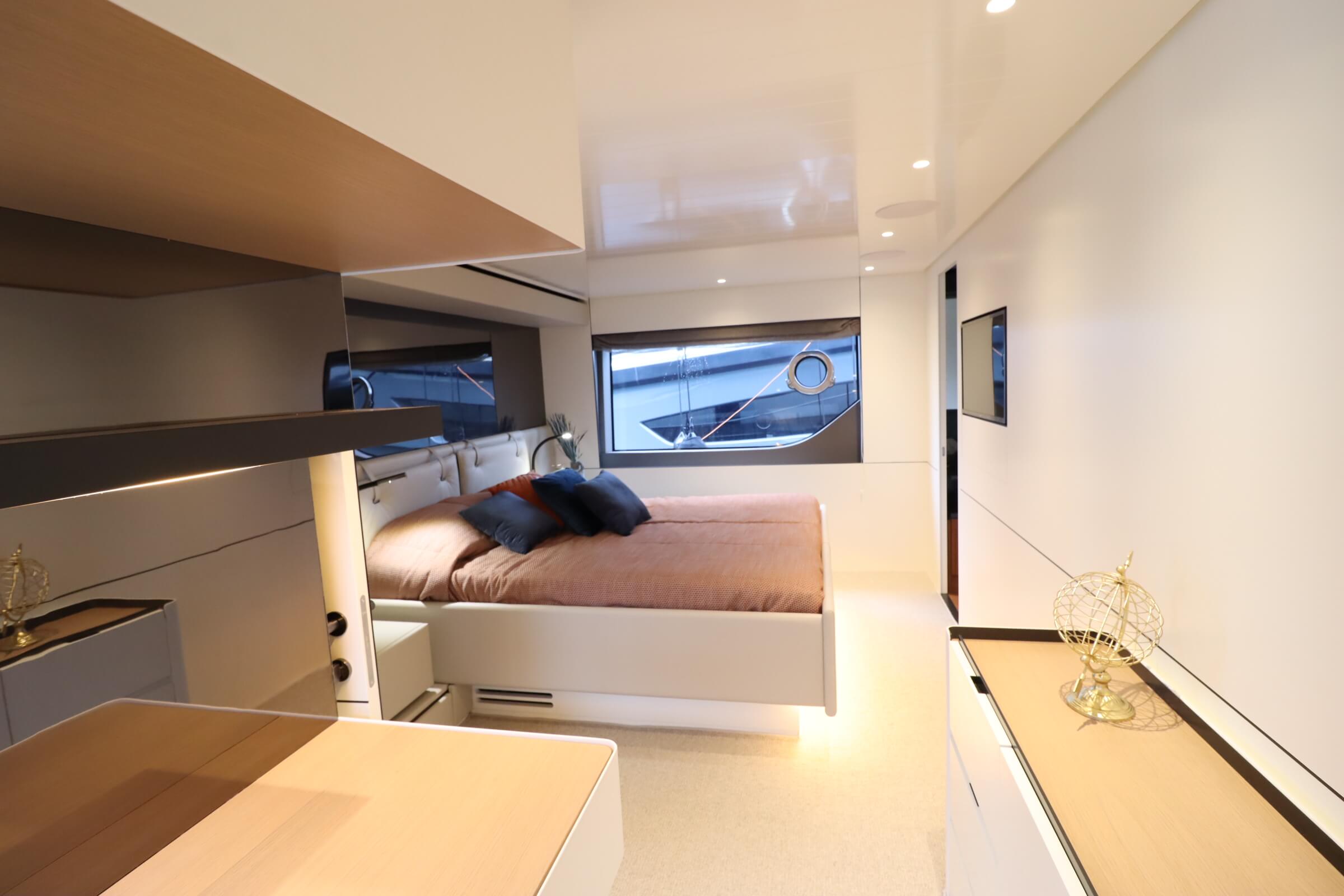

OWNER CABIN
Double bed with mattresses memory foam
Storage cabinet
Nightstands
Carpet floor
Reading lights
Ceiling lights
Courtesy lights
Power and USB sockets
Side tempered glasses with integrated porthole
Blinds
Pillows
Bed sheet covers
Bed sheets
Bathroom towels
Safe
32” TV
HI-FI
Two speakers
Vanity desk with one stool

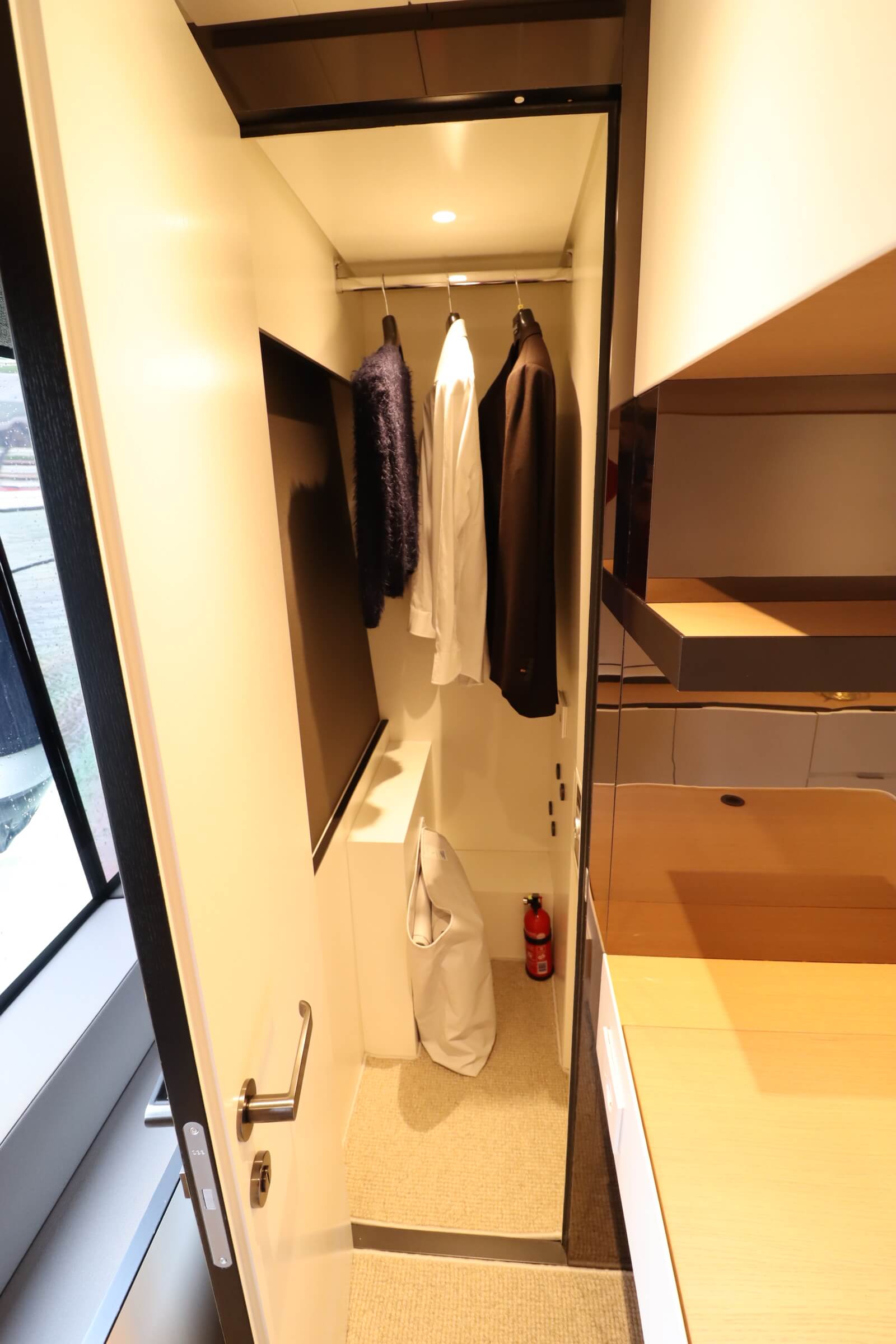

Walk-in-wardrobe
Air conditioning fan coil
Fire extinguisher 1 Kg

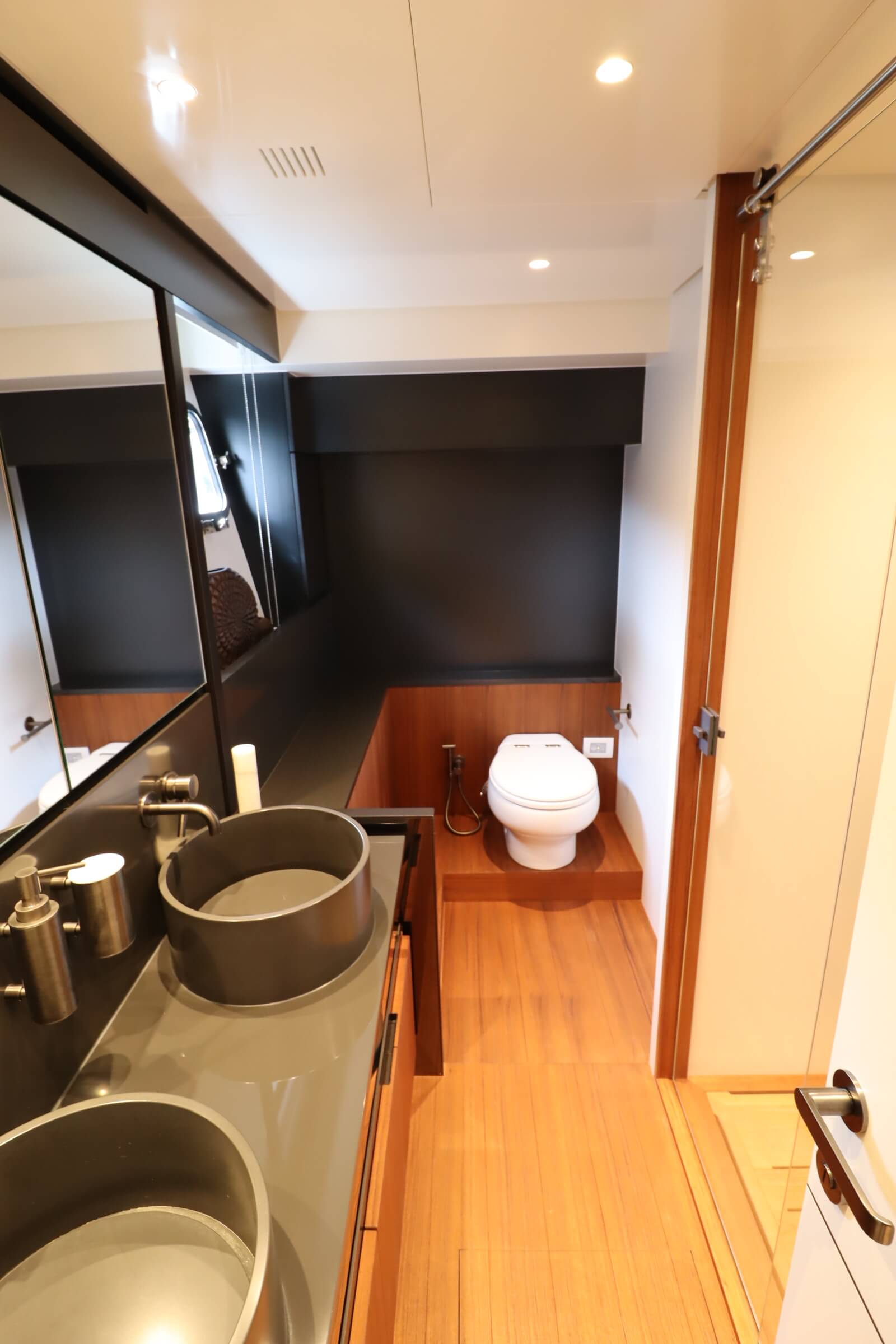

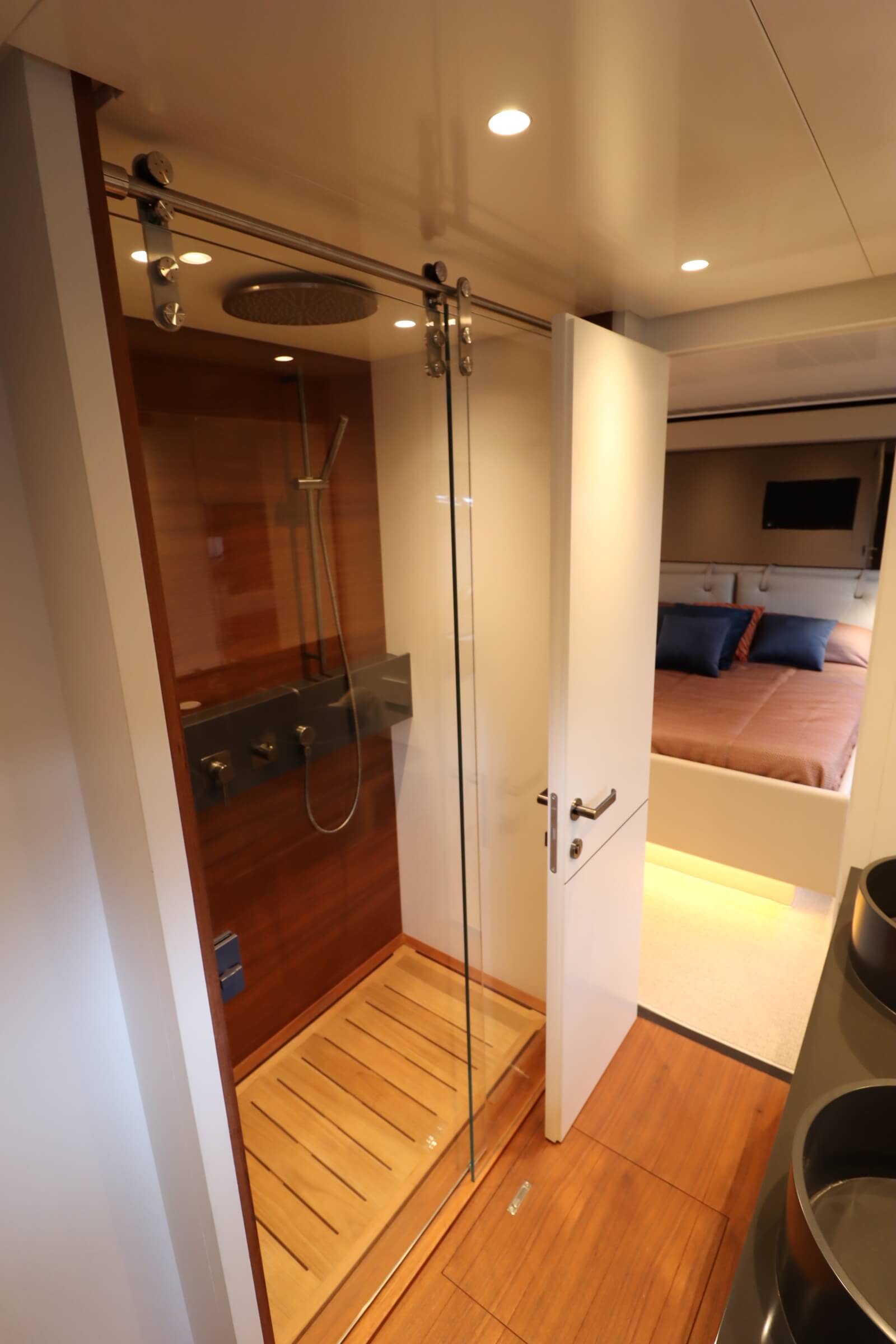

OWNER BATHROOM
Fresh water electric marine WC
Bidet
Wooden floor
Ceiling Lights
Blind
Power and USB sockets
Bathroom accessories
Cabinet with mirror
Porthole
Synthetic surface with integrated double sink
Air conditioning outlet
Shower with handset, ceiling shower head and tempered glass door

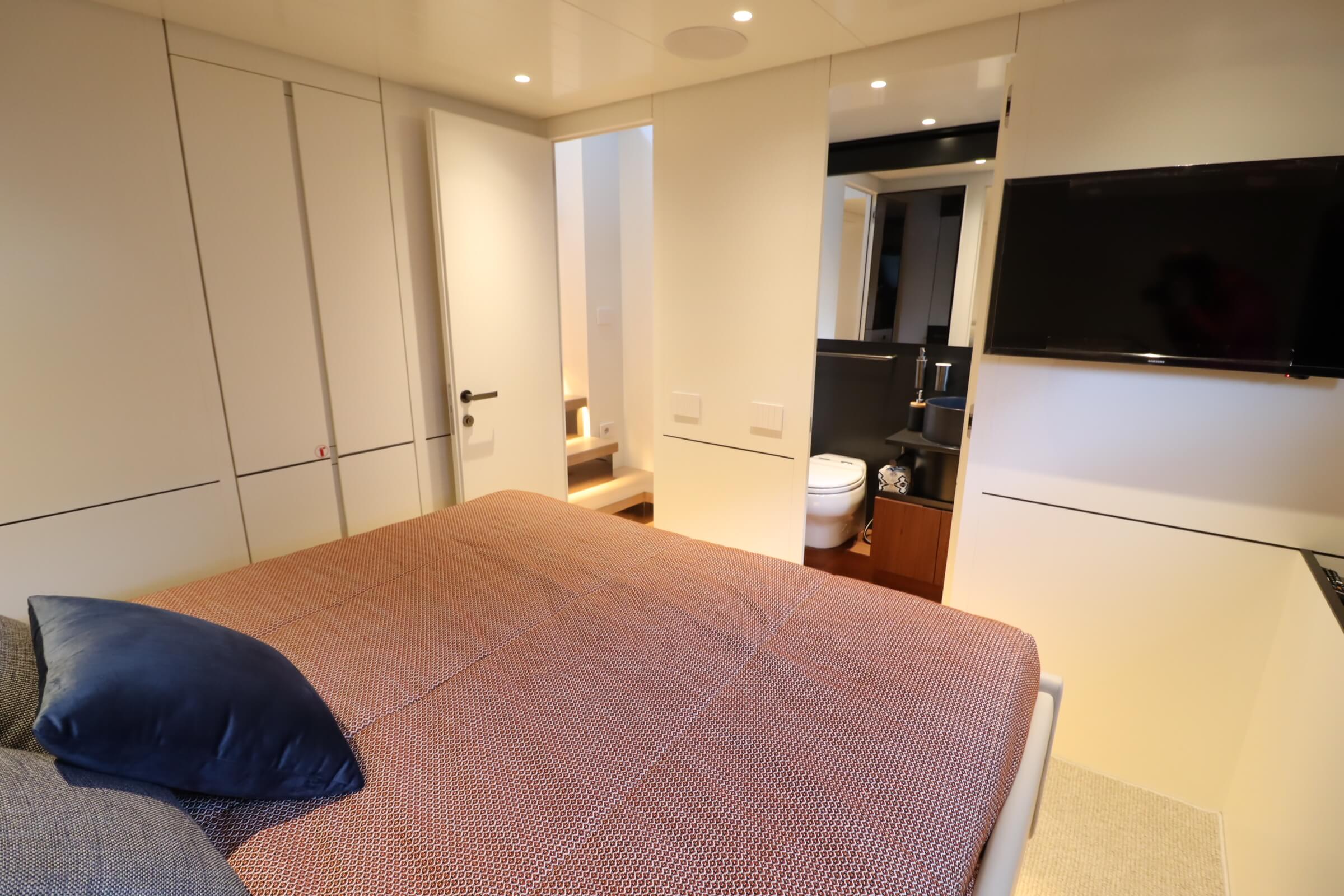

VIP CABIN
Double bed with mattresses memory foam
Storage cabinet
Nightstands
Wardrobe
Carpet floor
Reading lights
Ceiling lights
Courtesy lights
Power and USB sockets
Two portholes
Blinds
Pillows
Bed sheets
Bathroom towels
Bed sheet covers
32” TV
HI-FI
Two speakers
Air conditioning fan coil
Fire extinguisher 1 Kg

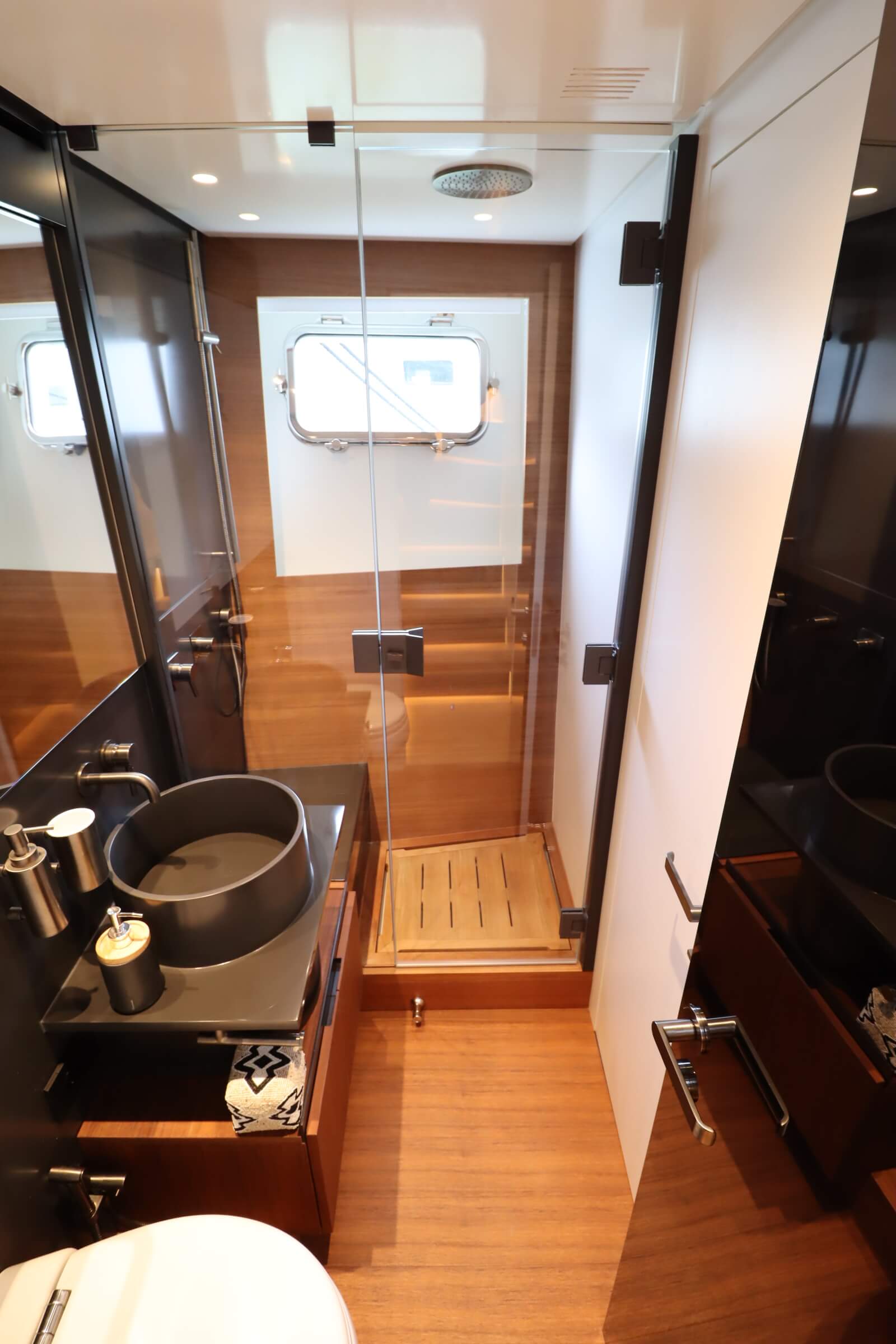

VIP BATHROOM
Fresh water electric marine WC
Wooden floor
Ceiling lights
Blind
220 V sockets
Bathroom accessories
Cabinet with mirror
Porthole
Synthetic surface with integrated sink
Air conditioning outlet
Shower with handset, ceiling shower head and tempered glass door

GUEST BATHROOM
Fresh water electric marine WC
Wooden floor
Ceiling lights
Blind
220 V sockets
Bathroom accessories
Cabinet with mirror
Porthole
Synthetic surface with integrated double sink
Air conditioning outlet
Shower with handset, ceiling shower head and tempered glass door

LOBBY
Storage area with wash/dryer machine

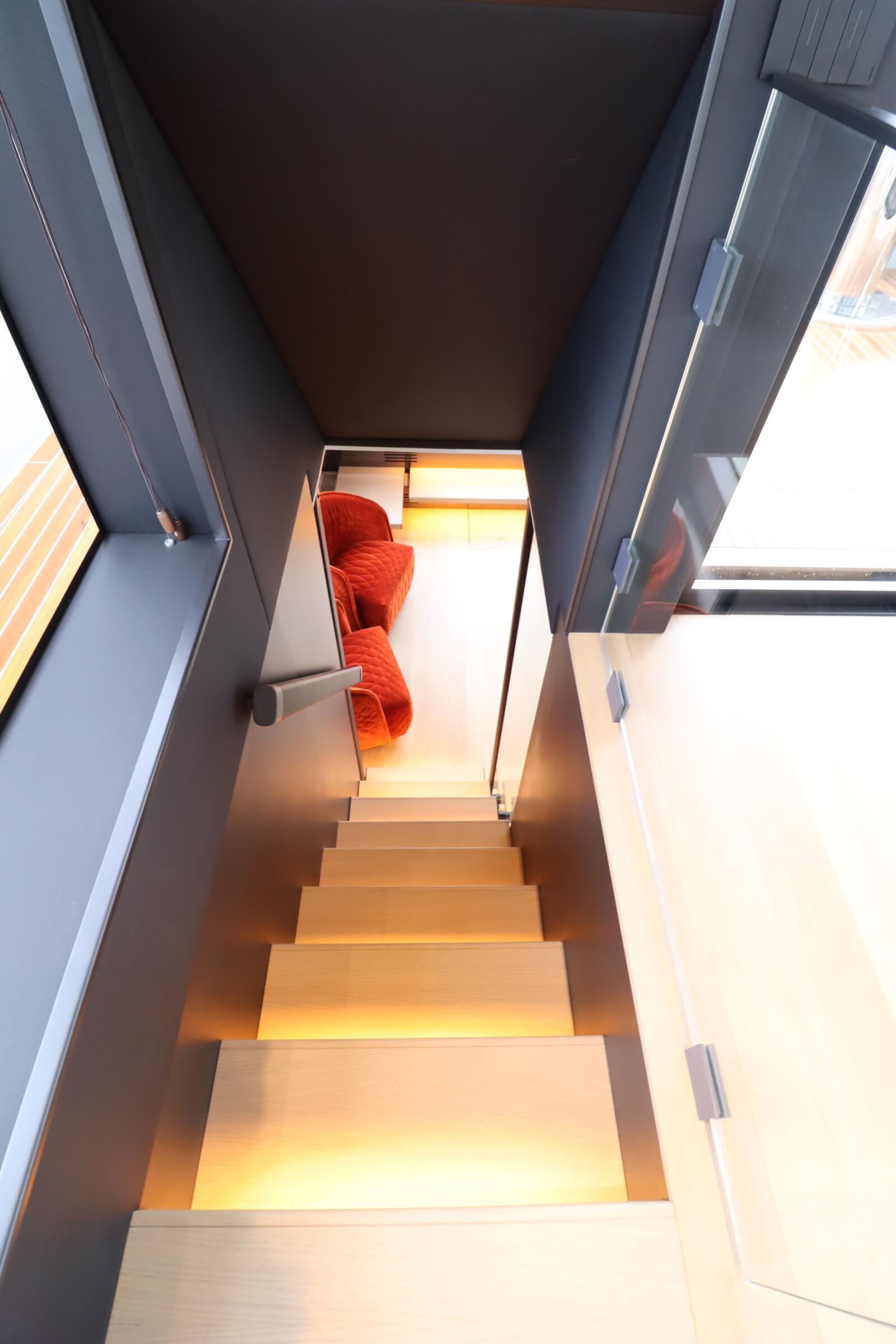

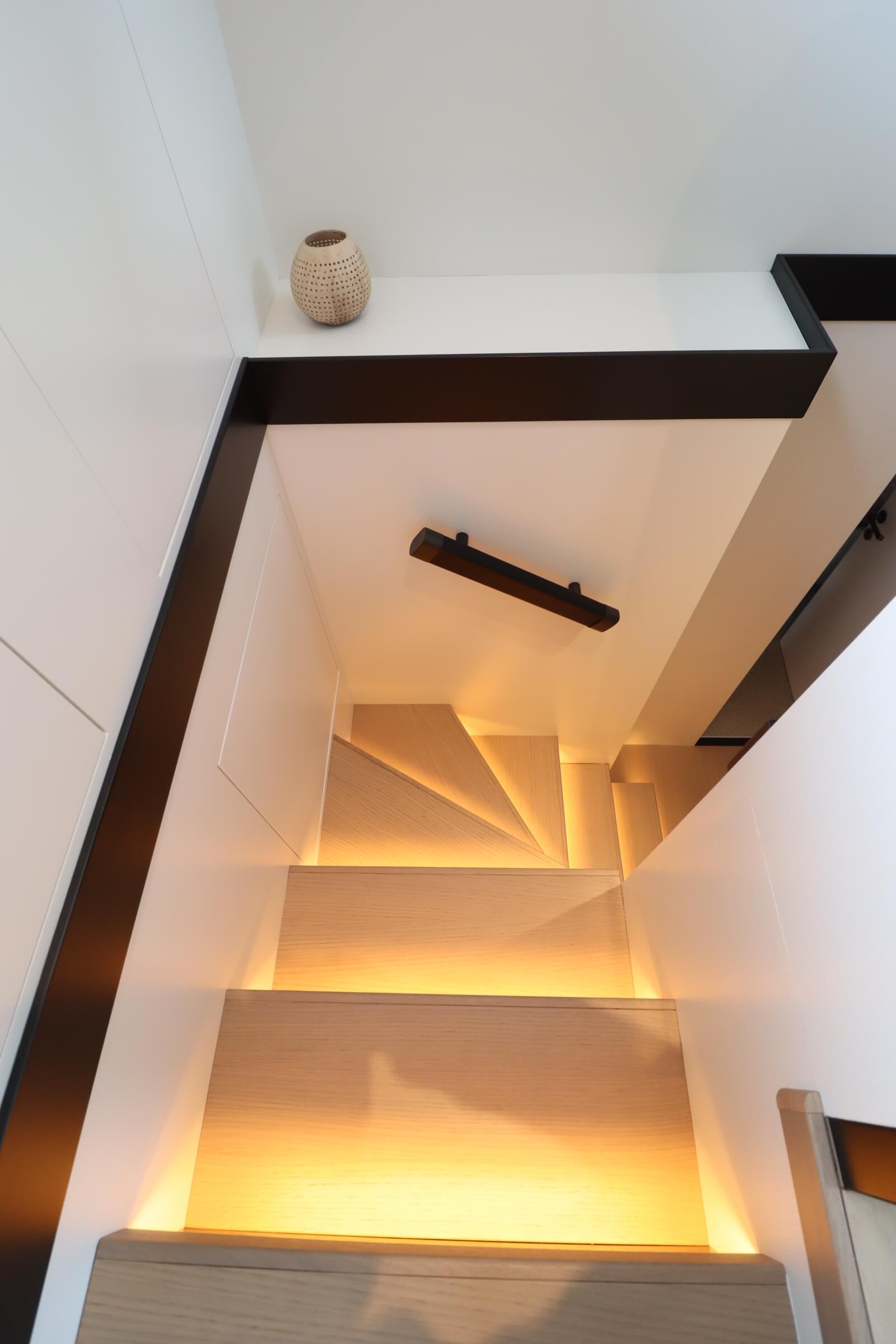

Teak stairs from deckhouse to lower deck
Courtesy lights
Floor hatch to storage area

CREW CABIN
Two bunk beds
Storage cabinet
Reading lights
Ceiling lights
Porthole
Synthetic floors
Blinds
Pillows
Bed sheets
Power and USB sockets
Air conditioning fan coil
Separate bathroom with:
Fresh water electric Marine WC
Synthetic floor
Ceiling lights
Power socket
Bathroom accessories
Storage cabinet
Porthole
Shower
Crew set uniform

ENGINE ROOM
2 x Volvo IPS 1200 D13 / 2 x 588 kW / 900 HP
4000 l fuel structural tank in composite with fuel level sender connected with EVC Volvo system 7
S/S daily tank in engine room 200 l
Automatic valves for fuel shout-off
Double fuel filter separator
Fire extinguisher system with manual and automatic control
Engine room led lights
AC chiller unit 96000 btu
Engine room insulation
Two electrical ventilators with cycle reversion and thermostat switch
Air inlet with water separator filters
Watertight power sockets
Water Filter
Opening engine room cover
Optical smoke detector
Overpressure detector integrated with Garmin automation
S/S engine room access ladder
Intruder trim system

HYDRAULIC SYSTEM
1000 l polyethylene fresh water tank with level indication on main panel
Two boilers 50 l 220 V
Black water tank 330 l with level indication on main panel
Gray water tank 330 l with level indication on main panel
Shore black water discharge system 24 V
Shore grey water and bilge discharge system 24 V
Double fresh water pump 24 / 230 V
Black water hoses in special anti smell rubber
High pressure fresh water inlet from shore
Six bilge pumps; two in engine room, two in stern area and two in center hull, with automatic and manual control
Salt water system for anchor chain wash

ELECTRICAL SYSTEMS
Generator 22,5 kW
Four batteries 12 V / 130 Ah AGM for engines
Electromechanical switching for batteries with remote control
8 Service Gel batteries pack 24 V / 660 Ah
One battery 12 V / 165 Ah for generator
Two Bow Thruster and winch batteries pack 12 V / 165 Ah
Battery charger 24 V / 80 Ah for services
Battery charger 24 V / 30 Ah for engines
Battery charger for generator
230 V shore power 62 A with connection cable 15 m
Galvanic Isolator 62 Ah
Inverter 2000 W
Electric bow thrusters 170 Kgf
AC Electrical Panel (230 V) CE certified on electrical room with electromechanical switching for all outlet with remote control on main panel
DC Electrical Panel (24 V) CE certified on electrical room with electromechanical switching for all outlet with remote control on main panel
All

Extra Equipment

FUNCTIONALITY
Upgrade to Volvo Penta IPS1350
Glendenning Cablemaster CM 7
Gyroscope Sea Keeper 16
Bowthruster 210kgf proporzionale
Search Light with remote control
Underwater Lights n.2 (1 cp)
DPS for Volvo Penta IPS
Right Pantograph door
Bow area furniture below windscreen
Kit toilet fan extractor

DECORATION
Kitchen BOFFI
3rd cabin with double bed

ELECTRONINC
Wi-Fi system + 2 REPEATERS
Volvo glass cockpit 16″ different from 12″ STD (n° 3)
Empty domes GTV6 painted in deck house roof color
CCTV System 3 fixed cameras (2 Engines room 1 in cockpit)
Docking station in cockpit

COMFORT
Eletric grill/teppanyaki in cockpit
Ceiling TV movement
Bow sunlounge bimini
Stern sunlounge bimini
Additional fridge (bow)
Winecooler (under pilot seat)
Washmachine + drymachine BOSCH (diff. from washdry STD Bosch)
WC and integrated bidet in owner bathroom (instead of WC+bidet)
Eletric socket interior (unit)
Eletric socket cockpit (unit)
Removable carbon side ladder

CUSTOM
Custom lay-out and Décor (estimated price)

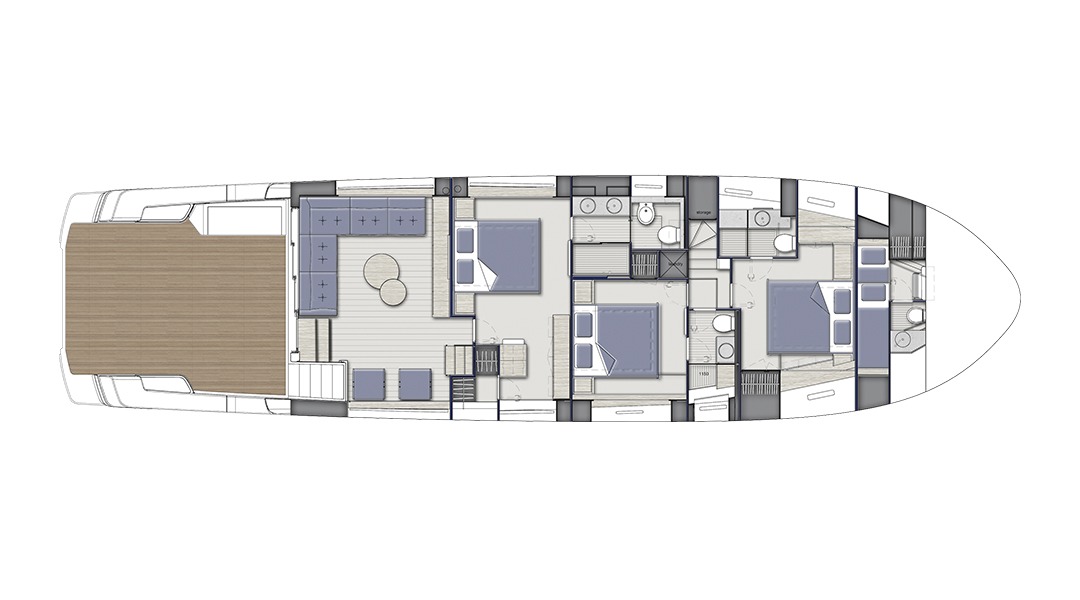

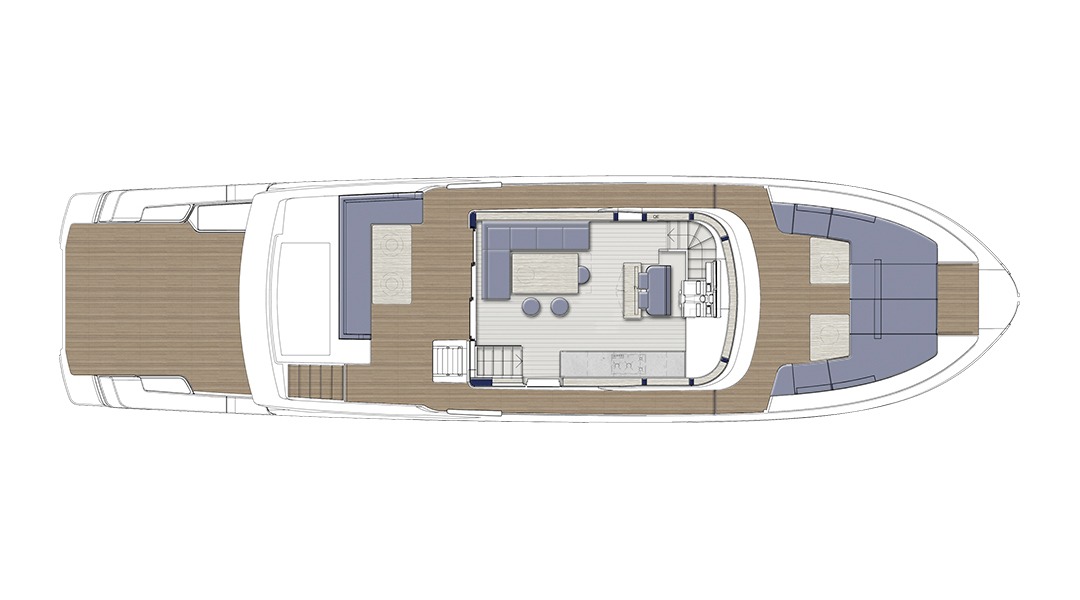

Layout
