Length overall |
24,64 m |
|
Maximum beam |
5,74 m |
|
Construction height |
3,09 m |
|
Displacement @ half load (*) |
66 t |
|
Displacement @ full load (*) |
70 t |
|
Waterline length @ half load |
19,43 m |
|
Waterline length @ full load |
19,55 m |
|
Draught @ half load |
1,75 m |
|
Draught @ full load |
1,80 m |
|
Guest accommodation |
8 people |
|
Crew accommodation |
2 people |
|
Engine |
2 x MTU 10V2000M96L – 1622 HP |
|
Consumption (approx.) (**) |
2 x 240 l/h @ 2200 rpm |
|
Power output @ 100% MCR (**) |
2 x 1193 kW @ 2450 rpm |
|
Gearbox |
2 x ZF BW 2050V |
|
Transmission |
V-drive |
|
Propeller |
In NiBrAl |
|
Shafts |
Aquamet 17 or equivalent |
|
Gensets |
1 x 28 kW |
|
Rudders |
AISI 316 stainless steel |
|
Maximum speed (approx.) (***) |
30 kn |
|
Cruising speed (approx.) (***) |
25 kn |
|
Economical speed (approx.) (***) |
10 kn |
|
Max range @ economical speed (approx.) |
740 nm |
|
Deadrise |
15° |
|
A/C power |
92000 btu/h |
|
Fuel capacity |
5350 l |
|
Fresh water capacity |
1400 l |
|
Black water capacity |
400 l |
|
Grey water capacity |
350 l |
|
Tender length |
max 3,95 m jet (garage) |
|
Tender weight |
max 550 kg |
Option List:
| ELECTRICAL APPLIANCES |
| 12V 25A battery charger for generators |
| ALARMS AND CONTROLS |
| Raymarine gold package |
| TVCC camera with no. 1 fixed camera in engine room + no. 1 fixed camera in cockpit |
| Raymarine integrated dashboard system and ship monitoring |
| SATELLITE AND COMMUNICATION SYSTEMS (TV SAT) |
| Seatel ST24E empty radome |
| Seatel ST24E TV-SAT antenna |
| AUDIO AND VIDEO APPLIANCES* |
| 4G Wi-Fi system predisposition with harbour hotspot antenna (cables only) |
| Audio-video gold package |
| INTERIOR ACCESSORIES |
| Additional insulation between engine room and owner’s cabin |
| Additional insulation for fin stabilizer boxes |

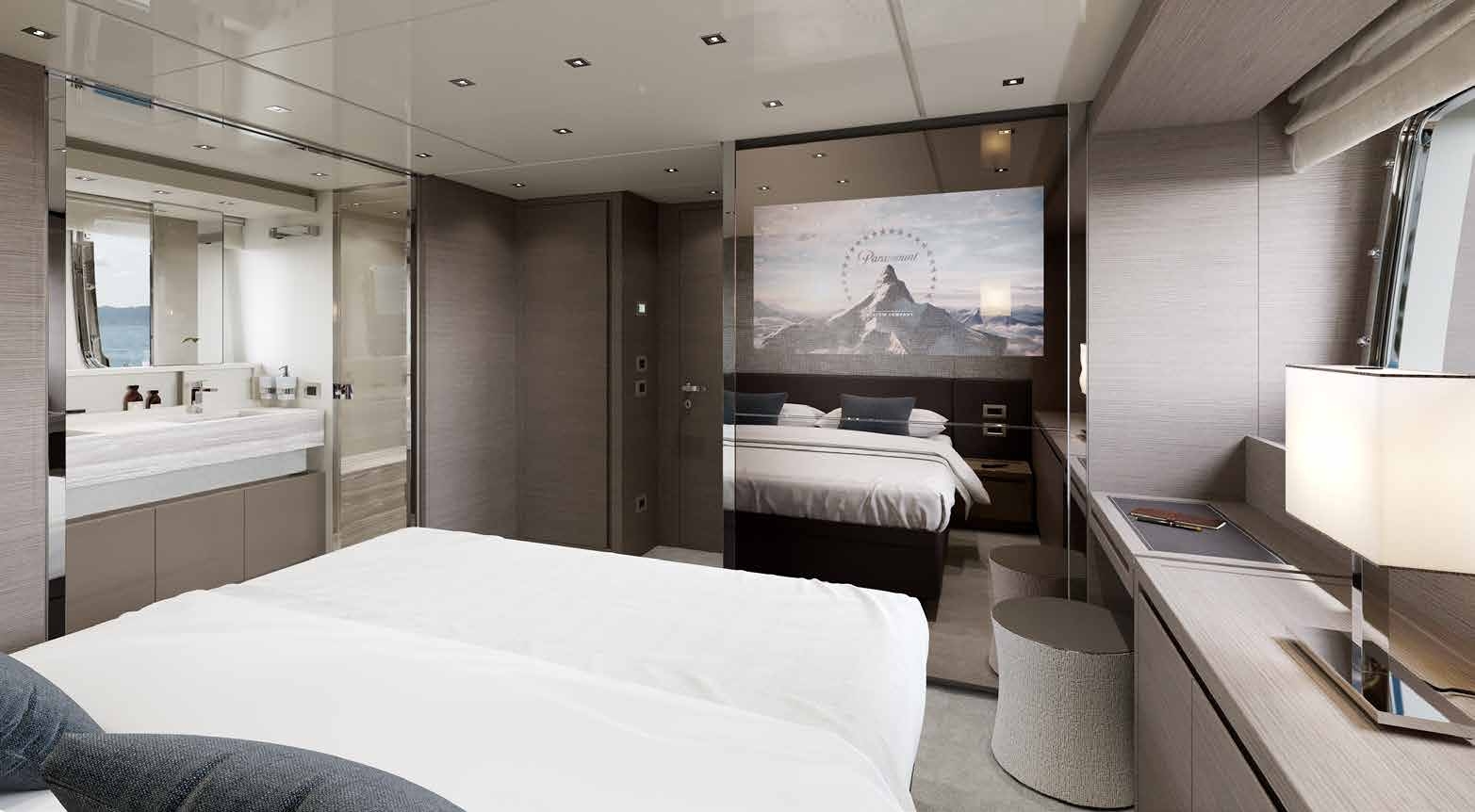

| TV behind the stopsol mirror in the owner’s and vip cabins |
| Showerheads in every bathroom (standard in owner’s) – except crew |

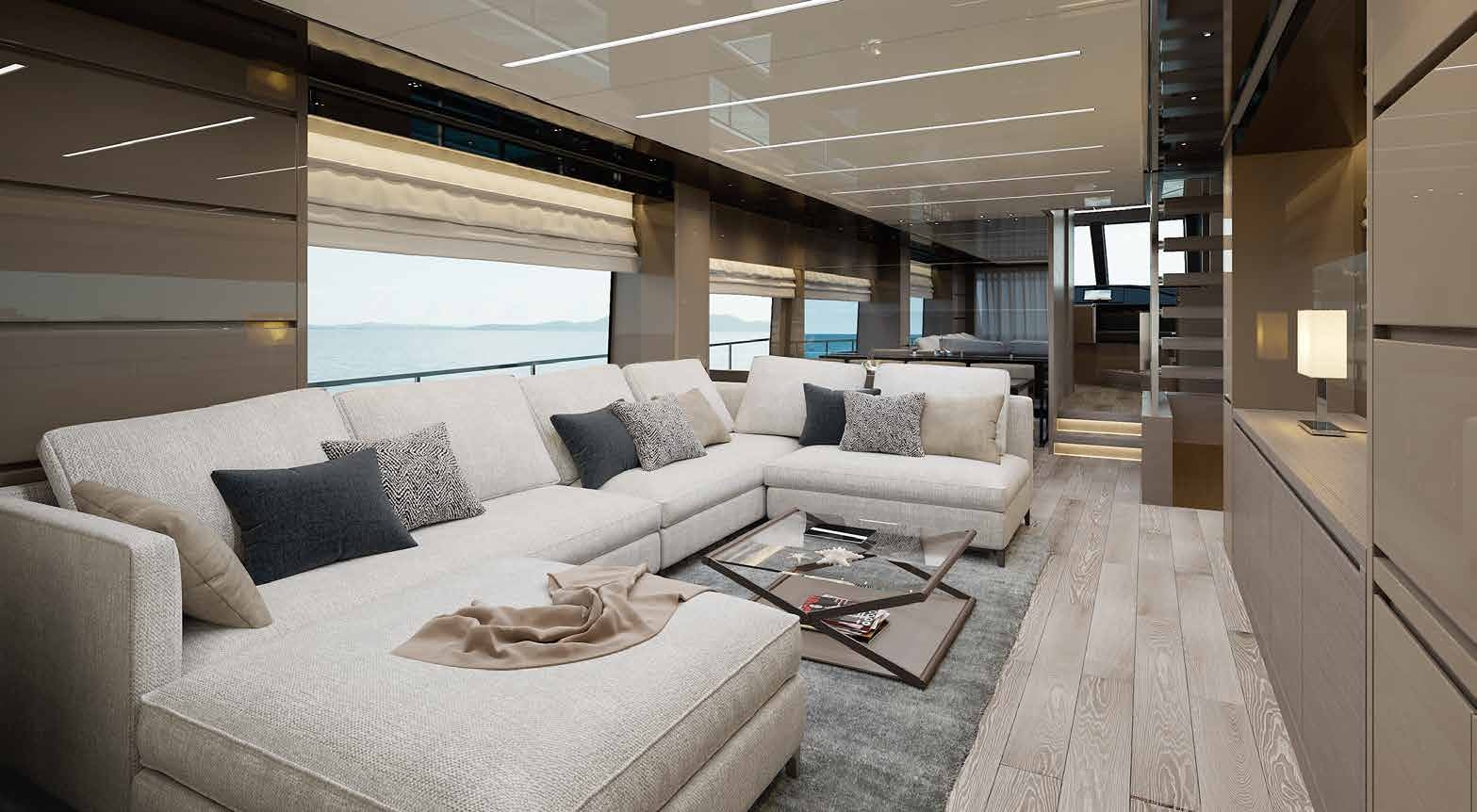

| Parquet floor in main deck salon (diff. from standard) |
| No. 2 TV wood cabinets in guest cabins |
| Second crew cabin |
| Rimex air conditioning ceilings in salon (diff. from standard) |
| Artemide ceiling lamps in salon (diff. from standard) |
| All beds and headboards covered in Nuvola leather |
| Bookshelves in owner’s cabin with mirror on the back and stainless steel antiroll |
| No. 1 Coffee Brown marble wall in owner’s shower (diff. from standard) |

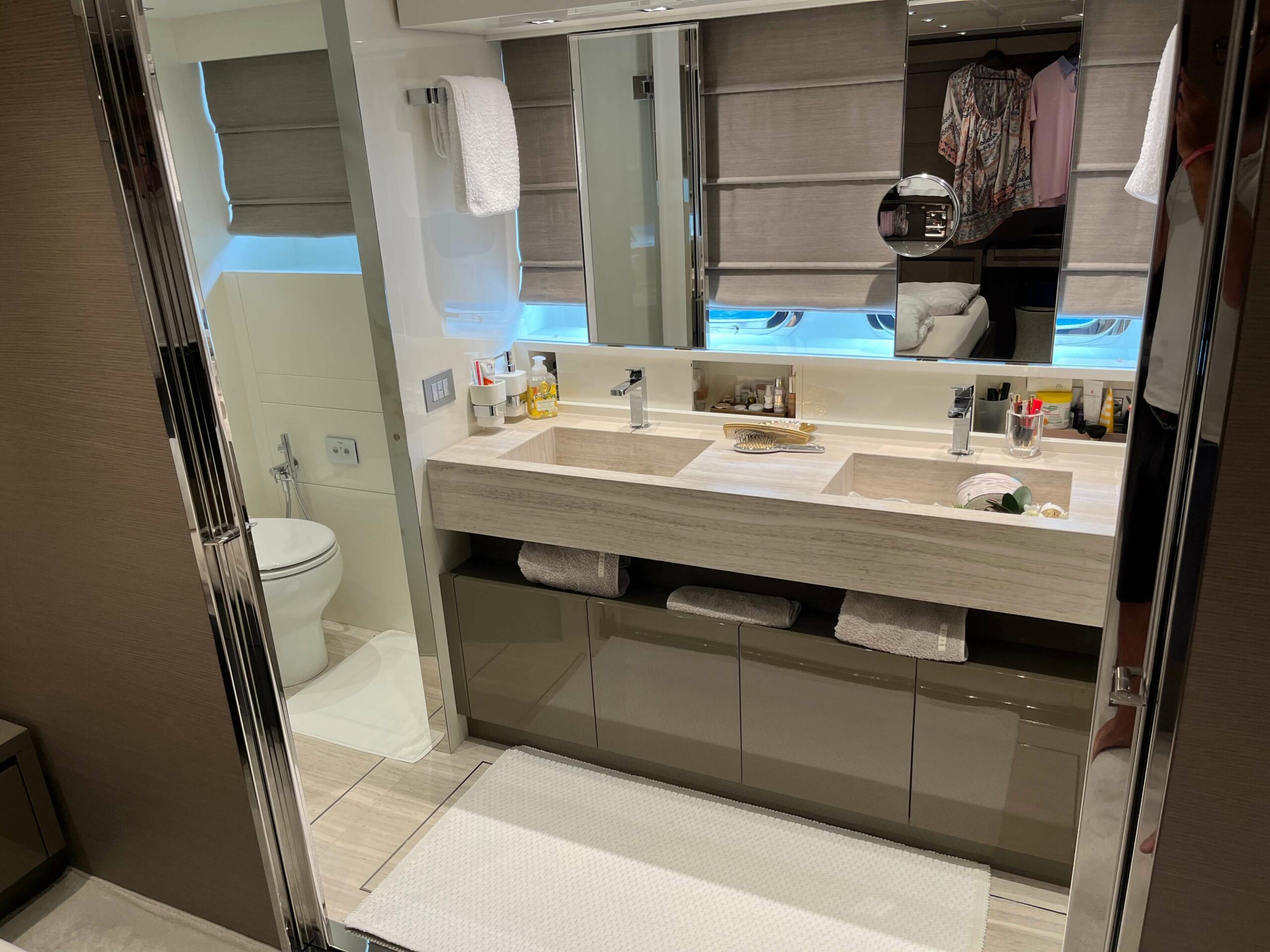

| No. 5 Coffee Brown marble sinks in every bathroom (diff. from standard) |
| EXTERIOR ACCESSORIES |

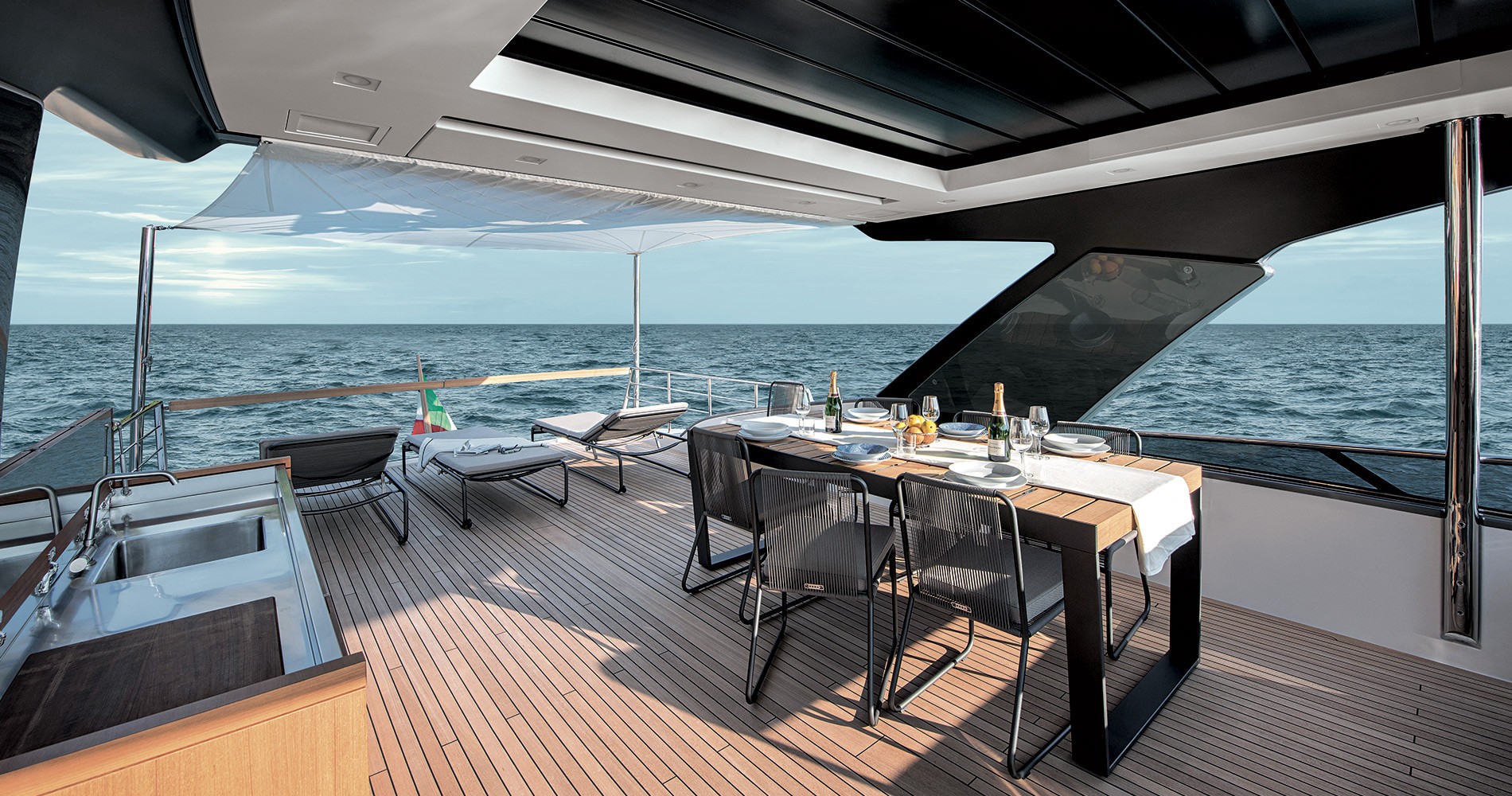

| Sun awning for the stern area of flybridge, behind hardtop |
| Teak floor on flybridge |

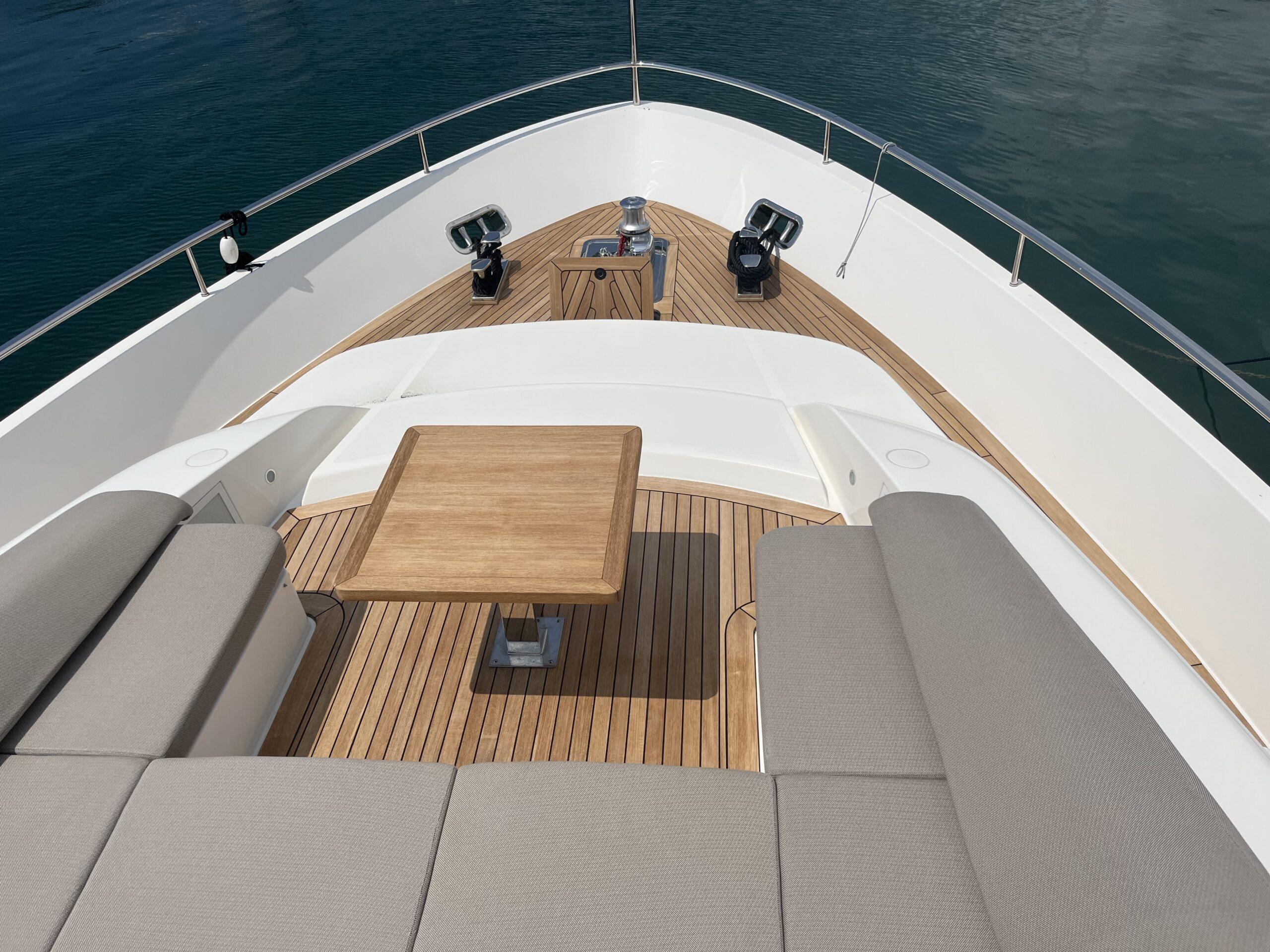

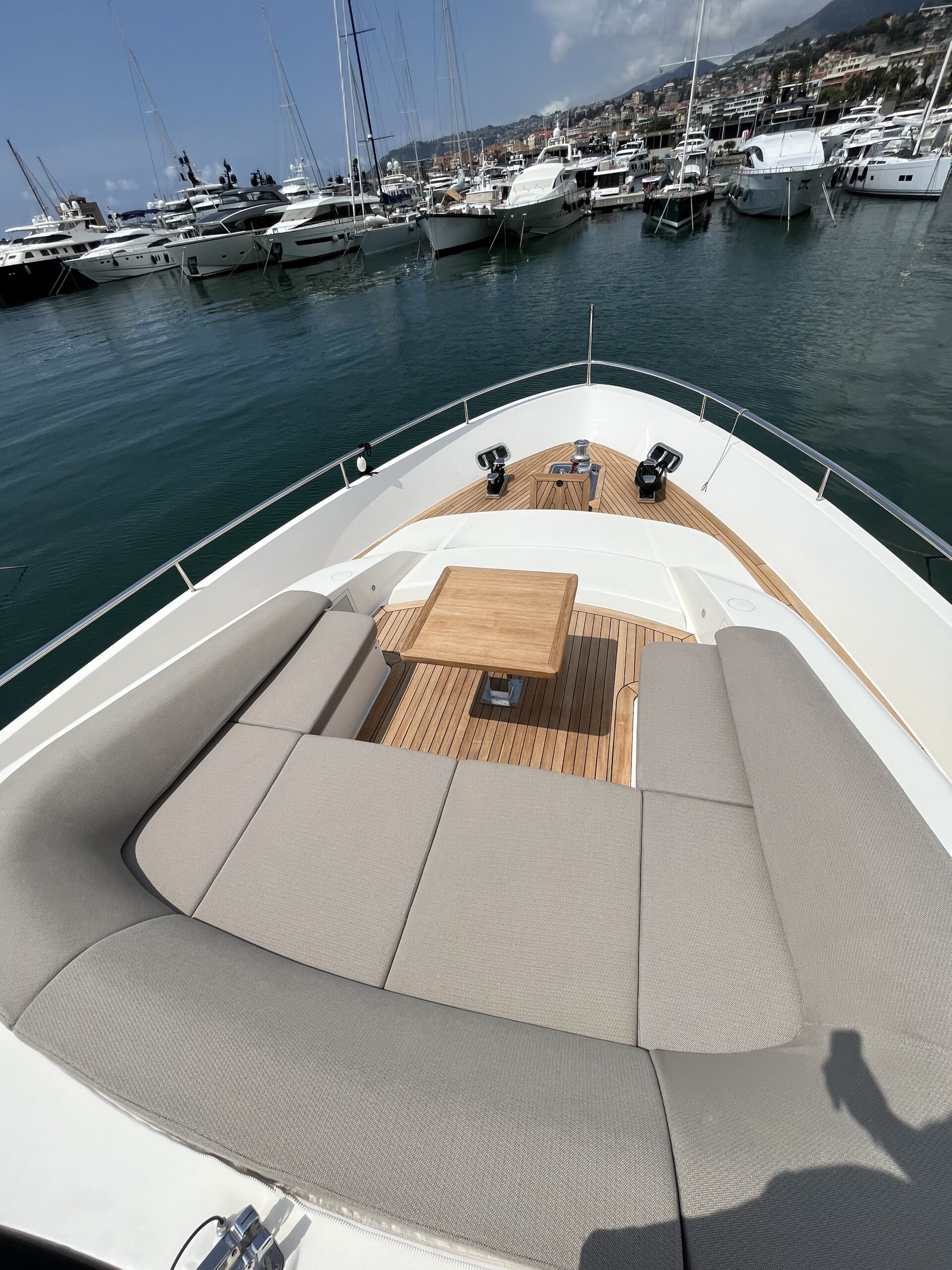

| Teak floor for bow dinette |
| Hardtop with electric opening roof system with blades |
| THRUSTERS AND STABILIZERS |
| Predisposition for electric stern thruster (battery box + electric panel) |
| Zero Speed electric stabilizers (anchor and navigation) |
| ENGINE ROOM EQUIPMENT |
| 180 lt/h watermaker |
| 28 kW additional second generator |
| TOTAL |
| *these options are not subject to any discount |
The ship details shown on this page, such as ship specifications and images, are intended as a guide to give a fair description of the vessel and are intended to be correct but accuracy cannot be guaranteed due to human mistakes or outdated information. Therefore no rights may be derived, and Lengers Yachts cannot be held liable, for any inaccuracies in the aforementioned ship details.

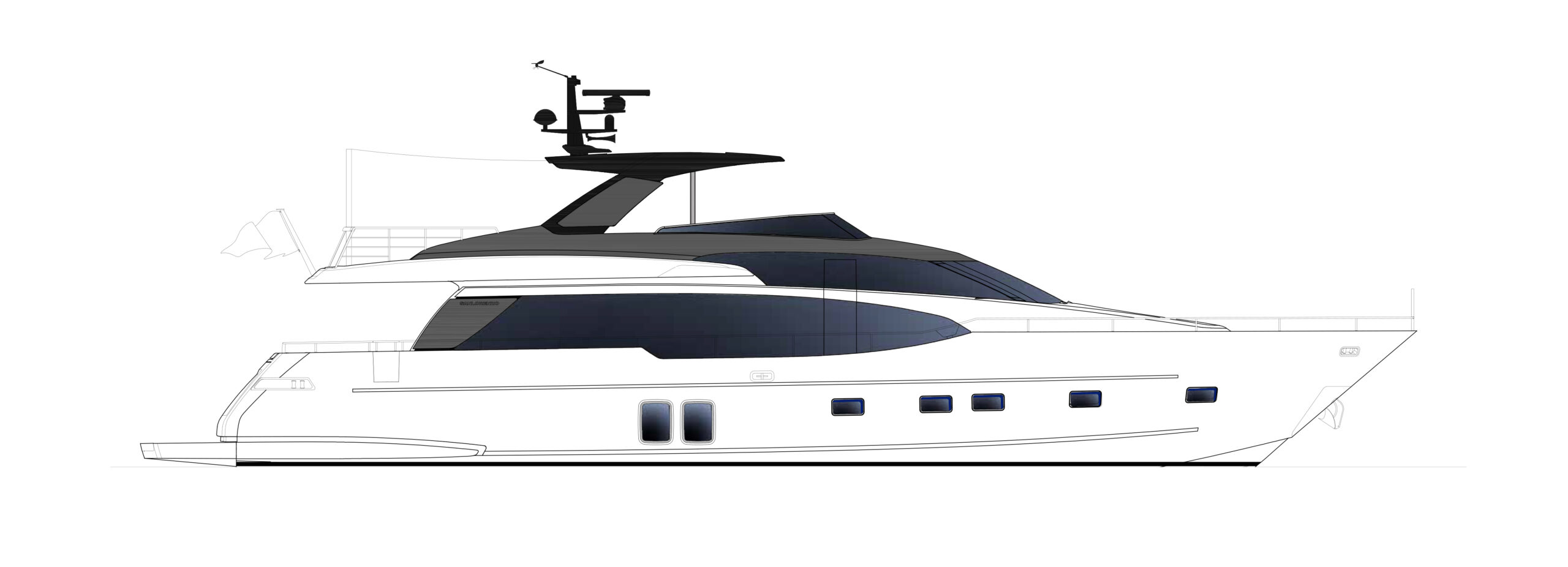

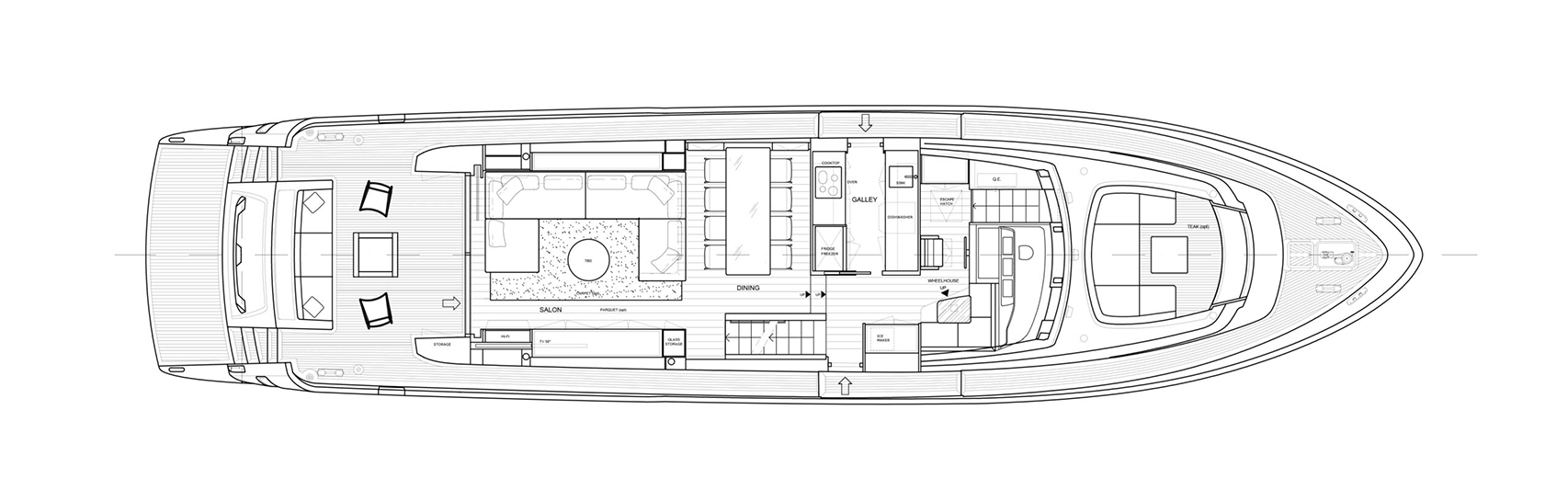

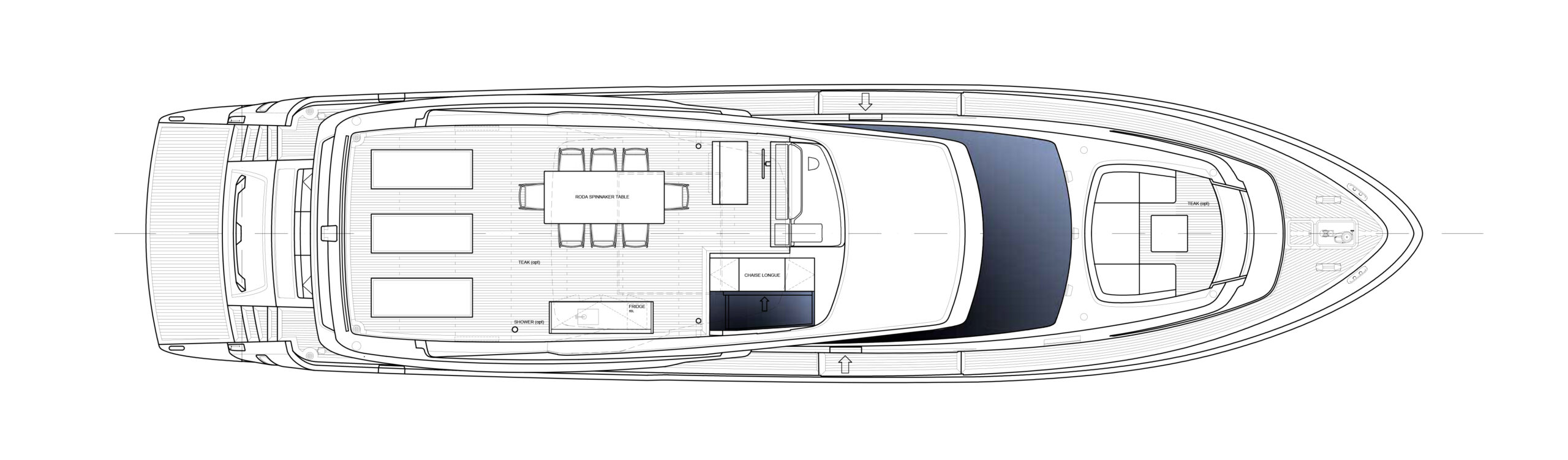

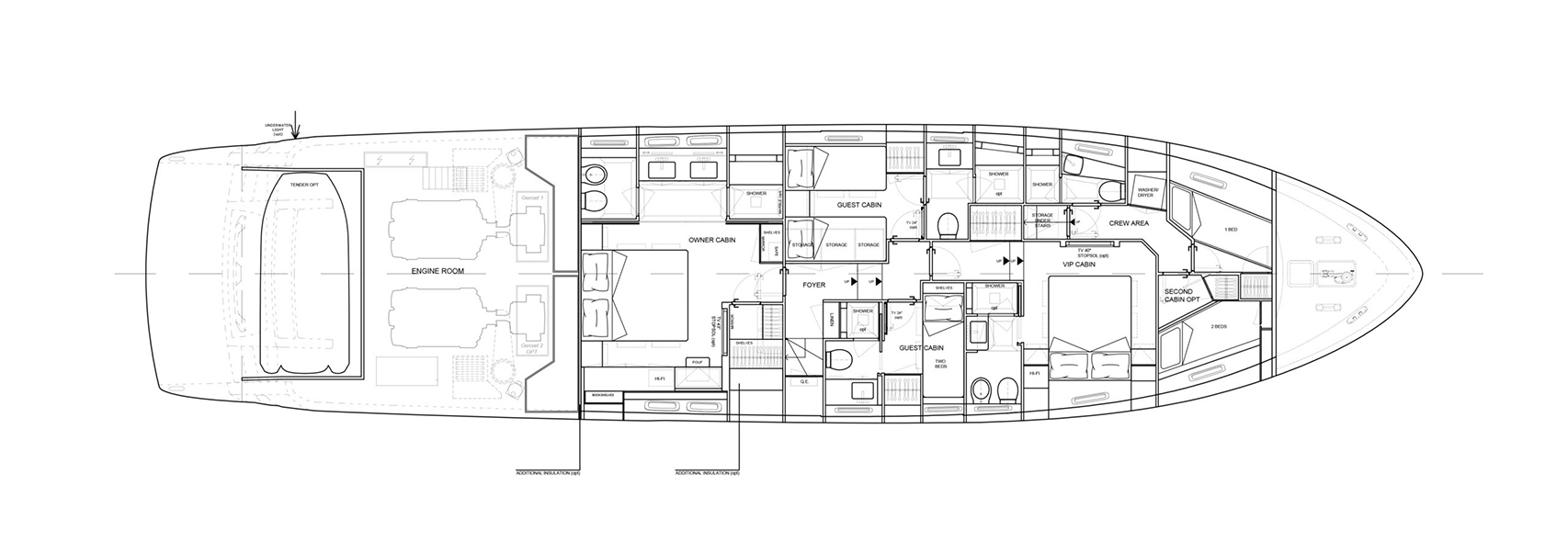

Layout Print
