Bluegame
BGX70 #26

HULL DECK CONSTRUCTION
Molded fiberglass construction made with iso-neopentilic gelcoat, skin coat of vinylester resin
Bottom hull in monolithic lamination made with biaxial, glass and ISO DCPD polyester resin
Sandwich core construction on side hull and deck plans
Infused sandwich structural bulkheads

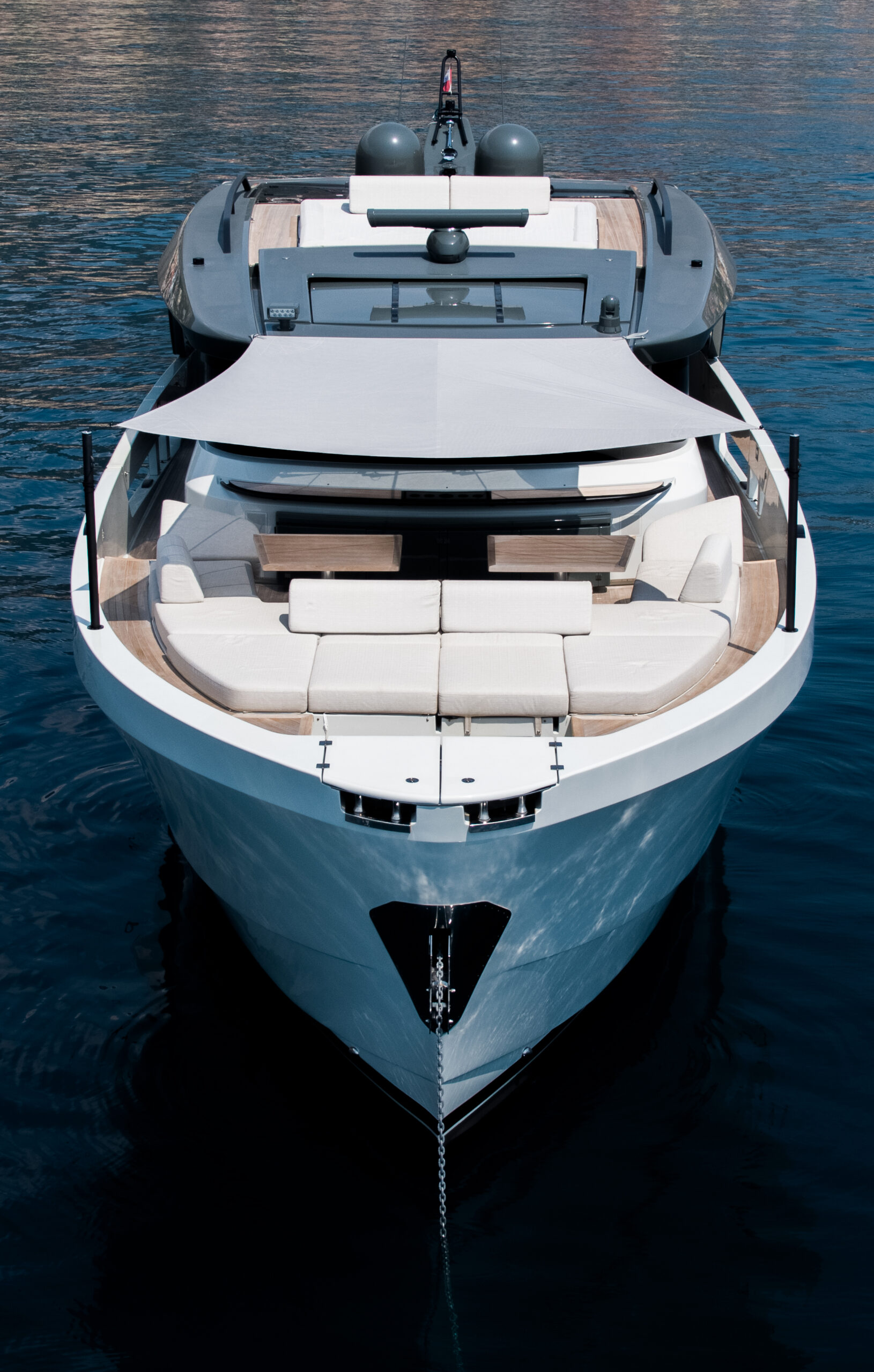

UPPER DECK
Antifouling and propspeed on Hull
Deck made in sandwich and infusion technology with vinylester resin
Twin fiberglass doors covering anchor system
Anchor 50 Kg S/S
Bow roller custom design S/S
Galvanized chain 12 mm 100 m
Anchor safety cable
Electric anchor winch 2000 w
Electric mooring winch 1600 w
Two S/S fairlead
Two S/S cleats 360 mm
Two retractable cleats amidship
Fresh water outlet connection
Teak deck
Access to crew cabin at the bow

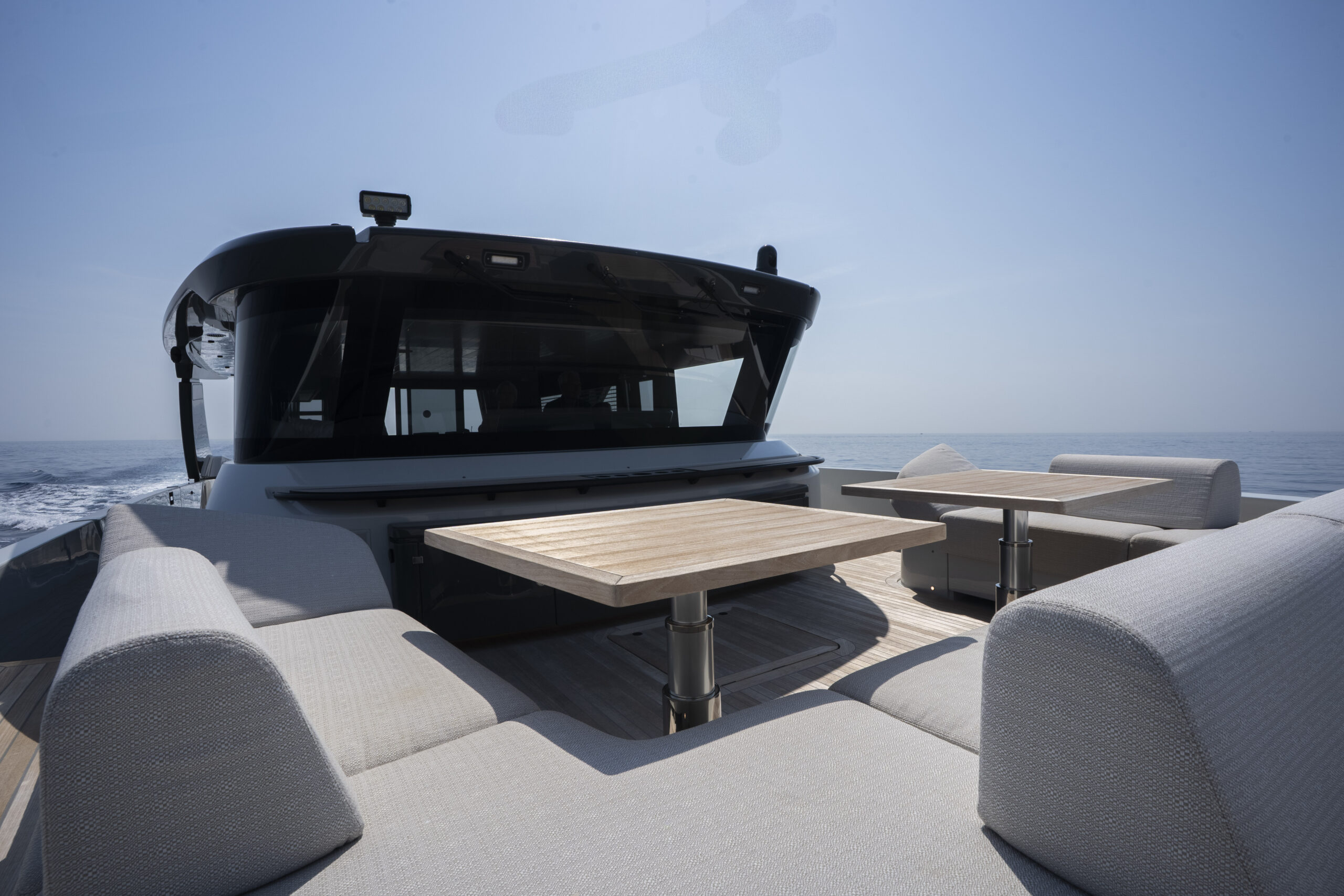

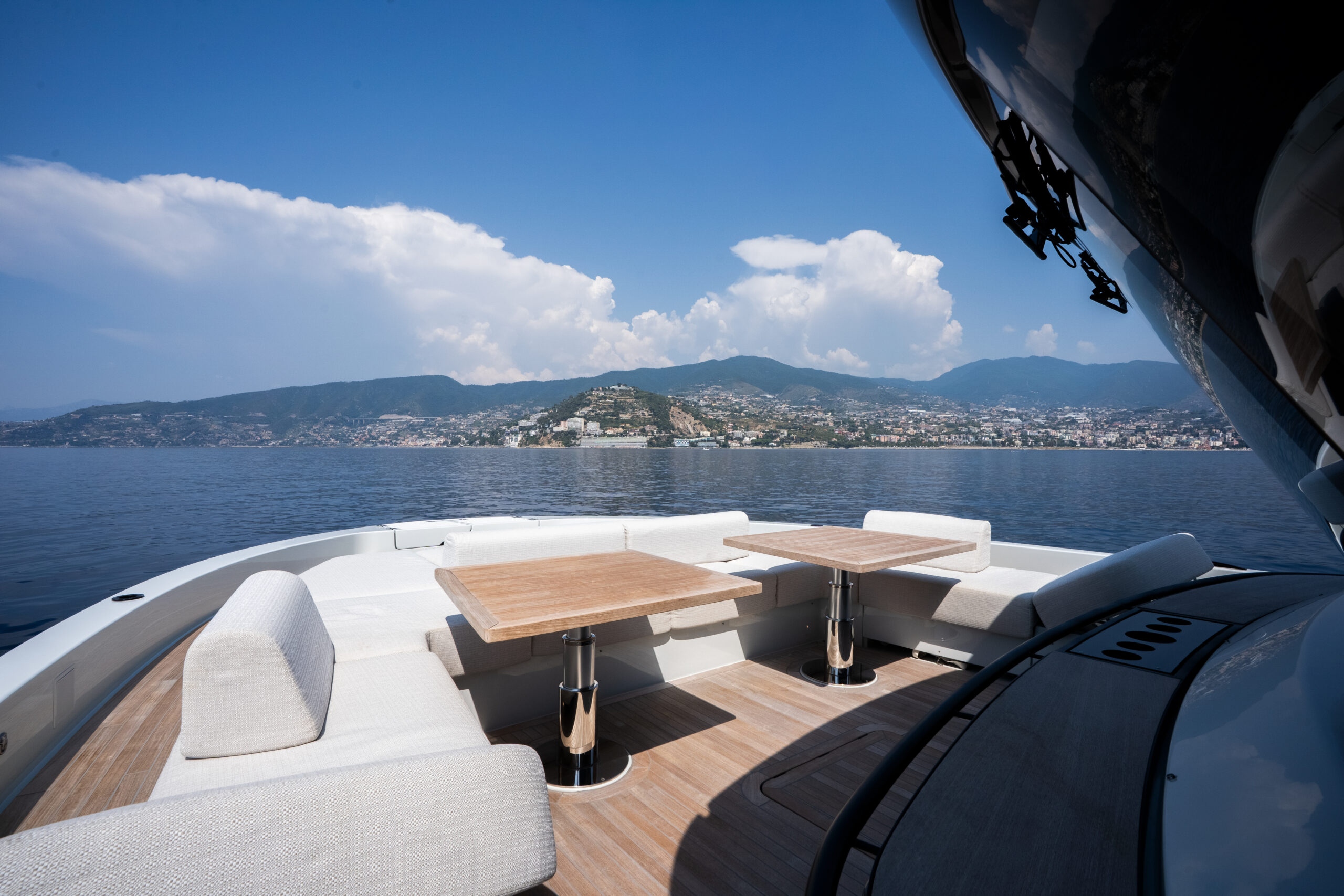

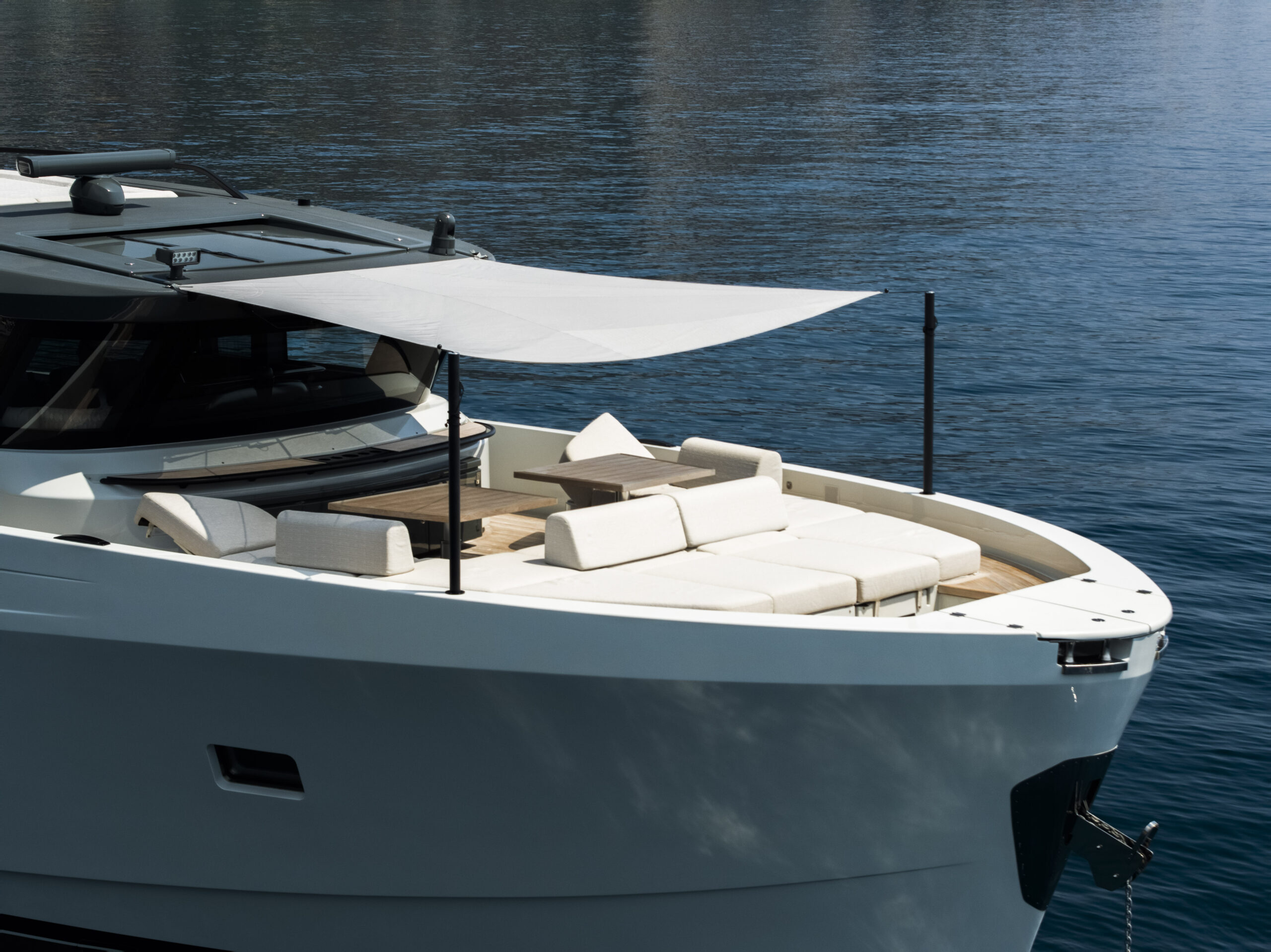

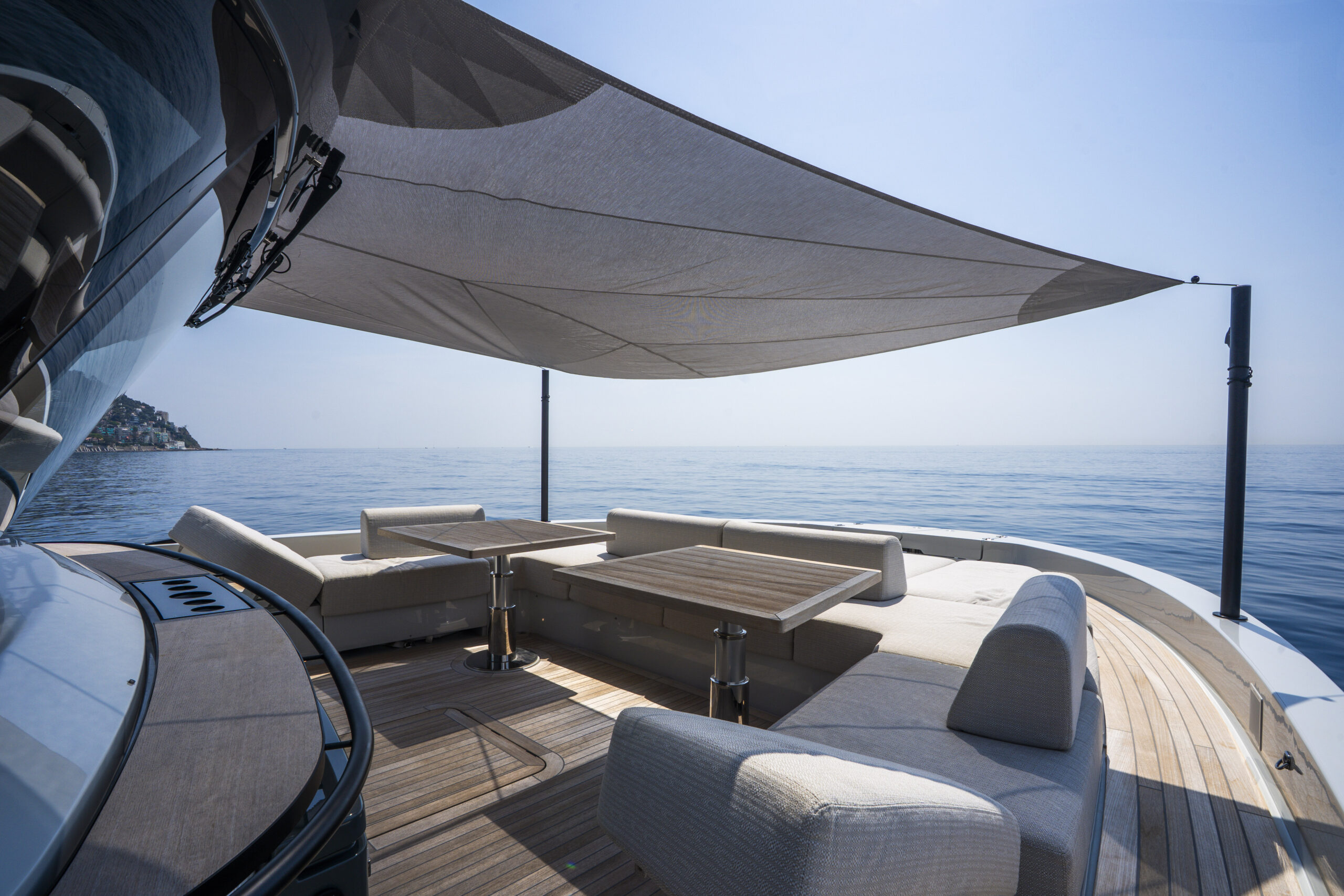

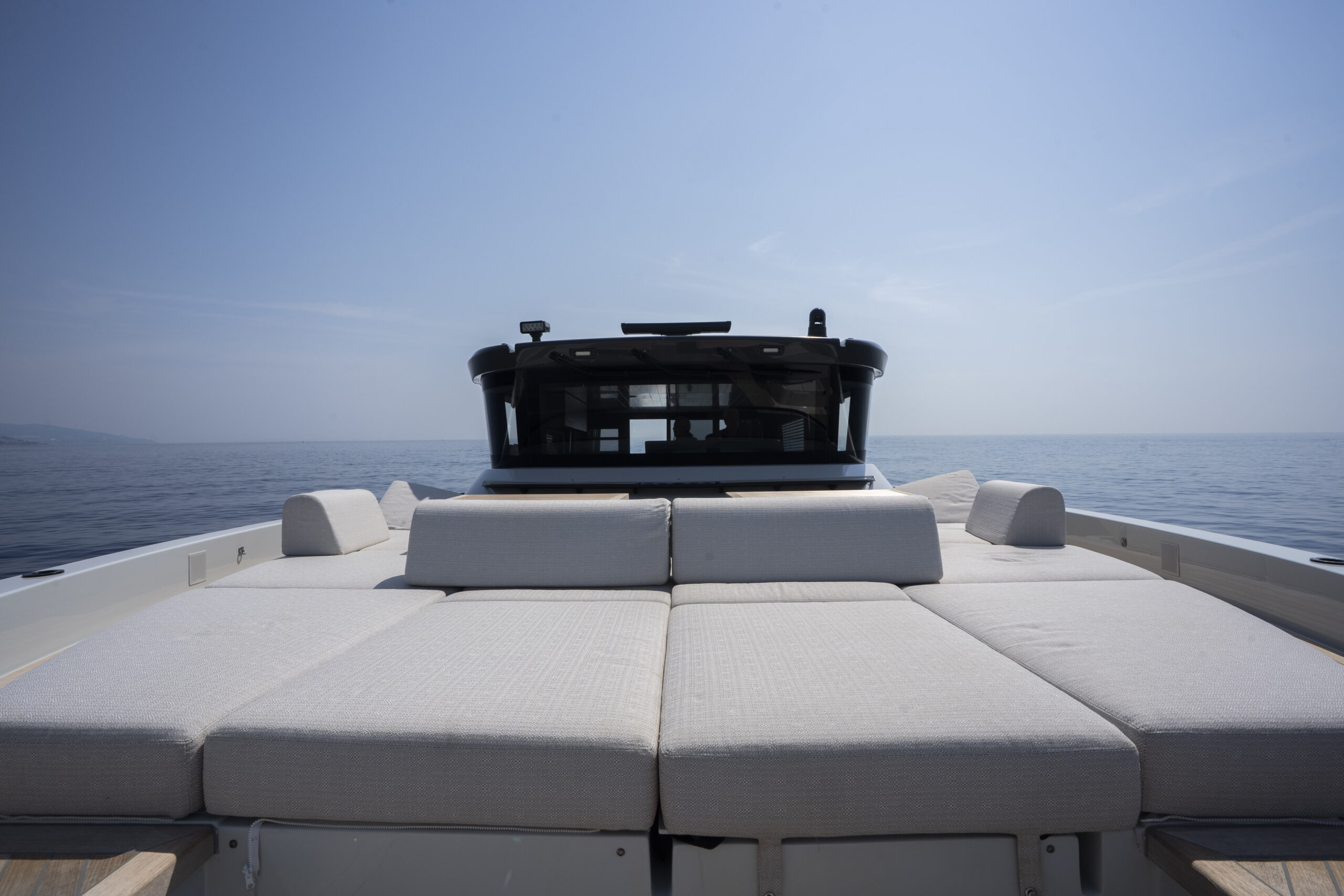

Sun pad area with back rest
Double side entrance from the dock

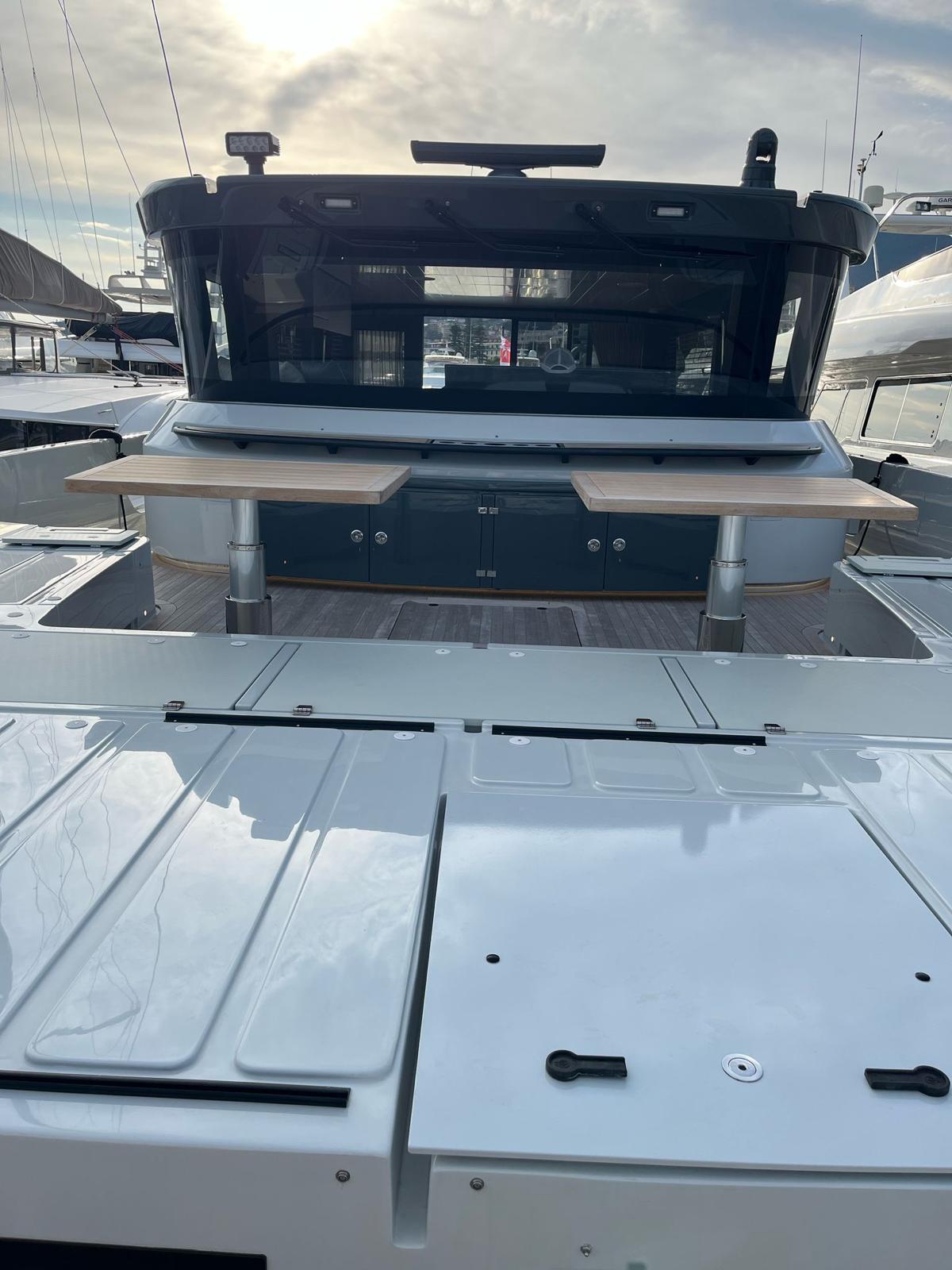

Two teak tables with electric up/down system in bow area
Bow sofa on both side
Storage
Navigation and anchor lights led systems
Courtesy light on walkaround
Dimmable ceiling lights
Double diesel inlet
Fresh water inlet
Black water tank drain pump
Grey water tank drain pump
Horn
Radar radome
GPS antennas
VHF antennas
Four speakers (two in cockpit two in bow) connected to the deck house area
Upper deck sliding glass door
Port side manual pantograph door

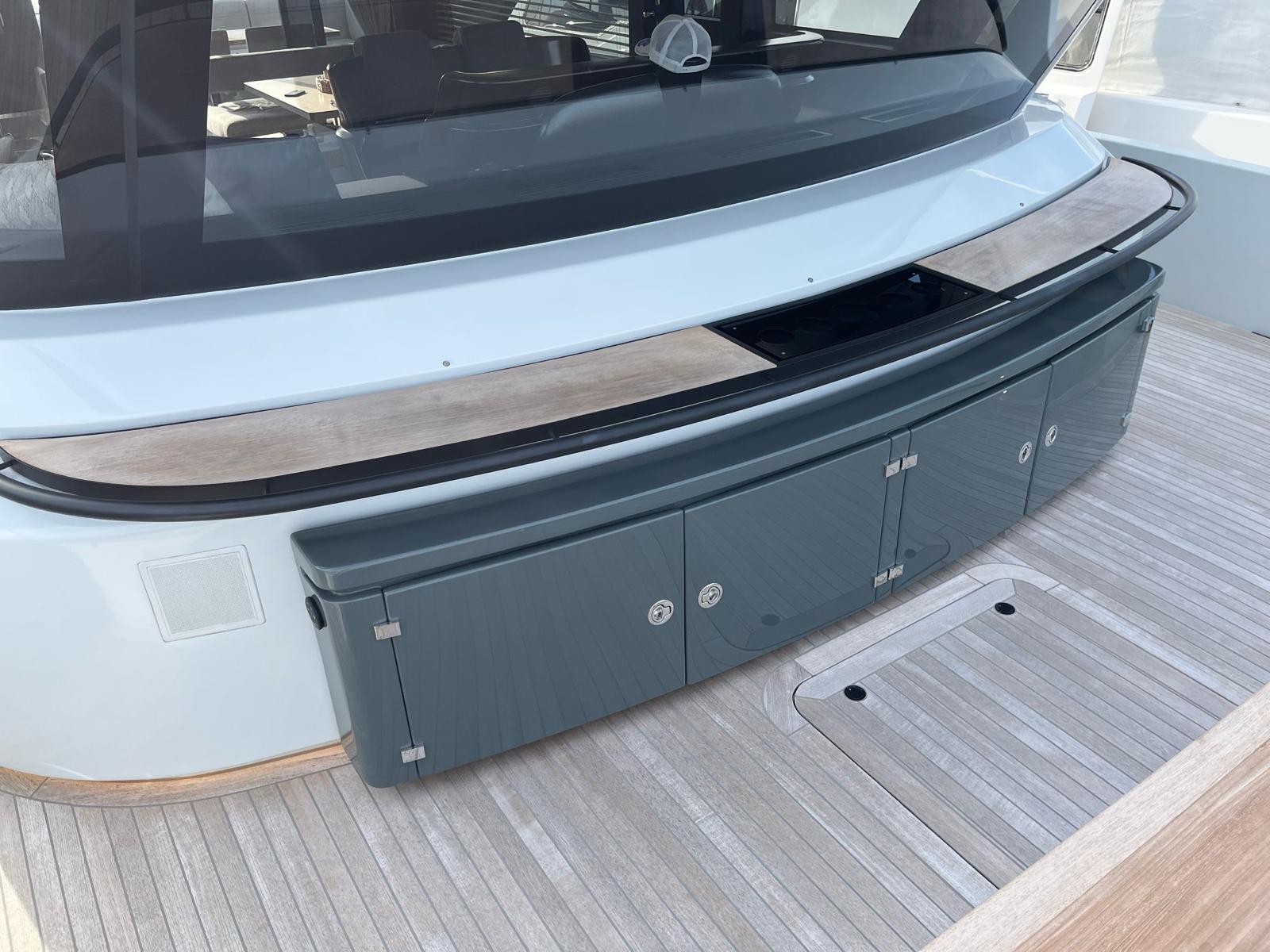

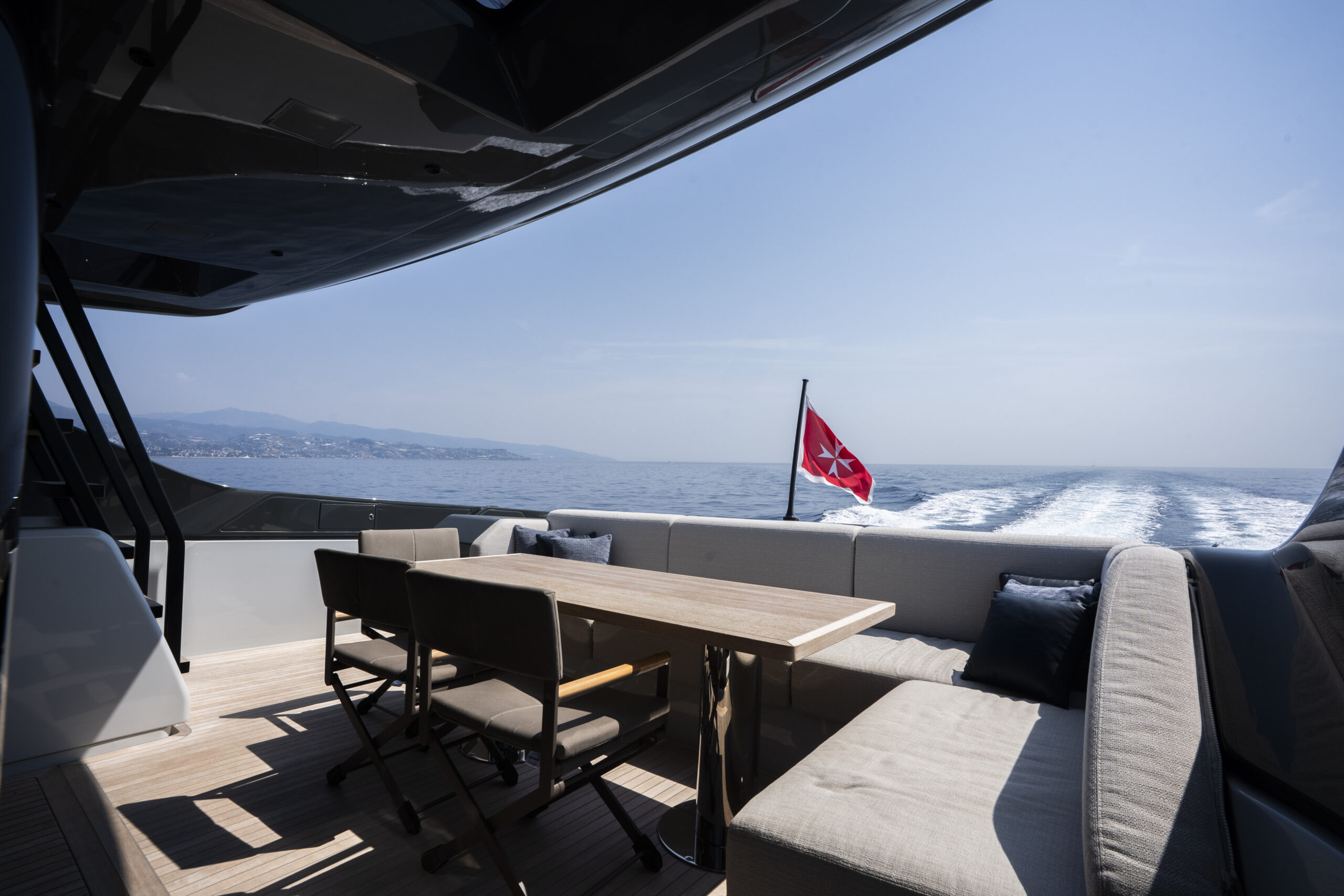

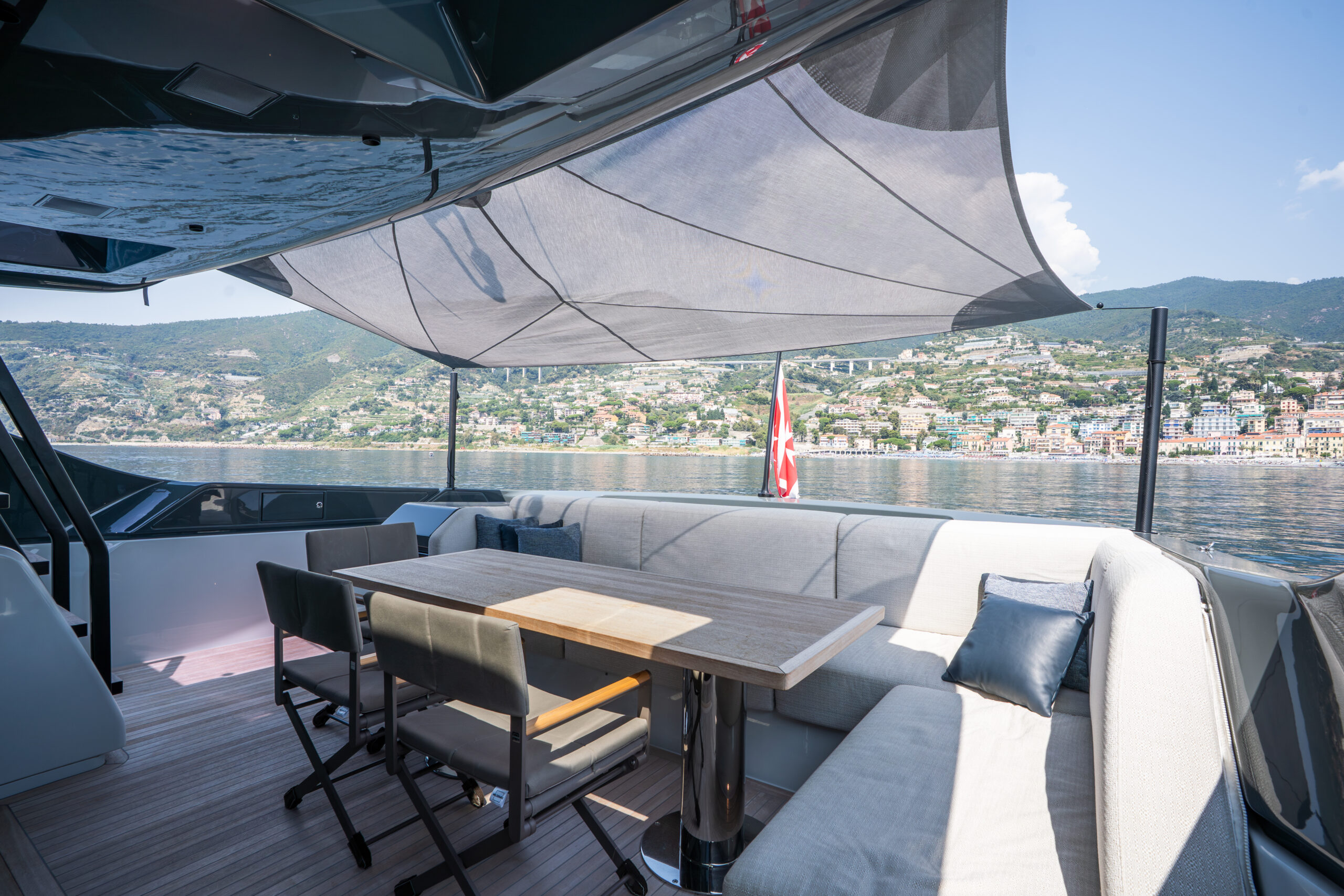

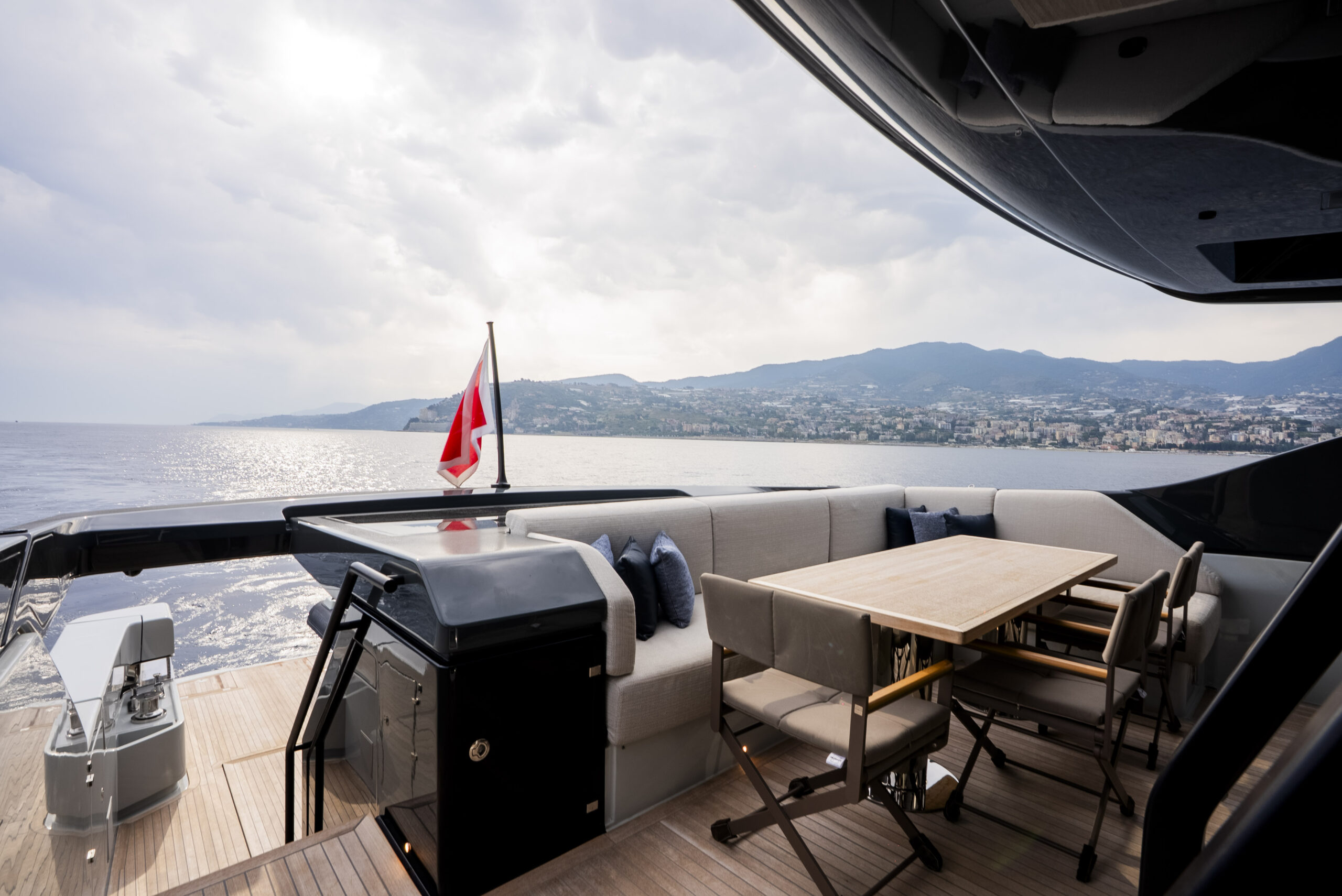

L shape sofa on stern with teak table
Glass skylight on portside
Storage
Sun roof ladder with manual hatch
Sun roof handrails

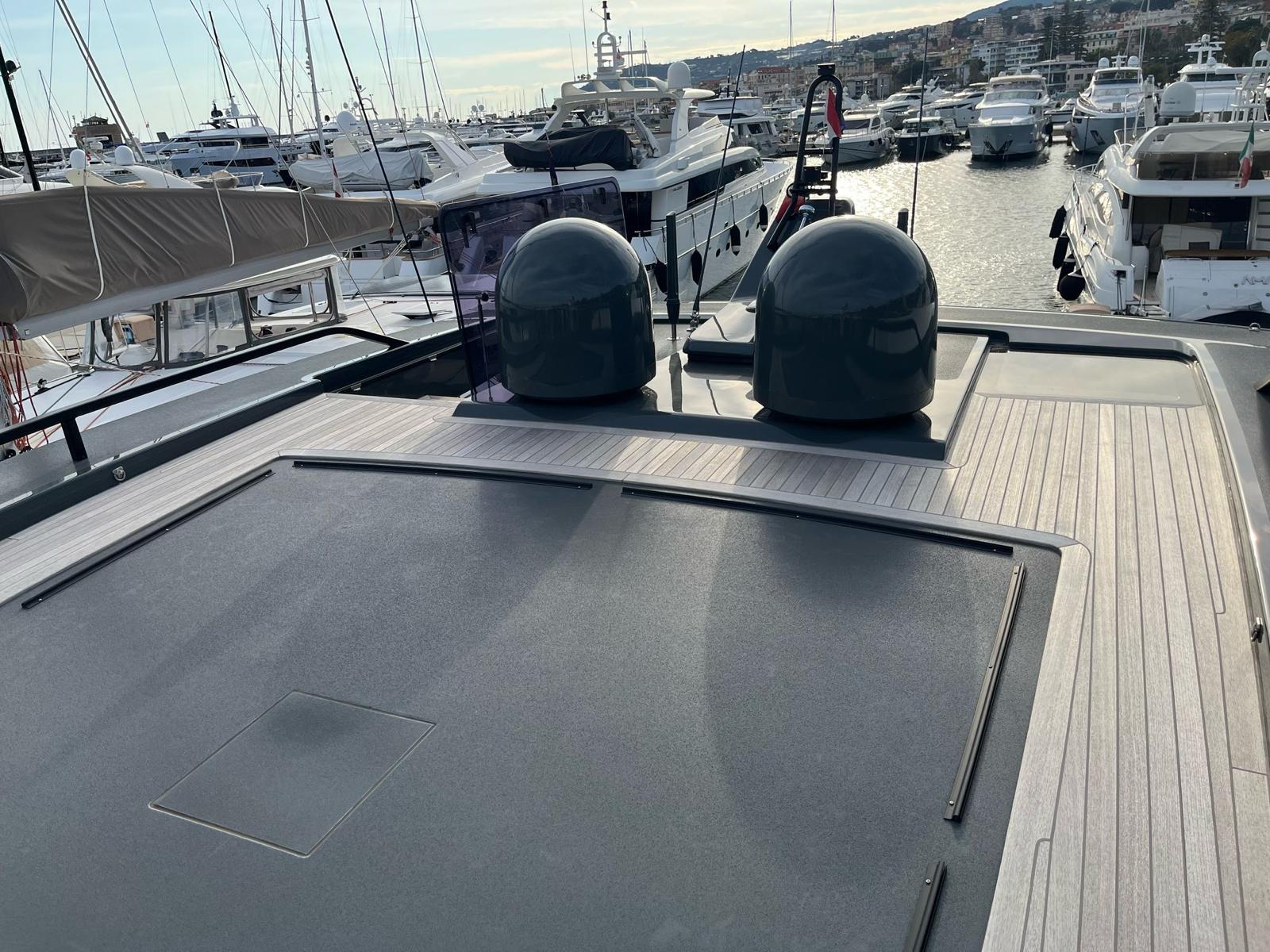

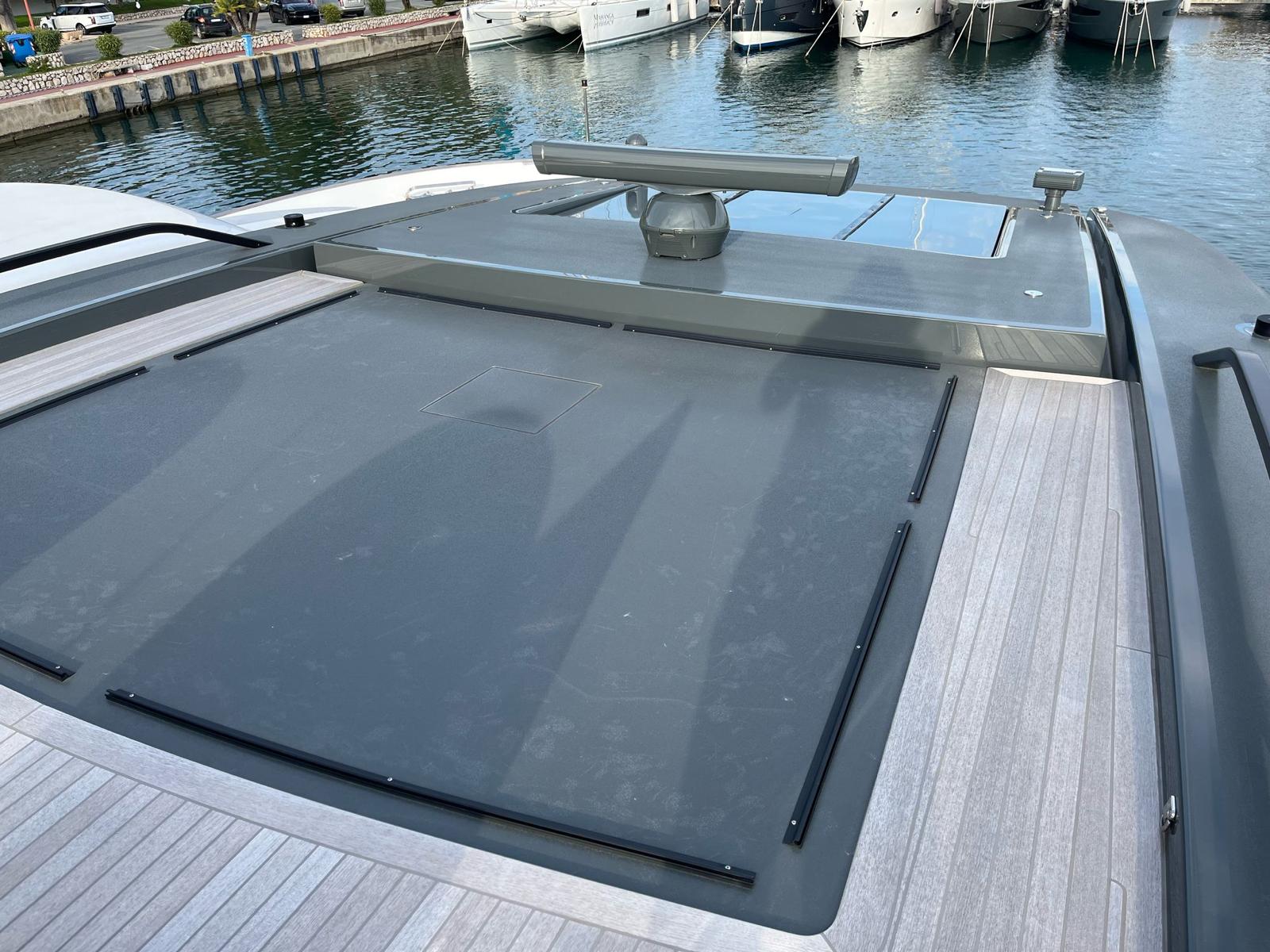

Sun Pad with Teak allround
TV SAT Antenna

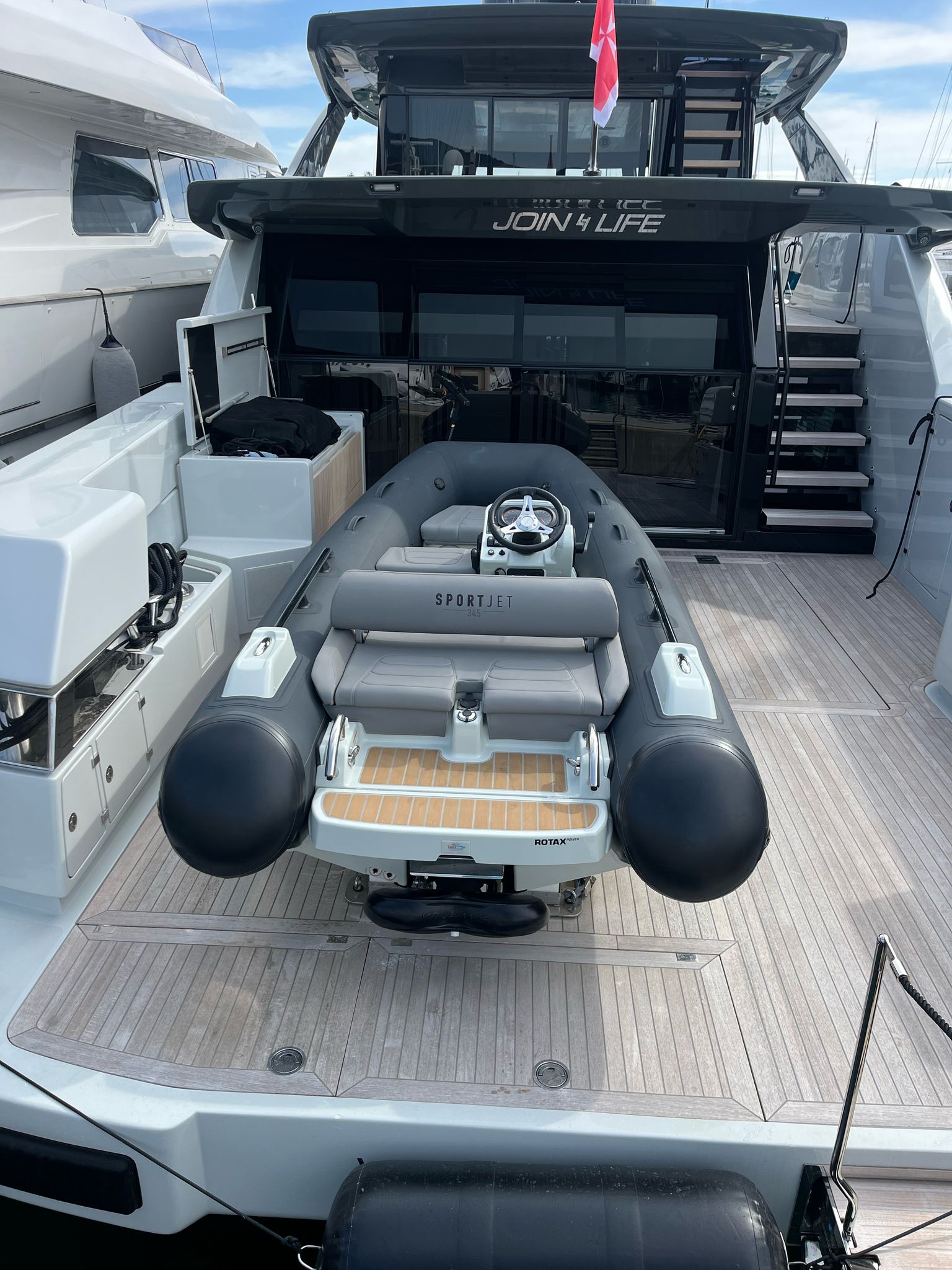

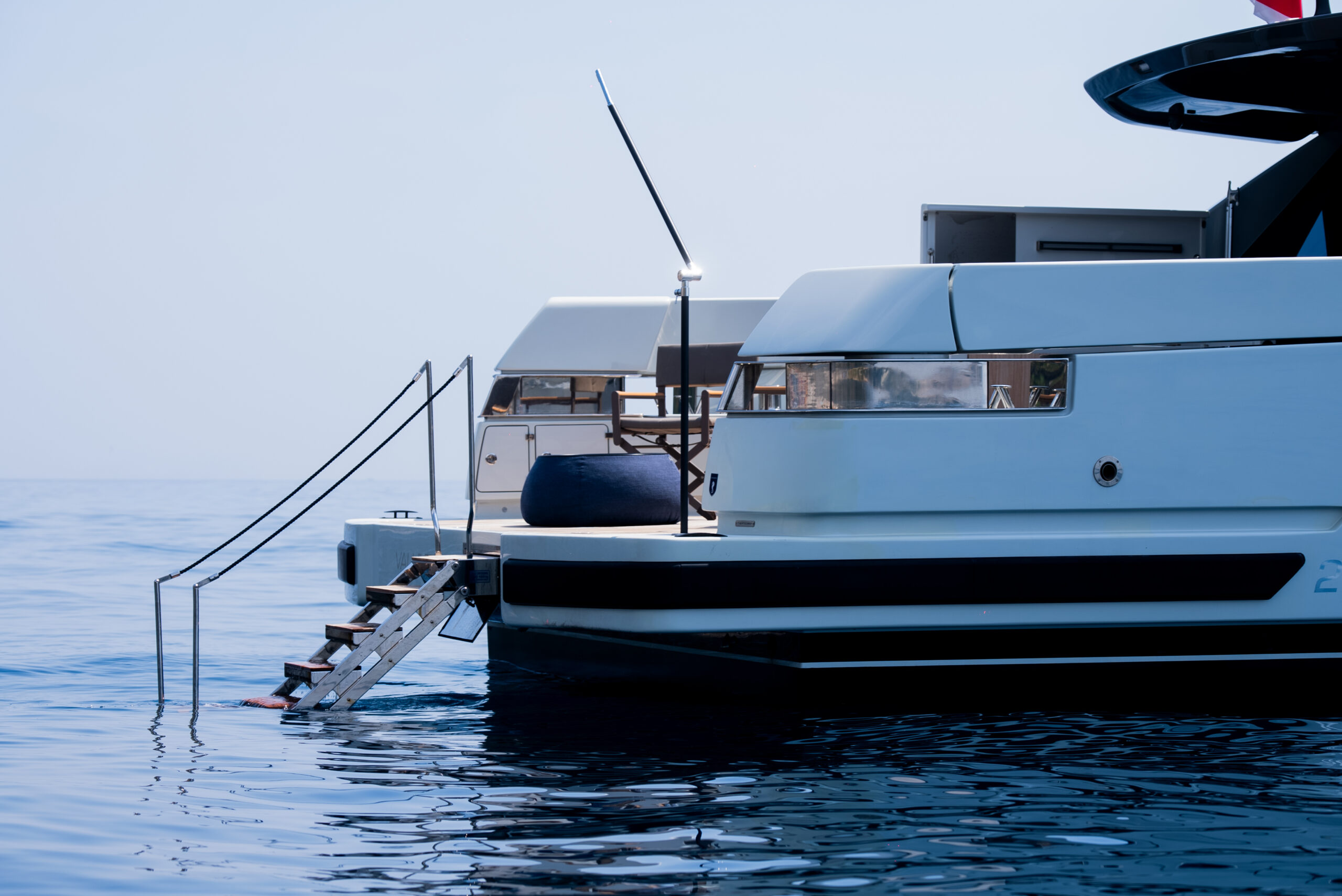

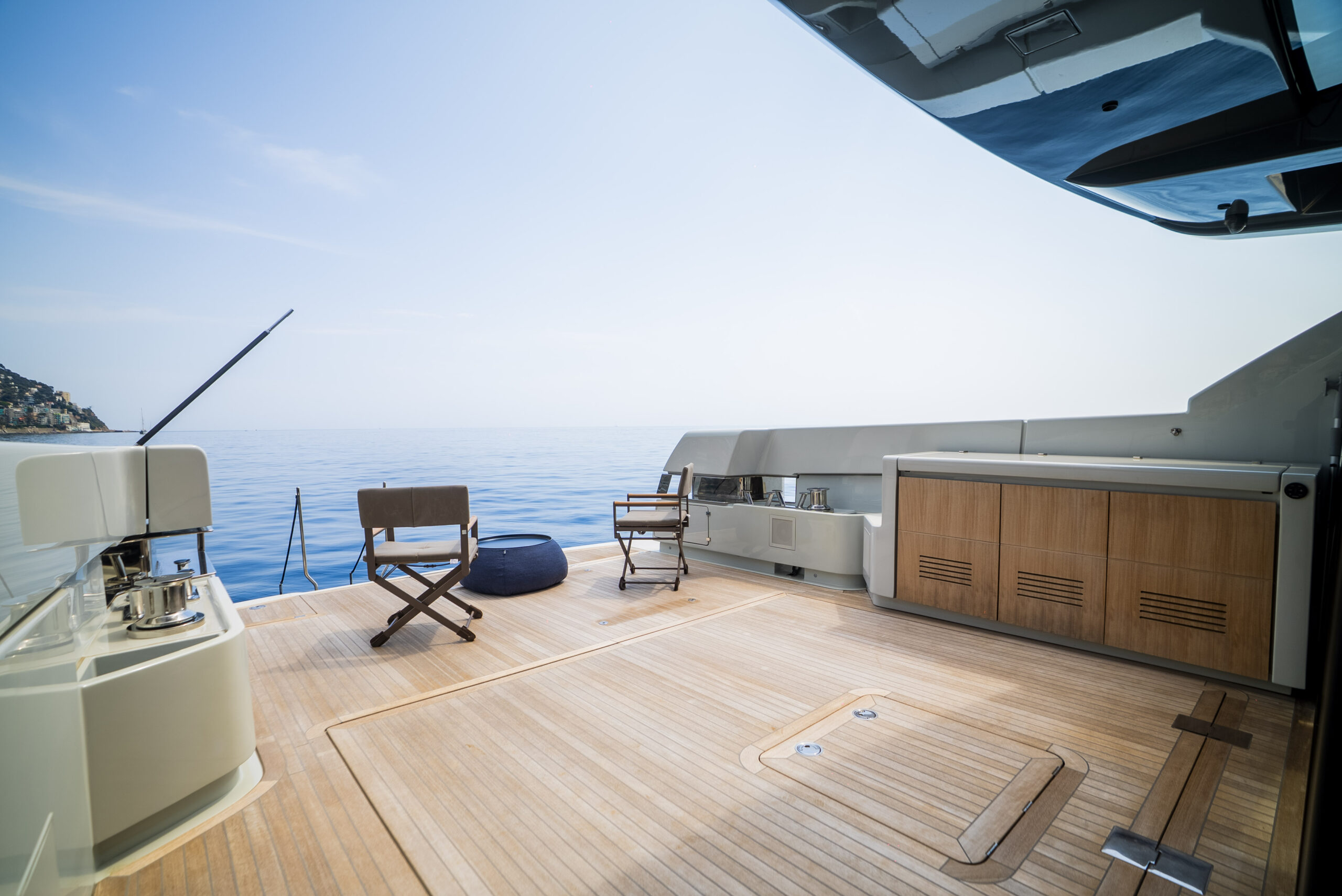

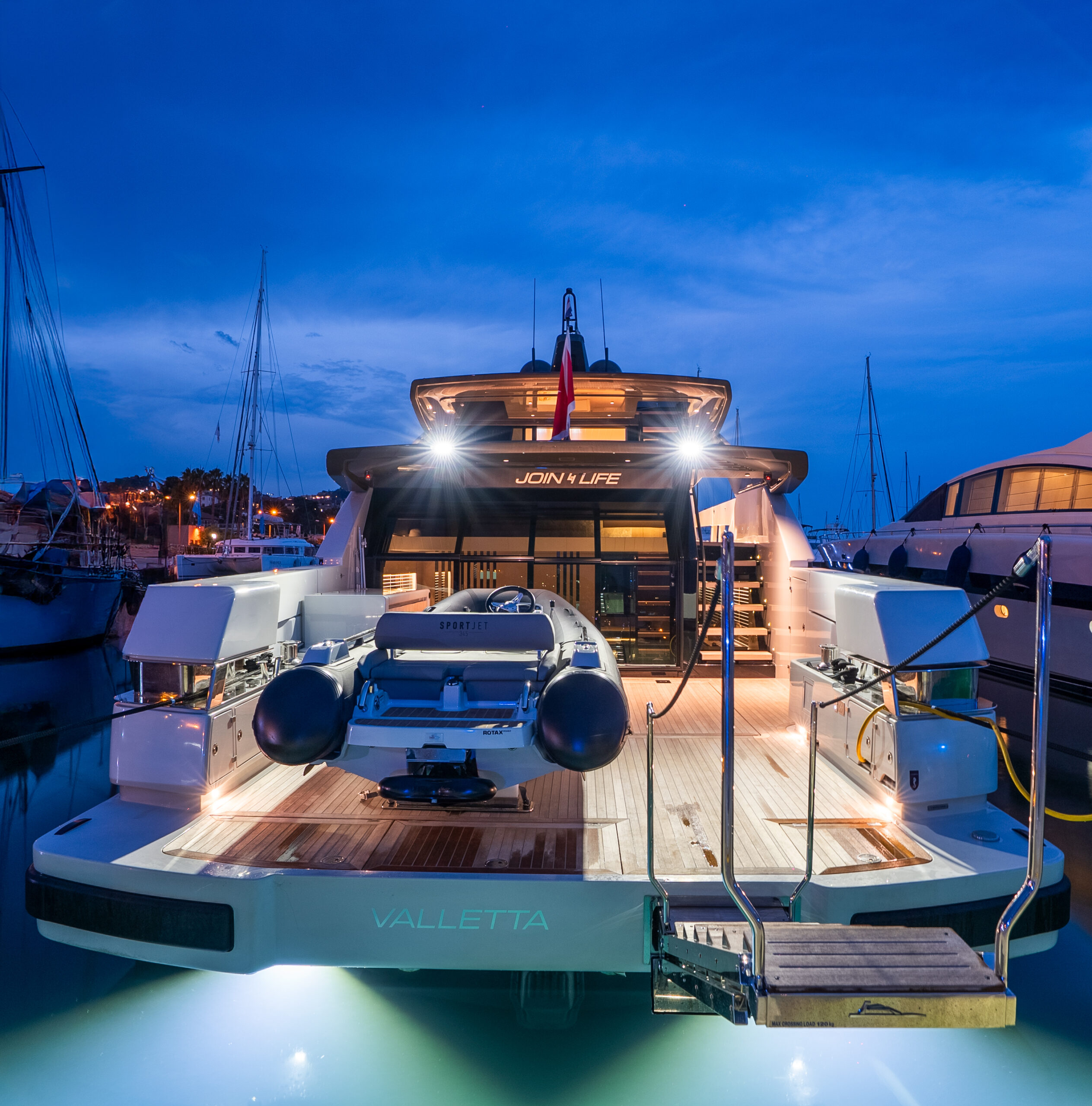

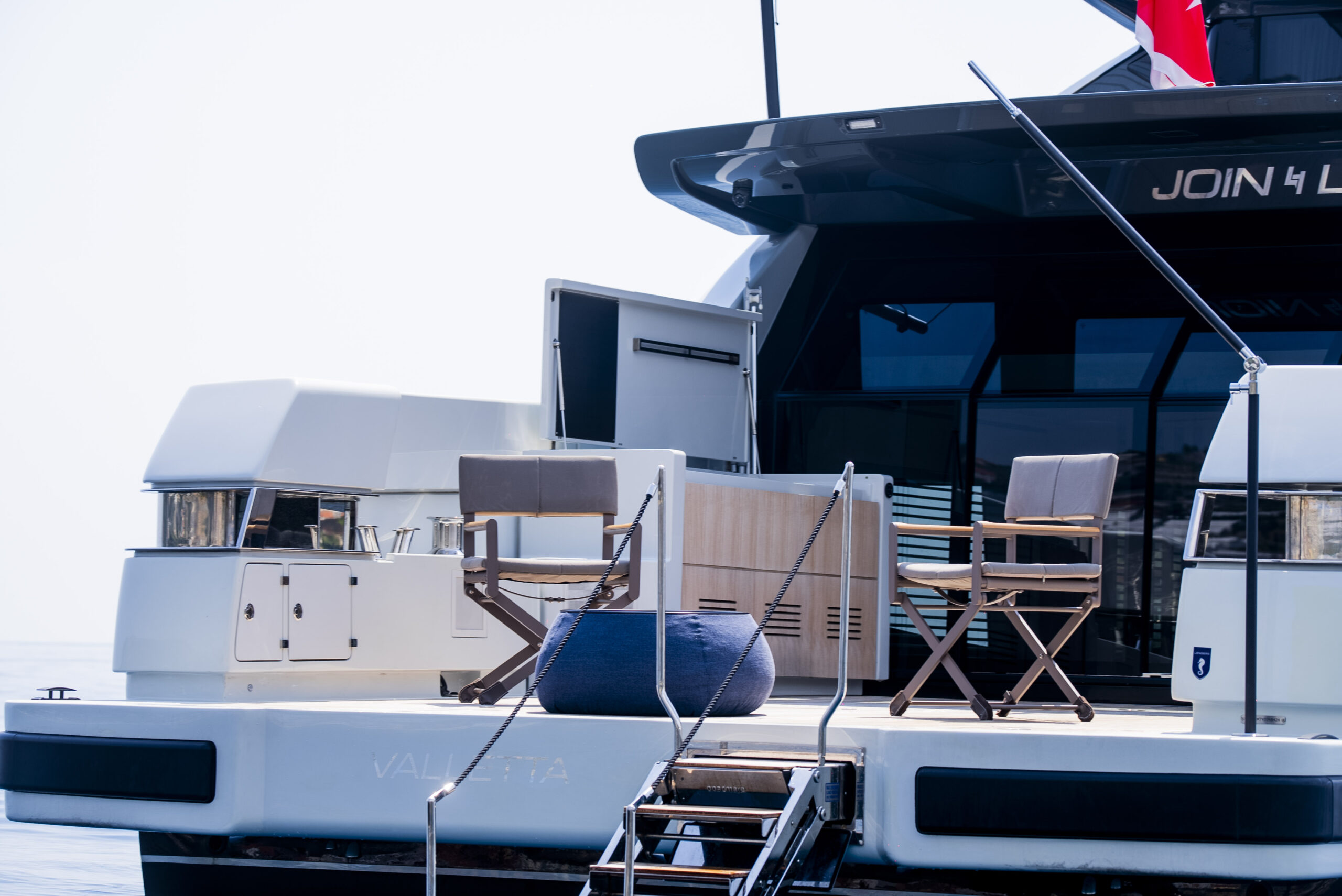

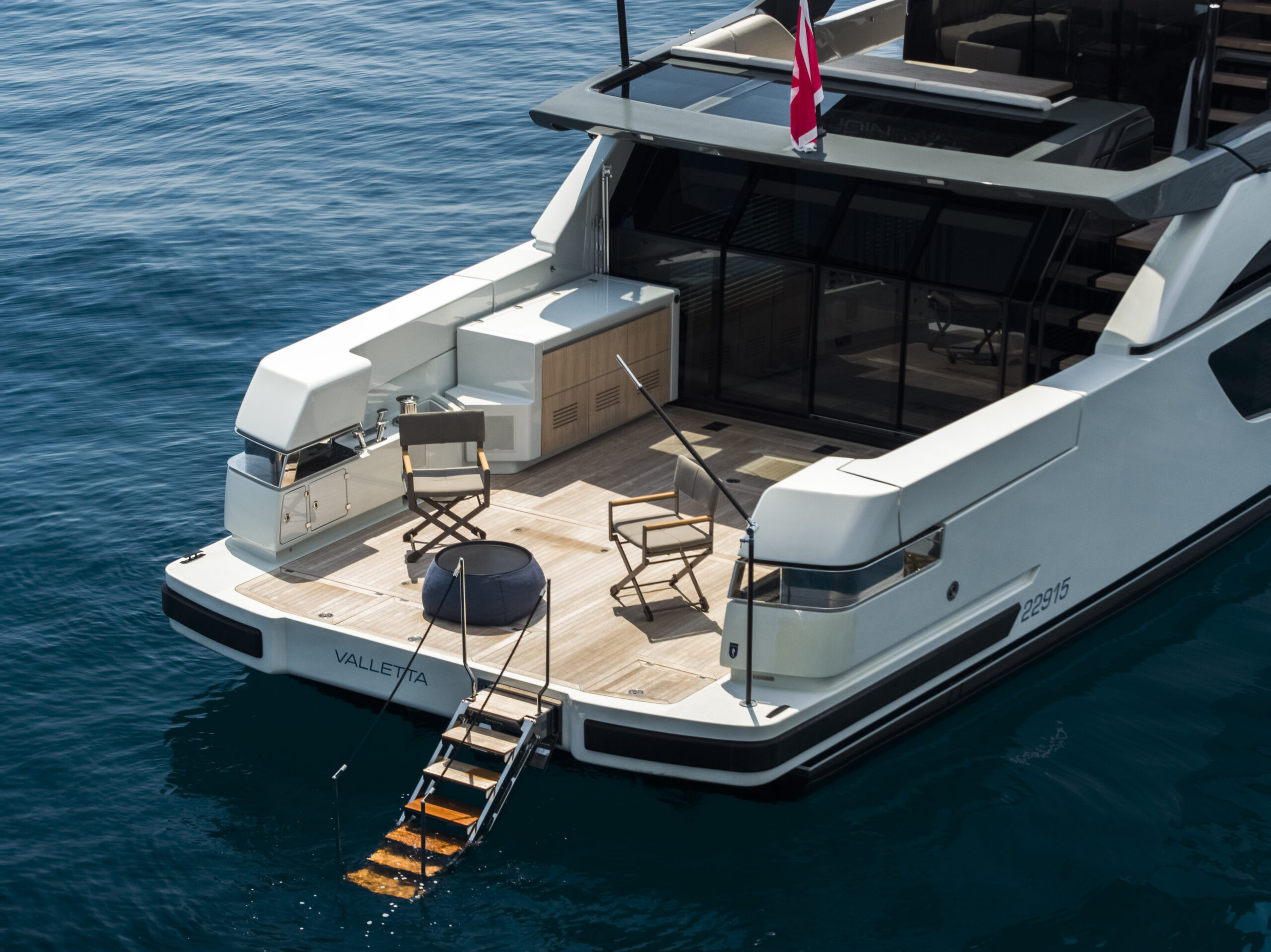

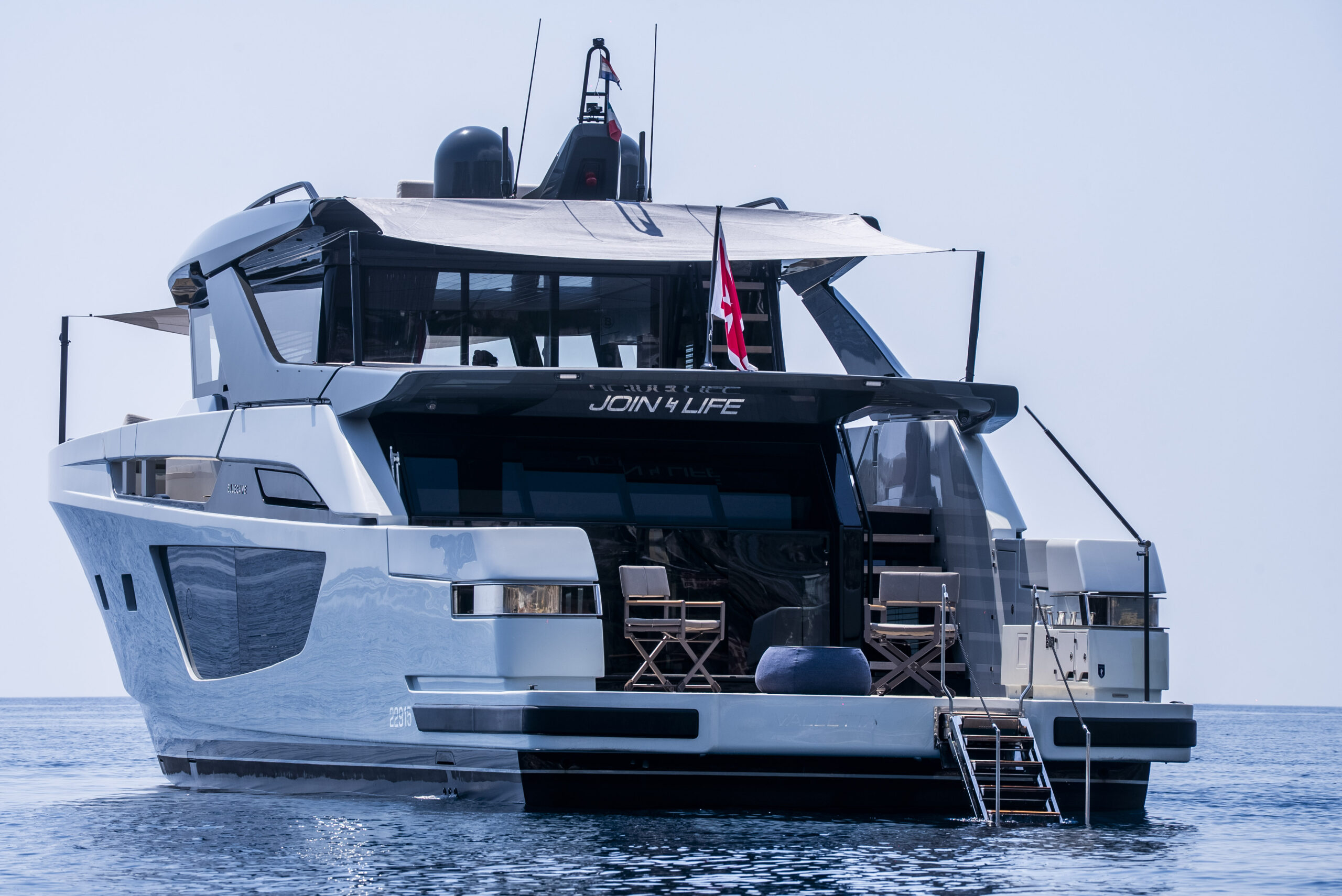

BEACH AREA
Two speakers and subwoofer connected to the salon area
Teak stairs to upper deck

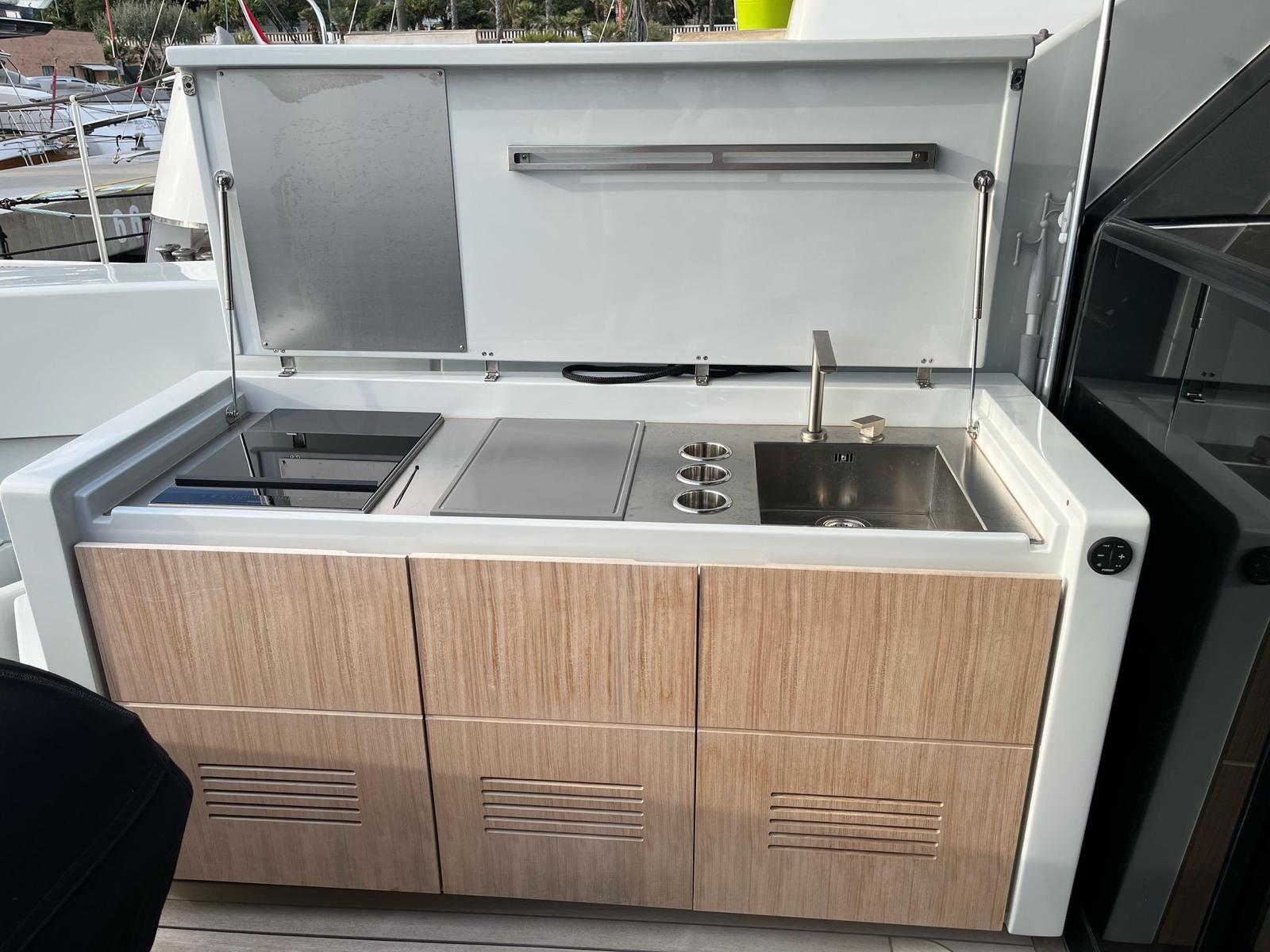

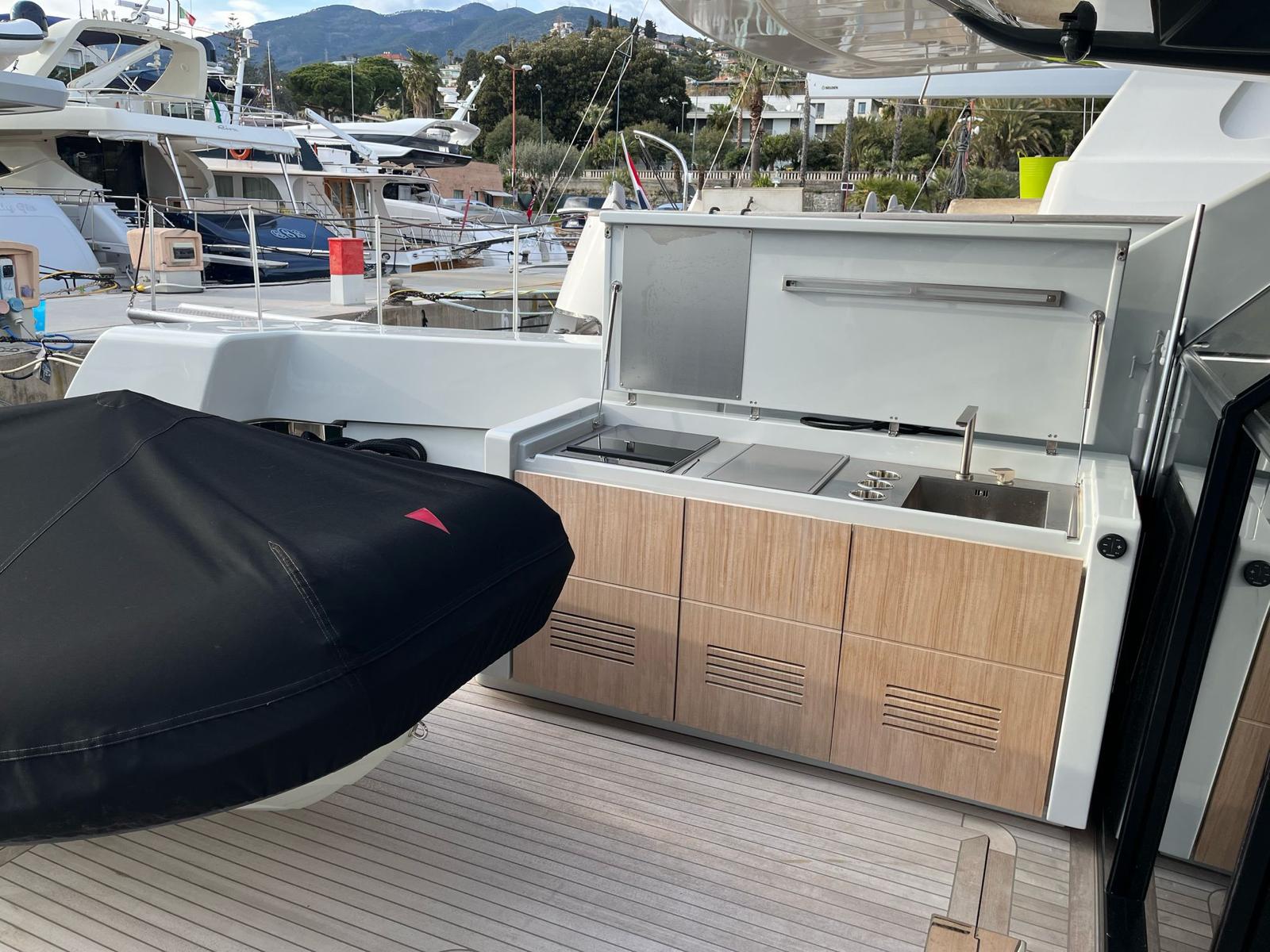

Wetbar with fridge, sink and storage
Sliding door to main salon

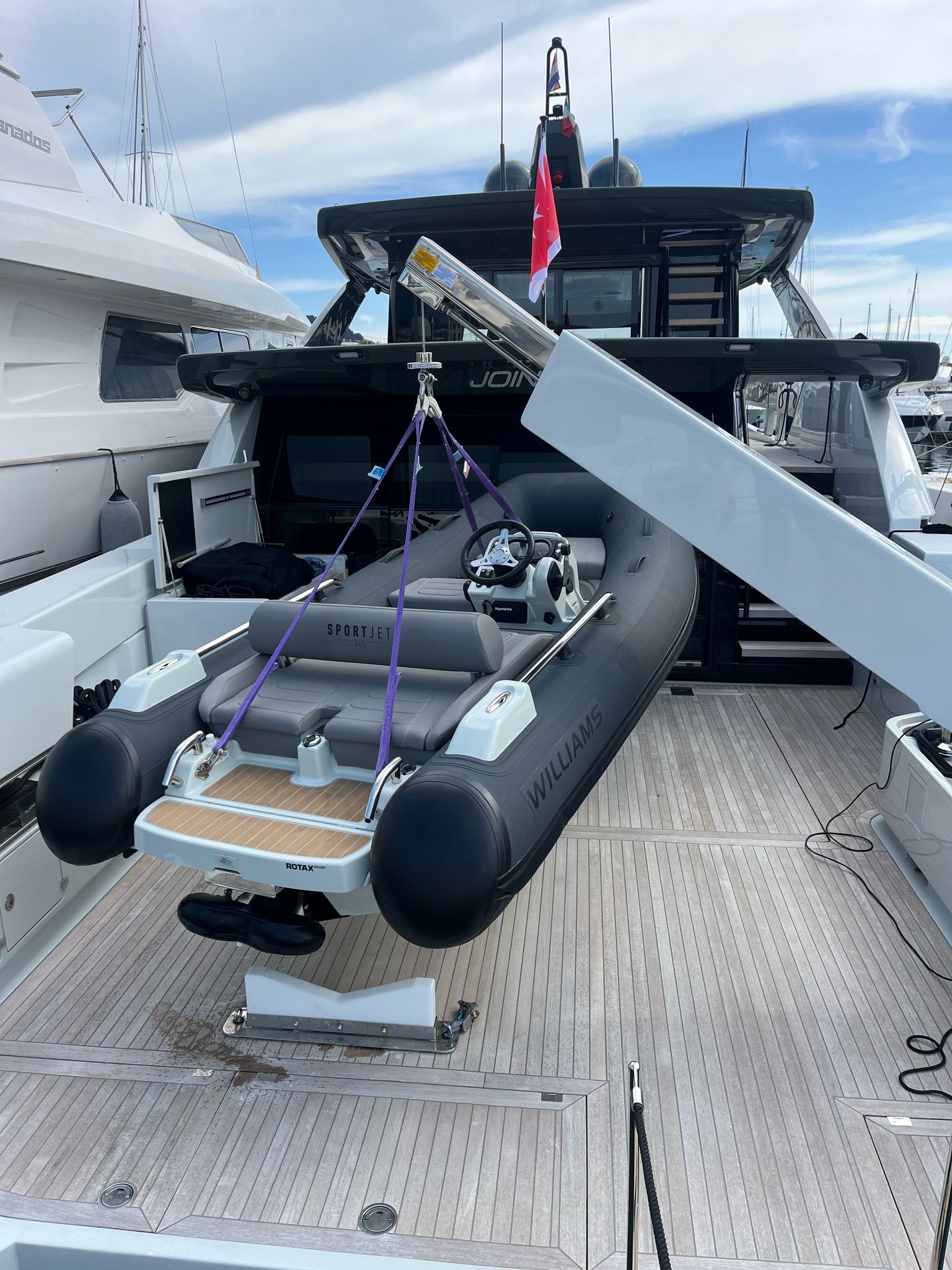

Side 180° crane with 500 kg lifting capacity
Retractable up/down gangway
One electrical engine room big hatch for maintenance
One manual engine room access

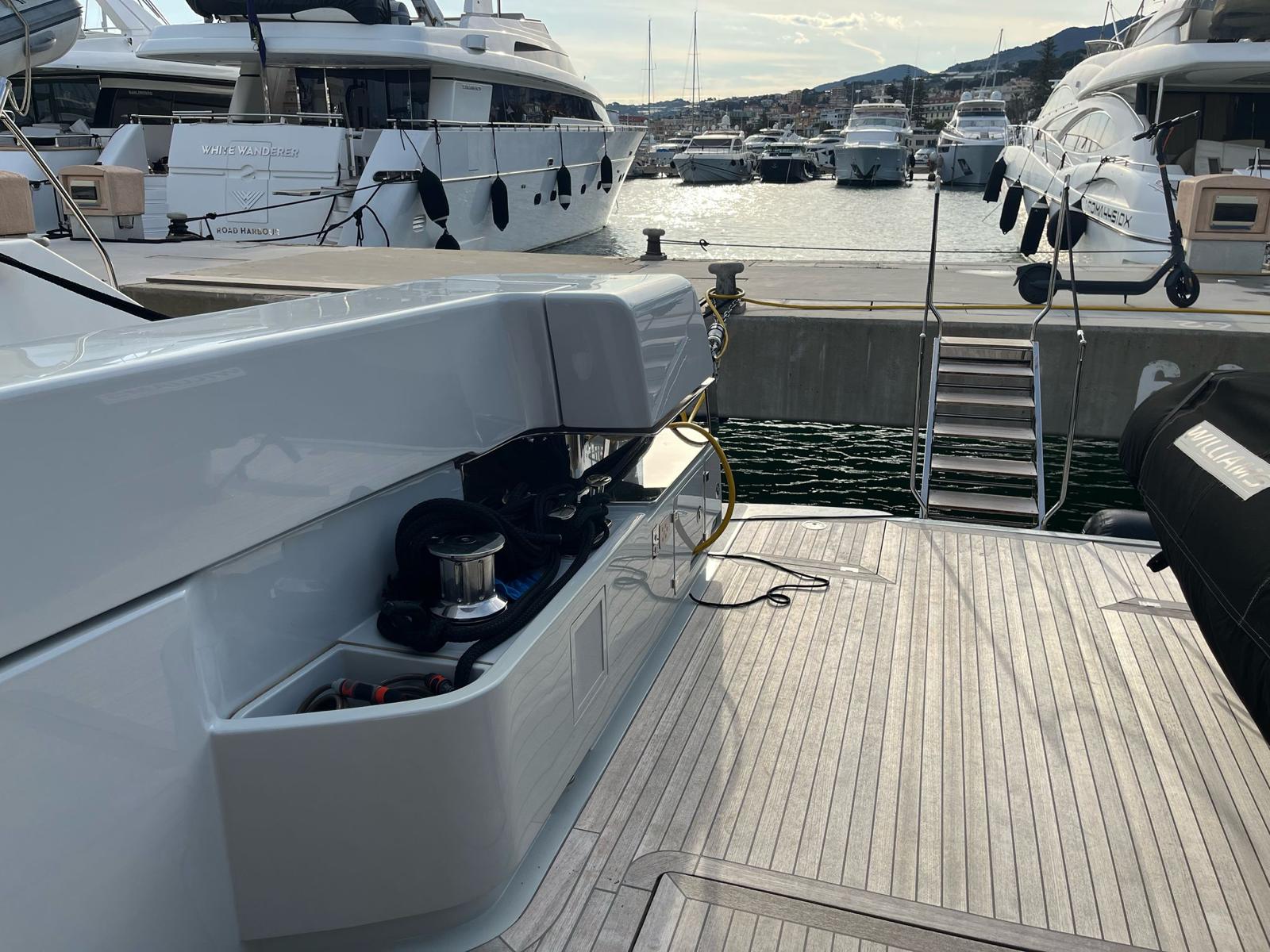

Two stern mooring winches 1600 W
Four stainless steel cleats 300 mm
Hot/cold shower
Teak deck
Side storage compartments
Floor storage comparments
Courtesy lights
Dimmable ceiling lights
Two glass skylights

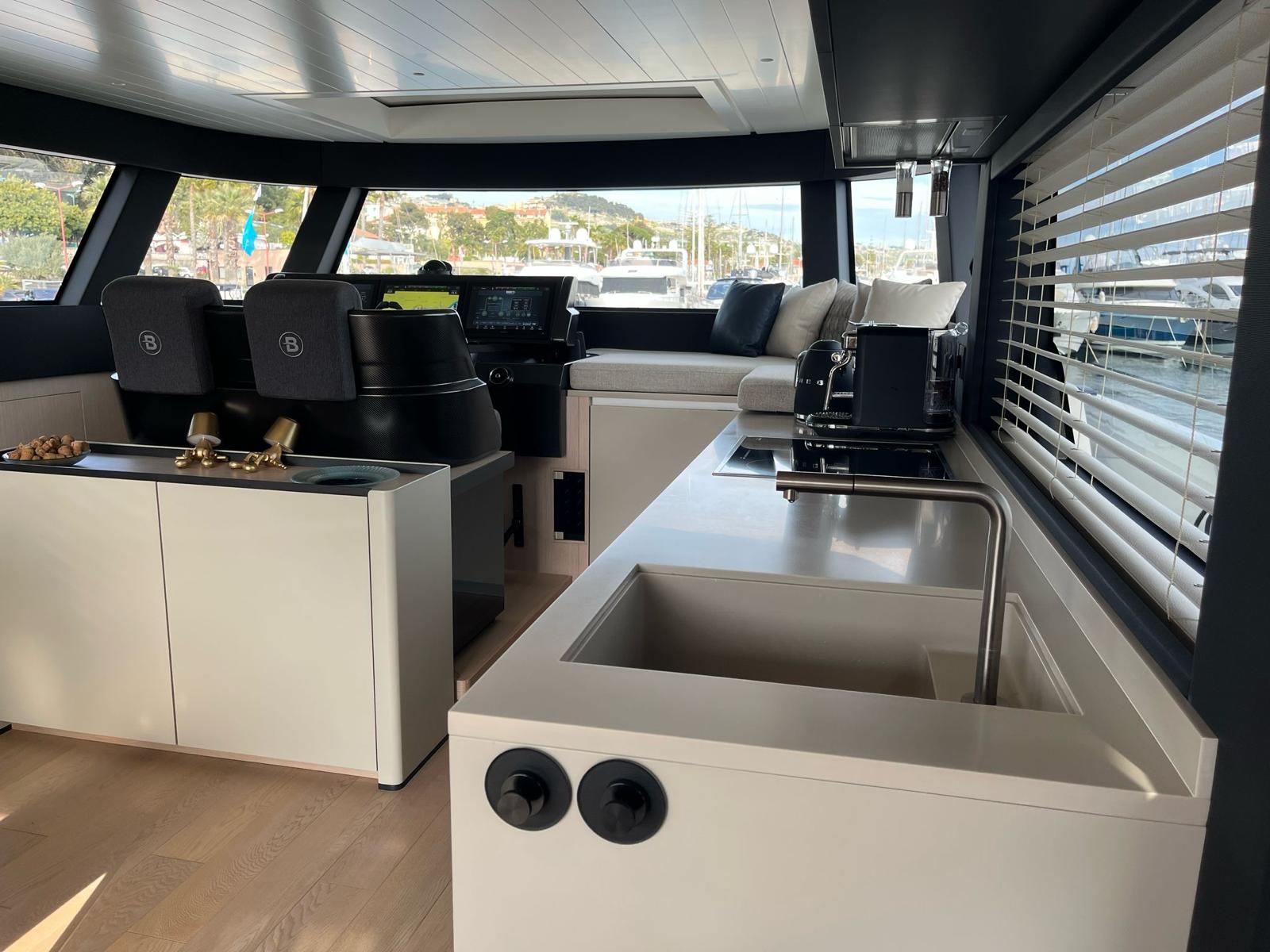

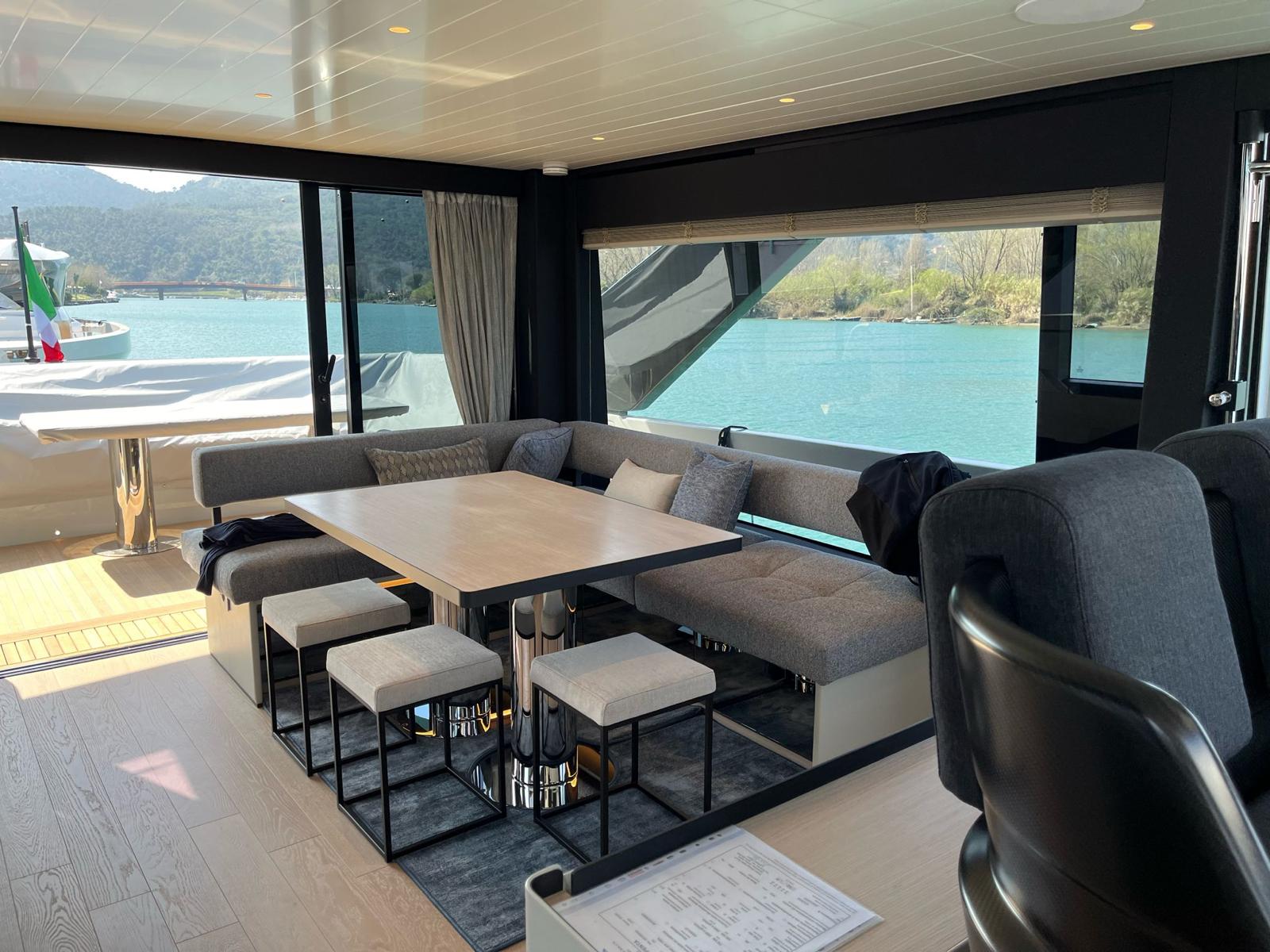

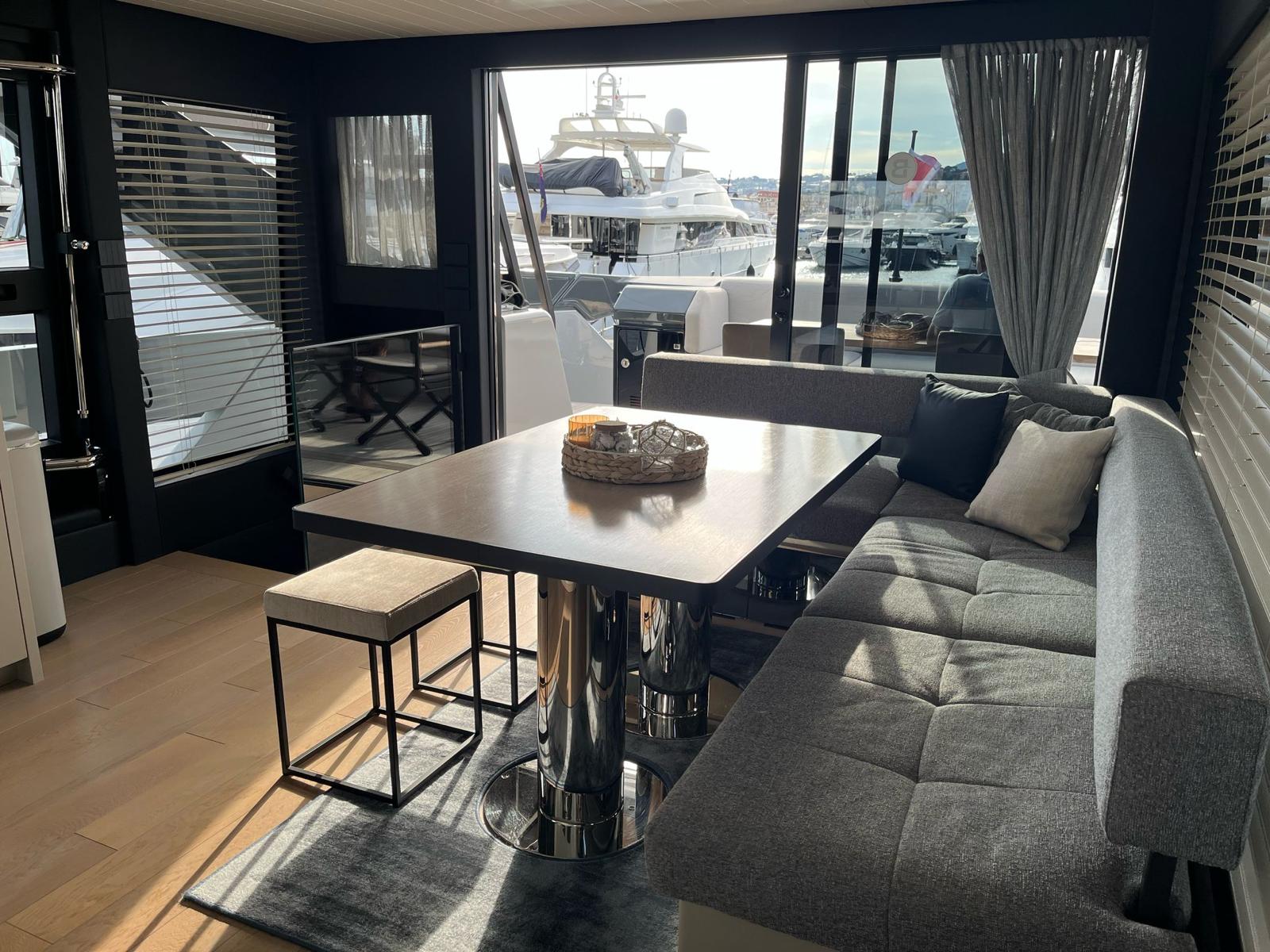

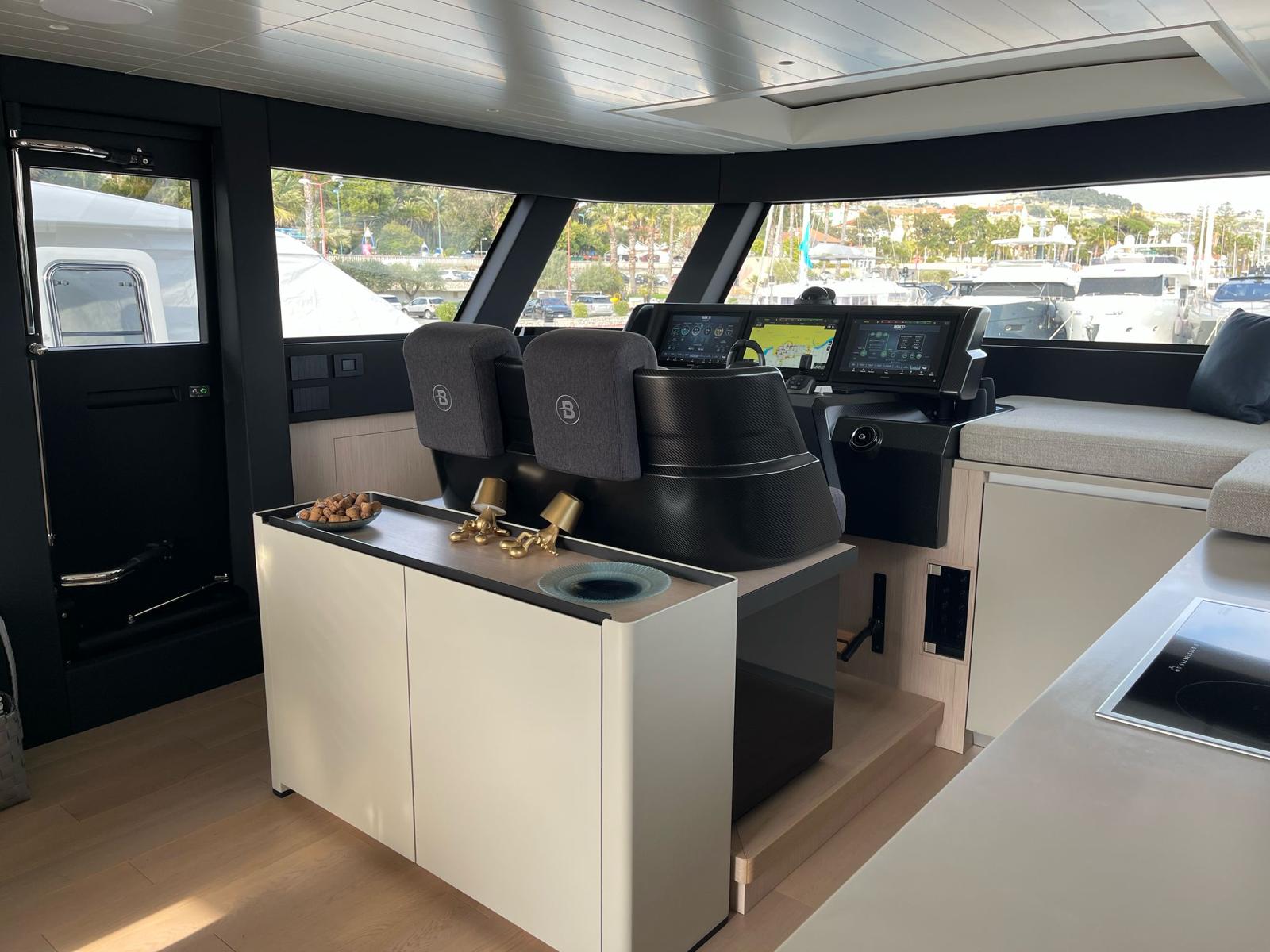

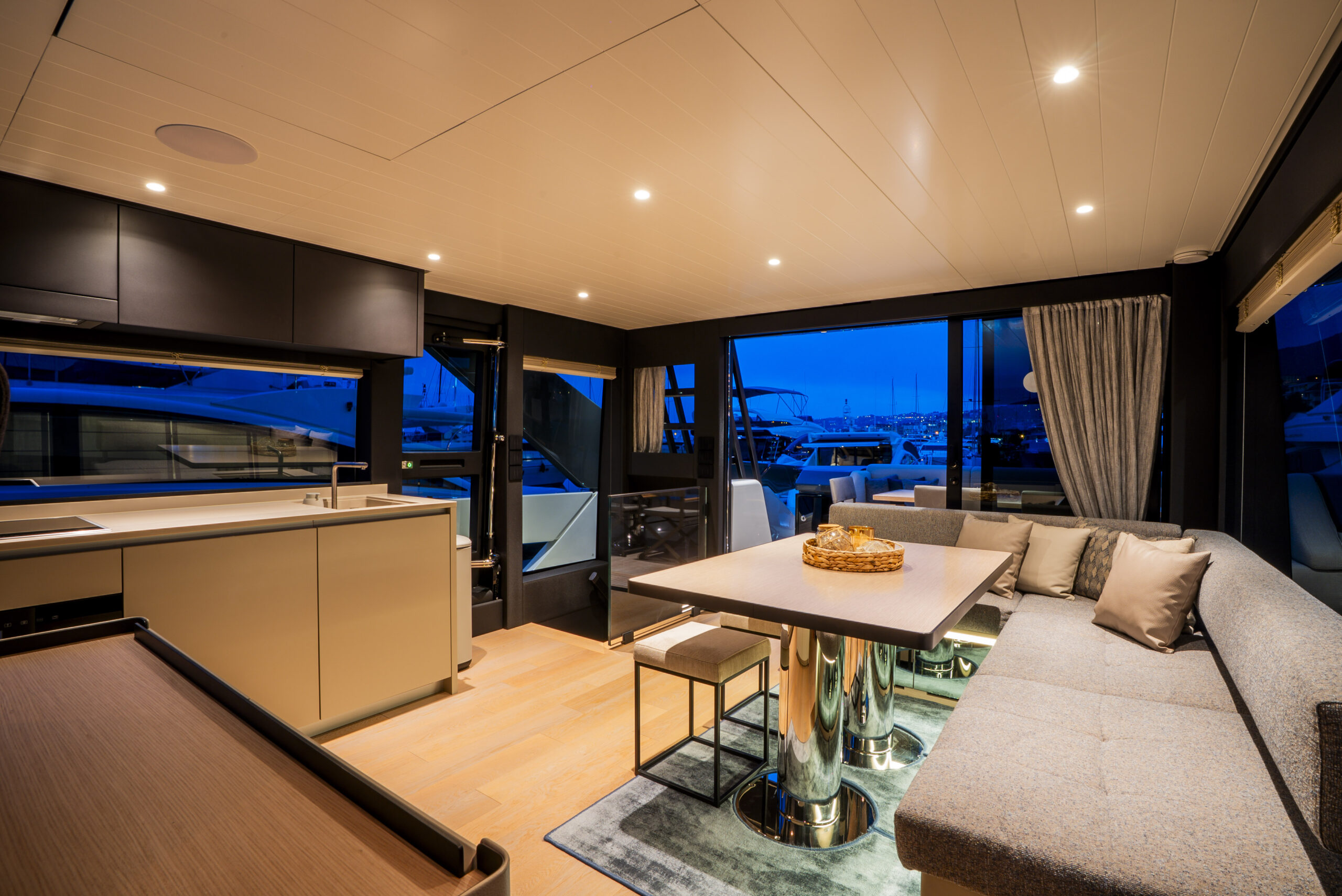

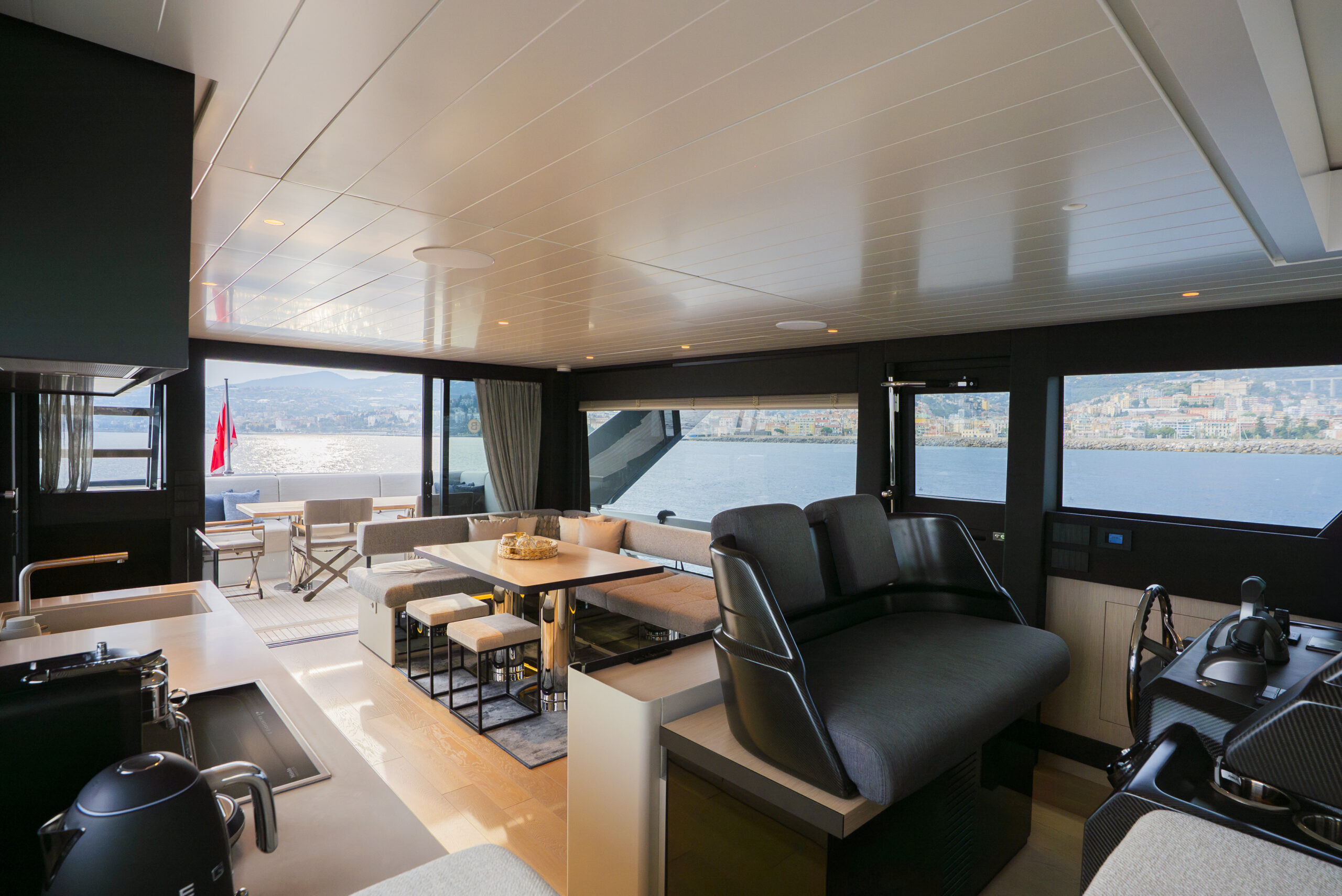

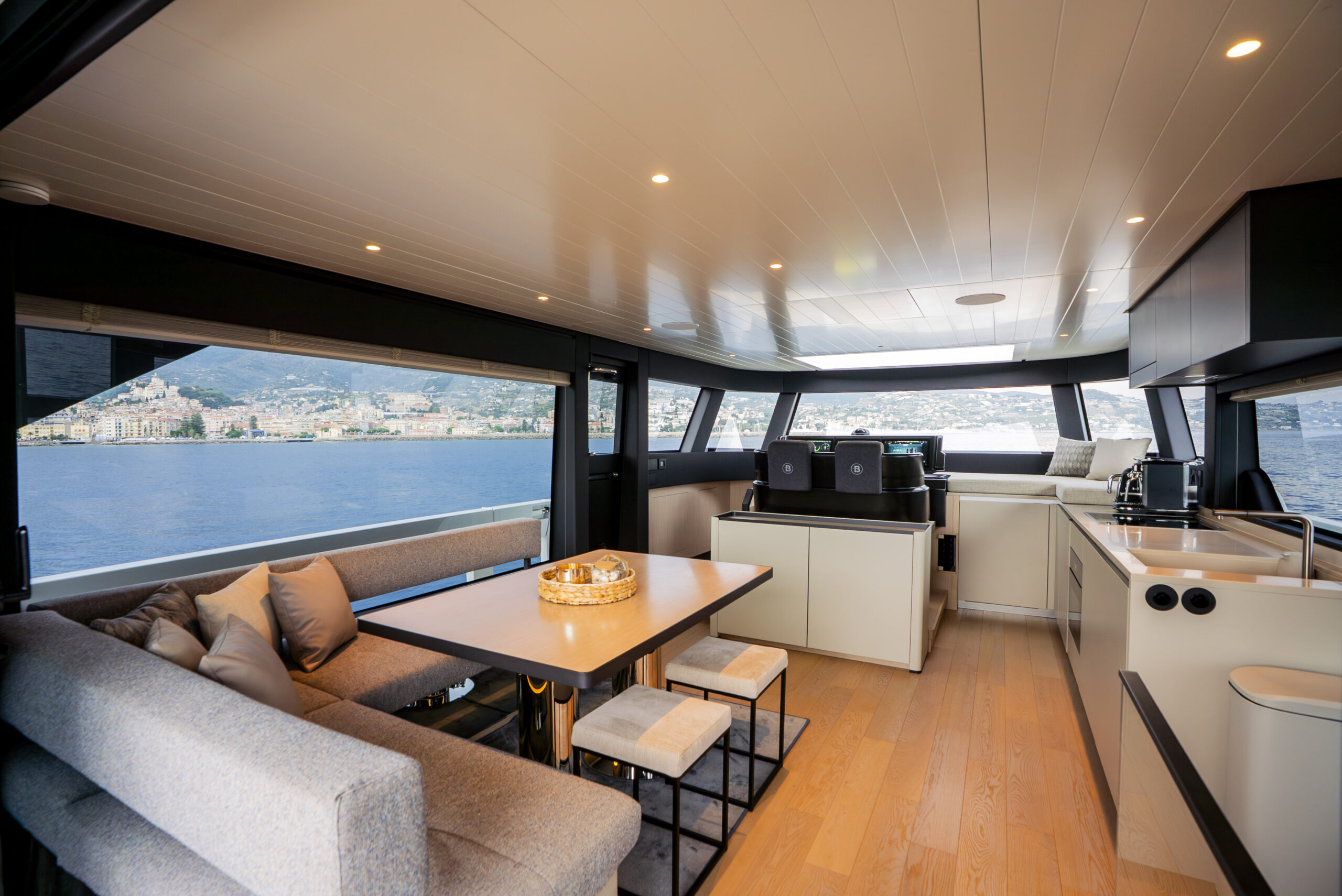

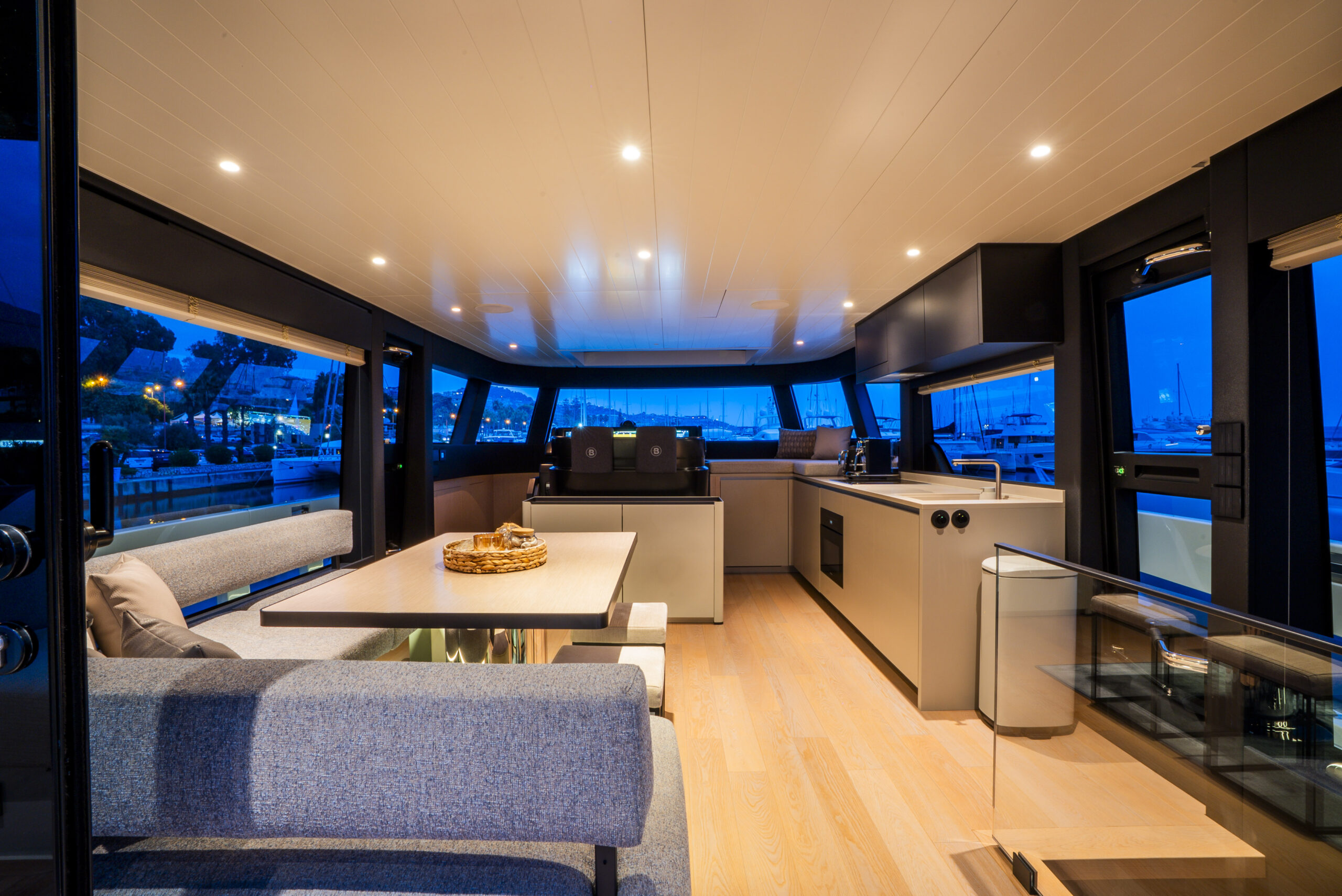

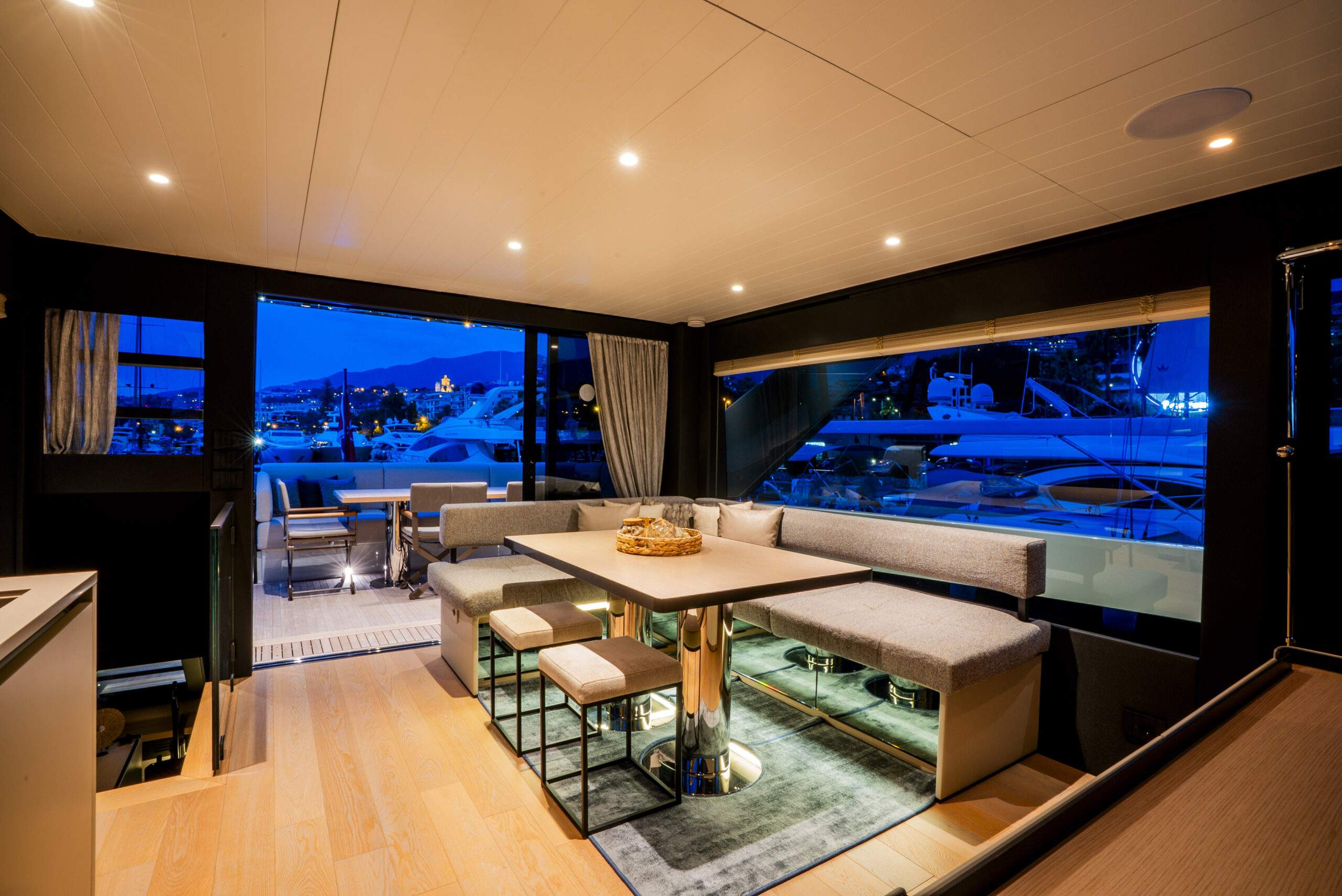

DECKHOUSE
Sliding glass door with curtain
Wooden floor
Blinds
Dimmable led lights

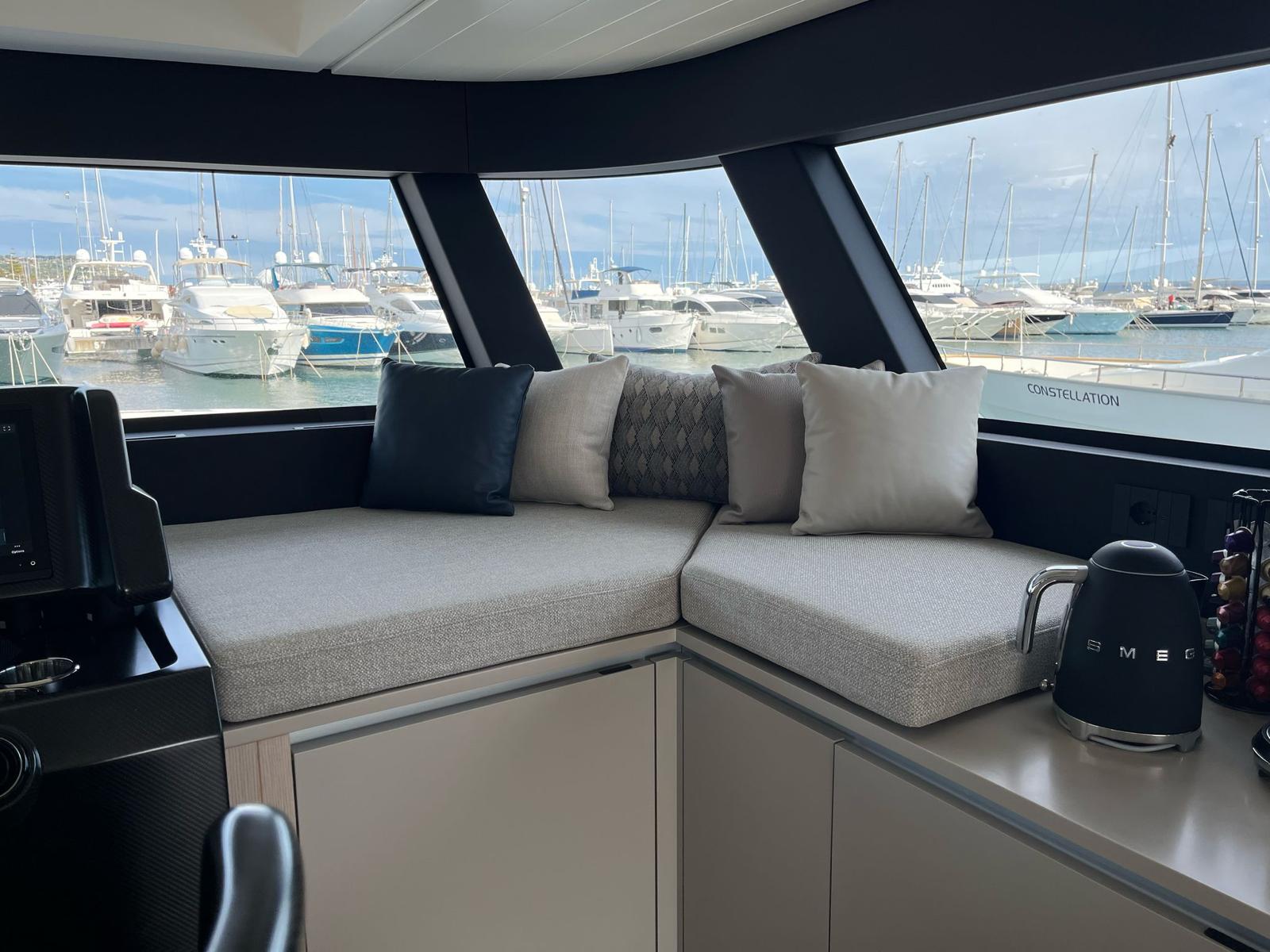

L shape sofa with table and 3 chairs/stools
Pilot and copilot bench
Storages below the pilot seat

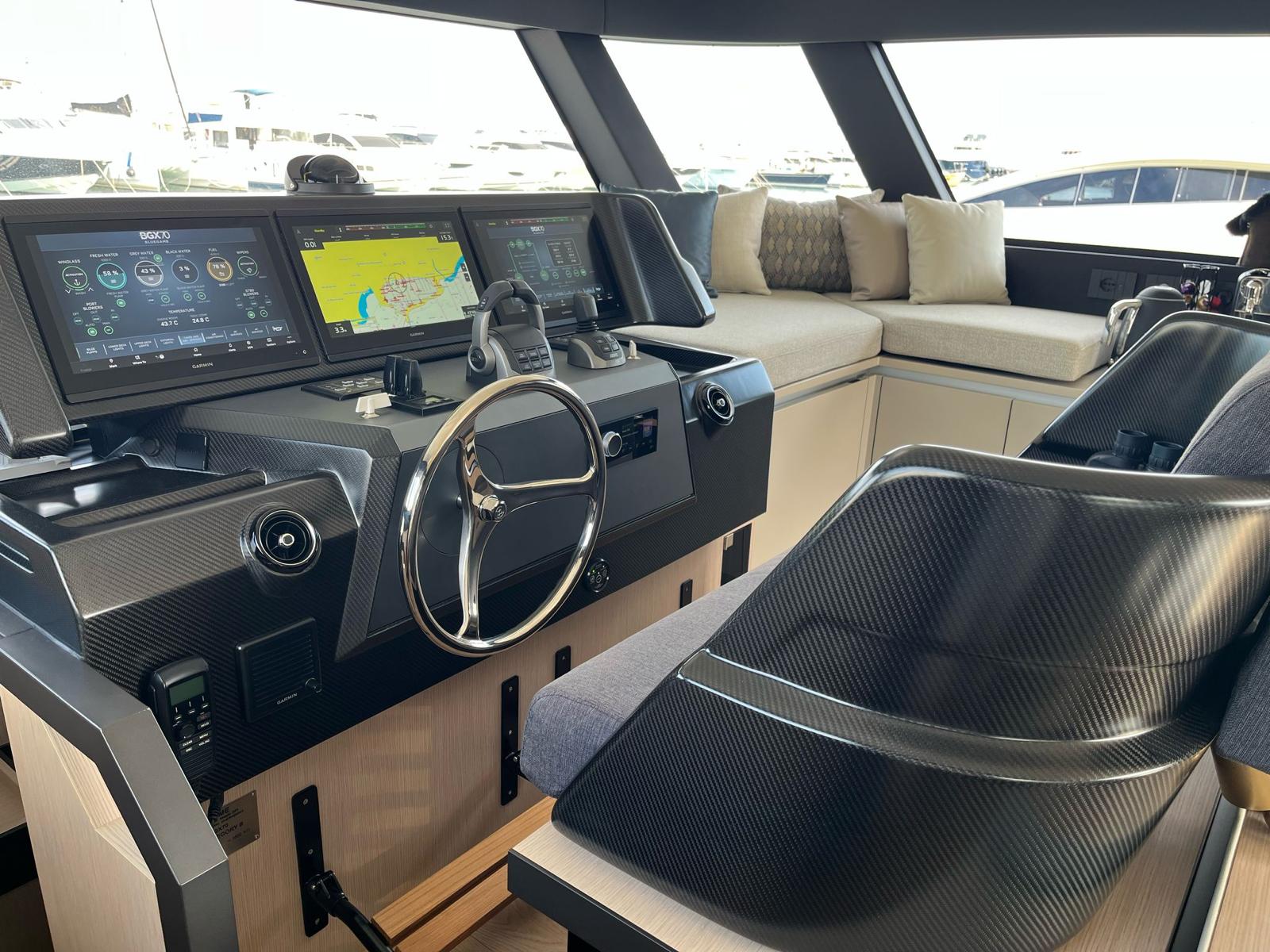

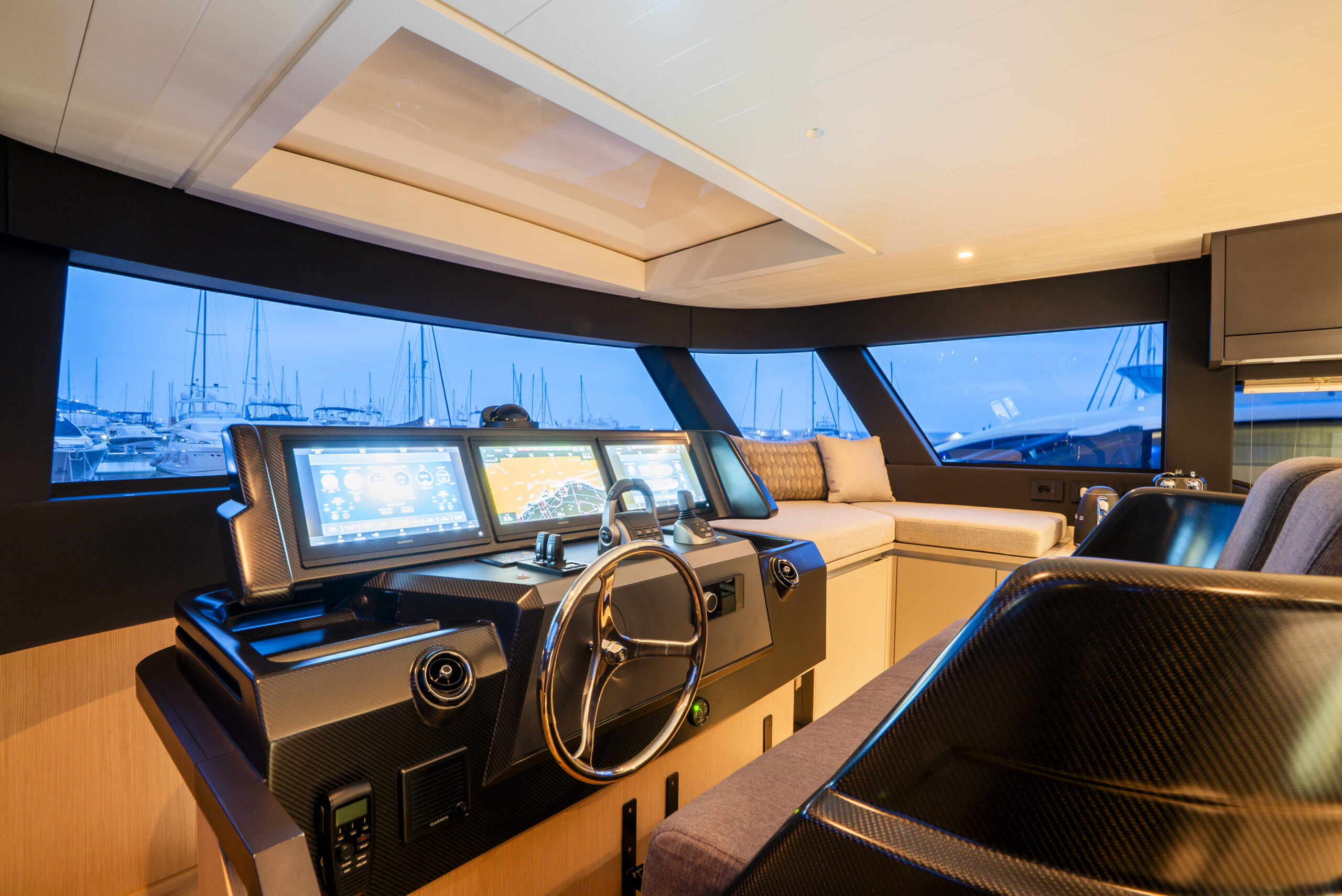

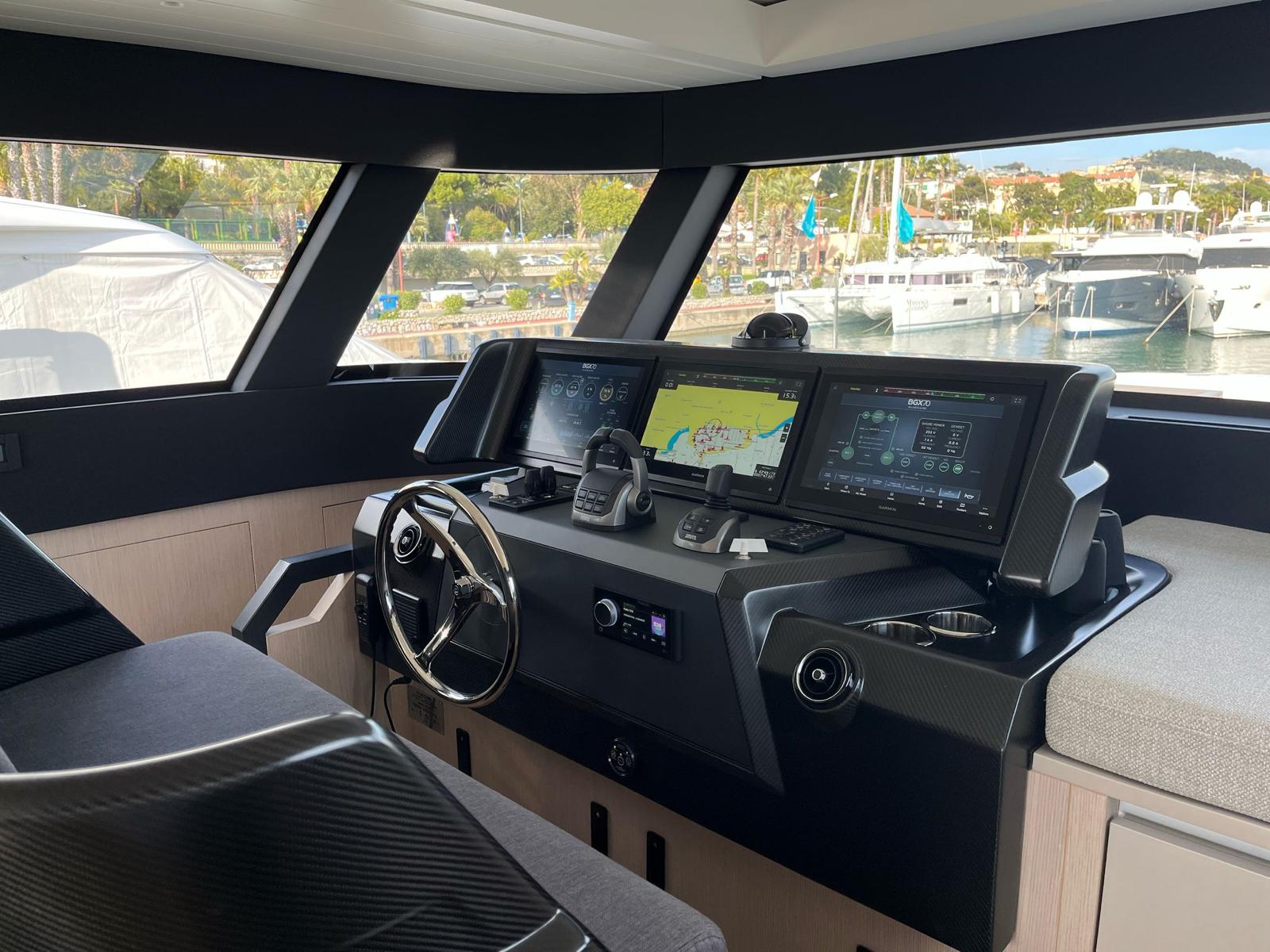

Console with:
HI-FI
Compass
Three 12” chart plotter glass cockpit
Indicating engines parameters (rpm, oil pressure, water temperature, engine sound warning alarm, fuel and water level) and controls (intruder systems, windshield wiper, GPS, radar, fish-finder)
Volvo Penta automatic pilot
VHF station with passive AIS receiver
IPS Joystick
Bow thruster control
Volvo Penta electronic engine throttle
Digital switching and digital automation for main services DC and AC integrated in main panel
Back-lighted switch panel for deck services
Bluegame personalised steering wheel
Fire control for manual extinguisher
Red navigation light control
Port side manual pantograph door
Power and USB sockets

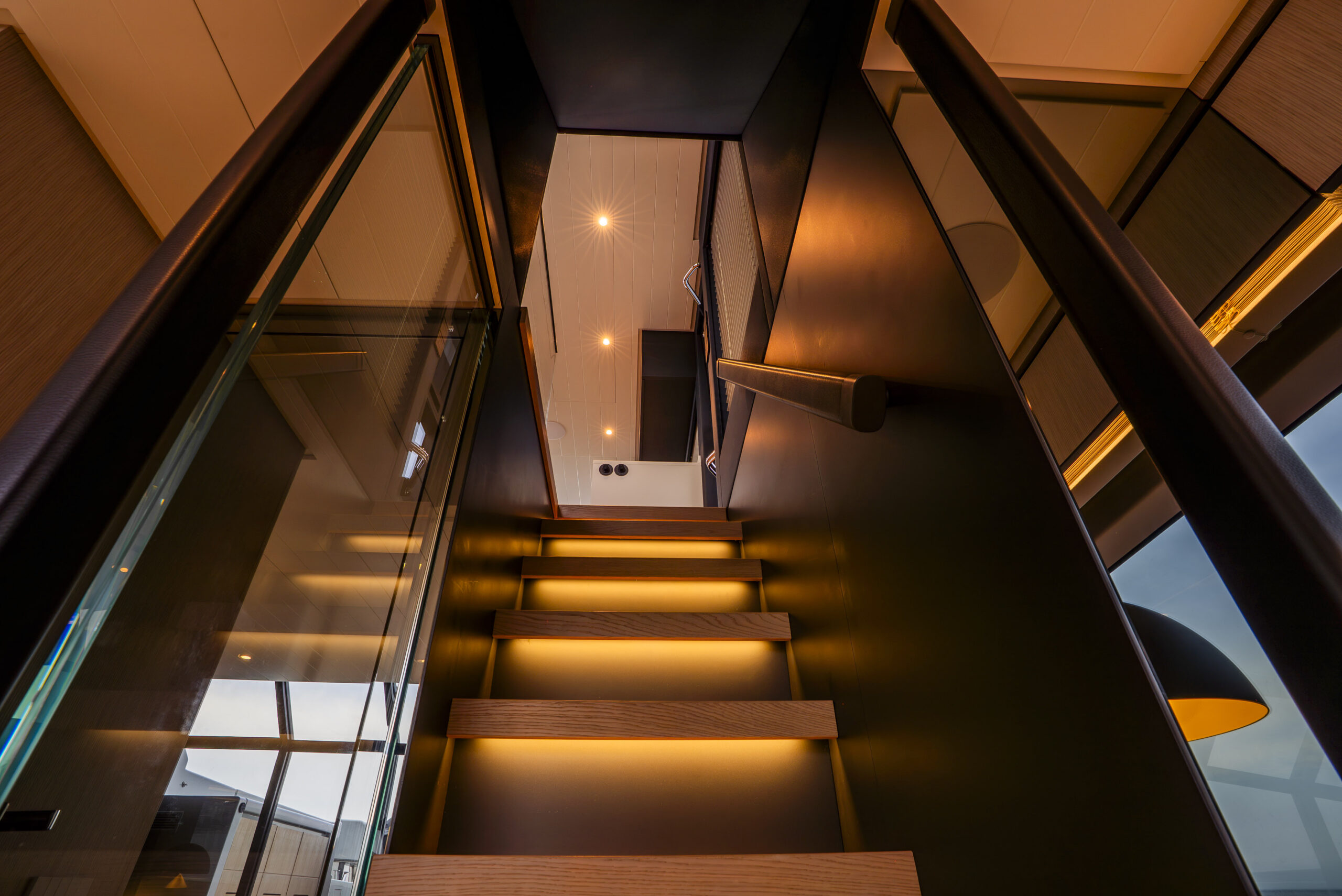

Stairs from main saloon with handrail
Stairs to guest’s area with handrail
Side tempered glass
Air conditioning fan coils
Fire extinguisher 1 kg

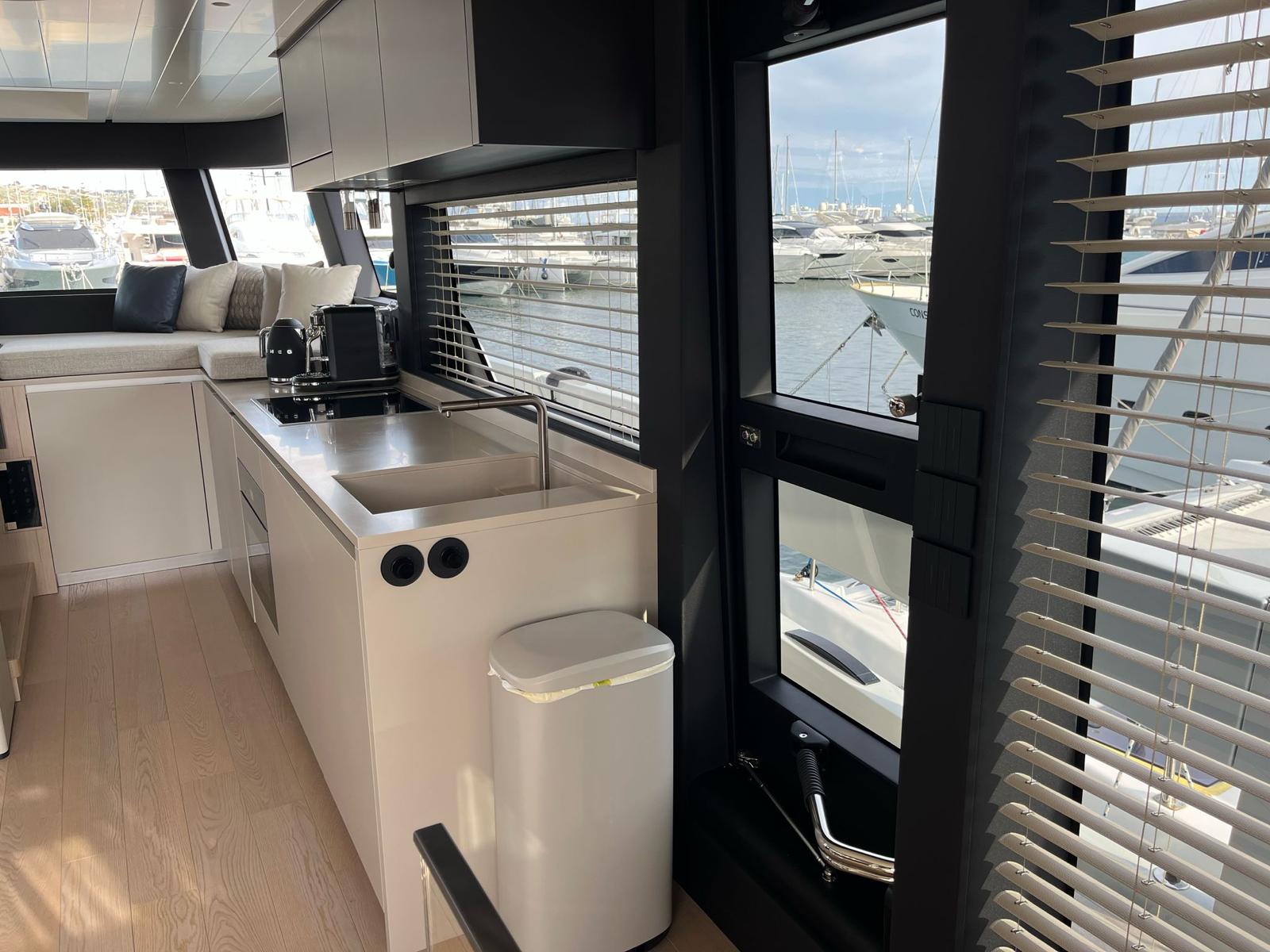

GALLEY
Painted overhead cabinet
Lower painted cabinet with storage
Sink
Synthetic worktop
Four zone induction cooktop with pan holders
Oven
Refrigerator
Freezer
Dishwasher
Kitchen hood
Power sockets
Trash compactor

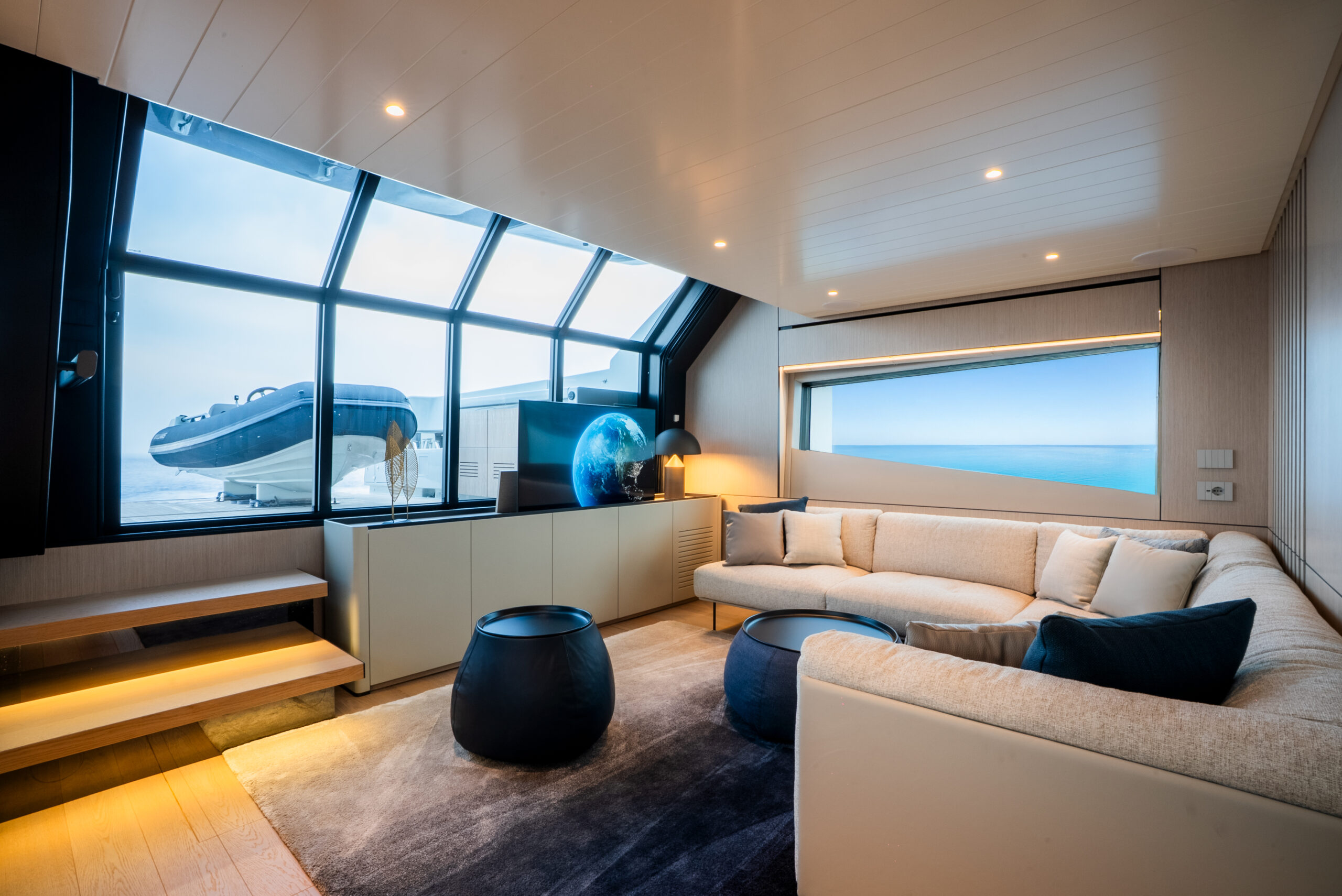

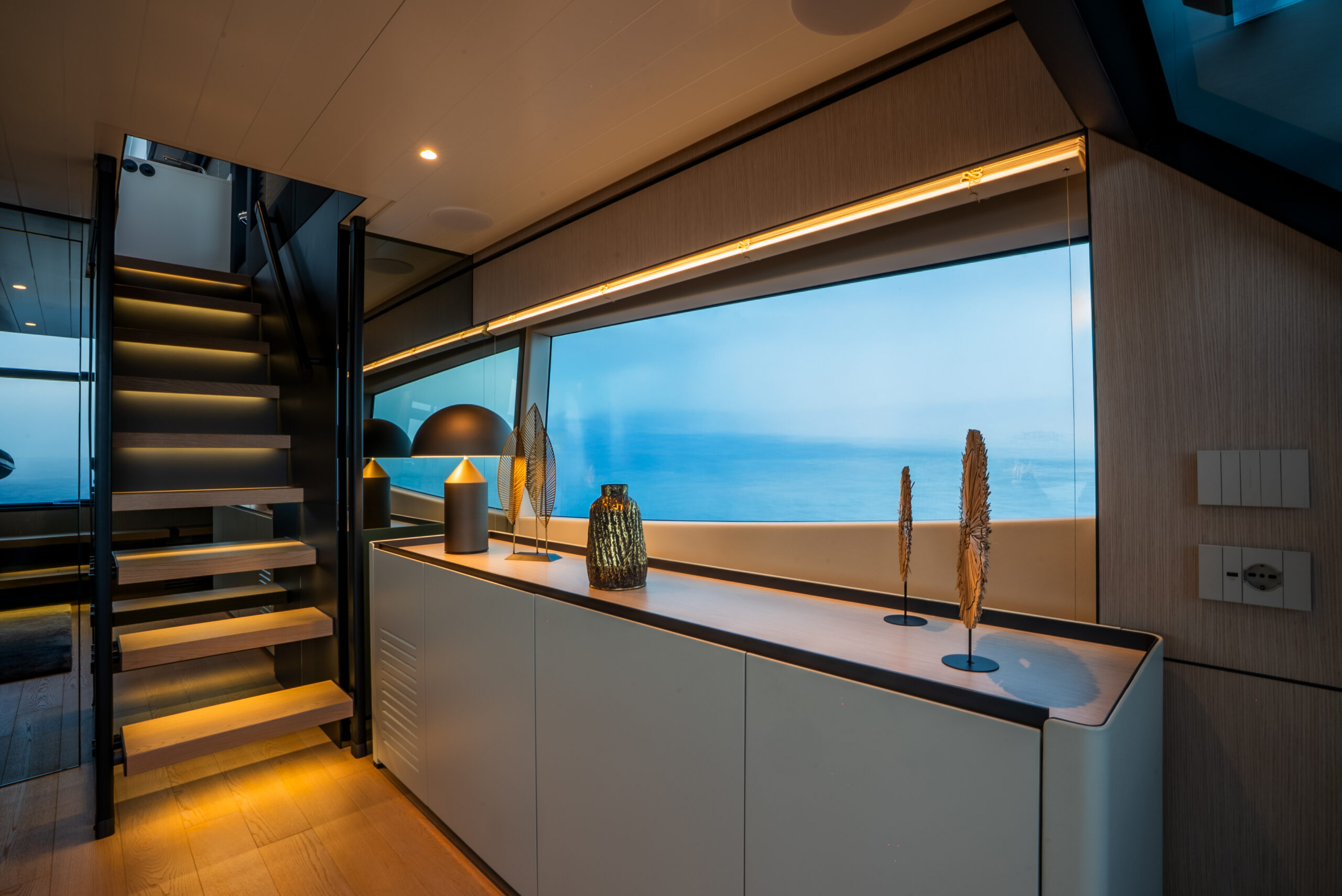

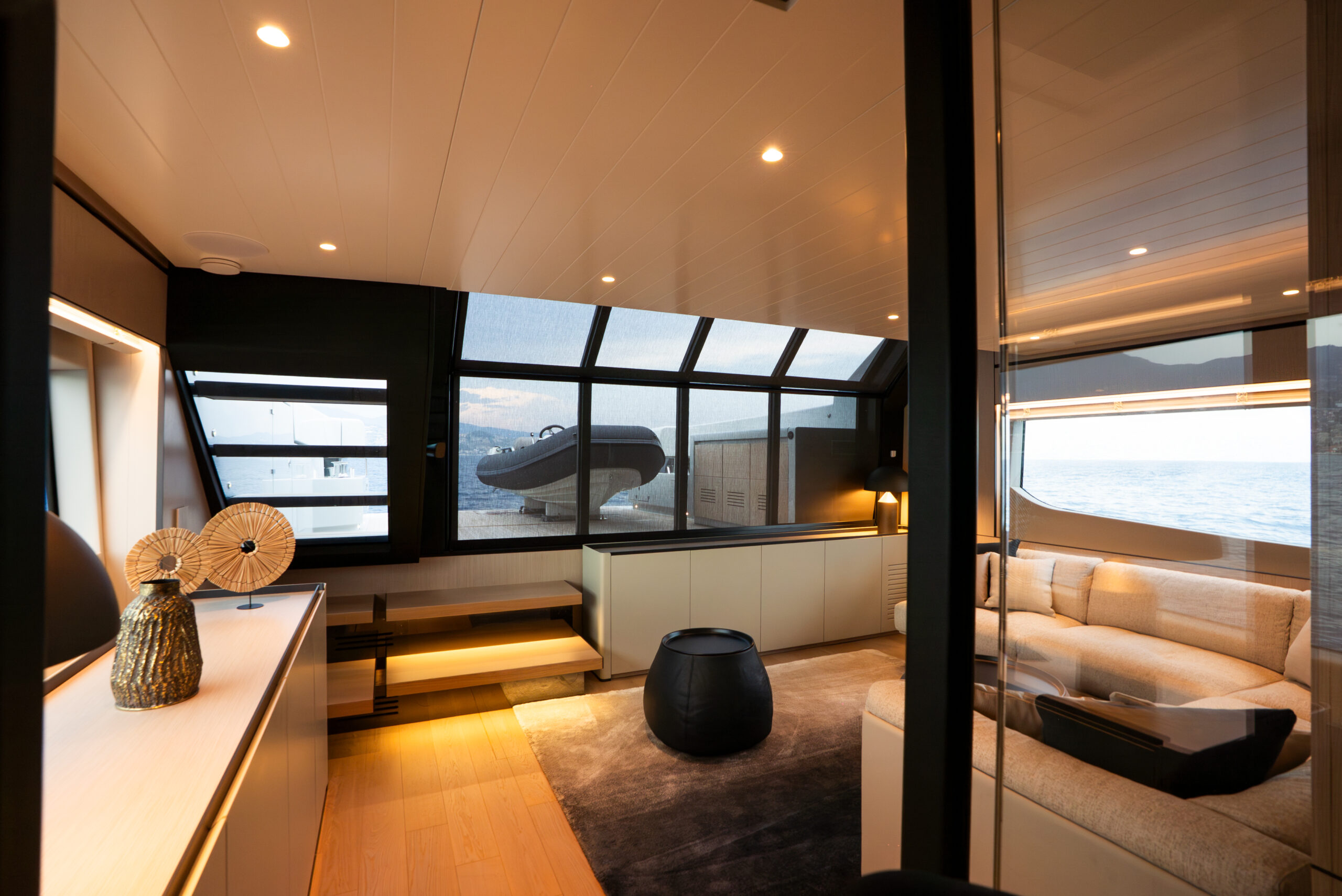

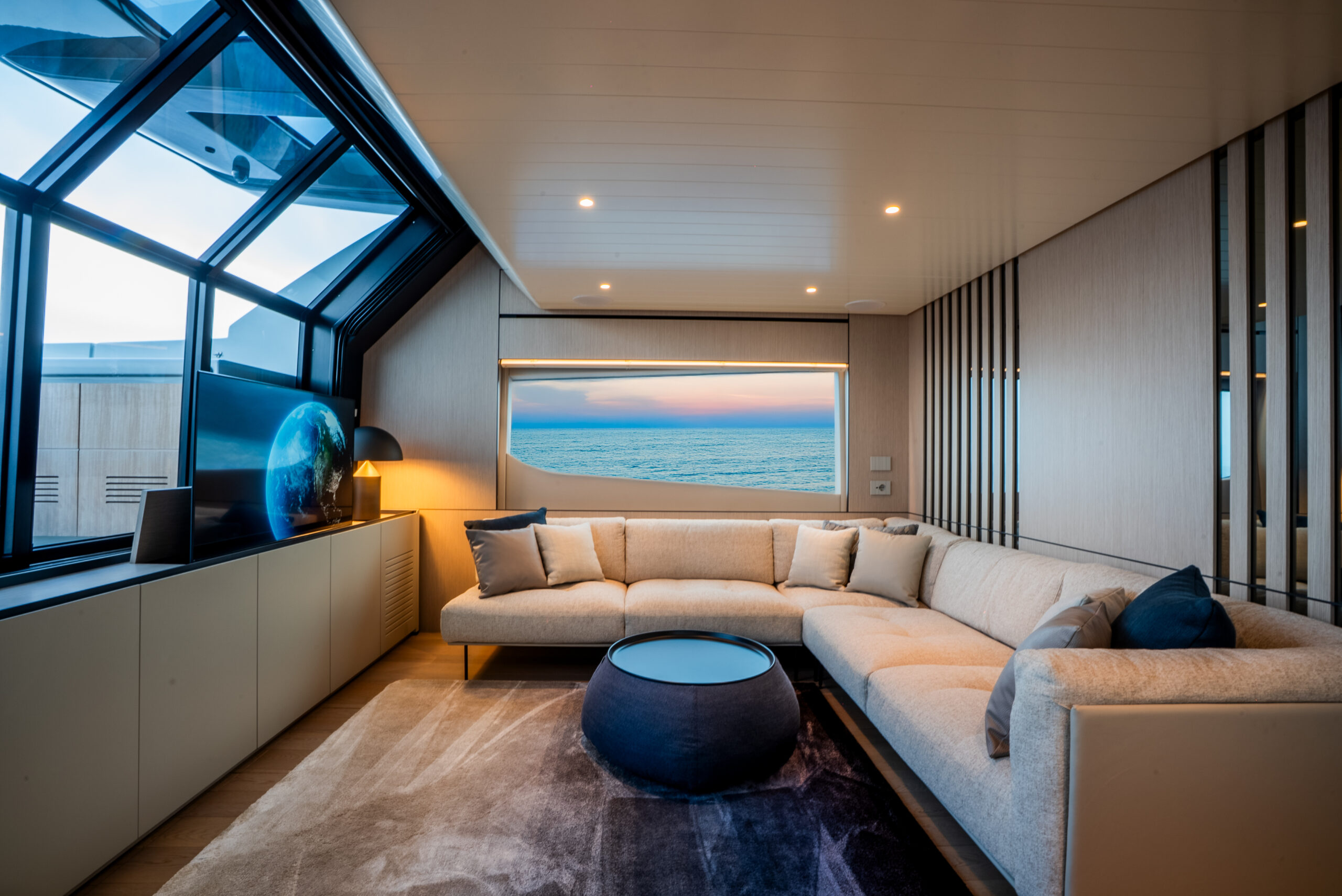

SALON
Sliding door to beach area with curtain
Steps from beach area to salon
Power and USB sockets
Dimmable lights
L shape fabric sofa
Two armachair
Two coffee table
Storage cabinet
Wooden floor
Carpet
Blinds
Side tempered glass
50” TV
Stairs to deckhouse
Owner cabin entrance
HI-FI
Four speakers
Air conditioning fan coils
Floor hatch to storage area
Sockets 220 V
Fire extinguishers 1 Kg

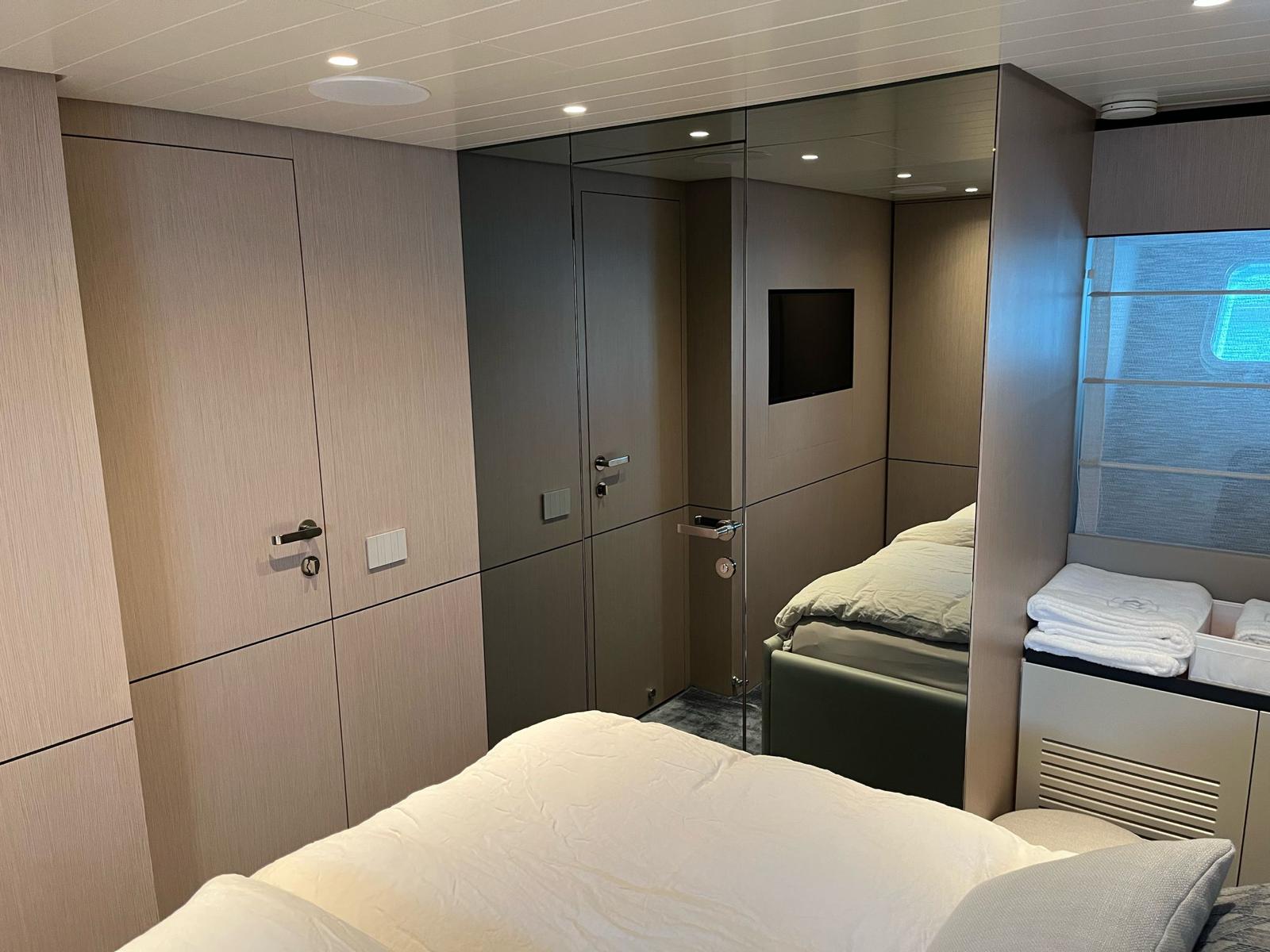

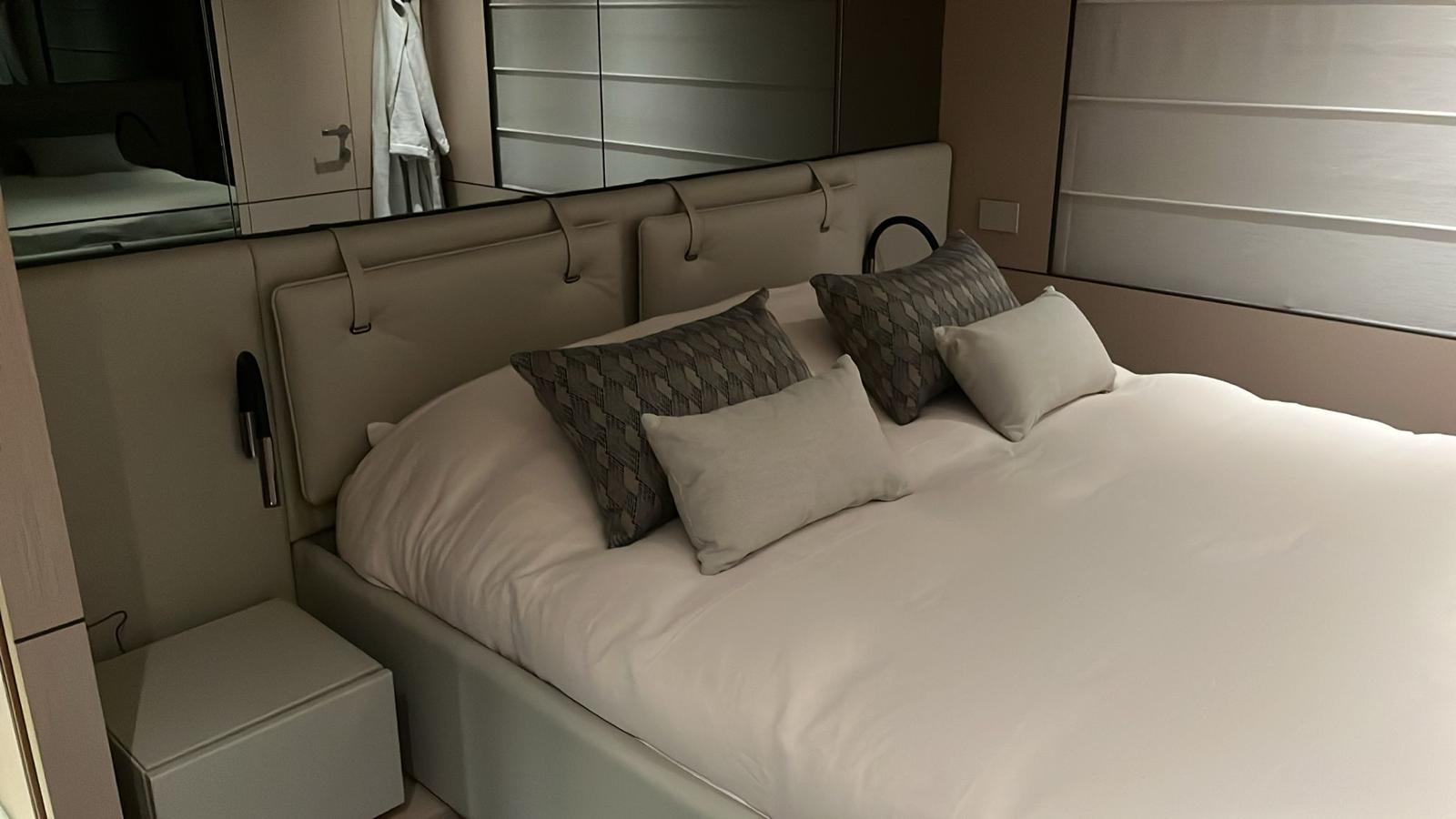

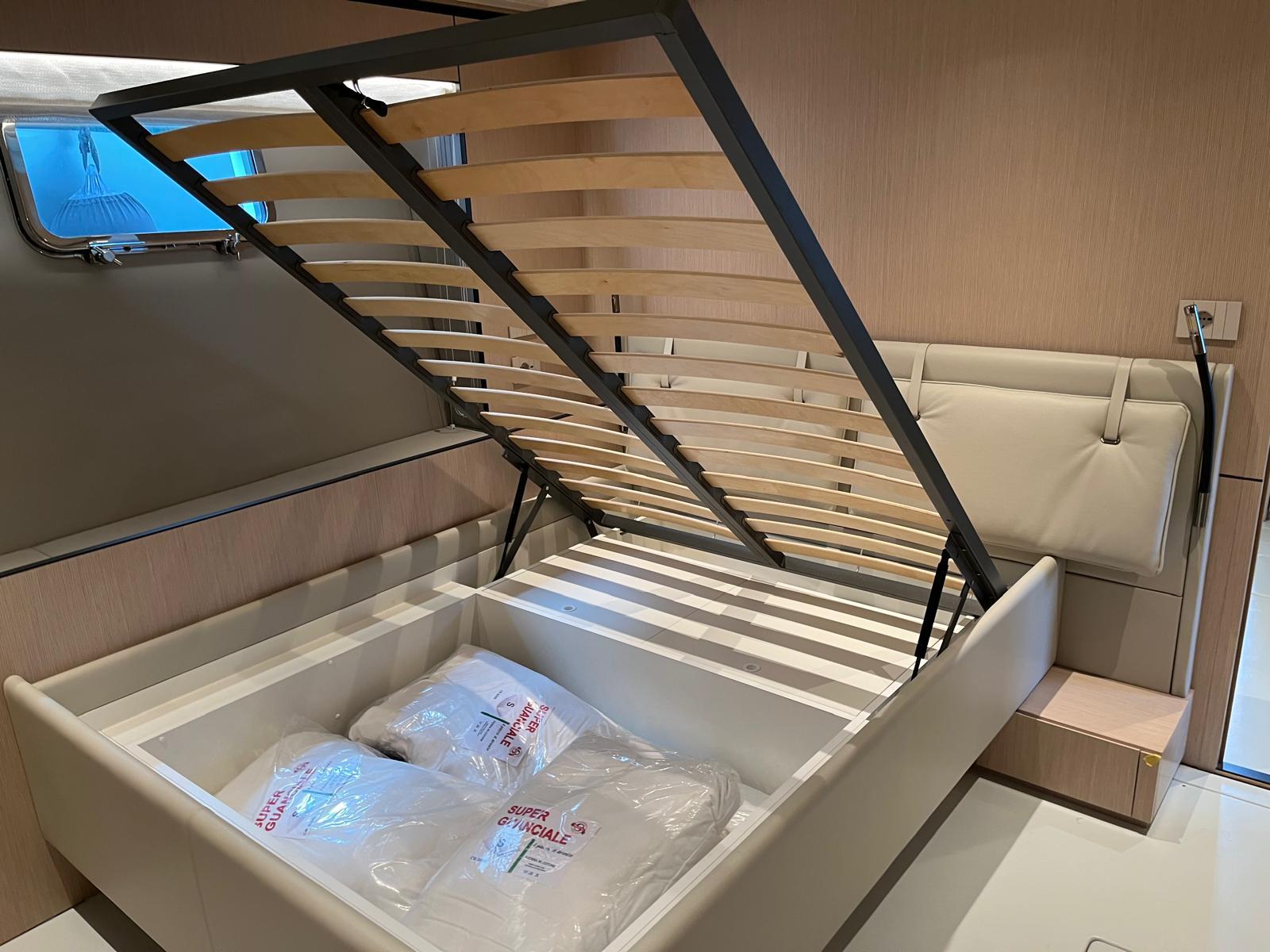

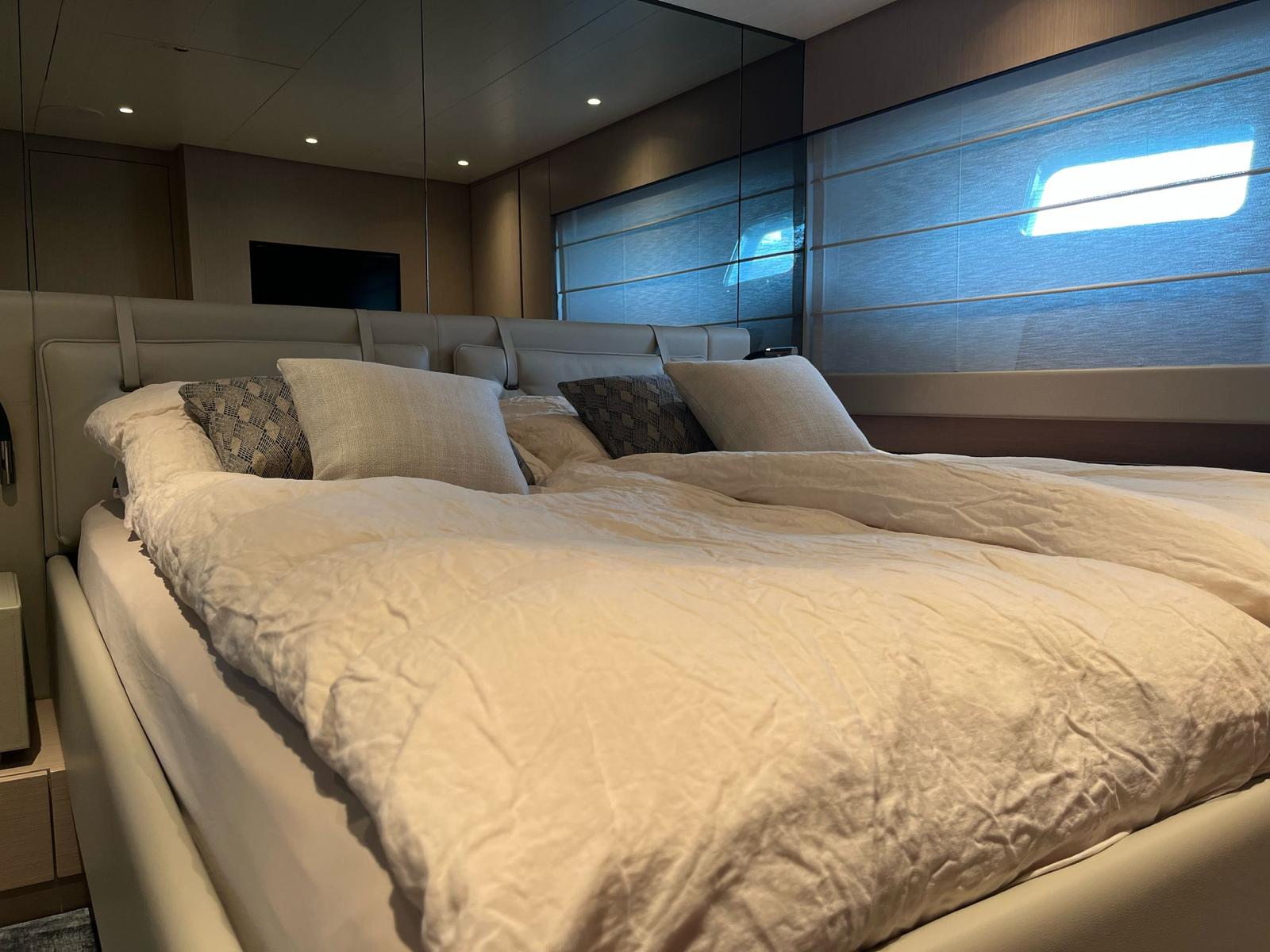

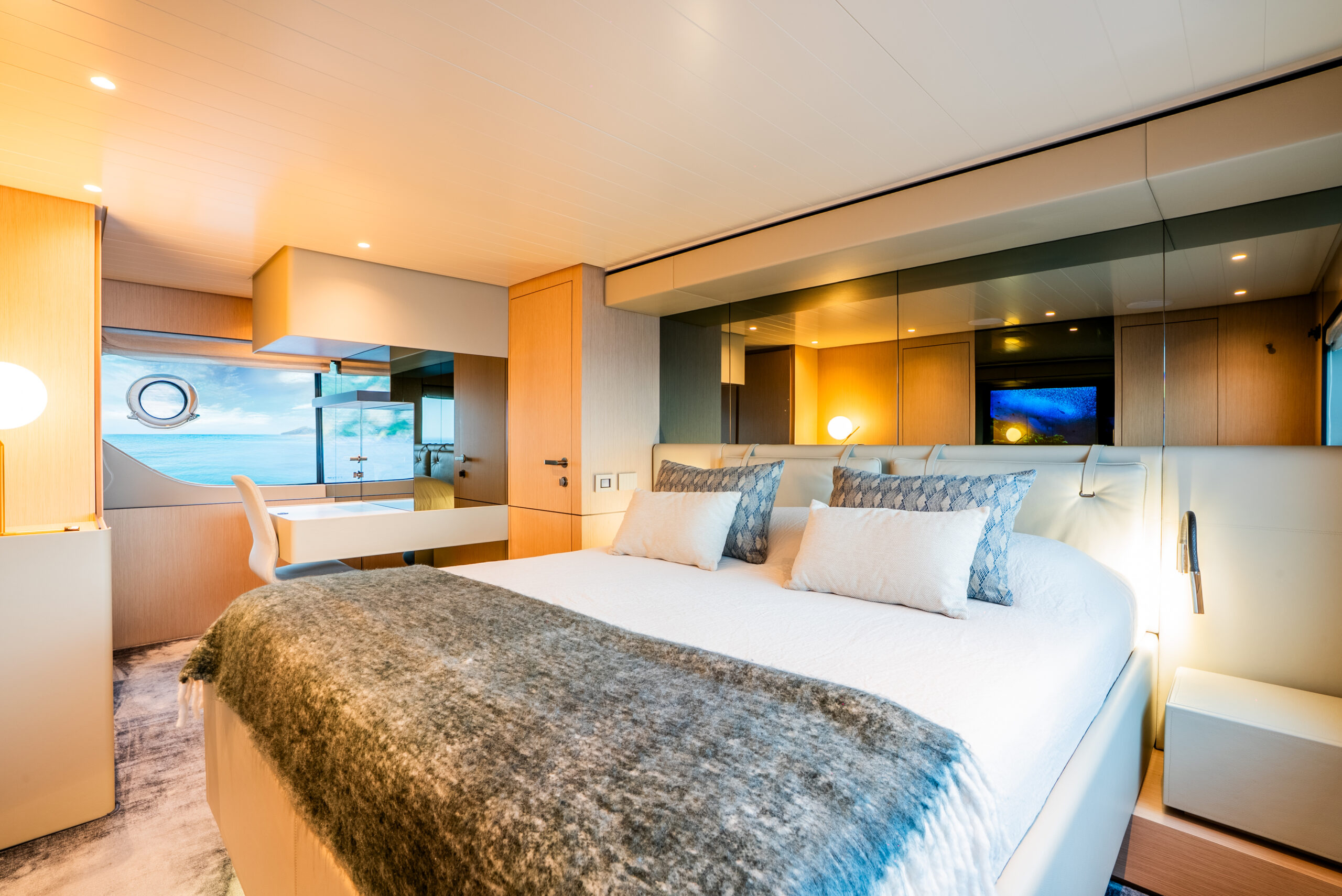

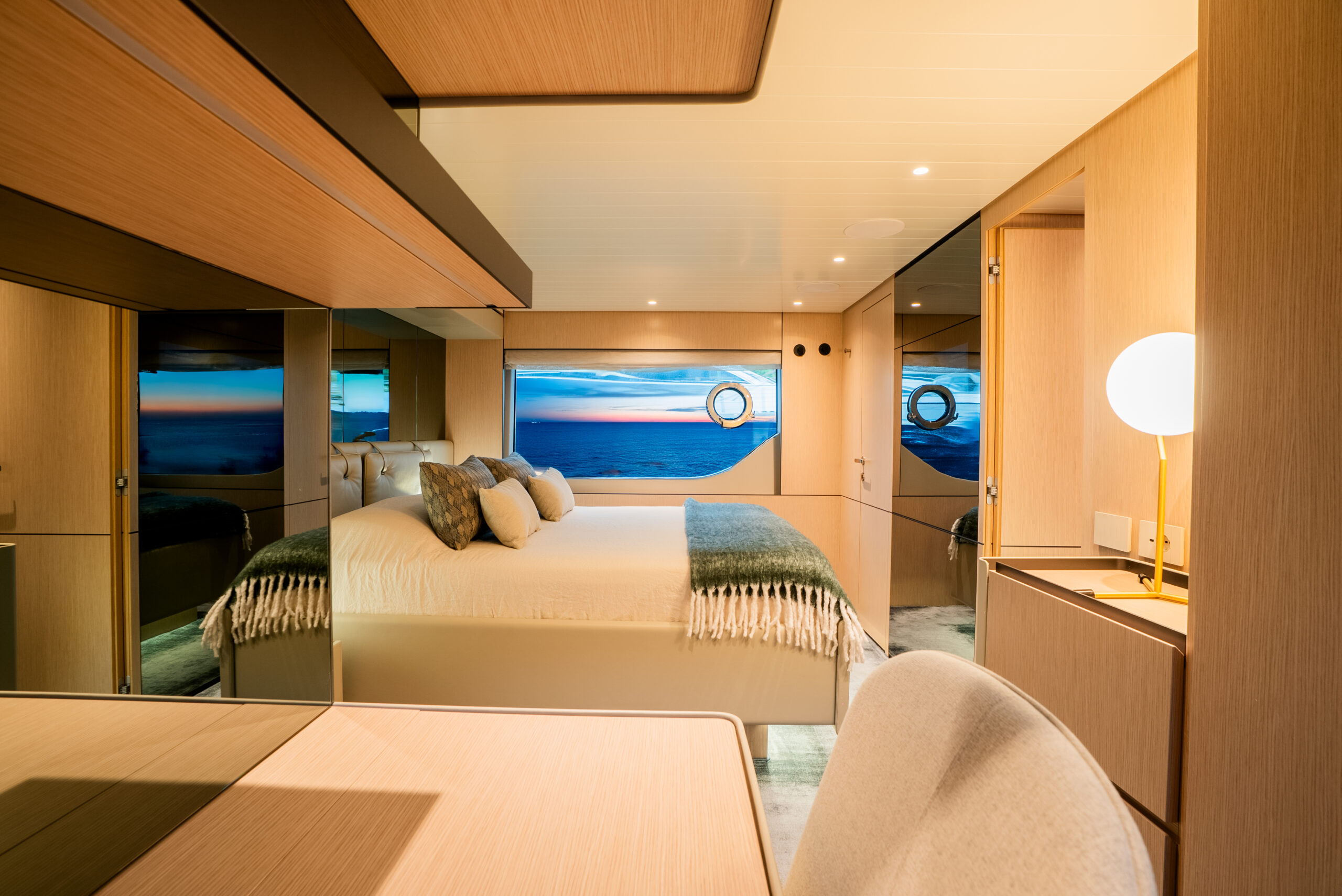

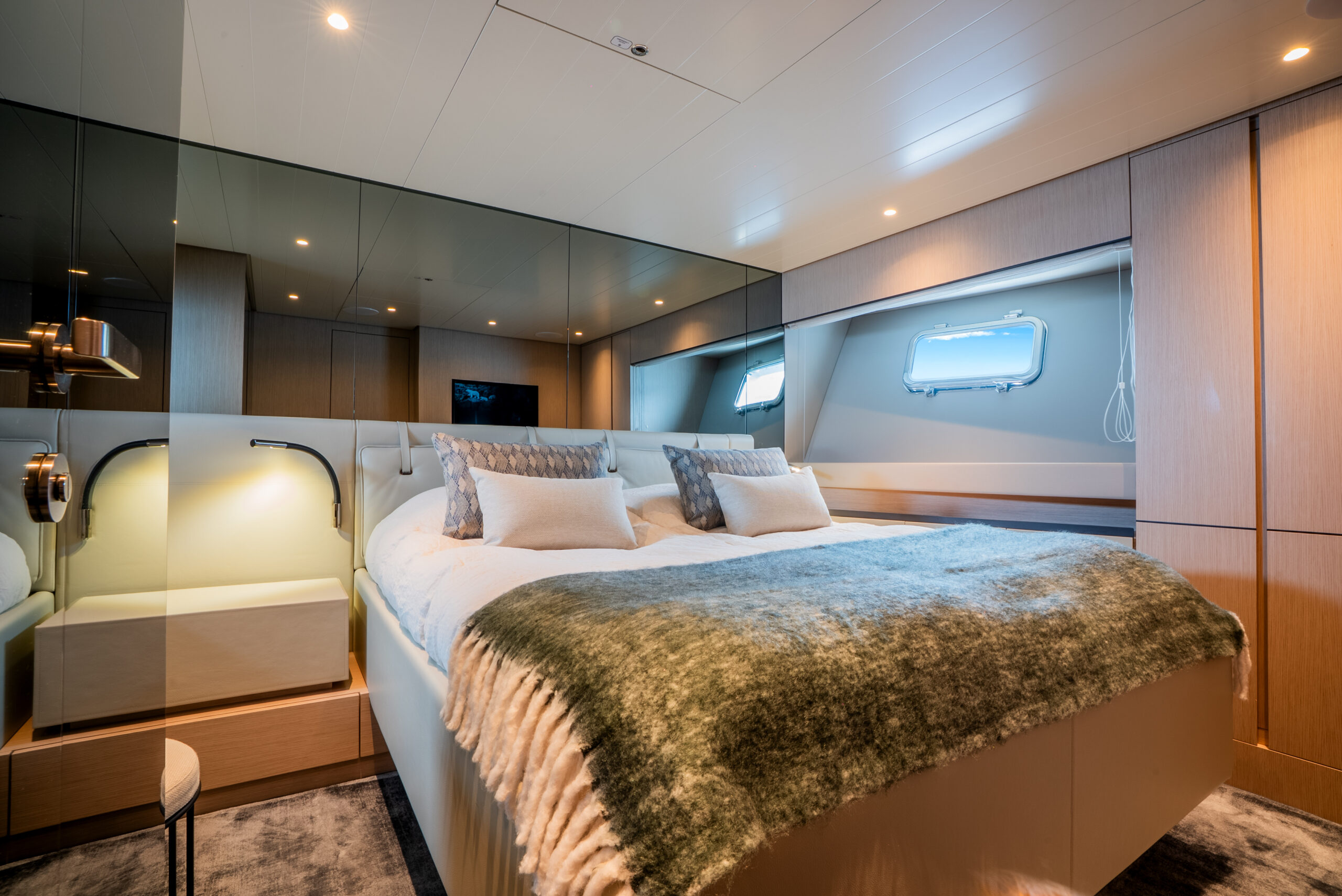

OWNER CABIN

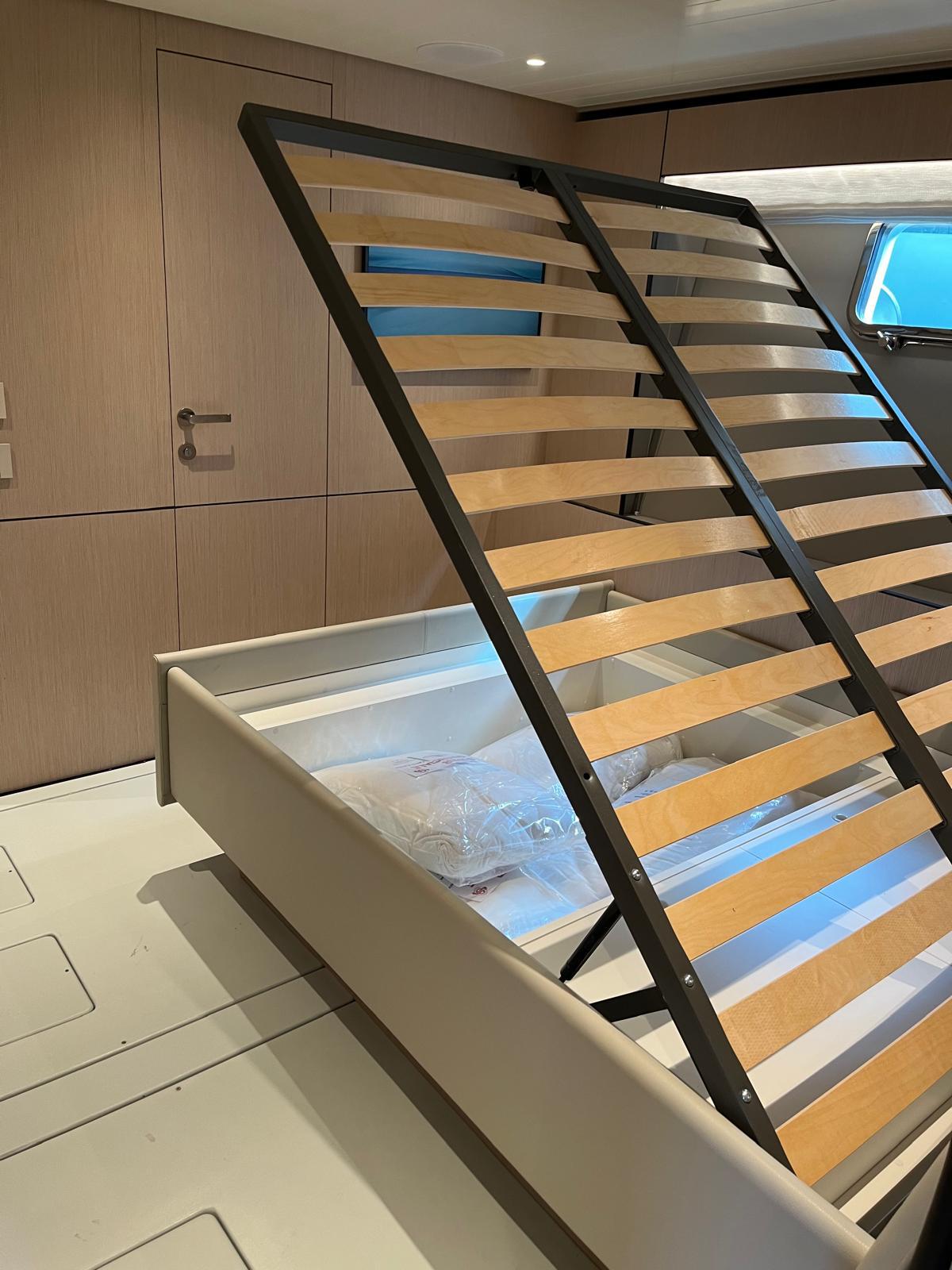

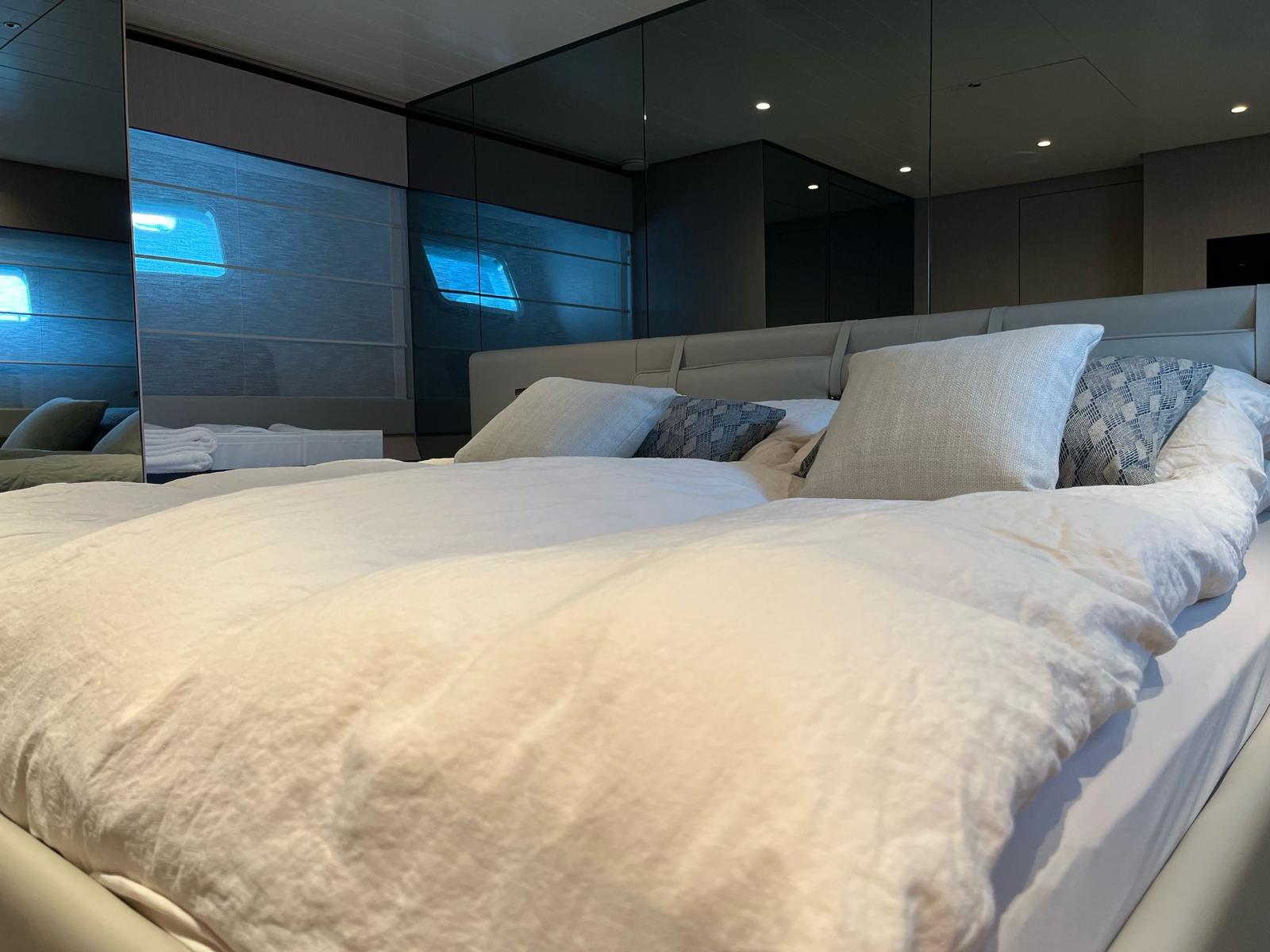

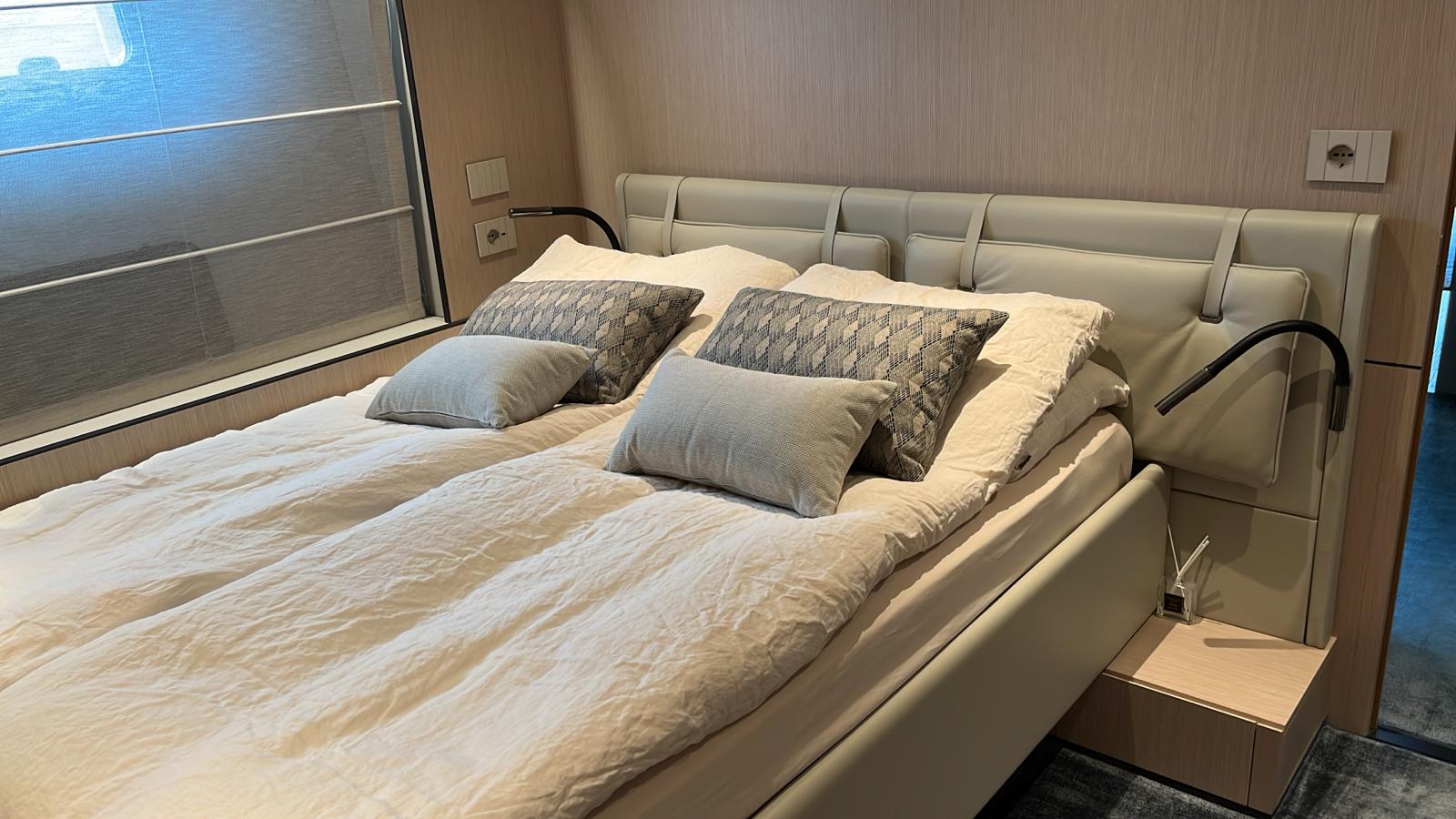

Double bed with mattresses memory foam
Storage cabinet
Nightstands
Carpet floor
Reading lights
Ceiling lights
Courtesy lights
Power and USB sockets
Side tempered glasses with integrated porthole
Blinds
Pillows
Bed sheet covers
Bed sheets
Bathroom towels
Safe
32” TV
HI-FI
Two speakers

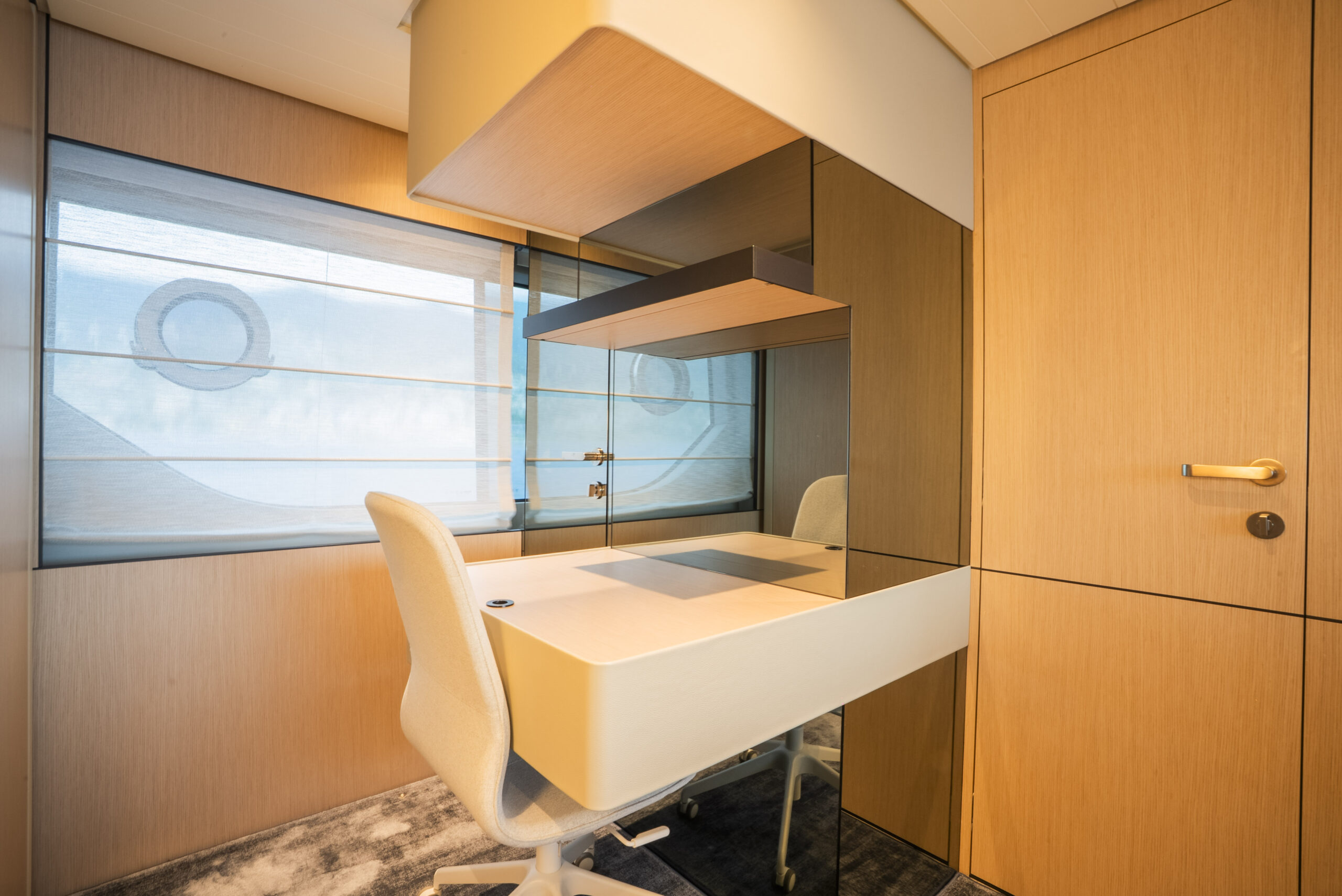

Vanity desk with one stool
Walk-in-wardrobe
Air conditioning fan coil
Fire extinguisher 1 Kg

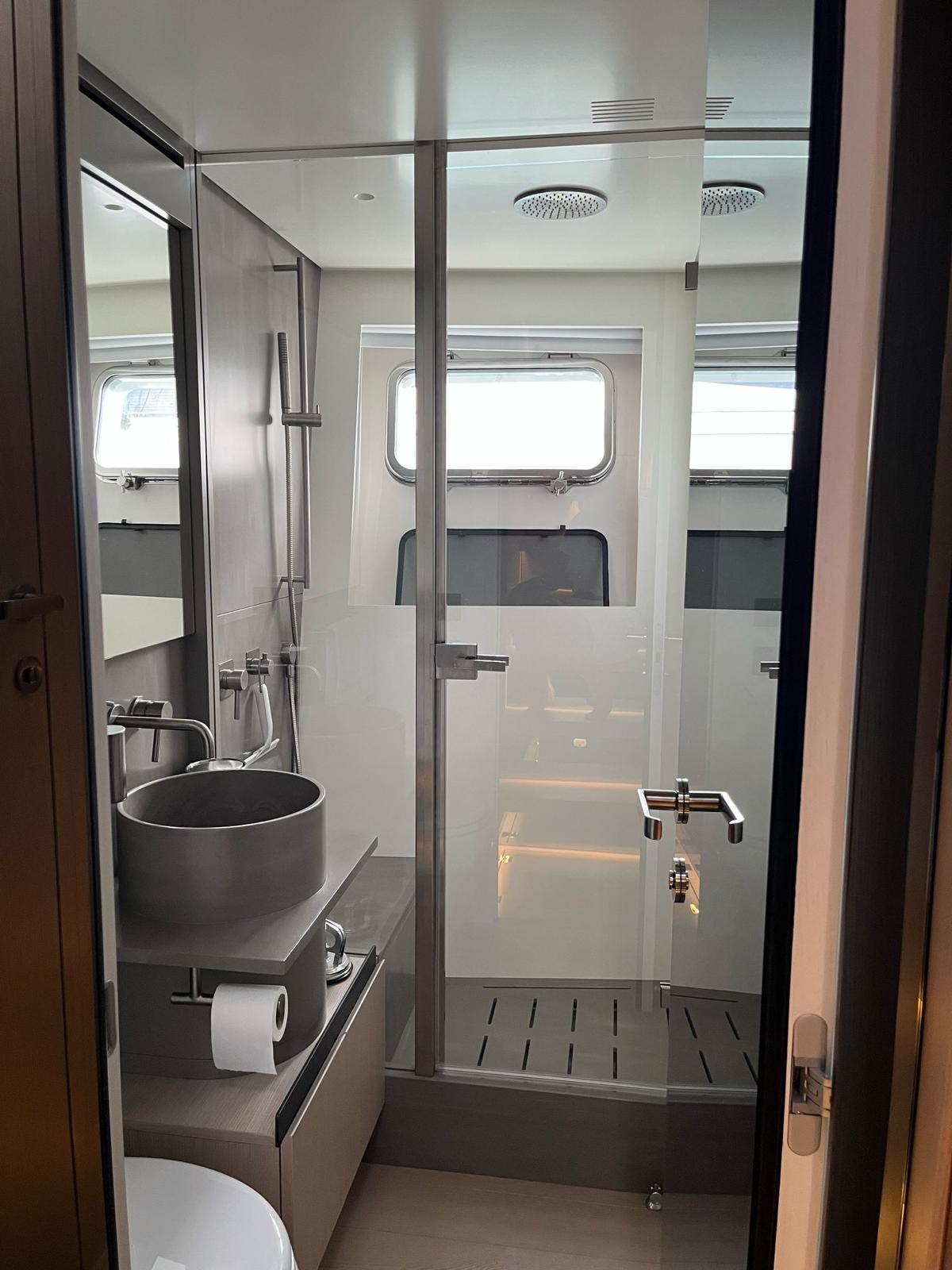

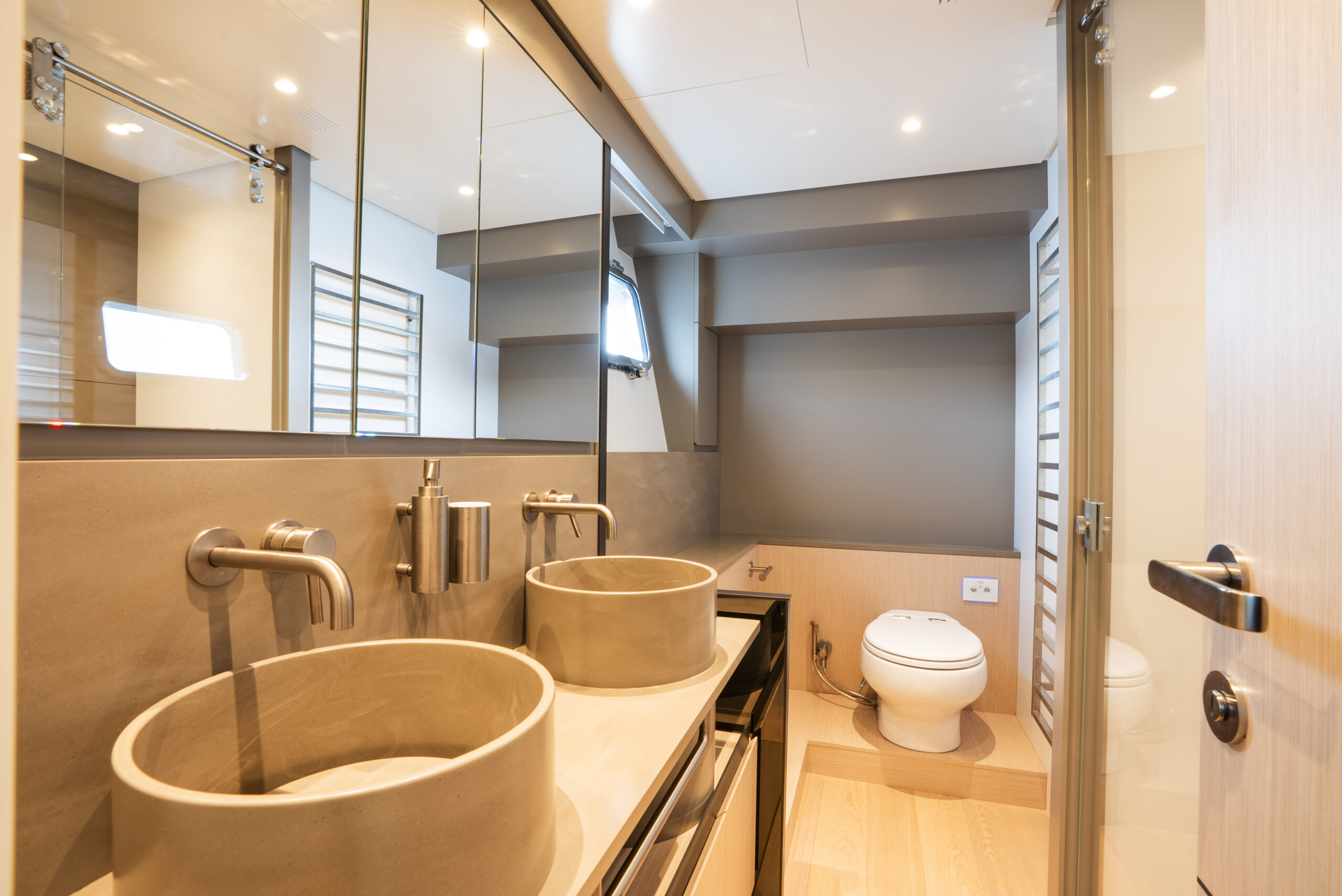

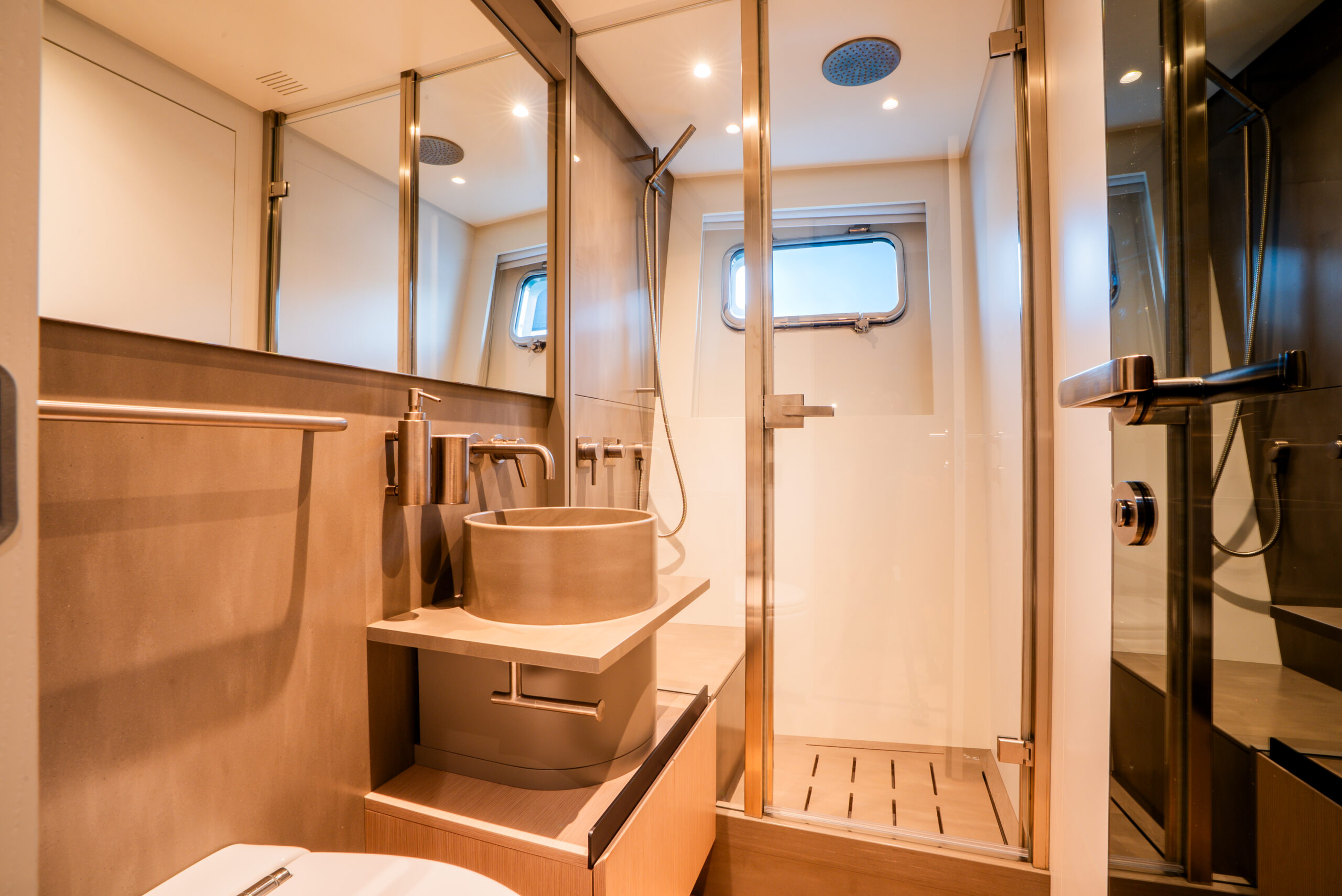

OWNER BATHROOM
Fresh water electric marine WC
Bidet
Wooden floor
Ceiling Lights
Blind
Power and USB sockets
Bathroom accessories
Cabinet with mirror
Porthole

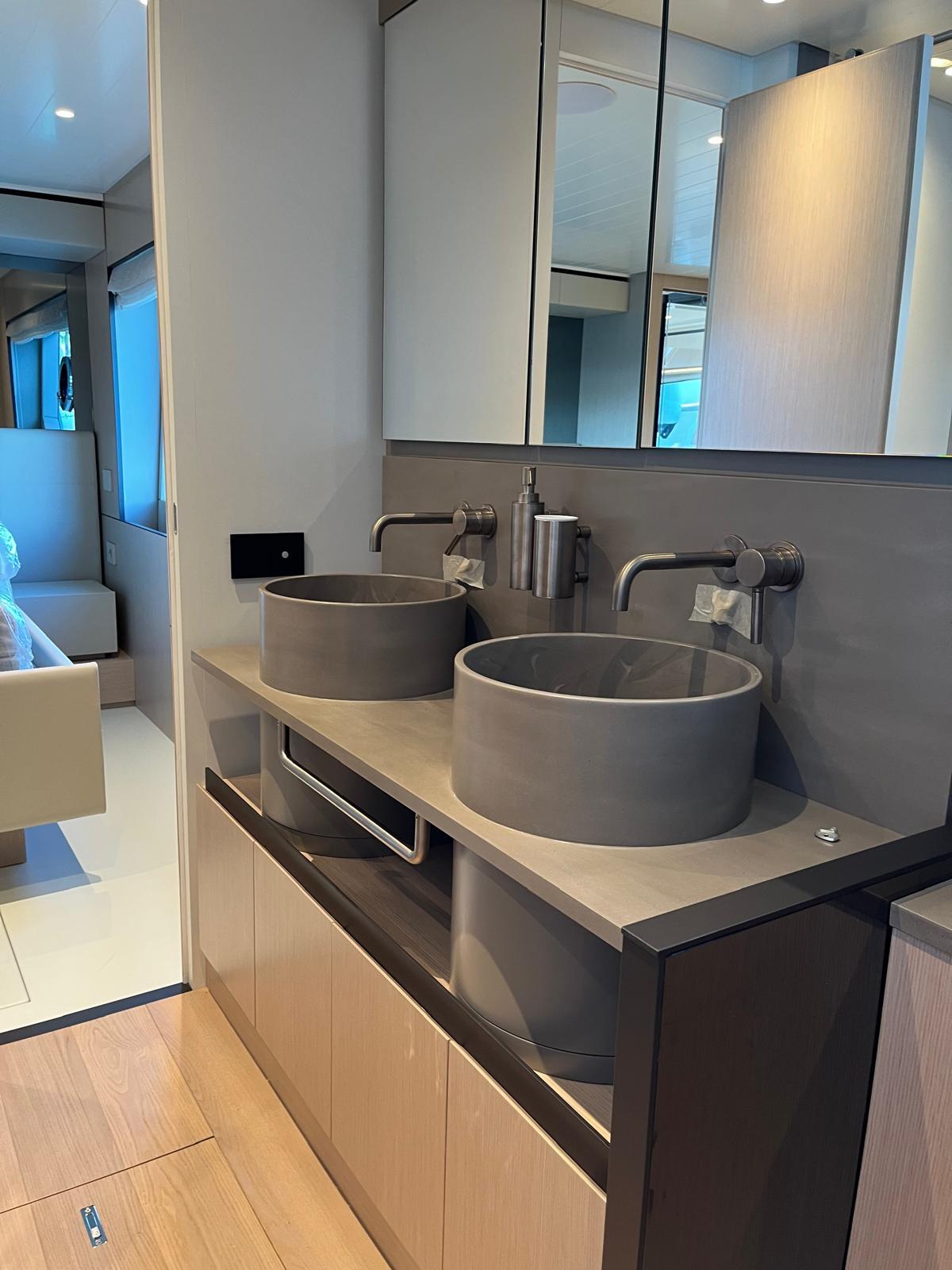

Synthetic surface with integrated double sink
Air conditioning outlet

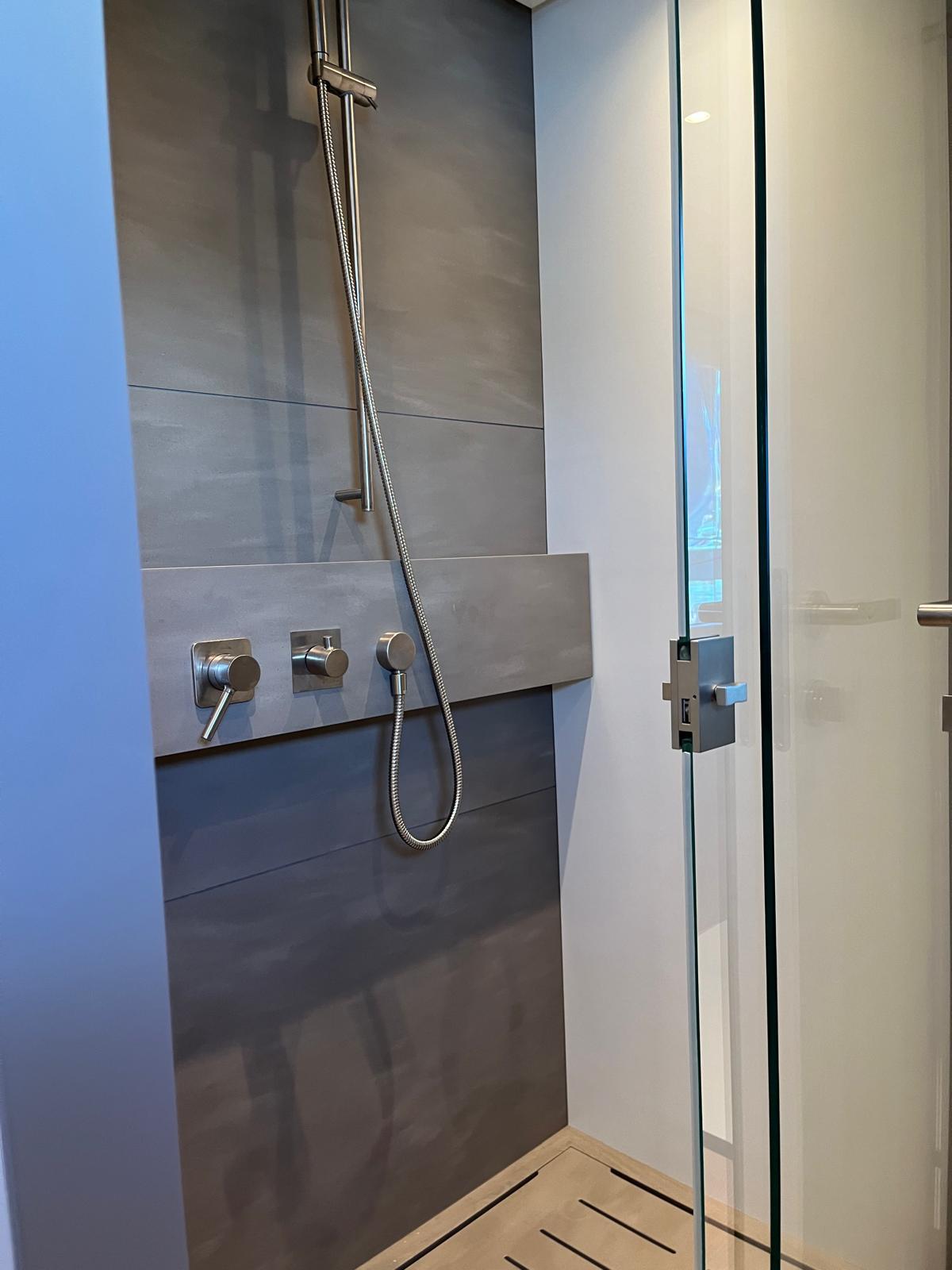

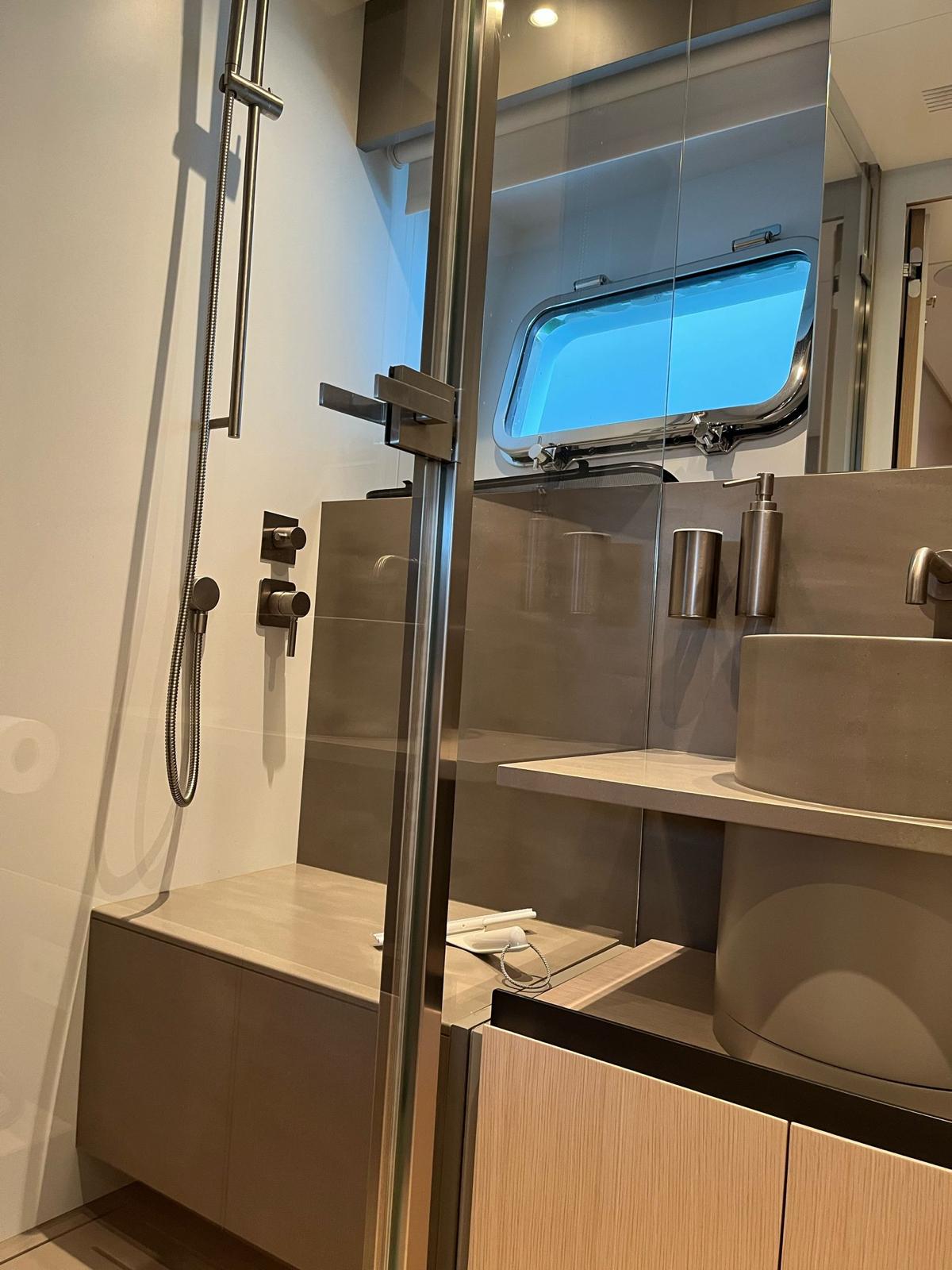

Shower with handset, ceiling shower head and tempered glass door

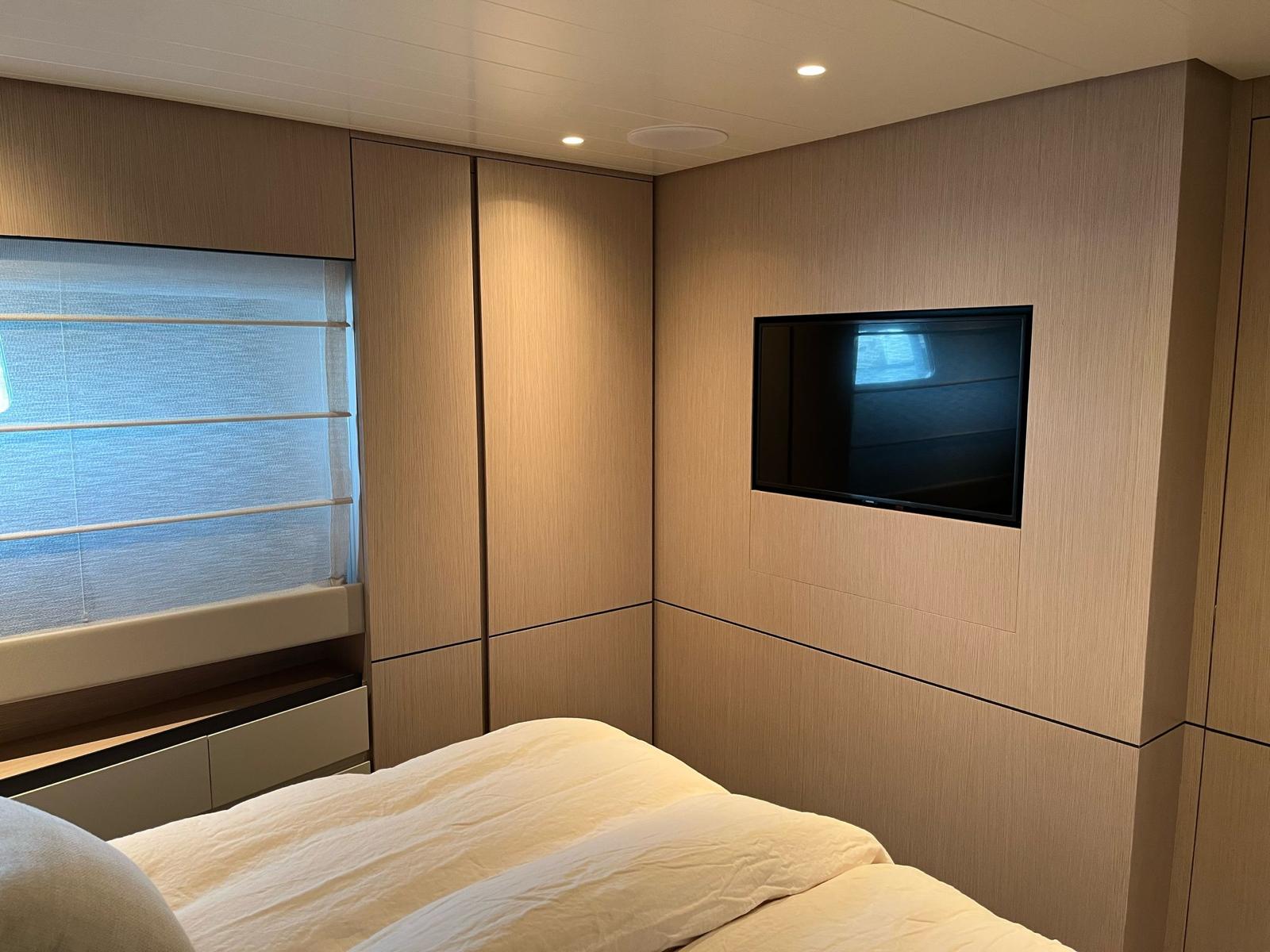

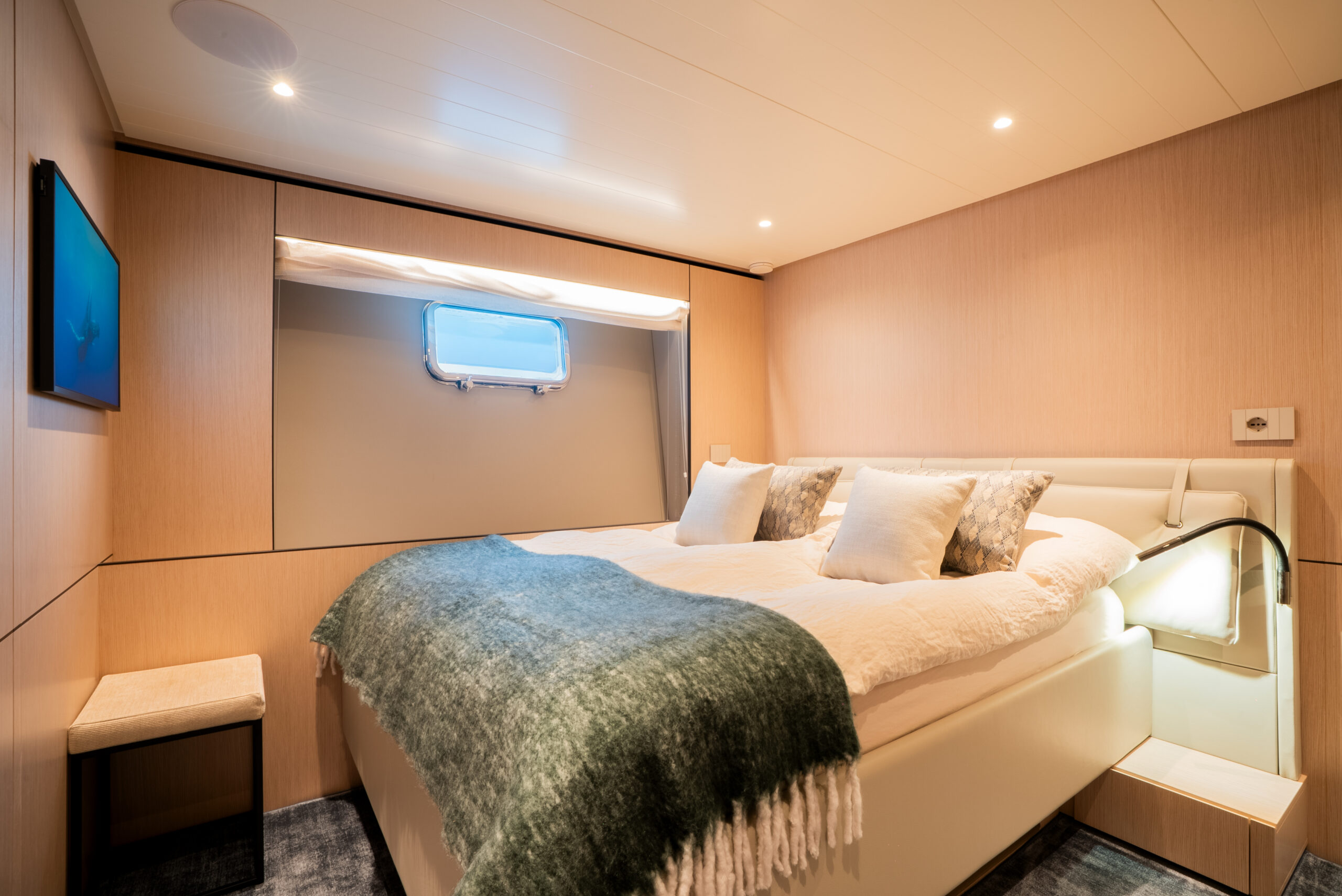

VIP CABIN

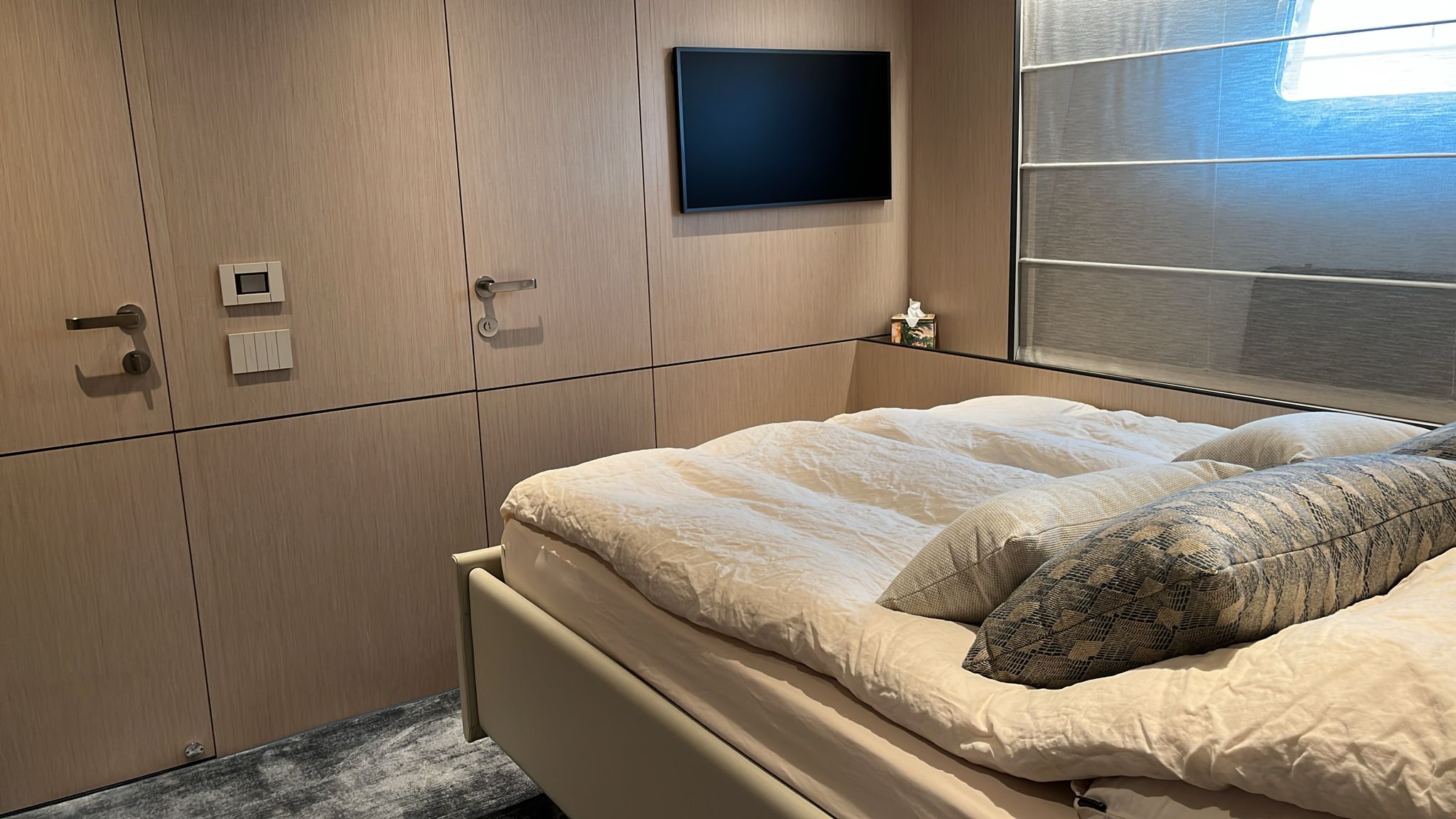

Double bed with mattresses memory foam
Storage cabinet
Nightstands
Wardrobe
Carpet floor
Reading lights
Ceiling lights
Courtesy lights
Power and USB sockets
Two portholes
Blinds
Pillows
Bed sheets
Bathroom towels
Bed sheet covers
32” TV
HI-FI
Two speakers
Air conditioning fan coil
Fire extinguisher 1 Kg

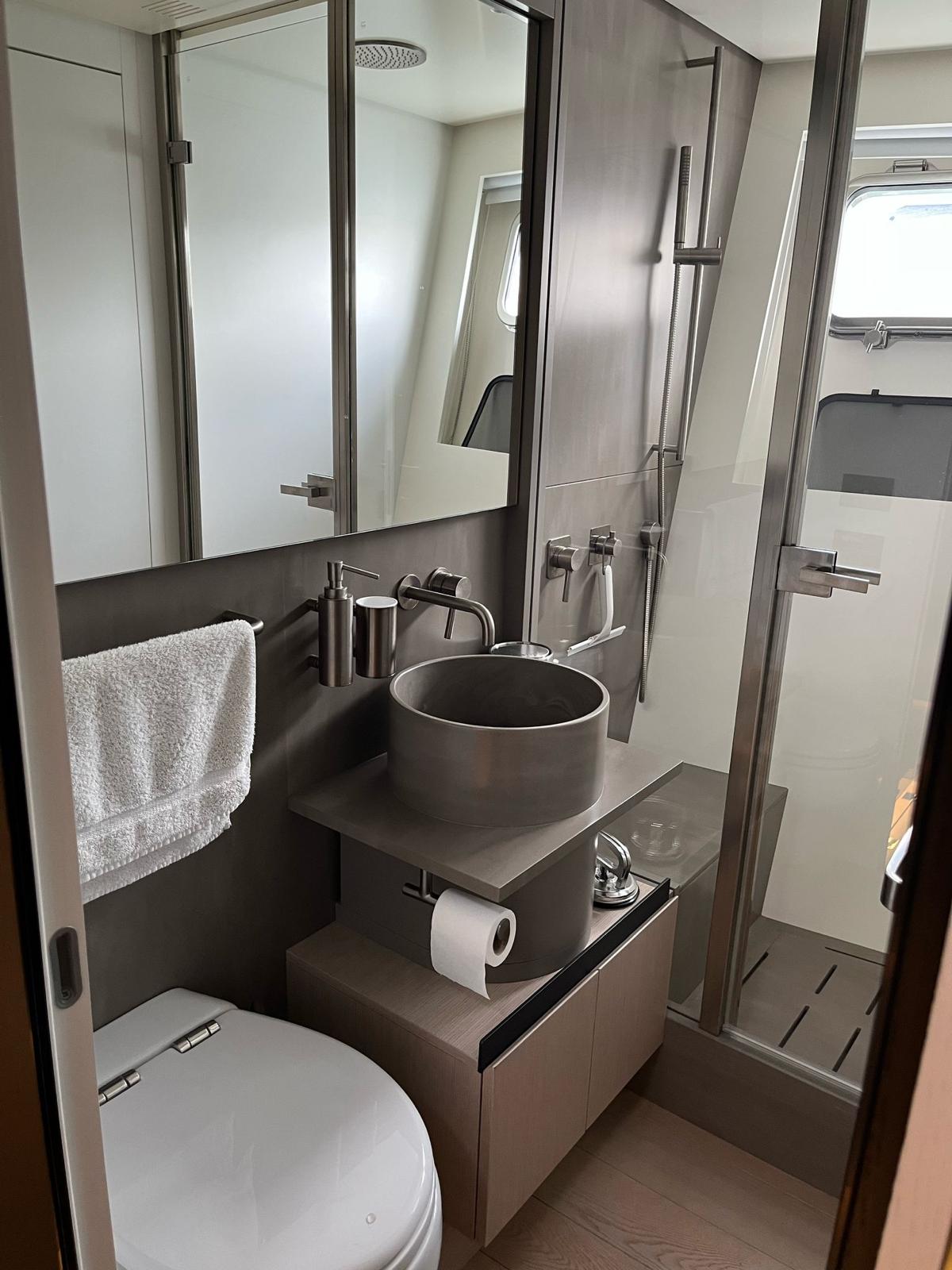

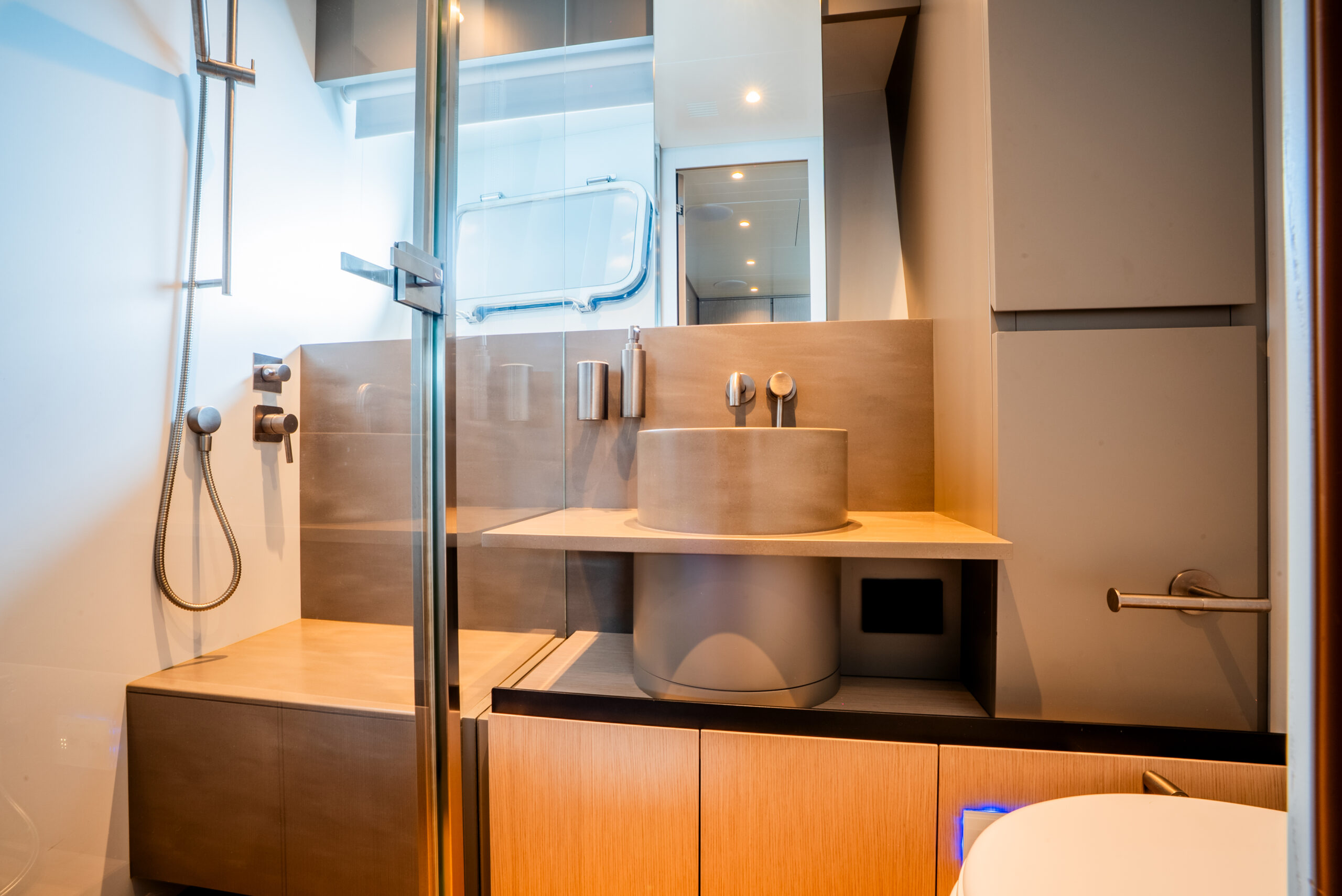

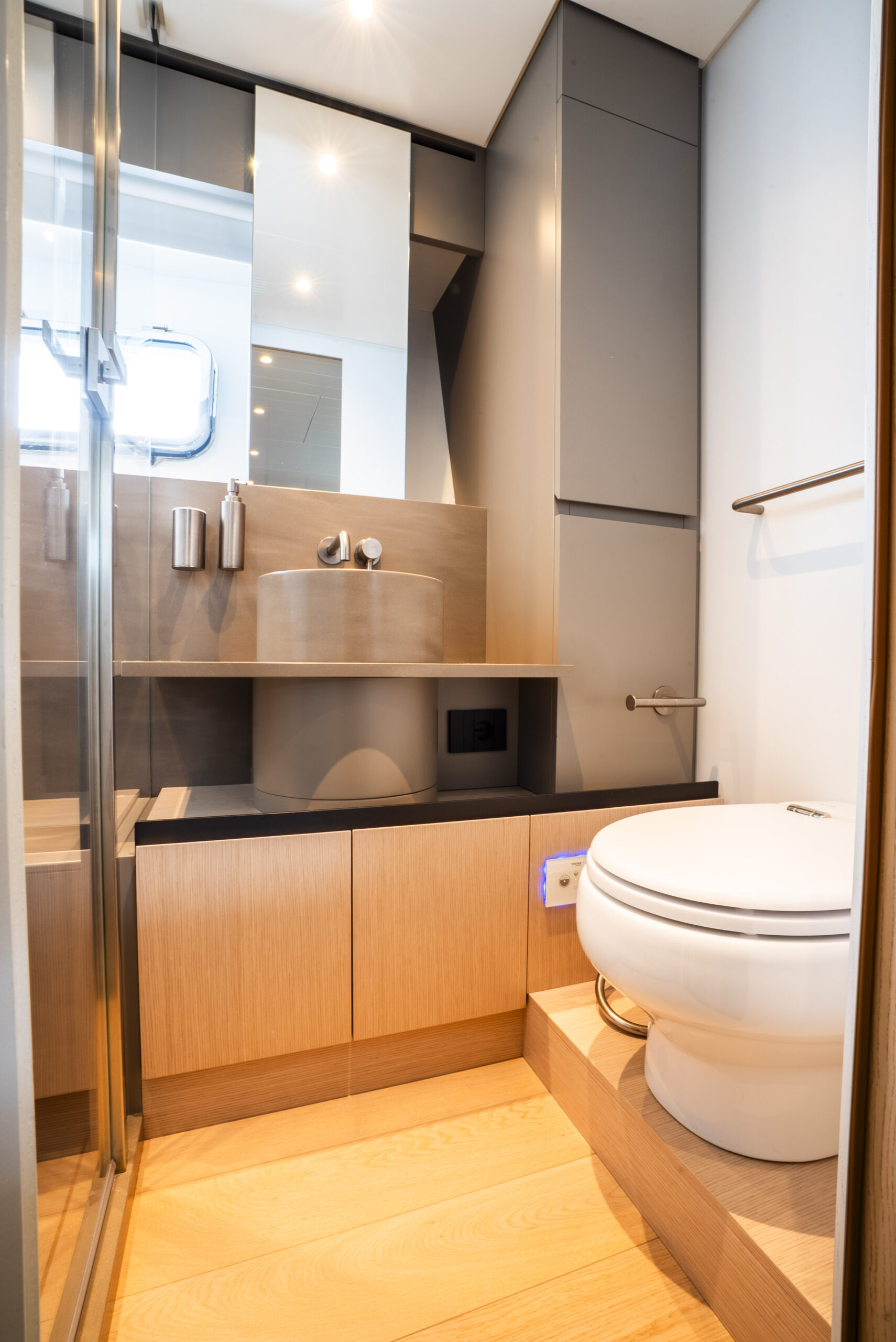

VIP BATHROOM
Fresh water electric marine WC
Wooden floor
Ceiling lights
Blind
220 V sockets
Bathroom accessories
Cabinet with mirror
Porthole
Synthetic surface with integrated sink
Air conditioning outlet

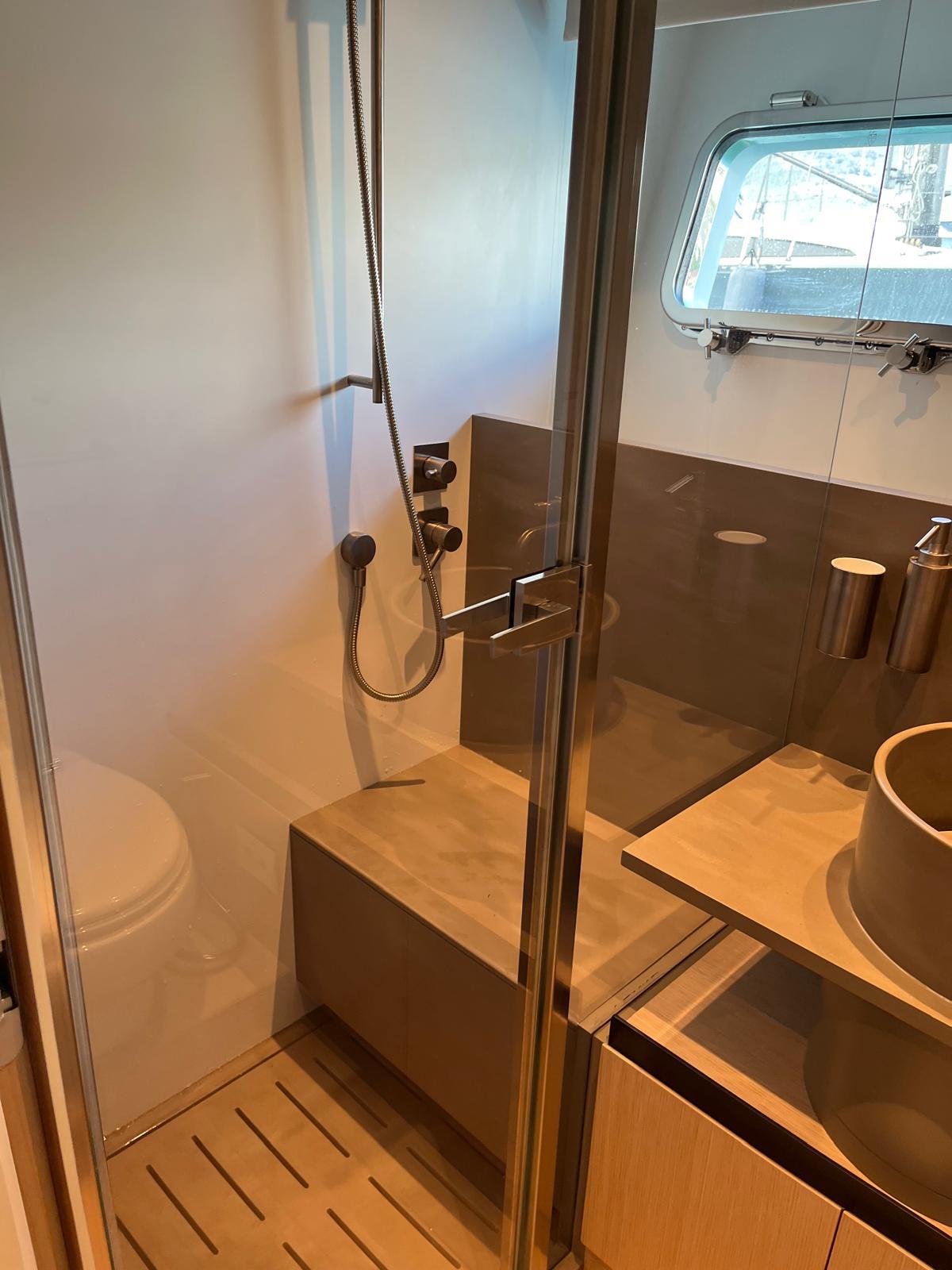

Shower with handset, ceiling shower head and tempered glass door

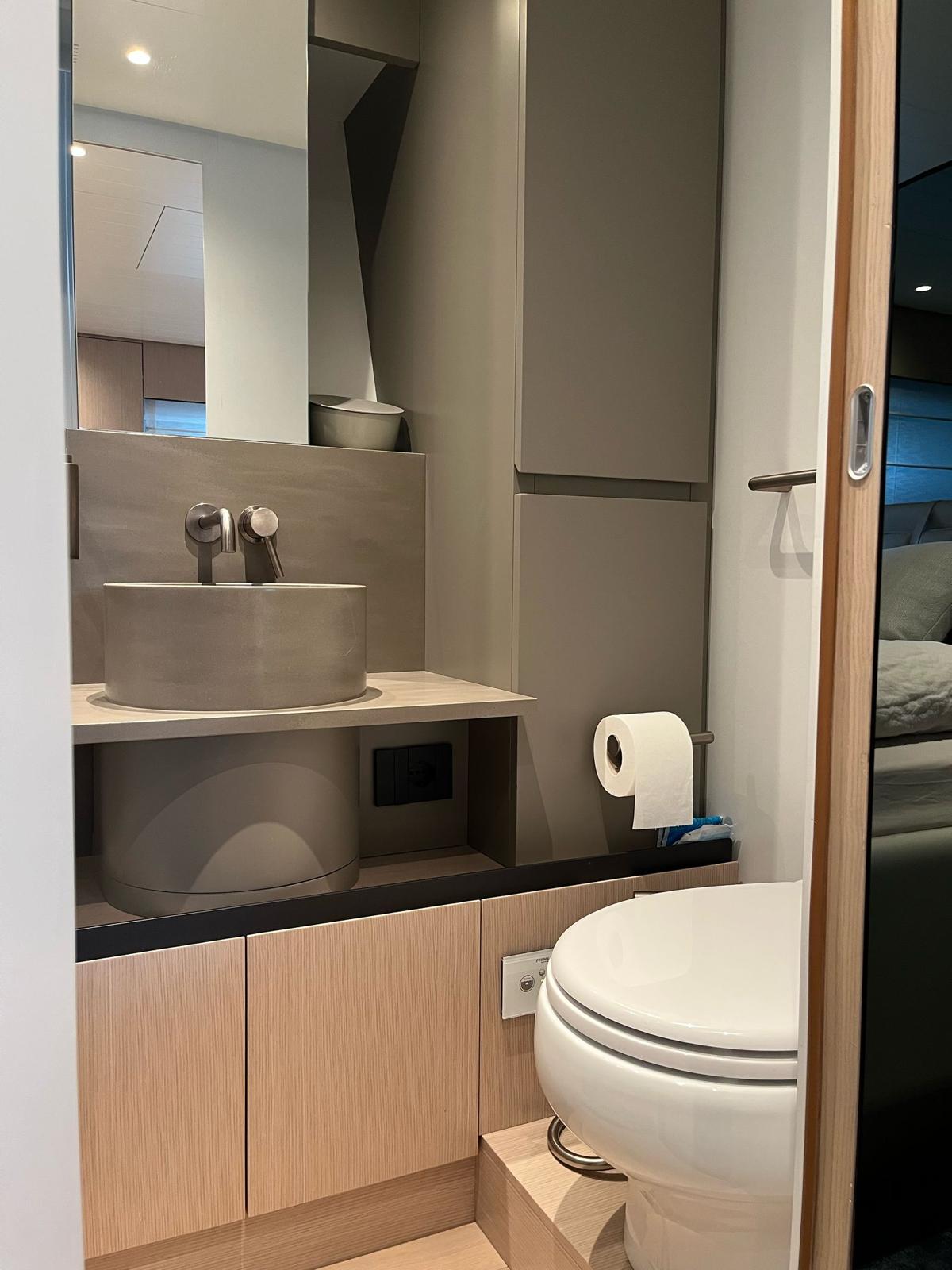

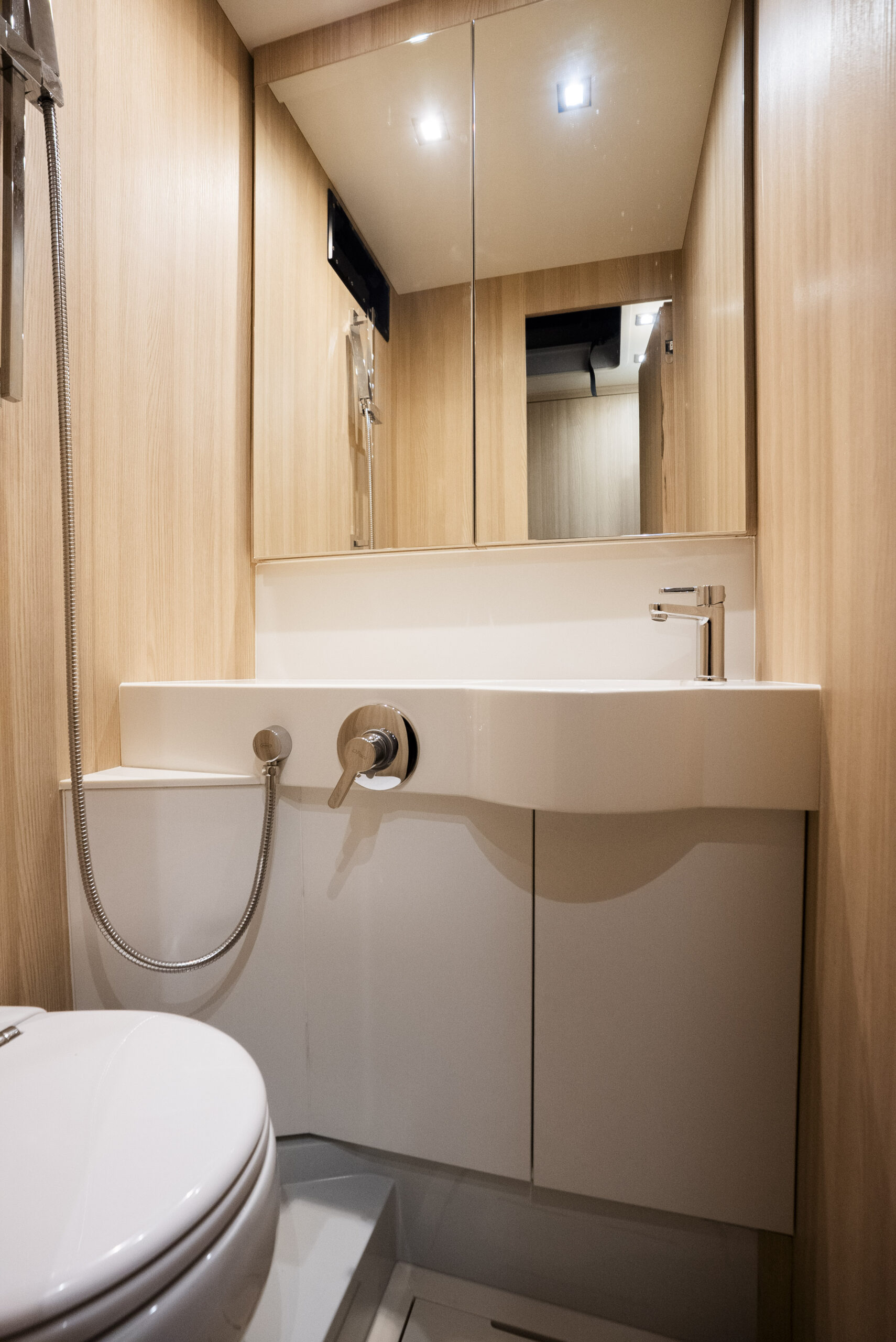

GUEST BATHROOM
Fresh water electric marine WC
Wooden floor
Ceiling lights
Blind
220 V sockets
Bathroom accessories
Cabinet with mirror
Porthole
Synthetic surface with integrated double sink
Air conditioning outlet
Shower with handset, ceiling shower head and tempered glass door

LOBBY
Storage area with wash/dryer machine
Teak stairs from deckhouse to lower deck
Courtesy lights
Floor hatch to storage area

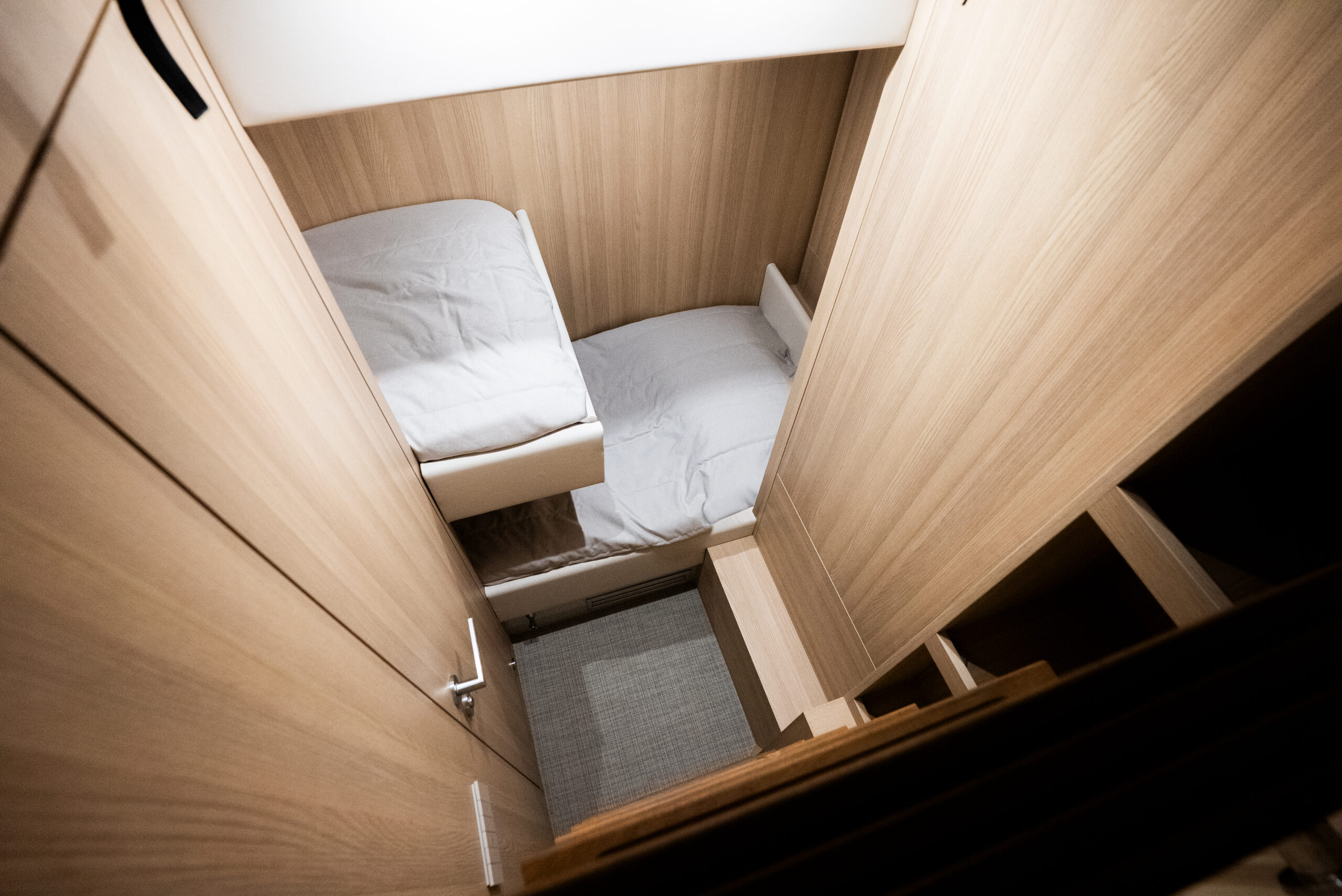

CREW CABIN
Two bunk beds
Storage cabinet
Reading lights
Ceiling lights
Porthole
Synthetic floors
Blinds
Pillows
Bed sheets
Power and USB sockets
Air conditioning fan coil
Separate bathroom with:
Fresh water electric Marine WC
Synthetic floor
Ceiling lights
Power socket
Bathroom accessories
Storage cabinet
Porthole
Shower
Crew set uniform

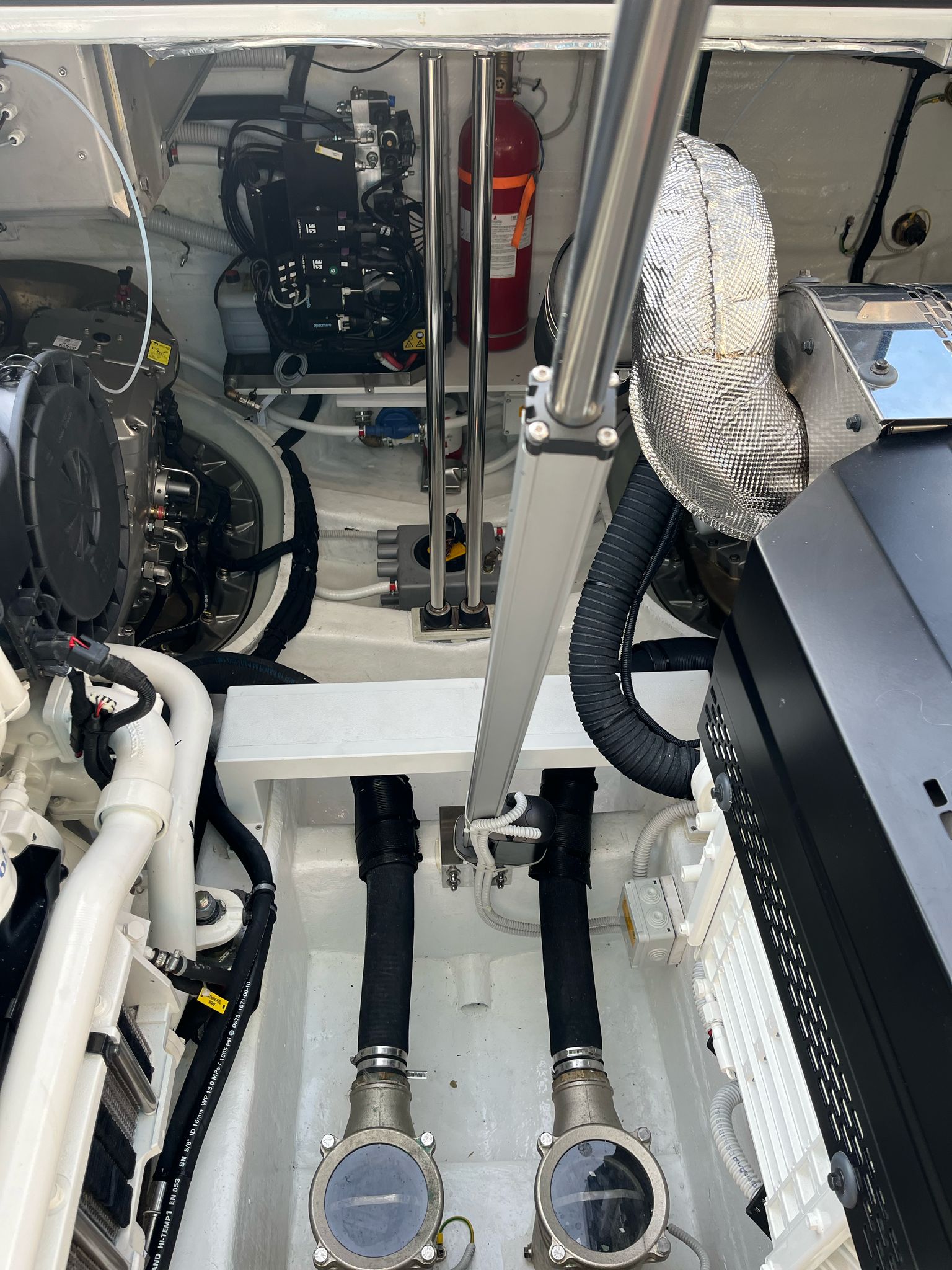

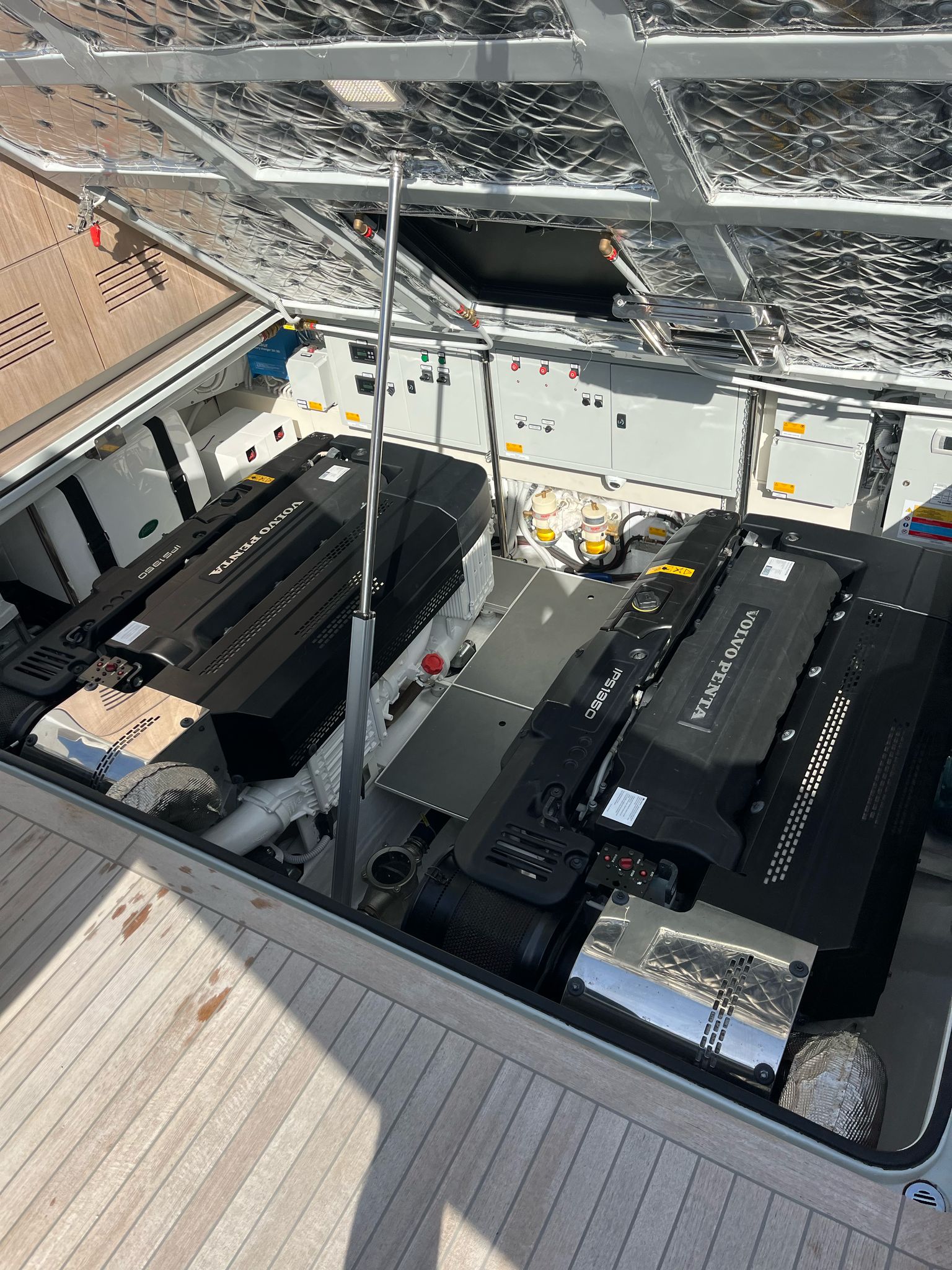

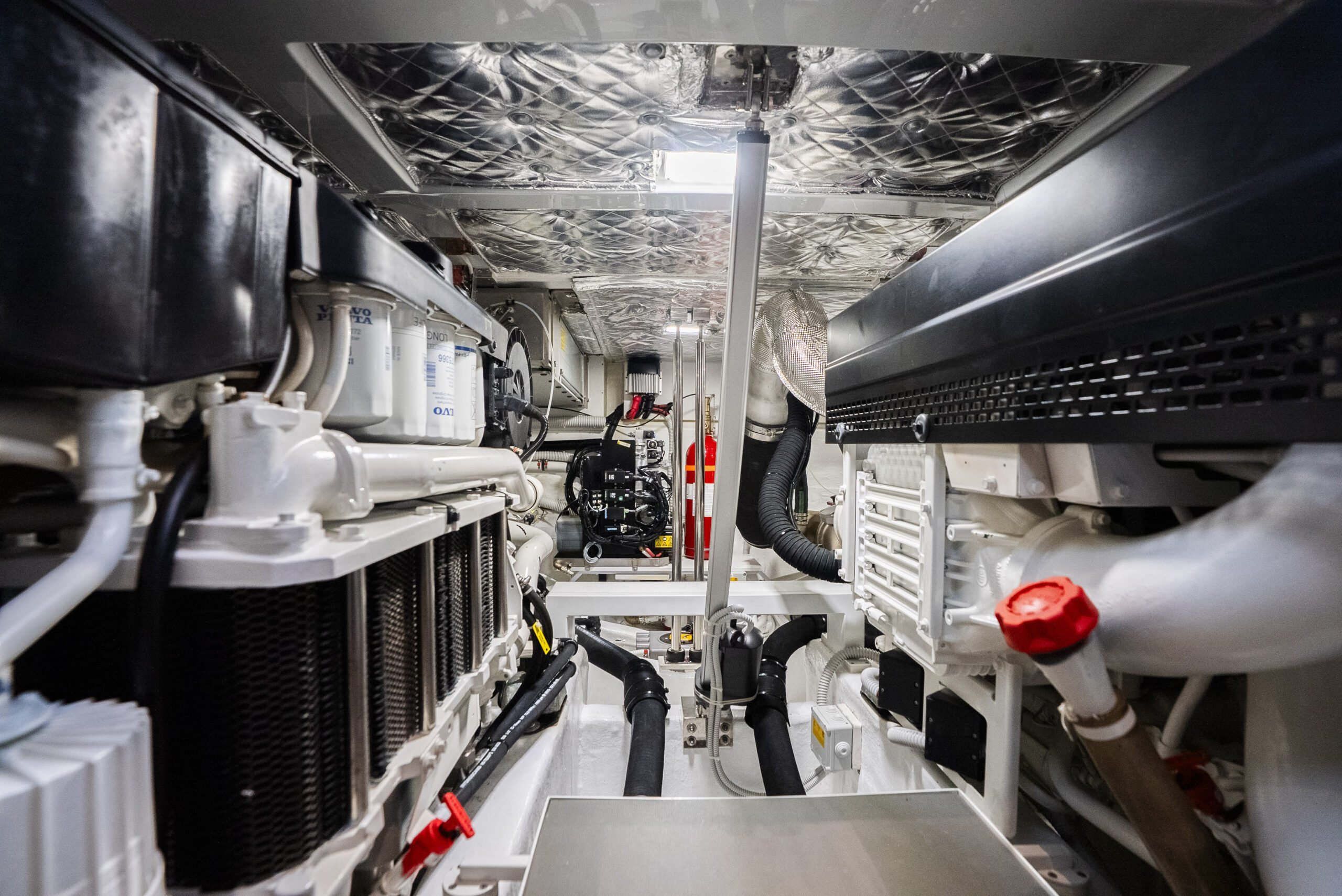

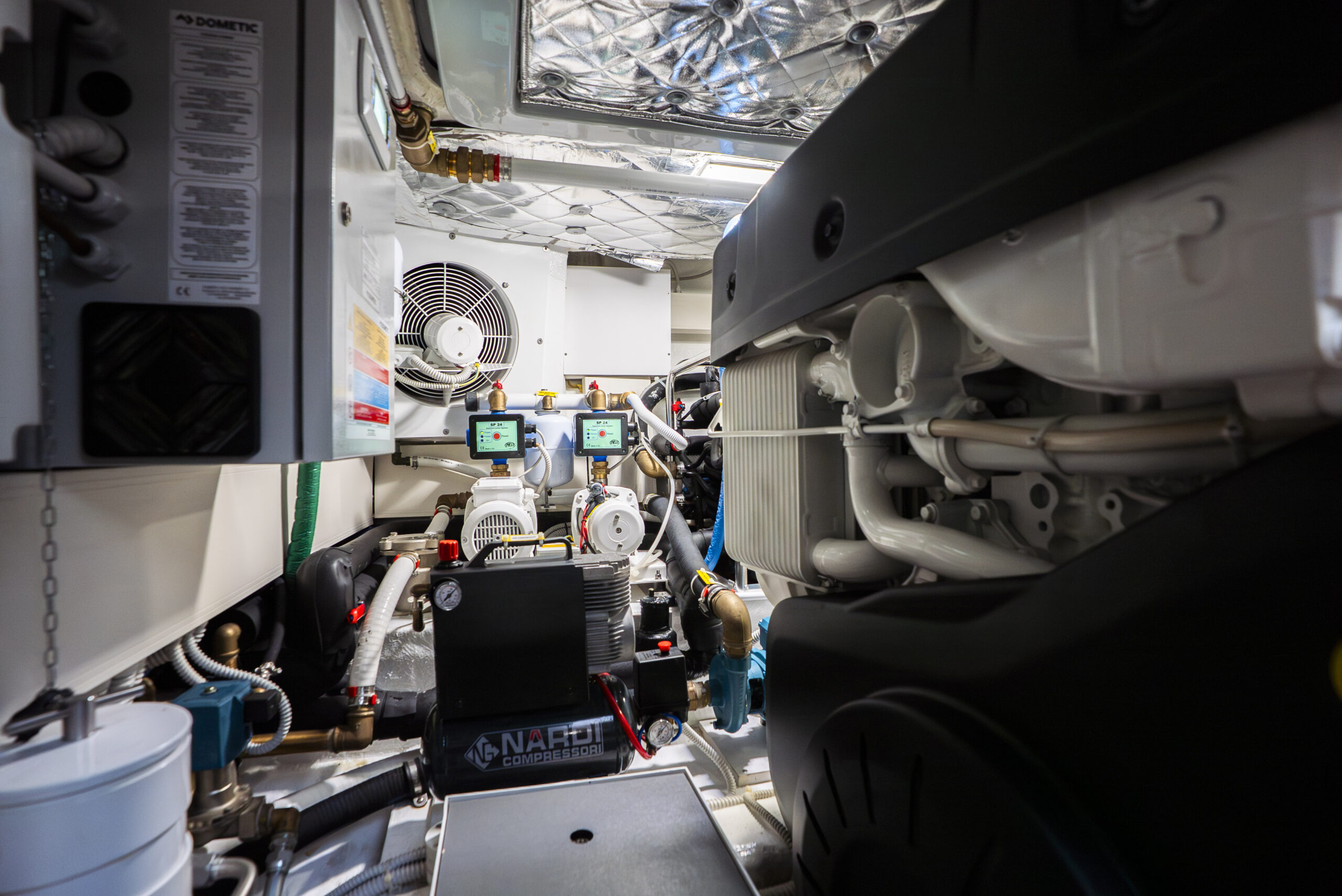

ENGINE ROOM

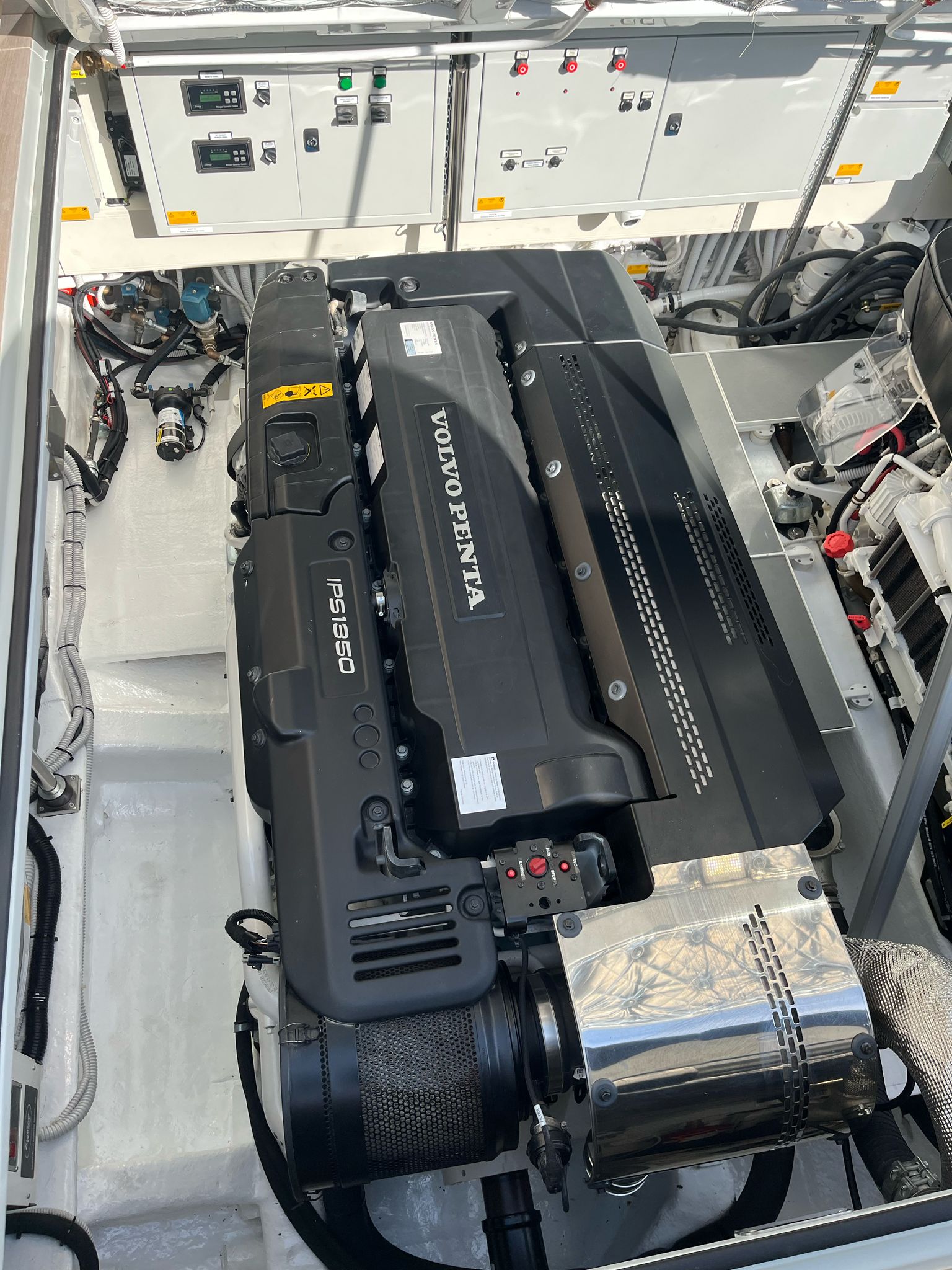

2 x Volvo IPS 1200 D13 / 2 x 588 kW / 900 HP
4000 l fuel structural tank in composite with fuel level sender connected with EVC Volvo system 7
S/S daily tank in engine room 200 l
Automatic valves for fuel shout-off
Double fuel filter separator
Fire extinguisher system with manual and automatic control
Engine room led lights
AC chiller unit 96000 btu
Engine room insulation
Two electrical ventilators with cycle reversion and thermostat switch
Air inlet with water separator filters
Watertight power sockets
Water Filter
Opening engine room cover
Optical smoke detector
Overpressure detector integrated with Garmin automation
S/S engine room access ladder
Intruder trim system

HYDRAULIC SYSTEM
1000 l polyethylene fresh water tank with level indication on main panel
Two boilers 50 l 220 V
Black water tank 330 l with level indication on main panel
Gray water tank 330 l with level indication on main panel
Shore black water discharge system 24 V
Shore grey water and bilge discharge system 24 V
Double fresh water pump 24 / 230 V
Black water hoses in special anti smell rubber
High pressure fresh water inlet from shore
Six bilge pumps; two in engine room, two in stern area and two in center hull, with automatic and manual control
Salt water system for anchor chain wash

ELECTRICAL SYSTEMS
Generator 22,5 kW
Four batteries 12 V / 130 Ah AGM for engines
Electromechanical switching for batteries with remote control
8 Service Gel batteries pack 24 V / 660 Ah
One battery 12 V / 165 Ah for generator
Two Bow Thruster and winch batteries pack 12 V / 165 Ah
Battery charger 24 V / 80 Ah for services
Battery charger 24 V / 30 Ah for engines
Battery charger for generator
230 V shore power 62 A with connection cable 15 m
Galvanic Isolator 62 Ah
Inverter 2000 W
Electric bow thrusters 170 Kgf
AC Electrical Panel (230 V) CE certified on electrical room with electromechanical switching for all outlet with remote control on main panel
DC Electrical Panel (24 V) CE certified on electrical room with electromechanical switching for all outlet with remote control on main panel
All

FUNCTIONALITY
Volvo Penta IPS1350 (diff. From STD IPS1200)
Glendenning Cablemaster CM 7
LED Search Light with remote control
Variable speed bow thruster 210kgf (diff. From STD)
Underwater Lights (n.2 )
DPS for Volvo Penta IPS
Bow area furniture below windscreen
Upgrade to Gyroscope Seakeeper 18
Fan extractors in owner, guests and crew toilets

DECORATION
Upgrade upper and lower deck Venetian blinds in eco-leather (diff. From STD wooden blinds)
3rd cabin with double bed plus door

ELECTRONIC
Wi-Fi system with n.2 antennas and n.2 repeaters
Garmin Radar Open Array HD 4KW painted in deck house roof colour (diff. from STD)
N.3 Volvo glass cockpit 16″ (diff. from 12″ STD)
Empty dome GTV6 painted in deck house roof color (n. 2)
Night vision camera FLIR M232
CCTV System 6 fixed cameras (n.2 in engines room, n.2 on each side of the terrace in order to see the aft, n.2 on the platform)

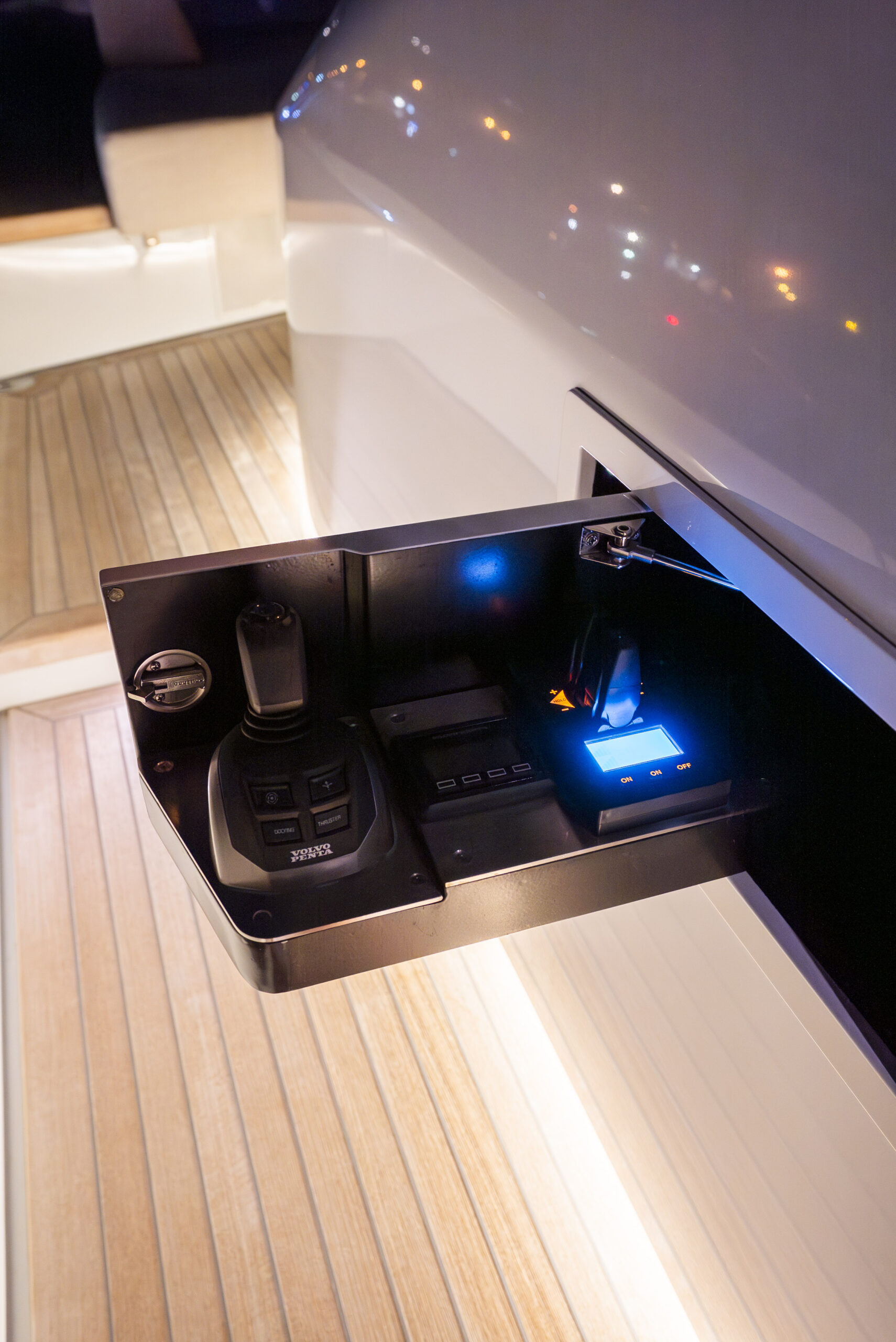

External docking station in upper cockpit (n. 2) on both sides of wheelhouse
AIS system for Garmin AIS Rx/Tx

COMFORT
A/C 72.0000 BTU
Sliding roof in hard top
Electric Plancha in wetbar
Icemaker in wetbar

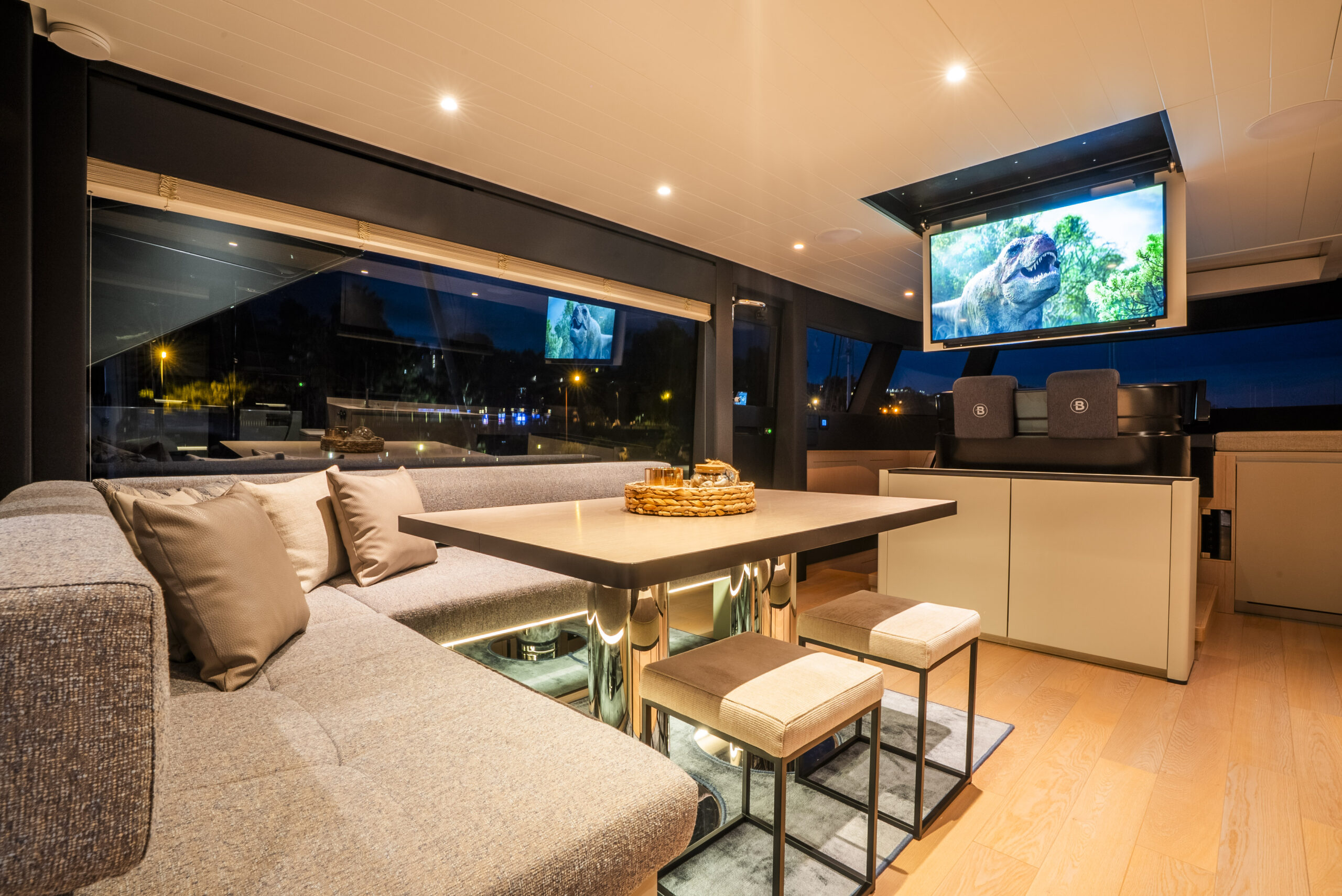

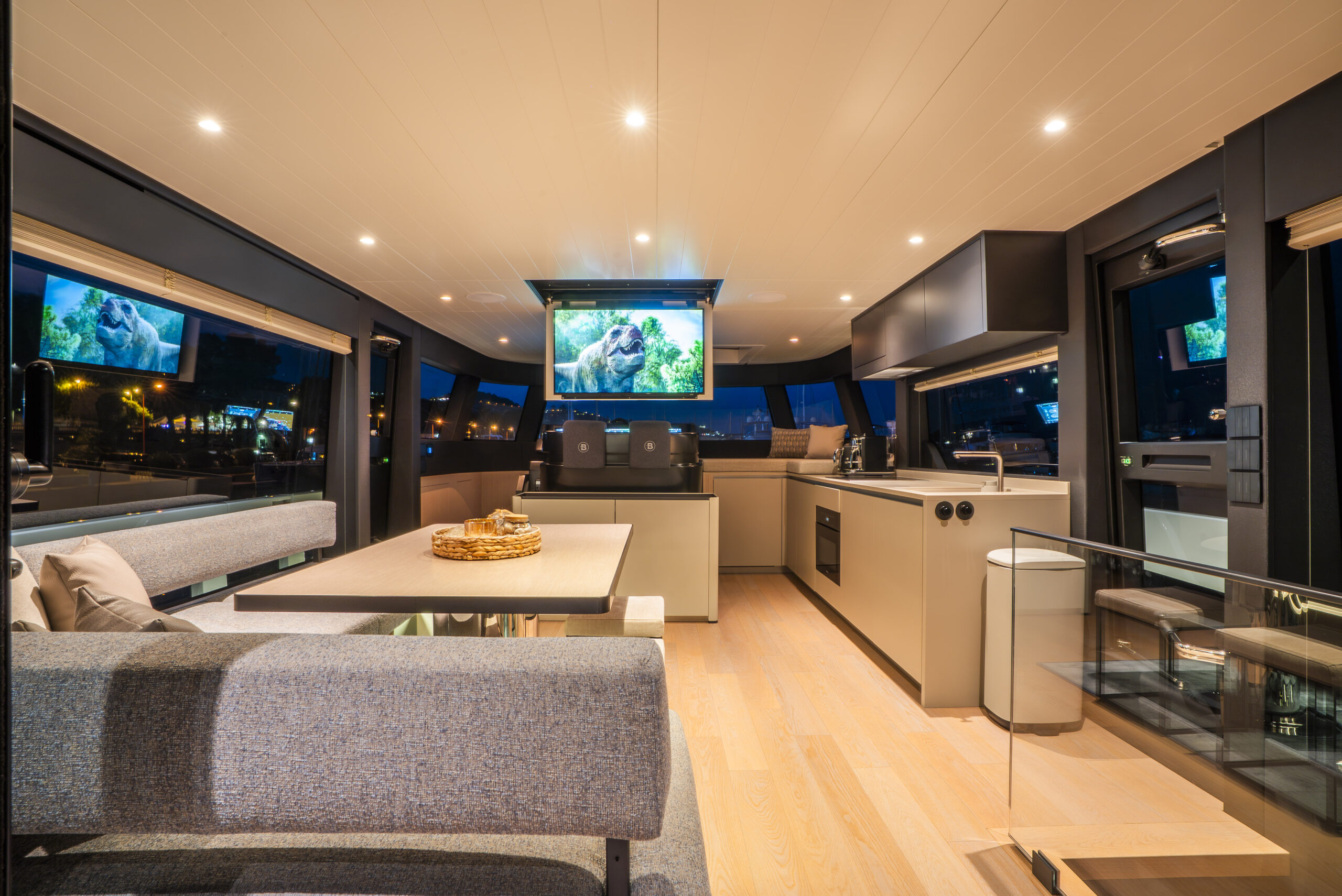

Ceiling TV movement in UD salon (including 42″ TV)
Bow sunlounge bimini with carbon poles
Stern sunlounge bimini with carbon poles
External drawer fridge (n.2)
Washing machine and separate dryer BOSCH (diff. From STD Bosch combo)
Galley cooking top, hood, combi-oven and dishwasher MIELE (diff. From Bosch STD)
Wc and integrated bidet in owner’s bathroom (instead of wc + bidet)
Interior electric socket (n6)
Exterior electric socket (n3)
Removable carbon side ladder

CUSTOM
Humphree interceptors
Upgraded dimensions humphree interceptors/intruders
Backrest removable
All curtains blackout
Upgraded electric curtains in master bedroom
Side gates on port side and starboard side
TV and bench repositioned in saloon lower deck (bench at cabin wall)
No garbage bin in kitchen, instead a shelf
Freezer repositioned next to the helm station in the kitchen
Gas springs on all hatches in best possible quality
Supply and installation of Oven combined microwave Miele without handle
Supply and installation full size dishwasher MIELE
Third maneuvering station
Stern thruster
Cabinet instead of 2 armchairs in LD saloon
Fridge in LD saloon
N.2 extra cleats near end deckhouse
Iddrofast 900 water softner inside and outside
All faucets in bathroom must be longer
Upgraded quality of mattresses
Mirror TV in owners cabin
Full height closets in master cabin
Wetbar with fridge sink and storage
Mosquito nets for all portholes including crew cabin portholes
Predisposition for Sat Antenna
N.3 towel heaters in all bathrooms (white)
Modification of the cover of the external cushions in the bow area as follow: – Make it possible to insert the freestanding backrests – Create openings to be able to remove the liferafts without having to remove the cover
Extend the UD sofa backrest to the end of the seat
Carbon shower in beach area
A faucet in the kitchen that can be removed and used as a shower
Provide ventilation and blowers/fans in the battery compartment
Increased insulation in the engine room
Propspeed on IPS instead of antifouling STD
Drawers under the sofa UD longitudinal direction
Drawers under the sofa UD transversal direction
Possibility to cover the safety buttons of the pantograph doors with a plexiglass panel

Predisposition for starboard – side / port – side carbon ladder
Replace all standard USB sockets with USB-C one
Upgrade audio system with the addition of: n.1 subwoofer in external cockpit, n.1 subwoofer at the bow, n.2 speakers at the bow
Installation of one hanger on the left of the Bathroom’s door
Installation of 2 hangers inside the door of the WC
Supply and installation of a shelf inside the storage in the corner
Door between the owner’s cabin and the third cabin
Right Pantograph door
Escape hatch in VIP cabin
Supply and installation Kabola system
Systems monitoring app (Tocaro Blue)
Supply and installation Twin generators Whisper Power Piccolo 15 instead the STD. Modification and adaptation to the electrical system included
Additional sump box for collecting boiler condensation
Manual foldable mast
Modification of the LD salon bulkhead as per proposal 2
Cover the VIP longitudinal bathroom bulkhead with Rimmex
N.4 additional gel service batteries
Additional Subwoofer
Cover for the wetbar
Cover for the bow teak shelf

SOFT DÉCOR
Sofa Living Divani “Rod System” fabric Talent Z&R 891 + body leather: Florence 008
Decorative cushions N°3 fabric Stone col 5 (40X40 cm) + N°3 fabric stone col 5 (60x40cm)
Carpet Minotti Dibbes Rhainbow (200x240cm)
Smoke tables: fat fat B&B Italia D66 cm in leather Florence Living Divani col70 + fat fat B&B Italia D86cm in fabric Maxalto Bormio Col.2531830
Decorative lamps: N°2 Atollo lamp Oluce Col. Bronze D38 cm
Venetian blinds Stellars Col.sand in LD Saloon and UD Saloon
Moquette Supertuft Satara Mackerel
Decorative cushions: N°6 Fabric Z&R Hodsoll McKenzie Tikopia 21274 687 (60×40 cm) + N°6 fabric Living Divani Panama 17 (40X40 cm)
Curtains Stan Z&R 882
CREDIT: not supplying bed spreads (customer supply)
Stool : Nina Living Divani, fabric: Panama 17
SOFA FABRIC ZIMMER&ROHDE TALENT 585
COFFEE TABLE D 60 H 35 LIVING DIVANI ERA BASE: COL. BURNISHED GREY / TOP: 7039 LACQUERED 100 GLOSS
Supply and installation of the lamp FLOS IC Lights High, Brass Aluminum
Fabric sofa Fabric Zimmer&Rohde Talent 585
N°3 Stool Meridiani “Hardy” dim. 35x35x48H (Fabric: Antigua 01)
Decorative cushions: N°3 Leather Living Divani Florence 00\8 (40x40cm) + N°2 Fabric Living Divani Panama col. 31 (50×50 cm)
Curtains Z&R Slope 896
Carpet: Supertuft Satara col. Mackerel
Exterior upholstery Arredamento Lombardo, WAVE 1 23 B
Decorative cushions N°4 x Perrenials On teh grid col. Blue boy (40x40cm)
Decorative cushions N°4 x Z&R Levante 984 (40x40cm) + 4 x Z&R Tonga 982 (50X30cm)
